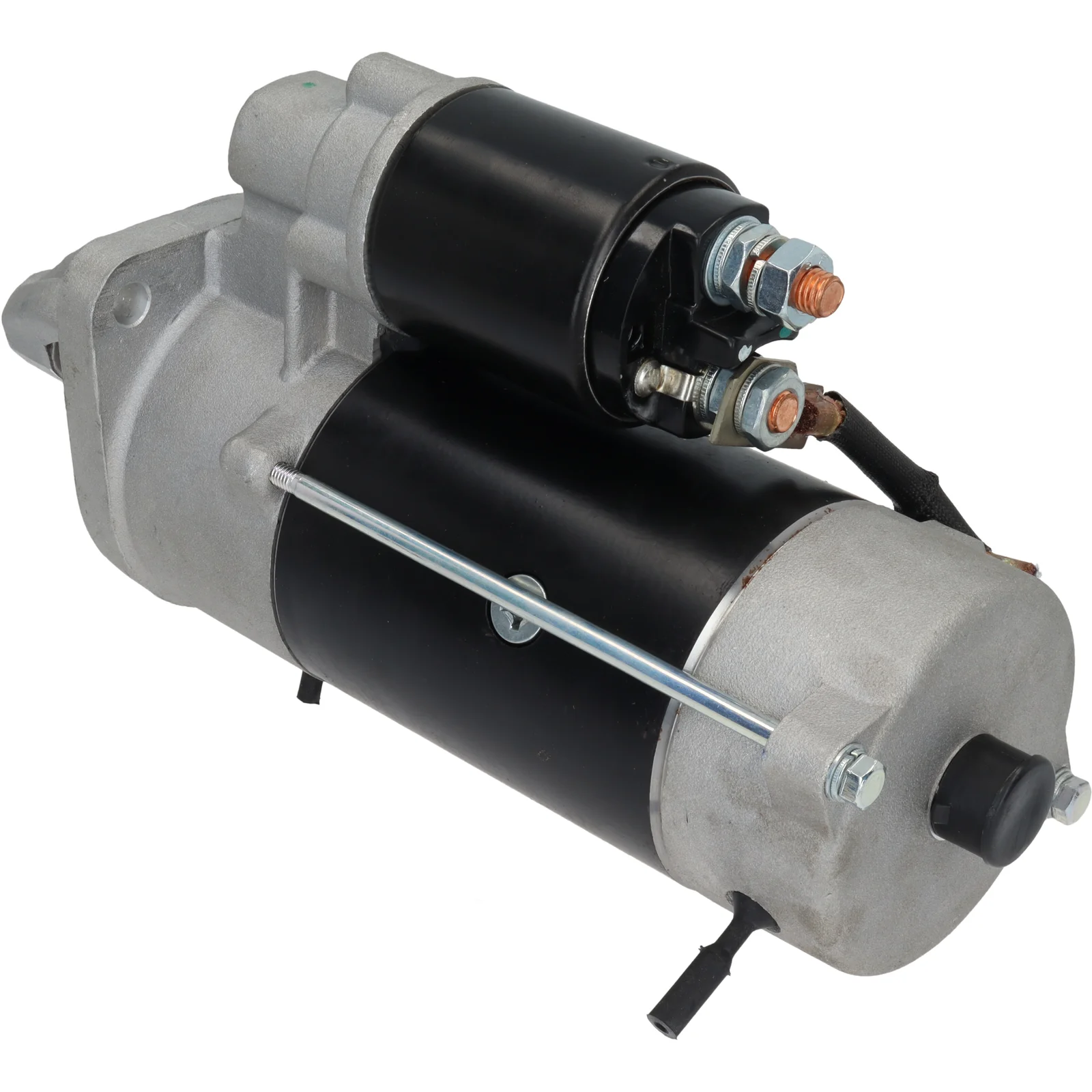

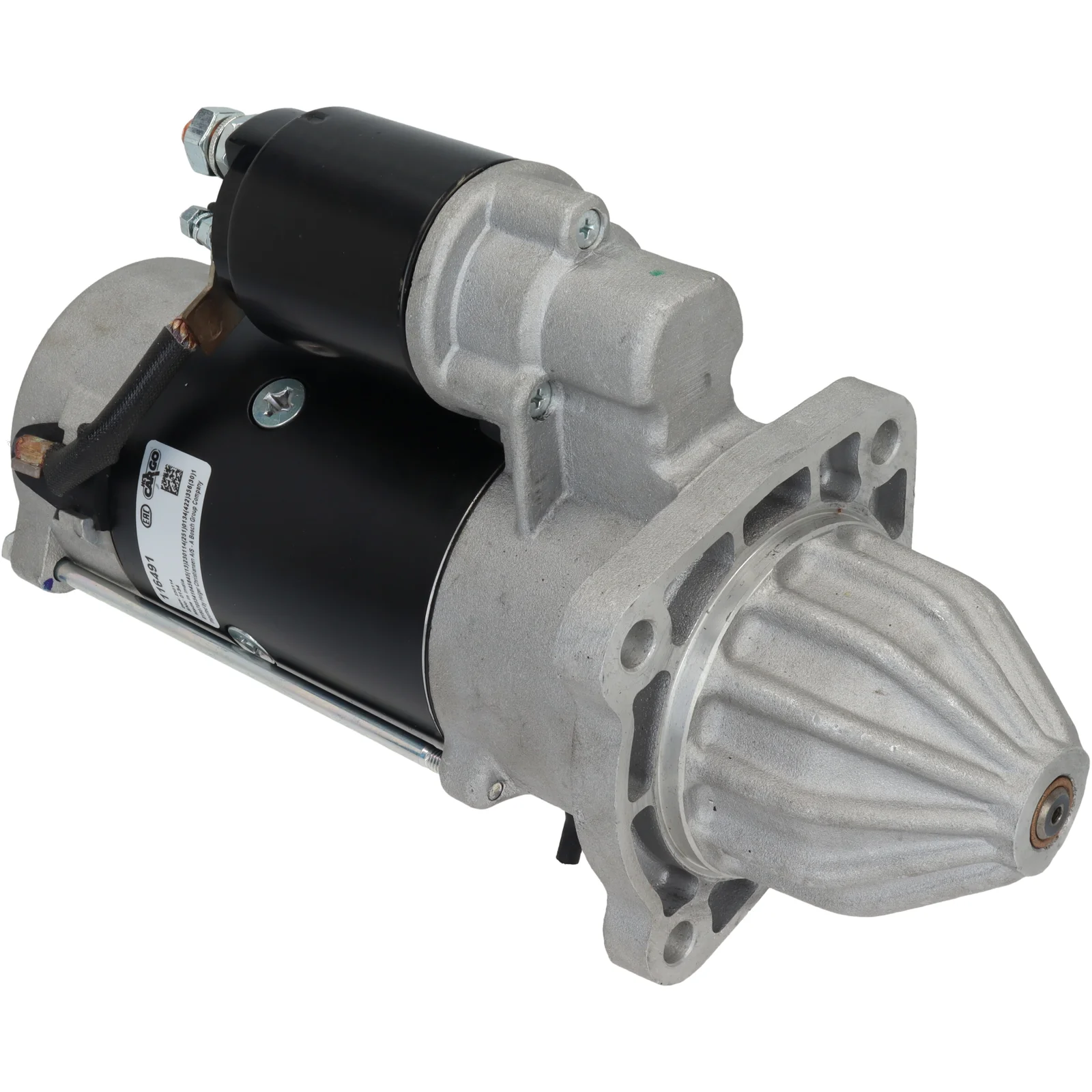

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116491

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 4.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 4.0
Mount. flange: 89.00
Drive dist.: 28.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 246.00
Dist./front: 76.00
No./teeth: 9
B+: M10
Position/B+: 60
Position/50: 15
Terminal 50: M5
Gear type: GR
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 322.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 15
Position/B+ 60
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 246.00
Dist./front 76.00
Drive dist. 28.00
Gear type GR
kW 4.0
Terminal 50 M5
Voltage 12
Total length 322.00 mm
Dist. 127.00 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    AZF4302, AZF4371, F032116491, 11.132.114, 11.132.365, 04125370, 4125370

  • Konkurrentreferens
    CST21198, is1366, MS651, S9432S, 720.501.093

  • Normaliserat artikelnummer
    azf4302, azf4371, cst21198, f032116491, is1366, ms651, s9432s, 04125370, 4125370, 11132114, 11132365, 720501093

  • Passar modeller
    KHD Model series: Excavators Model type: MLT 735-120 Size of motor: 3.6 Type description: L4 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 4.0
    Mount. flange: 89.00
    Drive dist.: 28.00
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 246.00
    Dist./front: 76.00
    No./teeth: 9
    B+: M10
    Position/B+: 60
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 322.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 15
    Position/B+ 60
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 246.00
    Dist./front 76.00
    Drive dist. 28.00
    Gear type GR
    kW 4.0
    Terminal 50 M5
    Voltage 12
    Total length 322.00 mm
    Dist. 127.00 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      AZF4302, AZF4371, F032116491, 11.132.114, 11.132.365, 04125370, 4125370

    • Konkurrentreferens
      CST21198, is1366, MS651, S9432S, 720.501.093

    • Normaliserat artikelnummer
      azf4302, azf4371, cst21198, f032116491, is1366, ms651, s9432s, 04125370, 4125370, 11132114, 11132365, 720501093

    • Passar modeller
      KHD Model series: Excavators Model type: MLT 735-120 Size of motor: 3.6 Type description: L4 Approved: Yes
