HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116470

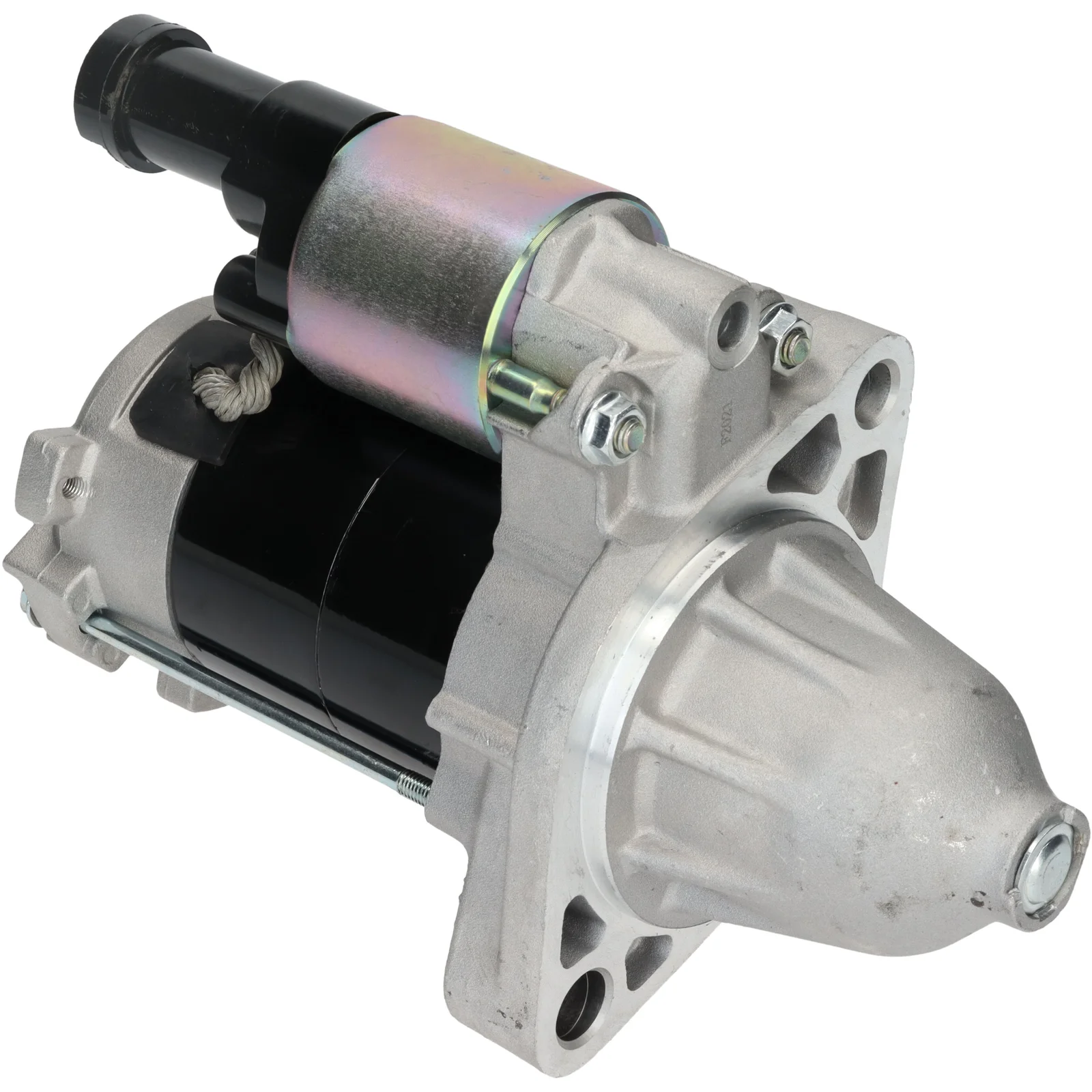

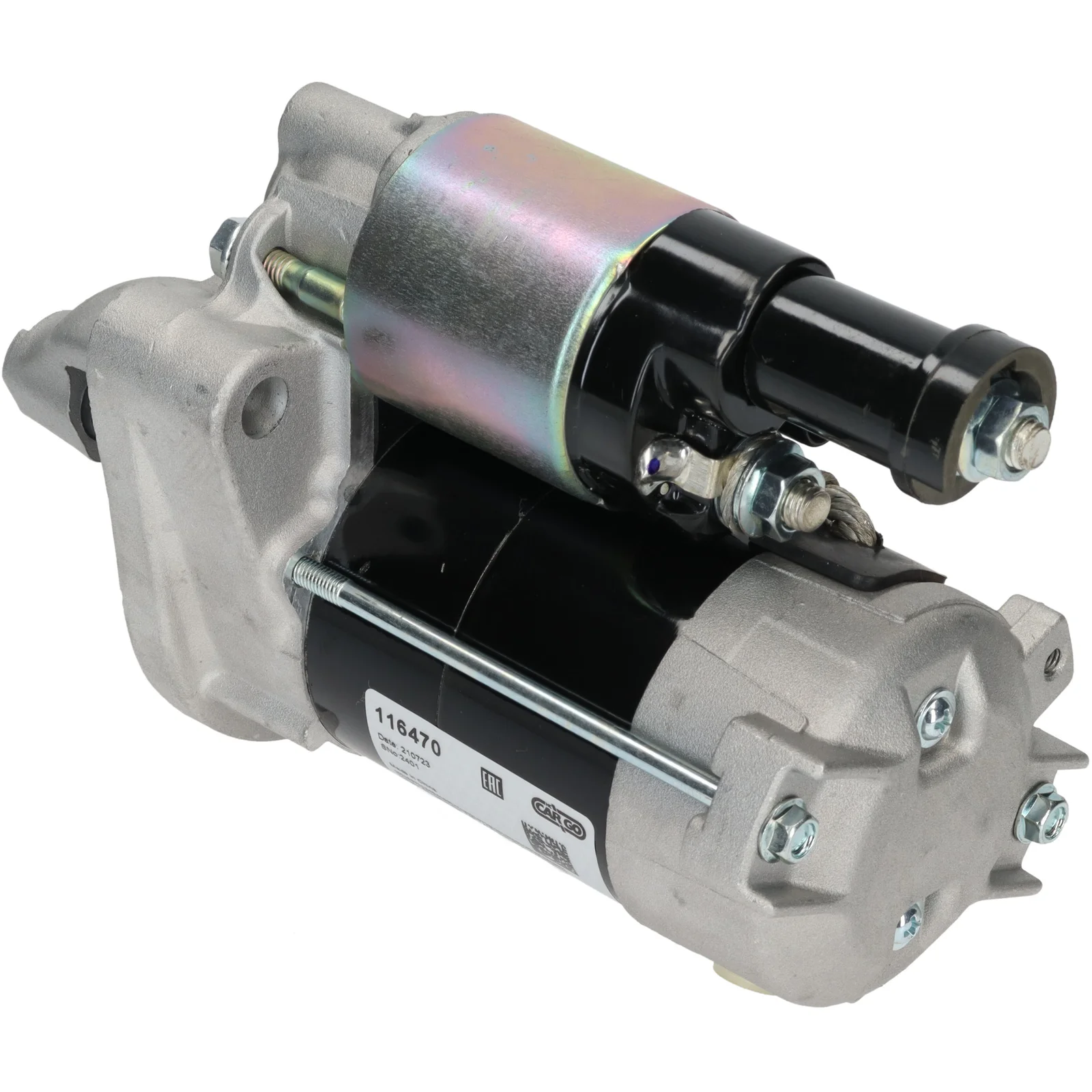

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.0
Mount. flange: 75.00
Drive dist.: 33.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 10.50
Dist./back: 149.00
Dist./front: 68.00
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 20
Terminal 50: Plug
Gear type: GR
Dist. mm: 115.50
Rotation: CW
Total length mm: 217.00
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 75.00
No./mount. holes 2 (0)
Position/50 20
Position/B+ 60
Rotation CW
Dist./back 149.00
Dist./front 68.00
Drive dist. 33.00
Gear type GR
kW 1.0
Terminal 50 Plug
Voltage 12
Total length 217.00 mm
Dist. 115.50 mm
Mount. hole 2 13.00 mm
Mount. hole 1 10.50 mm

  • OEM
    DSKE7, F032116470, SM612-06, 31200-PPA-505, 31200-PRB-A01, 31200-RAD-003, 31200-RBA-003, 428000-0010, 428000-0280, 428000-1350, 428000-1360, 428000-3280

  • Konkurrentreferens
    CST40313, CST40424, CST40431, CST40445, DRS0453, DRS0622, DSN1406, F042200501, J5214043, lrs01718, LRS02479, S6192, 25-3274, 25-4151, 120.537.092, 120.565.092, 120.576.092, 125.537.092, 322.037.092, 322.060.092, 17886N, 30429N, 107103, 107245, 11040777, 11040831, 11040862

  • Normaliserat artikelnummer
    cst40313, cst40424, cst40431, cst40445, drs0453, drs0622, dske7, dsn1406, f032116470, f042200501, j5214043, lrs01718, lrs02479, s6192, sm61206, 17886n, 30429n, 31200ppa505, 31200prba01, 31200rad003, 31200rba003, 107103, 107245, 253274, 254151, 11040777, 11040831, 11040862, 120537092, 120565092, 120576092, 125537092, 322037092, 322060092, 4280000010, 4280000280, 4280001350, 4280001360, 4280003280

  • Passar modeller
    Honda Model: Accord Model series: Accord Model type: 4WD Size of motor: 2.0 Brand of engine: K20A6 Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: K20A6 Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: K20A6 Type description: CM_ Body: Estate From date: 01-04-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes Manufacture type: TOURER
  • Beskrivning
    Voltage: 12
    kW: 1.0
    Mount. flange: 75.00
    Drive dist.: 33.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 10.50
    Dist./back: 149.00
    Dist./front: 68.00
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 20
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 115.50
    Rotation: CW
    Total length mm: 217.00
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 75.00
    No./mount. holes 2 (0)
    Position/50 20
    Position/B+ 60
    Rotation CW
    Dist./back 149.00
    Dist./front 68.00
    Drive dist. 33.00
    Gear type GR
    kW 1.0
    Terminal 50 Plug
    Voltage 12
    Total length 217.00 mm
    Dist. 115.50 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      DSKE7, F032116470, SM612-06, 31200-PPA-505, 31200-PRB-A01, 31200-RAD-003, 31200-RBA-003, 428000-0010, 428000-0280, 428000-1350, 428000-1360, 428000-3280

    • Konkurrentreferens
      CST40313, CST40424, CST40431, CST40445, DRS0453, DRS0622, DSN1406, F042200501, J5214043, lrs01718, LRS02479, S6192, 25-3274, 25-4151, 120.537.092, 120.565.092, 120.576.092, 125.537.092, 322.037.092, 322.060.092, 17886N, 30429N, 107103, 107245, 11040777, 11040831, 11040862

    • Normaliserat artikelnummer
      cst40313, cst40424, cst40431, cst40445, drs0453, drs0622, dske7, dsn1406, f032116470, f042200501, j5214043, lrs01718, lrs02479, s6192, sm61206, 17886n, 30429n, 31200ppa505, 31200prba01, 31200rad003, 31200rba003, 107103, 107245, 253274, 254151, 11040777, 11040831, 11040862, 120537092, 120565092, 120576092, 125537092, 322037092, 322060092, 4280000010, 4280000280, 4280001350, 4280001360, 4280003280

    • Passar modeller
      Honda Model: Accord Model series: Accord Model type: 4WD Size of motor: 2.0 Brand of engine: K20A6 Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: K20A6 Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: K20A6 Type description: CM_ Body: Estate From date: 01-04-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes Manufacture type: TOURER
