HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112323

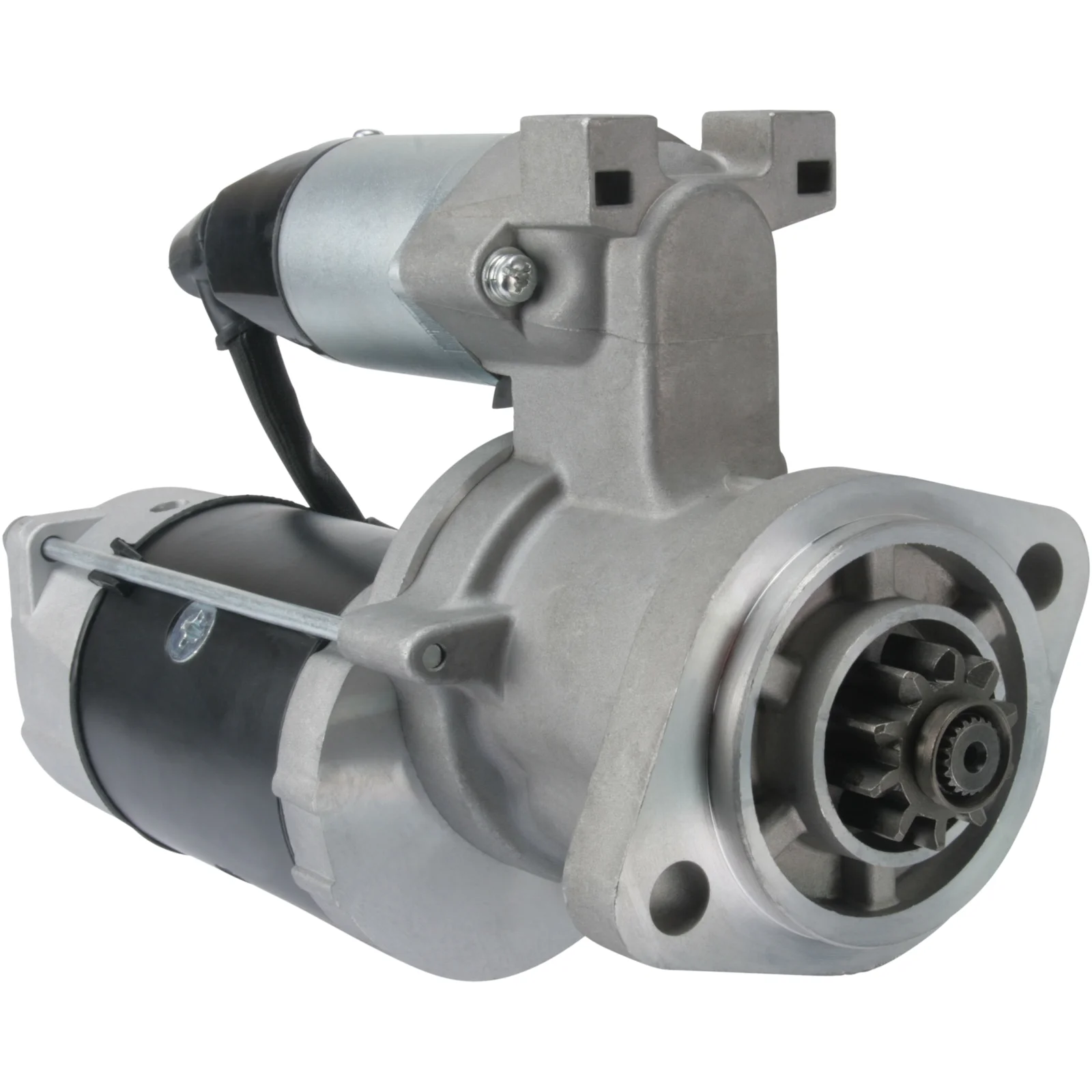

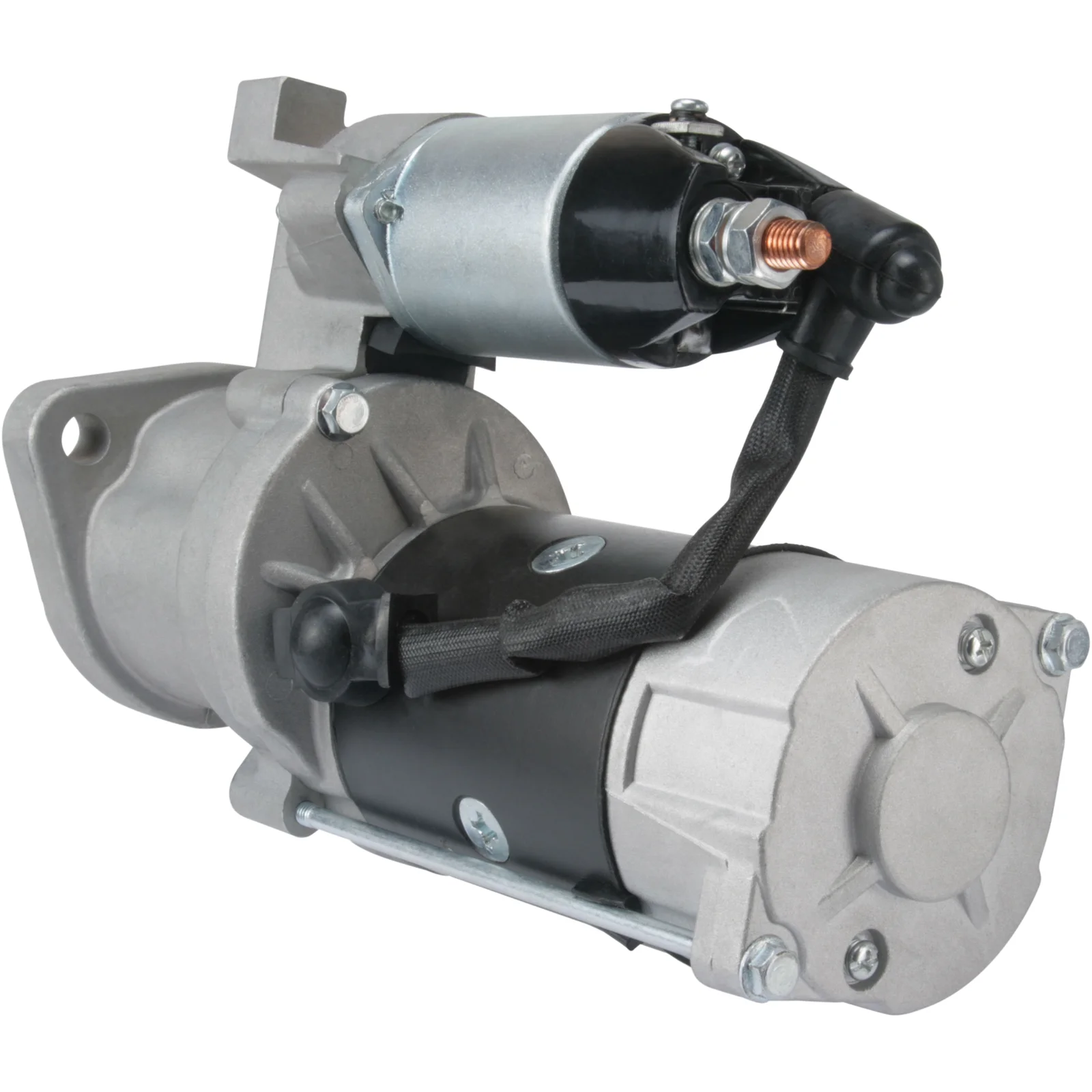

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 5.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 5.0
Mount. flange: 82.00
Drive dist.: 23.00
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 258.50
Dist./front: 32.50
No./teeth: 10
B+: M10
Position/50: 15
Terminal 50: M5
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 292.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 82.00
Oil sealed Yes
No./mount. holes 2 (0)
Position/50 15
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 258.50
Dist./front 32.50
Drive dist. 23.00
Drive type Steel
Gear type GR
kW 5.0
Terminal 50 M5
Voltage 24
Total length 292.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032112323, M003T56174, M003T56181, M003T56182, M003T56183, m3t56172, m3t56174, m3t56181, m3t56182, m3t56183, 34766-10903, 34766-20900

  • Konkurrentreferens
    CST35602, DRS0425, DRS4161, LRS01889, LRS01928, S5196, sm-00232r, STR28015, 2-2087-mi, 2-2087-MI-1, 45-2090, 45-2445, 91-27-3205, 626.018.104, 18239, 18239N, 11040347

  • Normaliserat artikelnummer
    cst35602, drs0425, drs4161, f032112323, lrs01889, lrs01928, m003t56174, m003t56181, m003t56182, m003t56183, m3t56172, m3t56174, m3t56181, m3t56182, m3t56183, s5196, sm00232r, str28015, 18239, 18239n, 22087mi, 22087mi1, 452090, 452445, 11040347, 91273205, 626018104, 3476610903, 3476620900

  • Passar modeller
    Caterpillar Model: Excavator Model series: Various Models From date: 01-01-1983 Approved: Yes
    Mitsubishi Model: FD Model series: FD20 From date: 01-01-1983 Approved: Yes
    Mitsubishi Model: FD Model series: FD25 From date: 01-01-1983 To date: 01-01-1991 Approved: Yes
    Mitsubishi Model: FD Model series: FD30 From date: 01-01-1983 Approved: Yes
    Mitsubishi Model: FD Model series: FD35 Approved: Yes
    Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 24
    kW: 5.0
    Mount. flange: 82.00
    Drive dist.: 23.00
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 258.50
    Dist./front: 32.50
    No./teeth: 10
    B+: M10
    Position/50: 15
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 292.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 82.00
    Oil sealed Yes
    No./mount. holes 2 (0)
    Position/50 15
    Clutch type Dry
    Prod. info BN
    Rotation CW
    Dist./back 258.50
    Dist./front 32.50
    Drive dist. 23.00
    Drive type Steel
    Gear type GR
    kW 5.0
    Terminal 50 M5
    Voltage 24
    Total length 292.00 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      F032112323, M003T56174, M003T56181, M003T56182, M003T56183, m3t56172, m3t56174, m3t56181, m3t56182, m3t56183, 34766-10903, 34766-20900

    • Konkurrentreferens
      CST35602, DRS0425, DRS4161, LRS01889, LRS01928, S5196, sm-00232r, STR28015, 2-2087-mi, 2-2087-MI-1, 45-2090, 45-2445, 91-27-3205, 626.018.104, 18239, 18239N, 11040347

    • Normaliserat artikelnummer
      cst35602, drs0425, drs4161, f032112323, lrs01889, lrs01928, m003t56174, m003t56181, m003t56182, m003t56183, m3t56172, m3t56174, m3t56181, m3t56182, m3t56183, s5196, sm00232r, str28015, 18239, 18239n, 22087mi, 22087mi1, 452090, 452445, 11040347, 91273205, 626018104, 3476610903, 3476620900

    • Passar modeller
      Caterpillar Model: Excavator Model series: Various Models From date: 01-01-1983 Approved: Yes
      Mitsubishi Model: FD Model series: FD20 From date: 01-01-1983 Approved: Yes
      Mitsubishi Model: FD Model series: FD25 From date: 01-01-1983 To date: 01-01-1991 Approved: Yes
      Mitsubishi Model: FD Model series: FD30 From date: 01-01-1983 Approved: Yes
      Mitsubishi Model: FD Model series: FD35 Approved: Yes
      Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
      1 / 2
