Artikelnr: F032112185

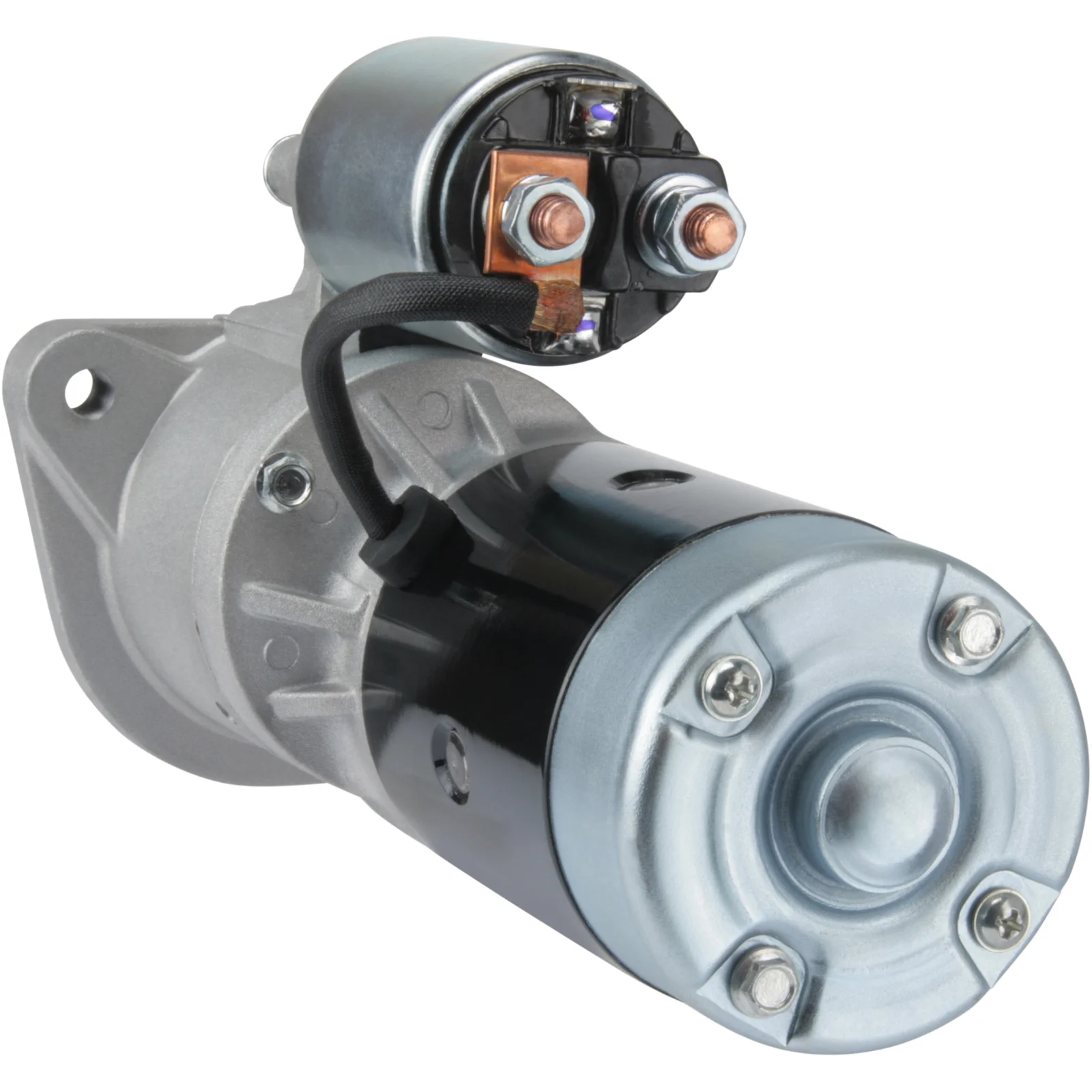

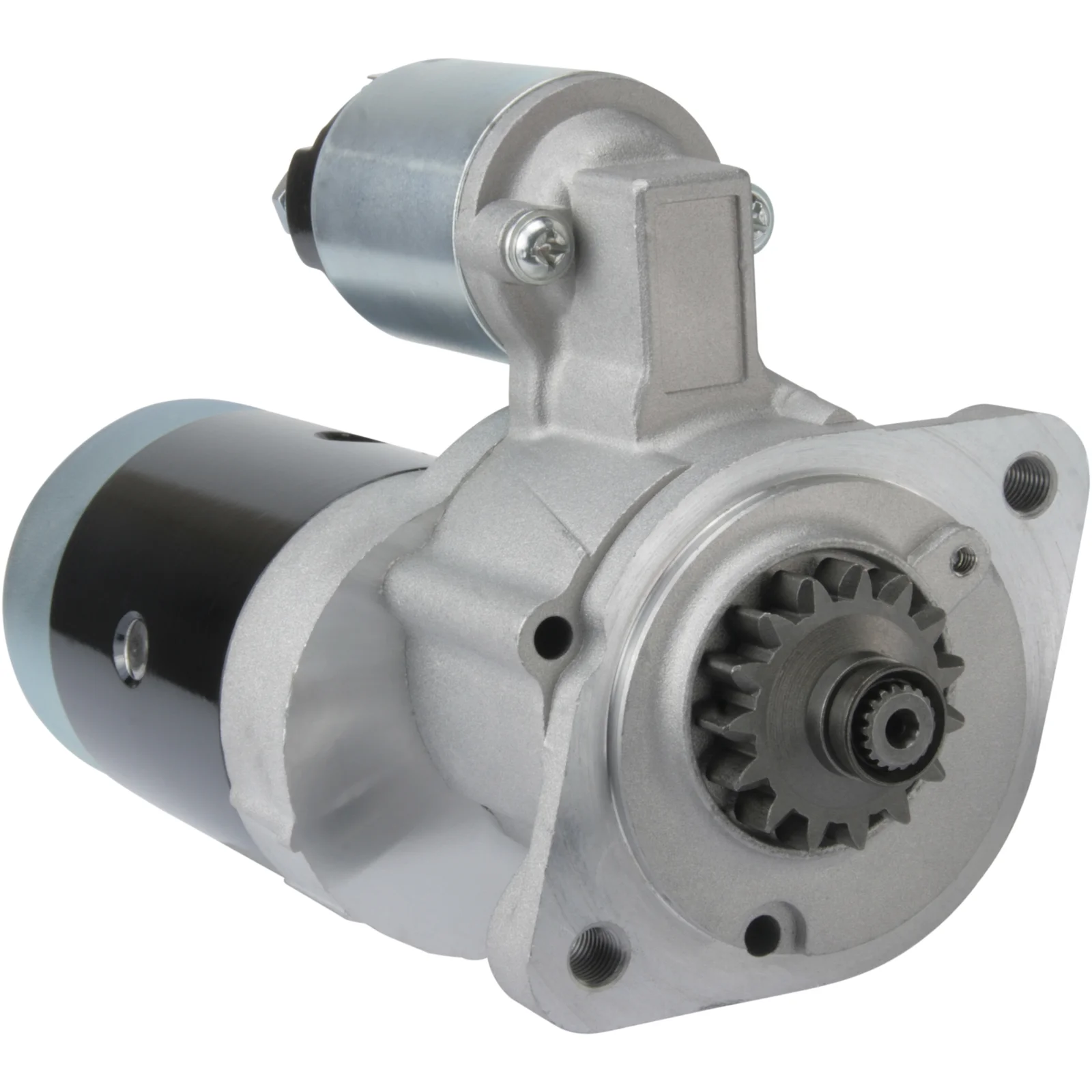

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 15, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.2
Mount. flange: 77.00
Drive dist.: 18.00
Dist./back: 183.00
Dist./front: 32.00
No./teeth: 15
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 220.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Specifikation

B+ M8
No./teeth 15
Mount. flange 77.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 60
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 183.00
Dist./front 32.00
Drive dist. 18.00
Drive type Steel
Gear type GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 220.00 mm
Waterproof No
Dist. 105.00 mm
  • OEM

    F032112185, M002T53681, m2t53681
  • Konkurrentreferens

    LRS02627, S5431S, 25-4300, 17097N
  • Normaliserat artikelnummer

    f032112185, lrs02627, m002t53681, m2t53681, s5431s, 17097n, 254300
  • Passar modeller

    LDV Model: Sherpa Model series: Sherpa Type of engine: Diesel Size of motor: 2.6 Brand of engine: K25D Body: Bus From date: 01-01-1983 To date: 01-09-1988 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
    Pel Job Model: EB Model series: EB150 Brand of engine: Mitsubishi Approved: Yes
    Pel Job Model: ED Model series: ED.. Brand of engine: Mitsubishi Approved: Yes
    Vetus Model: M2 Model series: M2.06 Brand of engine: Mitsubishi Approved: Yes
    Vetus Model: M2 Model series: M2.C5 Brand of engine: Mitsubishi Approved: Yes
    Vetus Model: M2 Model series: M2.D5 Brand of engine: Mitsubishi Approved: Yes
    Vetus Model: M3 Model series: M3.09 Brand of engine: Mitsubishi Approved: Yes
