Artikelnr: F032112178

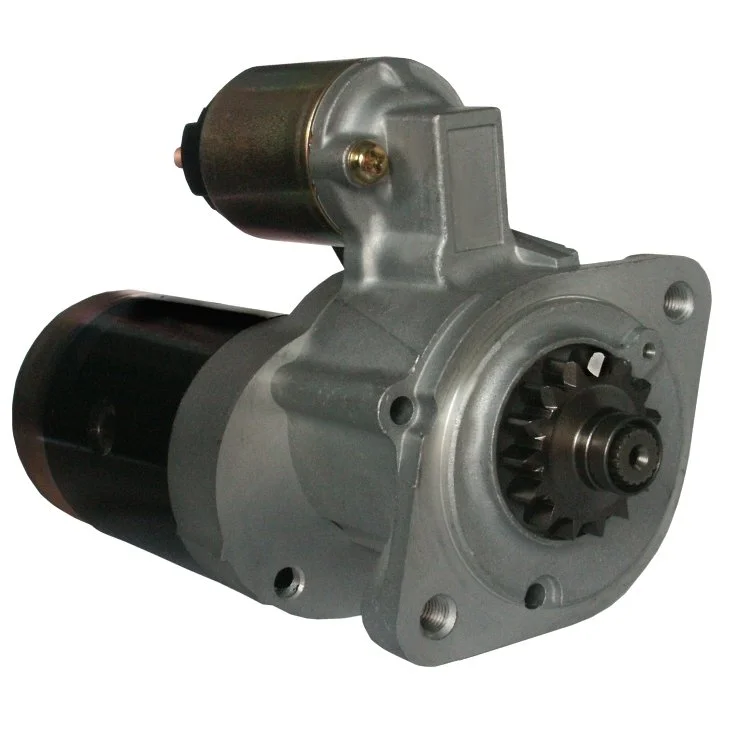

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.6, No./teeth: 15, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.6
Mount. flange: 77.00
Drive dist.: 17.00
Dist./back: 192.50
Dist./front: 32.00
No./teeth: 15
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: DD/GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 228.50
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 15
Mount. flange 77.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 60
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 192.50
Dist./front 32.00
Drive dist. 17.00
Drive type Steel
Gear type DD/GR
kW 1.6
Terminal 50 6.30
Voltage 12
Total length 228.50 mm
Waterproof No
Dist. 105.00 mm

  • OEM
    F032112178, M002T50271, M002T50281, M002T50285, m2t50271, m2t50281, m2t50285, 015125-53001e, 317600

  • Konkurrentreferens
    CST35154, DRS3283, DRS3936, DRS3936N, LRS01145, lrs01544, S5414S, S5431S, STR28006, 25-1109, 150.908.152, 626.009.152, 8844, 17097, 17097N, 254184, 11040685

  • Normaliserat artikelnummer
    cst35154, drs3283, drs3936, drs3936n, f032112178, lrs01145, lrs01544, m002t50271, m002t50281, m002t50285, m2t50271, m2t50281, m2t50285, s5414s, s5431s, str28006, 8844, 17097, 17097n, 251109, 254184, 317600, 11040685, 150908152, 626009152, 01512553001e

  • Passar modeller
    Komatsu Model: Various Models Model series: Various Models From date: 01-01-1988 Approved: Yes
    Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
    Pel Job Model: EB Model series: EB150 Brand of engine: Mitsubishi Approved: Yes
    Pel Job Model: ED Model series: ED.. Brand of engine: Mitsubishi Approved: Yes
    Toro Model: Groundsmaster Model series: 220D Brand of engine: Mitsubishi From date: 01-01-1988 Fuel: Diesel Approved: Yes
    Toro Model: Groundsmaster Model series: 223D Brand of engine: Mitsubishi From date: 01-01-1992 Fuel: Diesel Approved: Yes
    Toro Model: Groundsmaster Model series: 224 Brand of engine: Mitsubishi From date: 01-01-1989 Fuel: Diesel Approved: Yes
    Toro Model: Reelmaster Model series: 223D Brand of engine: Mitsubishi Fuel: Diesel Approved: Yes
    Toro Model: Reelmaster Model series: 5100D Brand of engine: Mitsubishi Approved: Yes
    Vetus Model: M2 Model series: M2.06 Brand of engine: Mitsubishi Approved: Yes
    Vetus Model: M2 Model series: M2.C5 Brand of engine: Mitsubishi Approved: Yes
    Vetus Model: M2 Model series: M2.D5 Brand of engine: Mitsubishi Approved: Yes
    Vetus Model: M3 Model series: M3.09 Brand of engine: Mitsubishi Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 1.6
    Mount. flange: 77.00
    Drive dist.: 17.00
    Dist./back: 192.50
    Dist./front: 32.00
    No./teeth: 15
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Gear type: DD/GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 228.50
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 15
    Mount. flange 77.00
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 60
    Clutch type Dry
    Prod. info BN
    Rotation CW
    Dist./back 192.50
    Dist./front 32.00
    Drive dist. 17.00
    Drive type Steel
    Gear type DD/GR
    kW 1.6
    Terminal 50 6.30
    Voltage 12
    Total length 228.50 mm
    Waterproof No
    Dist. 105.00 mm
  • Fordonsmatchning

    • OEM
      F032112178, M002T50271, M002T50281, M002T50285, m2t50271, m2t50281, m2t50285, 015125-53001e, 317600

    • Konkurrentreferens
      CST35154, DRS3283, DRS3936, DRS3936N, LRS01145, lrs01544, S5414S, S5431S, STR28006, 25-1109, 150.908.152, 626.009.152, 8844, 17097, 17097N, 254184, 11040685

    • Normaliserat artikelnummer
      cst35154, drs3283, drs3936, drs3936n, f032112178, lrs01145, lrs01544, m002t50271, m002t50281, m002t50285, m2t50271, m2t50281, m2t50285, s5414s, s5431s, str28006, 8844, 17097, 17097n, 251109, 254184, 317600, 11040685, 150908152, 626009152, 01512553001e

    • Passar modeller
      Komatsu Model: Various Models Model series: Various Models From date: 01-01-1988 Approved: Yes
      Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
      Pel Job Model: EB Model series: EB150 Brand of engine: Mitsubishi Approved: Yes
      Pel Job Model: ED Model series: ED.. Brand of engine: Mitsubishi Approved: Yes
      Toro Model: Groundsmaster Model series: 220D Brand of engine: Mitsubishi From date: 01-01-1988 Fuel: Diesel Approved: Yes
      Toro Model: Groundsmaster Model series: 223D Brand of engine: Mitsubishi From date: 01-01-1992 Fuel: Diesel Approved: Yes
      Toro Model: Groundsmaster Model series: 224 Brand of engine: Mitsubishi From date: 01-01-1989 Fuel: Diesel Approved: Yes
      Toro Model: Reelmaster Model series: 223D Brand of engine: Mitsubishi Fuel: Diesel Approved: Yes
      Toro Model: Reelmaster Model series: 5100D Brand of engine: Mitsubishi Approved: Yes
      Vetus Model: M2 Model series: M2.06 Brand of engine: Mitsubishi Approved: Yes
      Vetus Model: M2 Model series: M2.C5 Brand of engine: Mitsubishi Approved: Yes
      Vetus Model: M2 Model series: M2.D5 Brand of engine: Mitsubishi Approved: Yes
      Vetus Model: M3 Model series: M3.09 Brand of engine: Mitsubishi Approved: Yes
