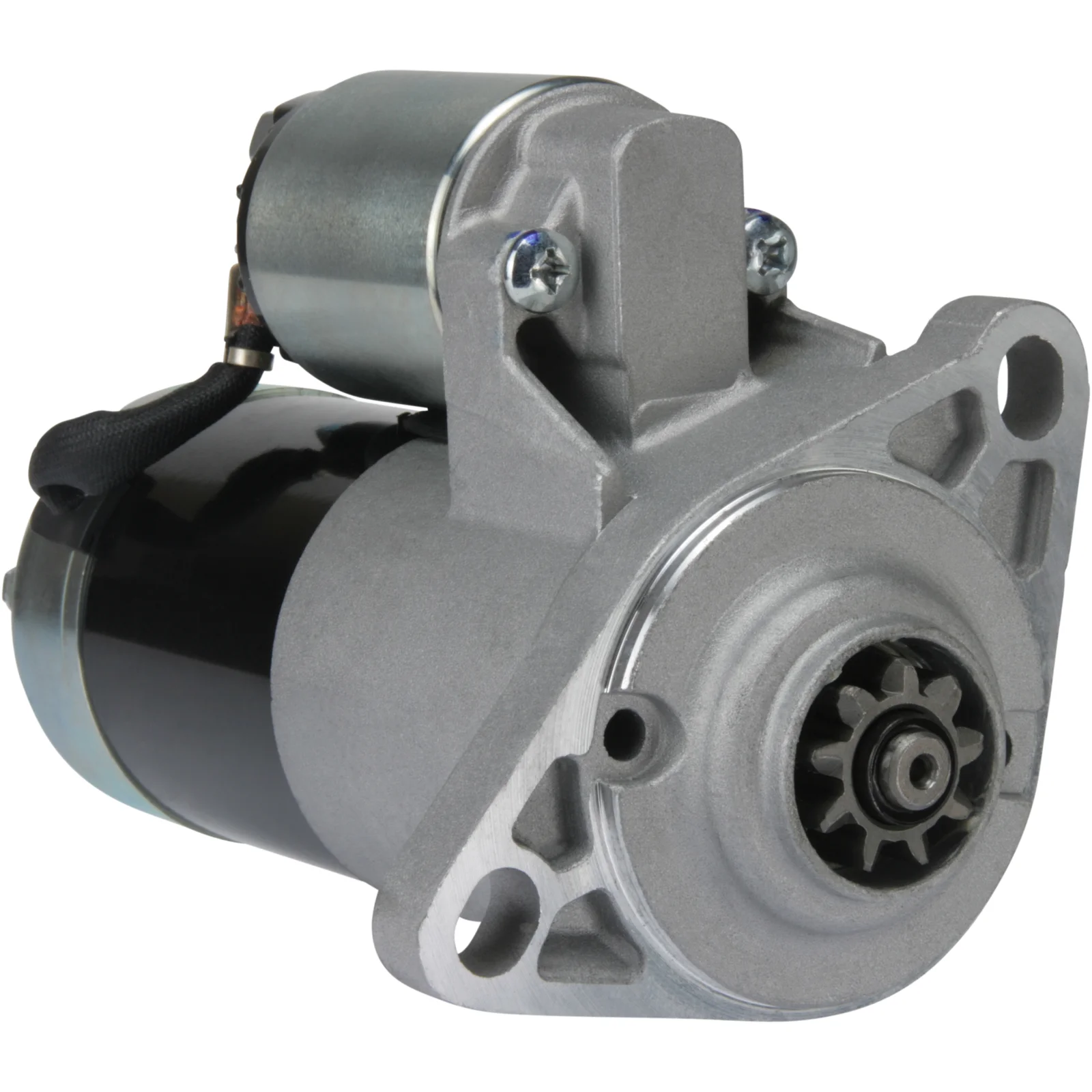

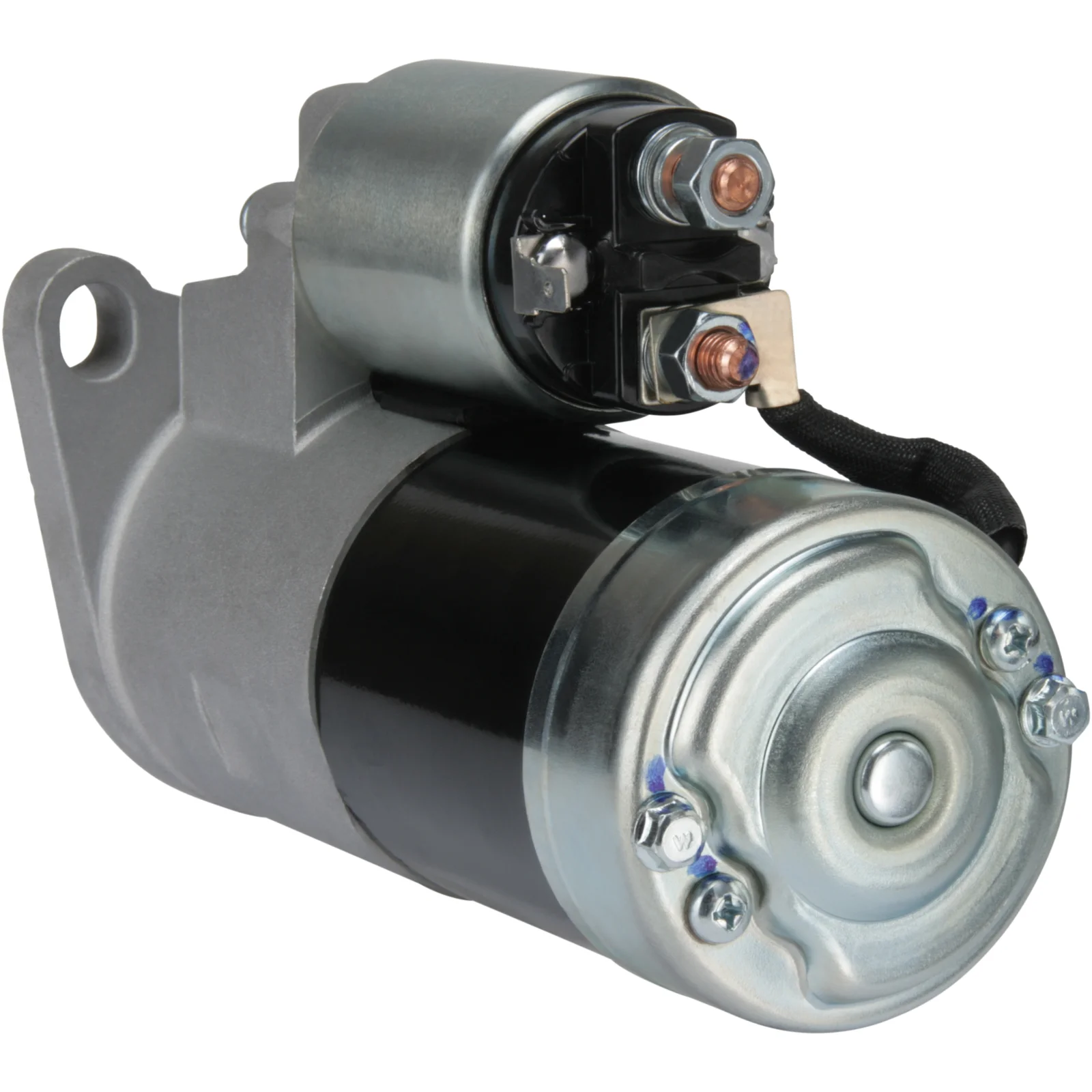

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112177

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.7, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.7
Mount. flange: 74.00
Drive dist.: 20.00
Mount. hole 2 mm: 11.50
Mount. hole 1 mm: 11.50
Dist./back: 188.50
Dist./front: 25.00
No./teeth: 9
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 109.50
Rotation: CW
Total length mm: 213.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 188.50
Dist./front 25.00
Drive dist. 20.00
Drive type Steel
Gear type GR
kW 1.7
Terminal 50 6.30
Voltage 12
Total length 213.00 mm
Waterproof No
Dist. 109.50 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032112177, M001T66081, M002T58971, m1t66081, M2T58971, sba185086551, sba185086650

  • Konkurrentreferens
    CST35189, DRS0202, LRS02424, S5111, 2-2569-MI, 25-4096, 668.028.092, 18395, 18395N

  • Normaliserat artikelnummer
    cst35189, drs0202, f032112177, lrs02424, m001t66081, m002t58971, m1t66081, m2t58971, s5111, sba185086551, sba185086650, 18395, 18395n, 22569mi, 254096, 668028092

  • Passar modeller
    Ford Model: 1000 Series Model series: 1320 Brand of engine: 3-77 From date: 01-01-1987 Fuel: Diesel Approved: Yes
    Ford Model: 1000 Series Model series: 1520 Brand of engine: 3-81 From date: 01-01-1987 Fuel: Diesel Approved: Yes
    Ford Model: 1000 Series Model series: 1530 Brand of engine: 3-81 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Ford Model: 1000 Series Model series: 1620 Brand of engine: 3-81 From date: 01-01-1991 Fuel: Diesel Approved: Yes
    Ford Model: 1000 Series Model series: 1630 Brand of engine: 3-81 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Ford Model: 1000 Series Model series: 1710 Approved: Yes
    Ford Model: 1000 Series Model series: 1715 Brand of engine: 3-81 From date: 01-01-1993 Fuel: Diesel Approved: Yes
    Ford Model: 1000 Series Model series: 1720 Brand of engine: 3-91 From date: 01-01-1987 Fuel: Diesel Approved: Yes
    Ford Model: 1000 Series Model series: 1725 Brand of engine: 3-81 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    Ford Model: 1000 Series Model series: 1925 Brand of engine: 3-91 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    New Holland Model: 1000 Series Model series: 1320 Brand of engine: 3-77 From date: 01-01-1987 Fuel: Diesel Approved: Yes
    New Holland Model: 1000 Series Model series: 1520 Brand of engine: 3-81 From date: 01-01-1987 Fuel: Diesel Approved: Yes
    New Holland Model: 1000 Series Model series: 1530 Brand of engine: 3-81 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    New Holland Model: 1000 Series Model series: 1620 Brand of engine: 3-81 From date: 01-01-1976 Fuel: Diesel Approved: Yes
    New Holland Model: 1000 Series Model series: 1630 Brand of engine: 3-81 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    New Holland Model: 1000 Series Model series: 1715 Brand of engine: 3-81 From date: 01-01-1987 Fuel: Diesel Approved: Yes
    New Holland Model: 1000 Series Model series: 1720 Brand of engine: 3-81 From date: 01-01-1987 Fuel: Diesel Approved: Yes
    New Holland Model: 1000 Series Model series: 1725 Brand of engine: 3-81 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    New Holland Model: 1000 Series Model series: 1925 Brand of engine: 3-91 From date: 01-01-1996 Fuel: Diesel Approved: Yes
    New Holland Model: TC Model series: TC Various Models Fuel: Diesel Approved: Yes
