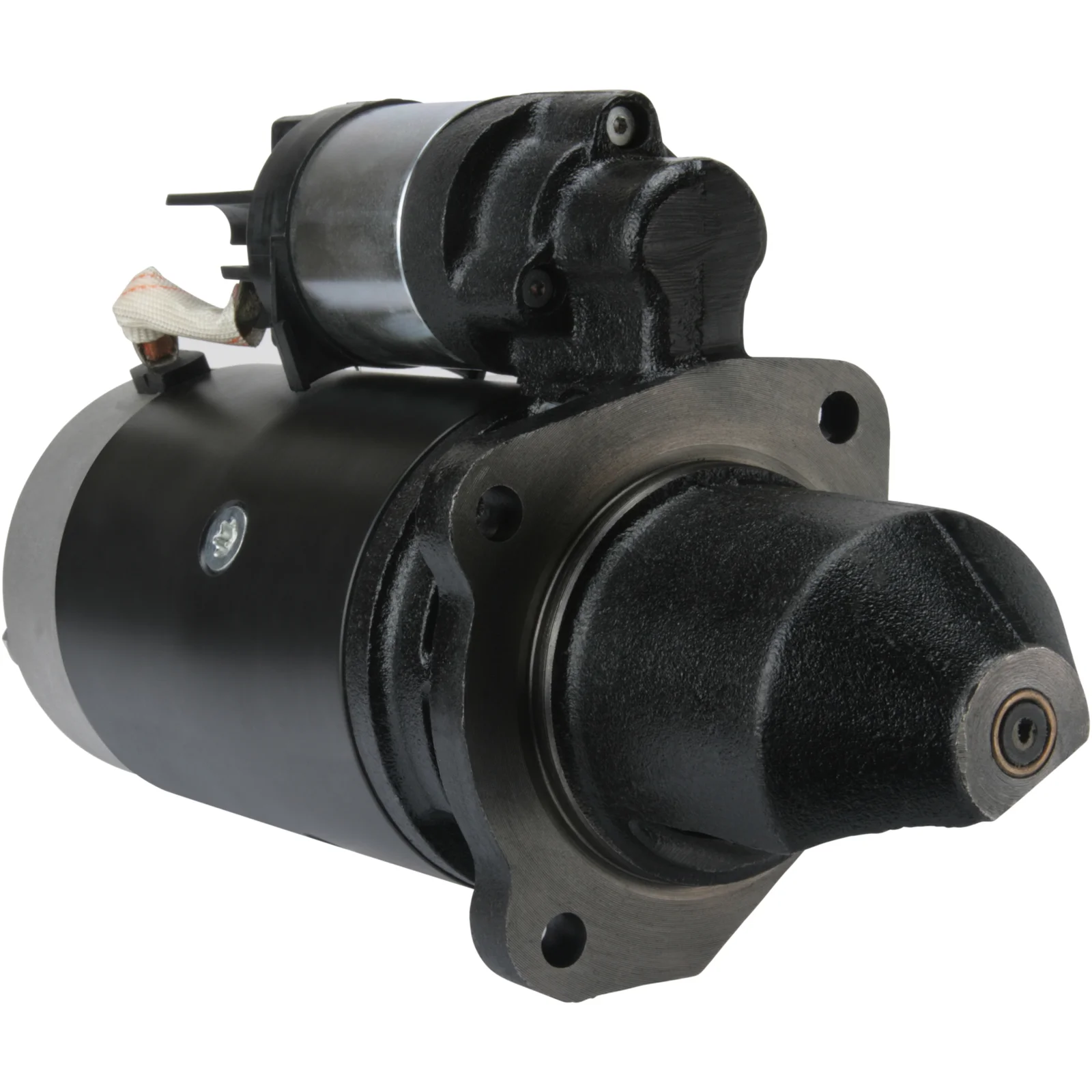

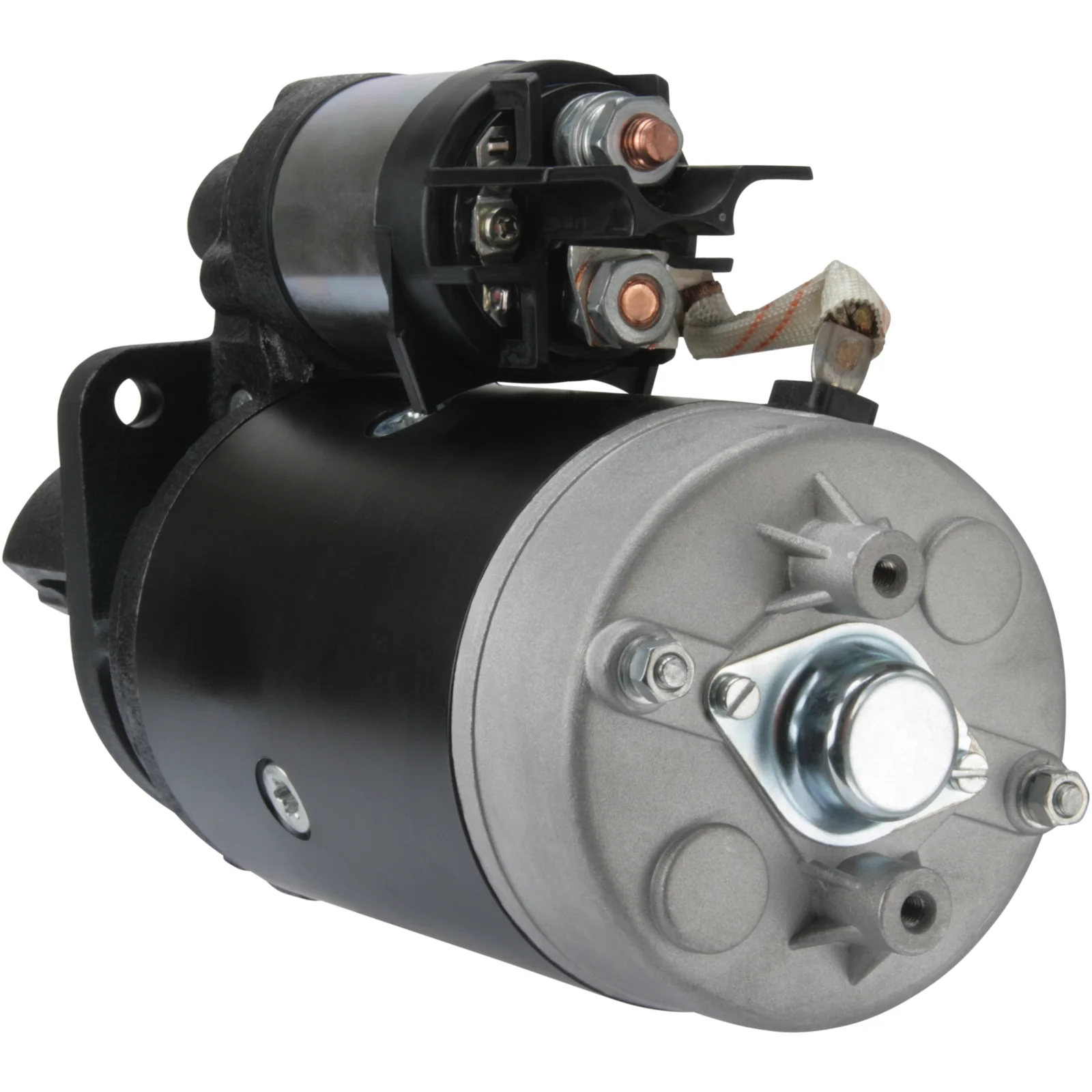

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032112175

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.0
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 245.00
Dist./front: 95.00
No./teeth: 10
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 341.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN/OE
Waterproof: No
Oil sealed: Yes
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/50 45
Clutch type Wet
Prod. info BN/OE
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 245.00
Dist./front 95.00
Drive dist. 48.00
Drive type Steel
Gear type DD
kW 3.0
Terminal 50 M4
Voltage 12
Total length 341.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032112175, 135125, 136125, 326460, 345433, 0001367054, 3001265, 3001265R, 3137440

  • Konkurrentreferens
    DRS0467, LRS01313, S0559, S1188S, STR22054, 25-2078, 600.066.102, 4398N, 18035, 18035N

  • Normaliserat artikelnummer
    drs0467, f032112175, lrs01313, s0559, s1188s, str22054, 4398n, 18035, 18035n, 135125, 136125, 252078, 326460, 345433, 0001367054, 3001265, 3001265r, 3137440, 600066102

  • Passar modeller
    Hyster Model: H Model series: 30, 40, 50 Brand of engine: 4.203 From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Hyster Model: H Model series: 60, 70, 80, 90 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Hyster Model: P Model series: 40, 60 Brand of engine: 4.154 From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Hyster Model: S Model series: 60, 70, 80, 100 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1976 Fuel: Diesel Approved: Yes
    Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 3.0
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 245.00
    Dist./front: 95.00
    No./teeth: 10
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 341.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN/OE
    Waterproof: No
    Oil sealed: Yes
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/50 45
    Clutch type Wet
    Prod. info BN/OE
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 245.00
    Dist./front 95.00
    Drive dist. 48.00
    Drive type Steel
    Gear type DD
    kW 3.0
    Terminal 50 M4
    Voltage 12
    Total length 341.00 mm
    Waterproof No
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032112175, 135125, 136125, 326460, 345433, 0001367054, 3001265, 3001265R, 3137440

    • Konkurrentreferens
      DRS0467, LRS01313, S0559, S1188S, STR22054, 25-2078, 600.066.102, 4398N, 18035, 18035N

    • Normaliserat artikelnummer
      drs0467, f032112175, lrs01313, s0559, s1188s, str22054, 4398n, 18035, 18035n, 135125, 136125, 252078, 326460, 345433, 0001367054, 3001265, 3001265r, 3137440, 600066102

    • Passar modeller
      Hyster Model: H Model series: 30, 40, 50 Brand of engine: 4.203 From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes
      Hyster Model: H Model series: 60, 70, 80, 90 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1978 Fuel: Diesel Approved: Yes
      Hyster Model: P Model series: 40, 60 Brand of engine: 4.154 From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes
      Hyster Model: S Model series: 60, 70, 80, 100 Brand of engine: 4.203 From date: 01-01-1969 To date: 01-12-1976 Fuel: Diesel Approved: Yes
      Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
