Artikelnr: F032112135

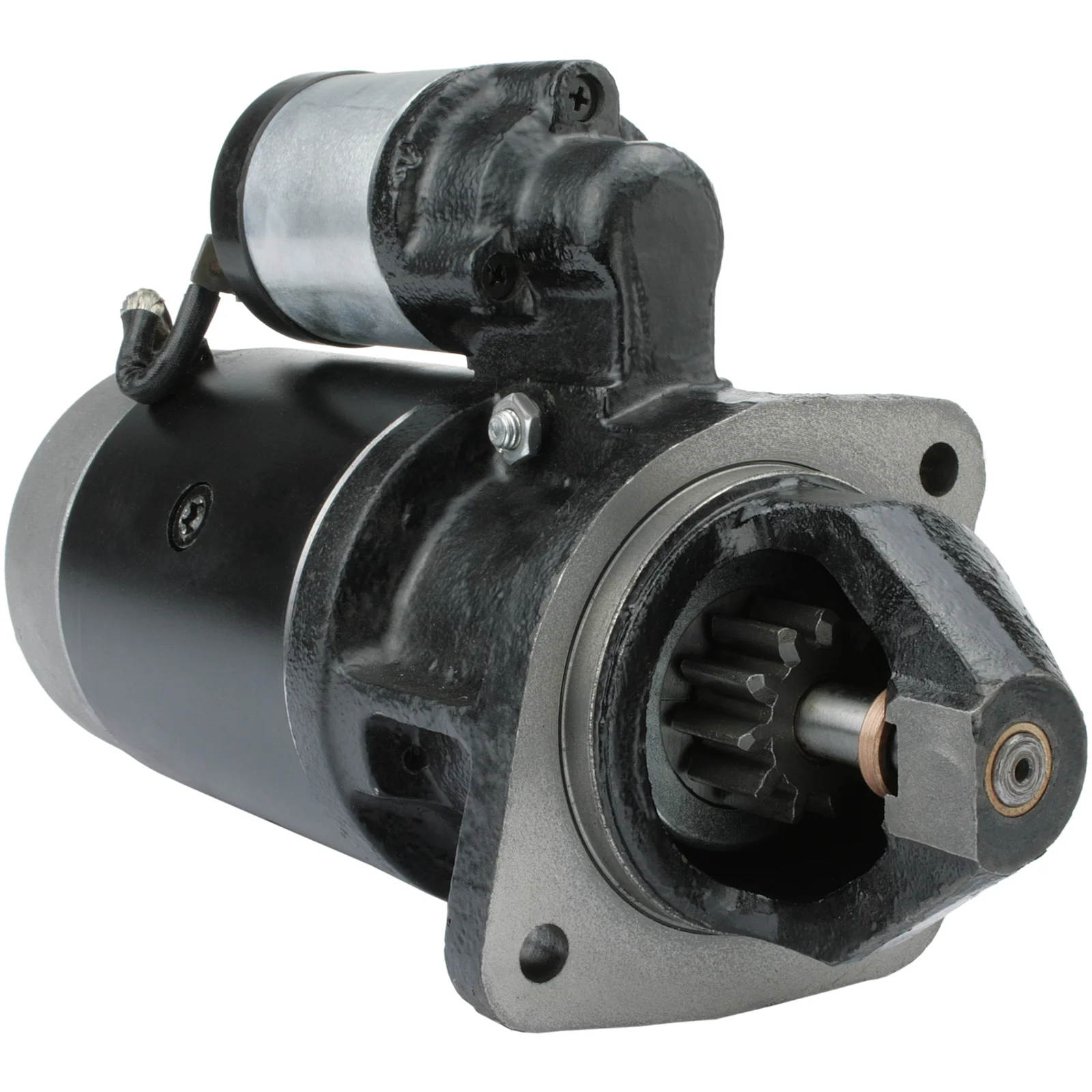

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.1, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.1
Mount. flange: 89.00
Drive dist.: 22.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 239.50
Dist./front: 69.00
No./teeth: 11
B+: M10
Thread length mm: 10.00
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. 2: 89.50
Dist. 3: 126.50
Dist. mm: 89.50
Rotation: CW
Total length mm: 315.50
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Clutch type Dry
Prod. info BN
Dist. 2 89.50
Dist. 3 126.50
Rotation CW
Dist./back 239.50
Dist./front 69.00
Drive dist. 22.00
Drive type Steel
Gear type DD
kW 3.1
Terminal 50 M4
Voltage 12
Total length 315.50 mm
Waterproof No
Dist. 89.50 mm
Thread length 10.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    A186180, azj3243, azj3317, B507800, C000900060170, cs511, CT6005706639, CT6005706643, F032112135, 11.130.705, 11.130.895, 138207A1, 787804R91, 787804R92, 0001354074, 0001359019, 0001359075, 0001362064, 0001362301, 0001369018, 3055523R92, 3218192EX, 3218674R91, 3228192EX, 3228192R91, 6005706639, 6005706643

  • Konkurrentreferens
    CST10192, CST21170, CST21211, drs2680, DRS7290, is0705, is0895, LRS01486, MS223, MS276, MS355, S0430, S0589, STR50174, 8EA015642-381, 8ea726159-001, 25-2431, 25-2435, 25-5208, 88-12.680, 685.007.112, 4048, 10511, 17229, 33375, 33392, 33572, 33856, 220281, 220281A, 220301, 220301A, 436075, 11012680, 11017290, 063296842, 943252298, 0986012680, 0986017290, 063296842010

  • Normaliserat artikelnummer
    a186180, azj3243, azj3317, b507800, c000900060170, cs511, cst10192, cst21170, cst21211, ct6005706639, ct6005706643, drs2680, drs7290, f032112135, is0705, is0895, lrs01486, ms223, ms276, ms355, s0430, s0589, str50174, 8ea015642381, 8ea726159001, 4048, 10511, 17229, 33375, 33392, 33572, 33856, 138207a1, 220281, 220281a, 220301, 220301a, 252431, 252435, 255208, 436075, 787804r91, 787804r92, 0001354074, 0001359019, 0001359075, 0001362064, 0001362301, 0001369018, 3055523r92, 3218192ex, 3218674r91, 3228192ex, 3228192r91, 8812680, 11012680, 11017290, 11130705, 11130895, 063296842, 685007112, 943252298, 0986012680, 0986017290, 6005706639, 6005706643, 063296842010

  • Passar modeller
    Case Model: 400 Series Model series: 433 From date: 01-02-1977 Approved: Yes
    Case Model: 500 Series Model series: 533 From date: 01-02-1977 Approved: Yes
    Case Model: 800 Series Model series: 833 From date: 01-09-1981 Approved: Yes
    Case Model: 800 Series Model series: 833 Model type: A From date: 01-09-1981 Approved: Yes
    Case Model: E Model series: E833 From date: 01-01-1986 Approved: Yes
    Case Model: E Model series: E833 Model type: A From date: 01-01-1986 Approved: Yes
    Case Model: V Model series: V433 From date: 01-01-1986 Approved: Yes
    Case Model: V Model series: V533 From date: 01-01-1986 Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 3.1
    Mount. flange: 89.00
    Drive dist.: 22.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 239.50
    Dist./front: 69.00
    No./teeth: 11
    B+: M10
    Thread length mm: 10.00
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 89.50
    Dist. 3: 126.50
    Dist. mm: 89.50
    Rotation: CW
    Total length mm: 315.50
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Clutch type Dry
    Prod. info BN
    Dist. 2 89.50
    Dist. 3 126.50
    Rotation CW
    Dist./back 239.50
    Dist./front 69.00
    Drive dist. 22.00
    Drive type Steel
    Gear type DD
    kW 3.1
    Terminal 50 M4
    Voltage 12
    Total length 315.50 mm
    Waterproof No
    Dist. 89.50 mm
    Thread length 10.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      A186180, azj3243, azj3317, B507800, C000900060170, cs511, CT6005706639, CT6005706643, F032112135, 11.130.705, 11.130.895, 138207A1, 787804R91, 787804R92, 0001354074, 0001359019, 0001359075, 0001362064, 0001362301, 0001369018, 3055523R92, 3218192EX, 3218674R91, 3228192EX, 3228192R91, 6005706639, 6005706643

    • Konkurrentreferens
      CST10192, CST21170, CST21211, drs2680, DRS7290, is0705, is0895, LRS01486, MS223, MS276, MS355, S0430, S0589, STR50174, 8EA015642-381, 8ea726159-001, 25-2431, 25-2435, 25-5208, 88-12.680, 685.007.112, 4048, 10511, 17229, 33375, 33392, 33572, 33856, 220281, 220281A, 220301, 220301A, 436075, 11012680, 11017290, 063296842, 943252298, 0986012680, 0986017290, 063296842010

    • Normaliserat artikelnummer
      a186180, azj3243, azj3317, b507800, c000900060170, cs511, cst10192, cst21170, cst21211, ct6005706639, ct6005706643, drs2680, drs7290, f032112135, is0705, is0895, lrs01486, ms223, ms276, ms355, s0430, s0589, str50174, 8ea015642381, 8ea726159001, 4048, 10511, 17229, 33375, 33392, 33572, 33856, 138207a1, 220281, 220281a, 220301, 220301a, 252431, 252435, 255208, 436075, 787804r91, 787804r92, 0001354074, 0001359019, 0001359075, 0001362064, 0001362301, 0001369018, 3055523r92, 3218192ex, 3218674r91, 3228192ex, 3228192r91, 8812680, 11012680, 11017290, 11130705, 11130895, 063296842, 685007112, 943252298, 0986012680, 0986017290, 6005706639, 6005706643, 063296842010

    • Passar modeller
      Case Model: 400 Series Model series: 433 From date: 01-02-1977 Approved: Yes
      Case Model: 500 Series Model series: 533 From date: 01-02-1977 Approved: Yes
      Case Model: 800 Series Model series: 833 From date: 01-09-1981 Approved: Yes
      Case Model: 800 Series Model series: 833 Model type: A From date: 01-09-1981 Approved: Yes
      Case Model: E Model series: E833 From date: 01-01-1986 Approved: Yes
      Case Model: E Model series: E833 Model type: A From date: 01-01-1986 Approved: Yes
      Case Model: V Model series: V433 From date: 01-01-1986 Approved: Yes
      Case Model: V Model series: V533 From date: 01-01-1986 Approved: Yes
