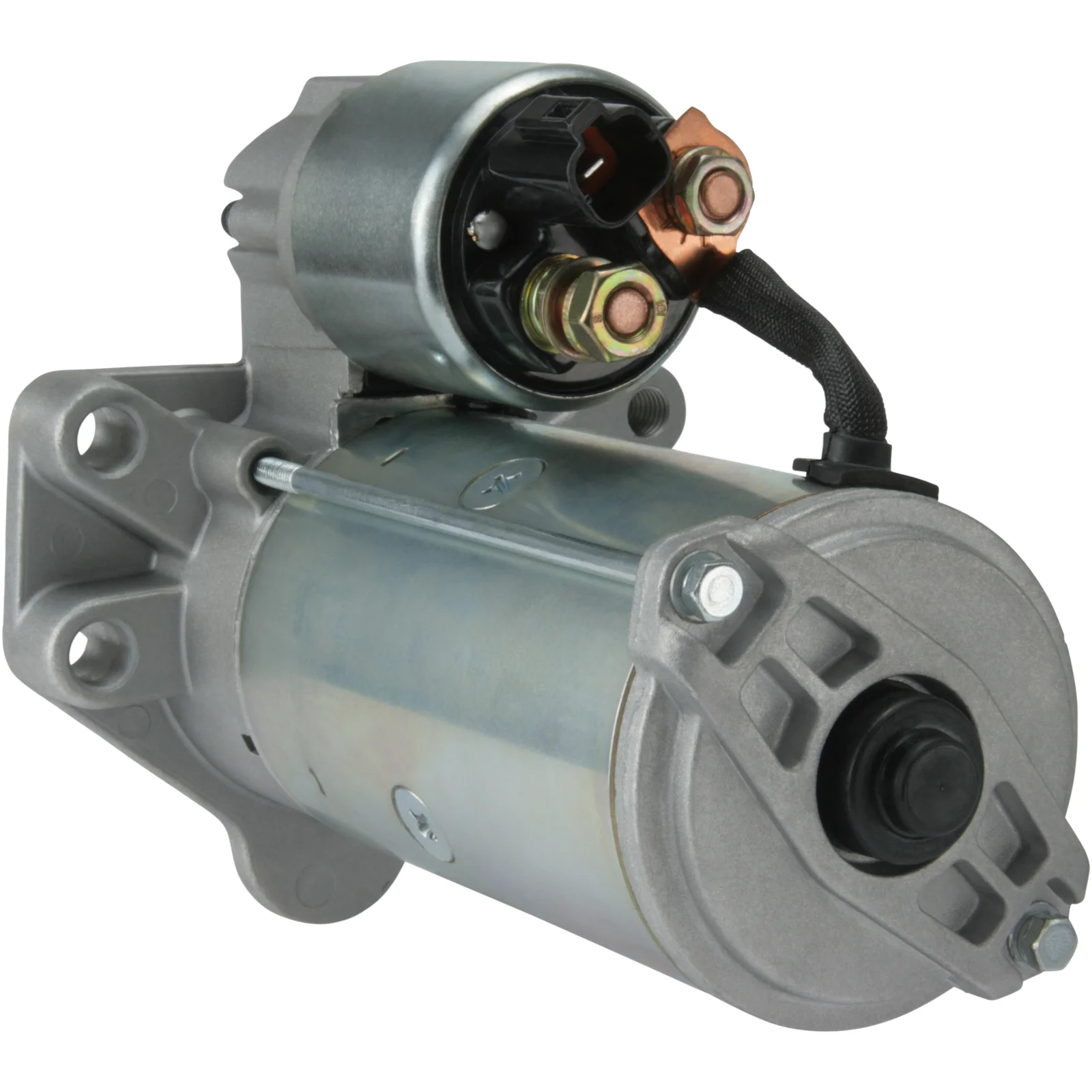

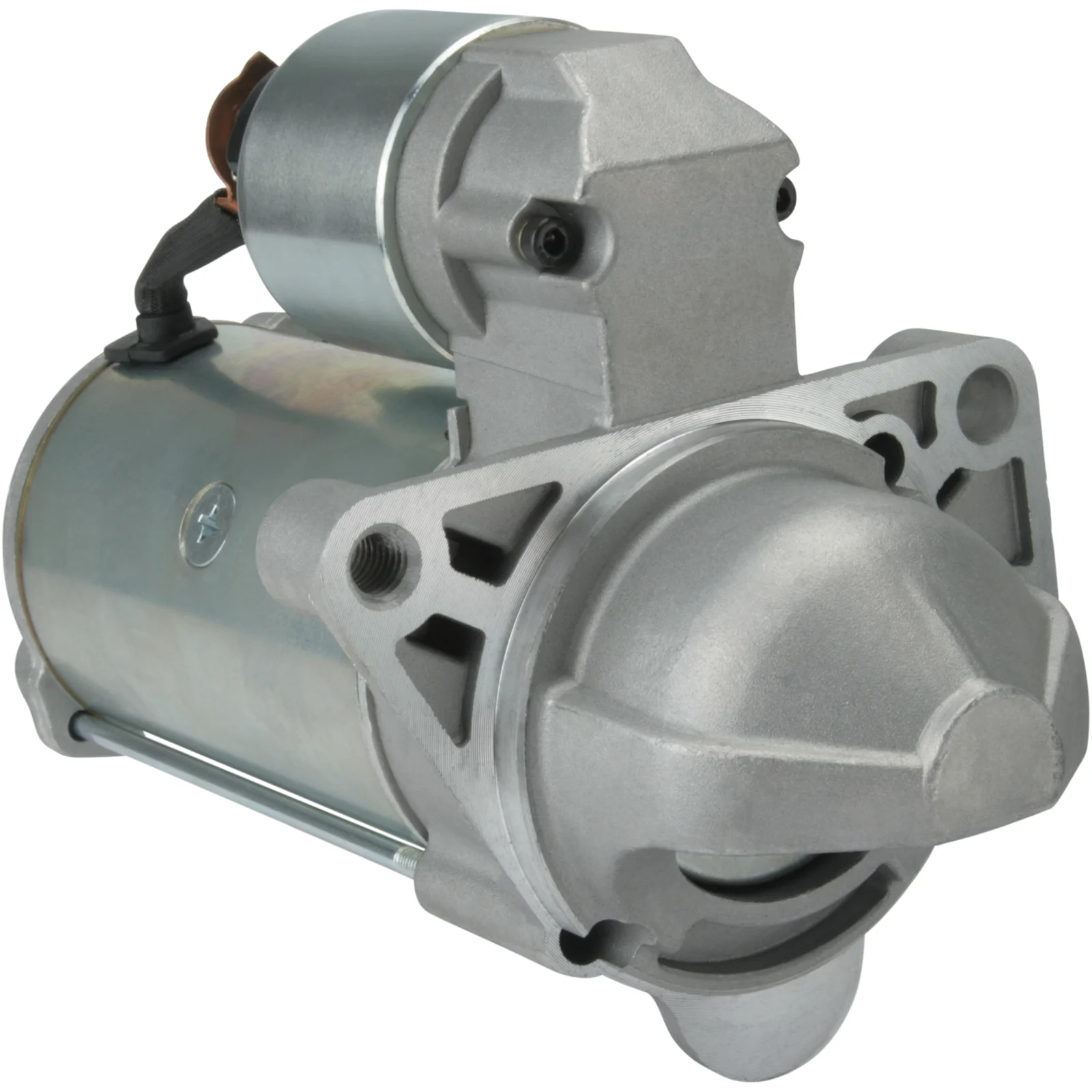

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115571

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Beskrivning

Start 12V-2.2kW passar GM Dsl. 12V - 2.2kW, 9k A - 82.5mm, B - 22mm Vid startmotorbyte kontrollera noggrannt startmotorns (+) kabeln. Startmotorkabeln, startmotorn och muttern måste bytas om man hittar spår på termisk skada. Yourex accepterar inga reklamationer p.g.a. termisk skada på solenoid (+) bulten. För Yourex produkt order 91-200-3761

Voltage: 12
kW: 2.2
Mount. flange: 82.50
Drive dist.: 22.00
Mount. hole 3 mm: M10
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 172.00
Dist./front: 57.50
No./teeth: 9
B+: M8
Position/50: 55
Terminal 50: Plug
Gear type: GR
Dist. 2: 113.50
Dist. 3: 105.00
Dist. mm: 36.50
Rotation: CW
Total length mm: 238.50
Prod. info: BN
No./mount. holes: 3 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
No./mount. holes 3 (1)
Position/50 55
Prod. info BN
Dist. 2 113.50
Dist. 3 105.00
Rotation CW
Dist./back 172.00
Dist./front 57.50
Drive dist. 22.00
Gear type GR
kW 2.2
Terminal 50 Plug
Voltage 12
Total length 238.50 mm
Dist. 36.50 mm
Mount. hole 3 M10 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032115571, GM 25183761, RGO 115571, 115571, 600708, 1196601, 4802243, 25183761, 25383761, 95520319

  • Konkurrentreferens
    CST32141, DRS0827, S3146, S3149(VALEO), 8EA011612-121, 25-4395, 328.074.092, 830.919.093, 3250, 19491N, 220712, 220712A, 255041, 458765, 600708, 11090290

  • Bilmärken
    Chevrolet, Opel

  • Normaliserat artikelnummer
    cst32141, drs0827, f032115571, gm25183761, rgo115571, s3146, s3149valeo, 8ea011612121, 3250, 19491n, 115571, 220712, 220712a, 254395, 255041, 458765, 600708, 1196601, 4802243, 11090290, 25183761, 25383761, 95520319, 328074092, 830919093

  • Passar modeller
    Chevrolet Model: Captiva Model series: Captiva Model type: 4x4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: A22DMH From date: 01-03-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Model type: 4x4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: Z22D1 From date: 01-03-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Type of engine: Diesel Size of motor: 2.0 Brand of engine: LNP Type description: C100, C140 Body: SUV Fuel: Diesel Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Type of engine: Diesel Size of motor: 2.2 Brand of engine: LNQ Type description: C100, C140 Body: SUV Fuel: Diesel Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Type of engine: Diesel Size of motor: 2.2 Brand of engine: Z22D1 Type description: KL1C, C140 From date: 01-03-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Type of engine: CDi Size of motor: 2.0 Brand of engine: LNP Type description: J300 From date: 01-08-2010 Fuel: Diesel Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Type of engine: CDi Size of motor: 2.0 Brand of engine: Z20D1 Body: Hatchback From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Type of engine: CDi Size of motor: 2.0 Brand of engine: Z20D1 Type description: J300 From date: 01-08-2010 Fuel: Diesel Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Type of engine: TD Size of motor: 2.0 Brand of engine: LNP Type description: J308 Body: Estate From date: 01-08-2012 Fuel: Diesel Approved: Yes Manufacture type: Station Wa
    Chevrolet Model: Orlando Model series: Orlando Type of engine: VCDi Size of motor: 2.0 Brand of engine: Z20D1 Type description: KL1Y, J309 Body: MPV From date: 01-02-2011 Fuel: Diesel Approved: Yes
    Chevrolet Series: Captiva Model: 2.2 D 4WD Engine volume: 2.2 Engine type: A 22 DMH / Z 22 D1 Year: 03.11-
    Chevrolet Series: Captiva Model: 2.2 D Engine volume: 2.2 Engine type: Z 22 D1 Year: 03.11-
    Chevrolet Series: Cruze Model: 2.0 TD Engine volume: 2.0 Engine type: LNP Year: 08.12-
    Chevrolet Series: Orlando Model: 2.0 D Engine volume: 2.0 Engine type: Z 20 D1 Year: 02.11-
    Opel Model: Antara Model series: Antara Model type: 4x4 Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM From date: 01-12-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Opel Model: Antara Model series: Antara Model type: 4x4 Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DMH From date: 01-12-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Opel Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM From date: 01-12-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Opel Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM Type description: L07 Body: Closed Off-Road Vehicle From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Opel Series: Antara Model: 2.2 CDTi 4x4 Engine volume: 2.2 Engine type: A 22 DM Year: 12.10-
    Opel Series: Antara Model: 2.2 CDTi 4x4 Engine volume: 2.2 Engine type: A 22 DMH Year: 12.10-
    Opel Series: Antara Model: 2.2 CDTi Engine volume: 2.2 Engine type: A 22 DM Year: 12.10-
    Vauxhall Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM From date: 01-12-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DMH From date: 01-12-2010 Fuel: Diesel Approved: Yes
