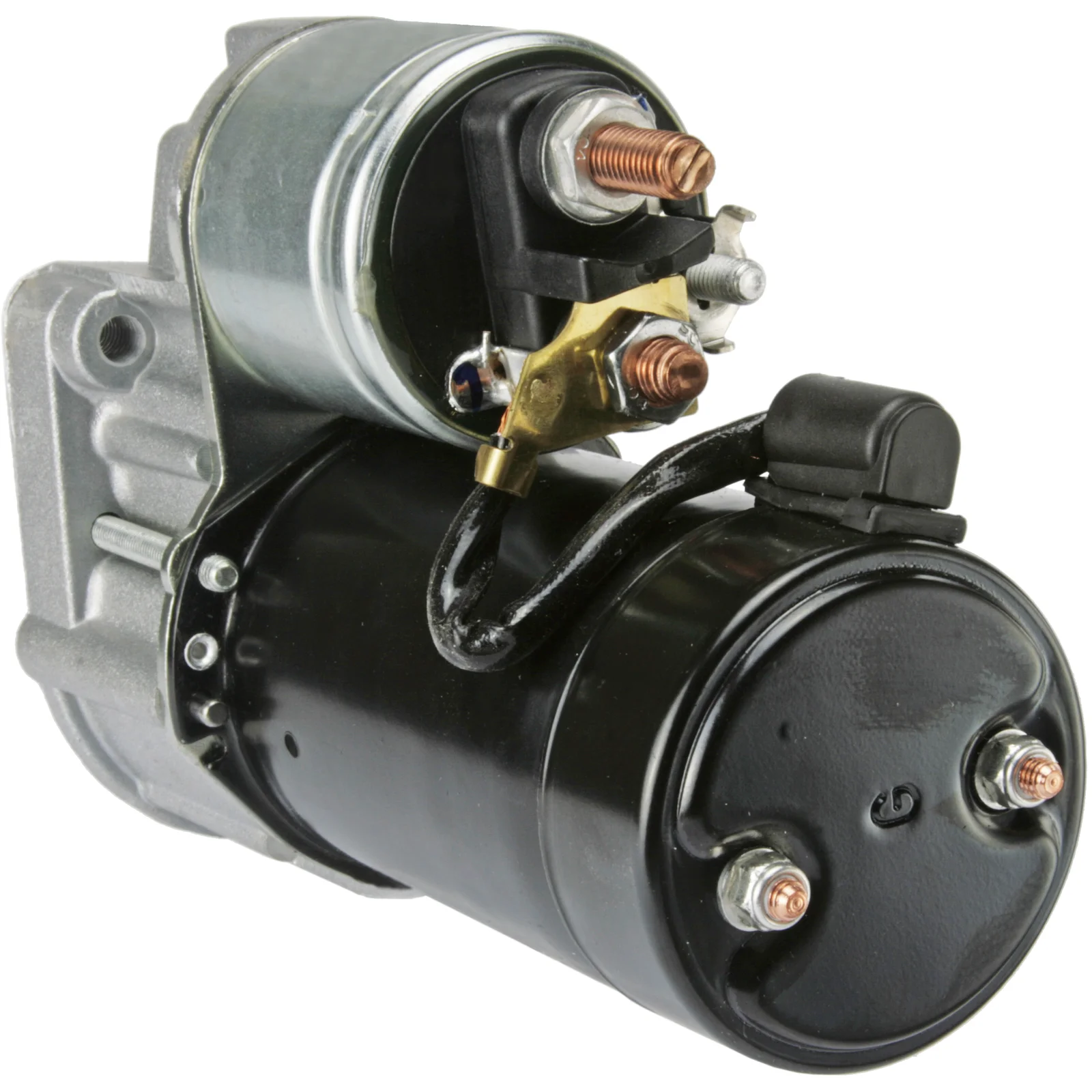

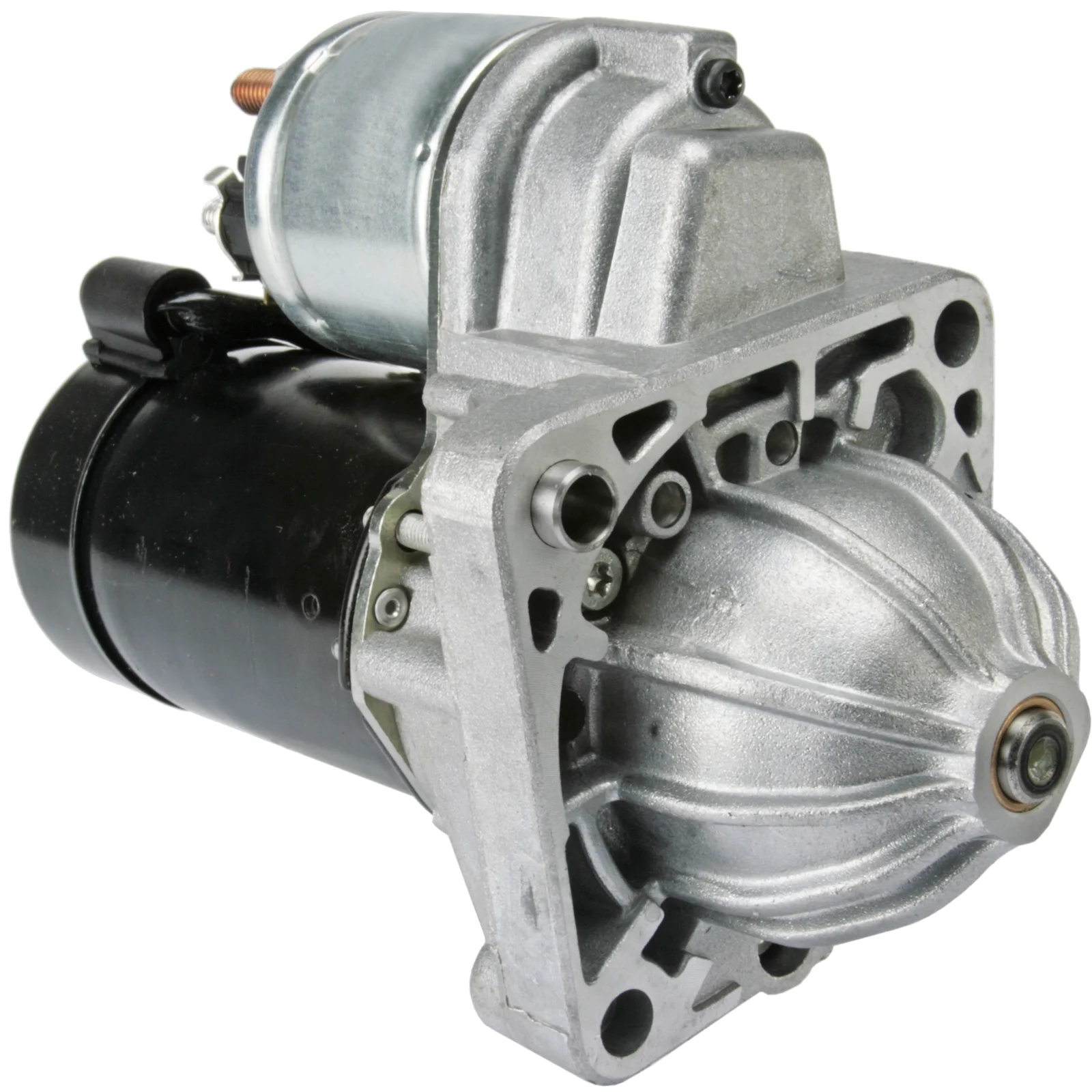

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114035

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.3, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.3
Drive dist.: 10.00
Dist./back: 166.00
Dist./front: 42.00
No./teeth: 9
B+: M8
Position/50: 20
Terminal 50: M6
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 208.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Oil sealed No
No./mount. holes 2 (2)
Position/50 20
Prod. info BN
Rotation CW
Dist./back 166.00
Dist./front 42.00
Drive dist. 10.00
Drive type Steel
Gear type GR
kW 1.3
Terminal 50 M6
Voltage 12
Total length 208.00 mm
Waterproof No
Dist. 105.00 mm

  • OEM
    cs1345, D6RA137, d6ra138, D6RA187, D6RA188, F032114035, RGO 111452, RGO 114035, 46800152, 46816971, 46835093, 46835094

  • Konkurrentreferens
    CST15179, DRS3583, DRS3587, DRS3587X, F042202008, S3060, S4027SR, S4069S, 8EA011610-291, 101345, 106337, 220437, 220437A, 442119, 11090049

  • Normaliserat artikelnummer
    cs1345, cst15179, d6ra137, d6ra138, d6ra187, d6ra188, drs3583, drs3587, drs3587x, f032114035, f042202008, rgo111452, rgo114035, s3060, s4027sr, s4069s, 8ea011610291, 101345, 106337, 220437, 220437a, 442119, 11090049, 46800152, 46816971, 46835093, 46835094

  • Passar modeller
    Fiat Model: Doblo Model series: Doblo Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 119, 223 Body: MPV From date: 01-09-2002 Fuel: Gasoline Approved: Yes
    Fiat Model: Doblo Model series: Doblo Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223 Body: Van From date: 01-09-2002 Fuel: Gasoline Approved: Yes Manufacture type: Cargo
    Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 16V Size of motor: 1.6 Brand of engine: 182B6.000 Body: MPV From date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223 Body: Van From date: 01-10-2001 Fuel: Gasoline Approved: Yes Manufacture type: Cargo
    Fiat Model: Multipla Model series: Multipla Model type: GPL Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-10-2001 To date: 01-06-2010 Fuel: Bi-Fuel Approved: Yes
    Fiat Model: Multipla Model series: Multipla Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: MPV From date: 01-11-2008 To date: 01-06-2010 Fuel: LNG Approved: Yes
    Fiat Model: Multipla Model series: Multipla Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-05-2004 To date: 01-08-2005 Fuel: Gas Approved: Yes
    Fiat Model: Multipla Model series: Multipla Type of engine: G Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-03-2001 To date: 01-08-2005 Fuel: Gas Approved: Yes
    Fiat Model: Siena Model series: Siena Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 178_ From date: 01-11-2000 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Fiat Model: Stilo Model series: Stilo Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Body: Estate From date: 01-01-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes Manufacture type: MULTI WAGO
    Fiat Model: Stilo Model series: Stilo Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 192(192_XB1A) Body: Hatchback From date: 01-10-2001 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
    Lancia Model: Lybra Model series: Lybra Model type: SW Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 839BX Body: Estate From date: 01-10-2000 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Lancia Model: Lybra Model series: Lybra Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 839AX From date: 01-10-2000 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 1.3
    Drive dist.: 10.00
    Dist./back: 166.00
    Dist./front: 42.00
    No./teeth: 9
    B+: M8
    Position/50: 20
    Terminal 50: M6
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 208.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 20
    Prod. info BN
    Rotation CW
    Dist./back 166.00
    Dist./front 42.00
    Drive dist. 10.00
    Drive type Steel
    Gear type GR
    kW 1.3
    Terminal 50 M6
    Voltage 12
    Total length 208.00 mm
    Waterproof No
    Dist. 105.00 mm
  • Fordonsmatchning

    • OEM
      cs1345, D6RA137, d6ra138, D6RA187, D6RA188, F032114035, RGO 111452, RGO 114035, 46800152, 46816971, 46835093, 46835094

    • Konkurrentreferens
      CST15179, DRS3583, DRS3587, DRS3587X, F042202008, S3060, S4027SR, S4069S, 8EA011610-291, 101345, 106337, 220437, 220437A, 442119, 11090049

    • Normaliserat artikelnummer
      cs1345, cst15179, d6ra137, d6ra138, d6ra187, d6ra188, drs3583, drs3587, drs3587x, f032114035, f042202008, rgo111452, rgo114035, s3060, s4027sr, s4069s, 8ea011610291, 101345, 106337, 220437, 220437a, 442119, 11090049, 46800152, 46816971, 46835093, 46835094

    • Passar modeller
      Fiat Model: Doblo Model series: Doblo Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 119, 223 Body: MPV From date: 01-09-2002 Fuel: Gasoline Approved: Yes
      Fiat Model: Doblo Model series: Doblo Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223 Body: Van From date: 01-09-2002 Fuel: Gasoline Approved: Yes Manufacture type: Cargo
      Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 16V Size of motor: 1.6 Brand of engine: 182B6.000 Body: MPV From date: 01-10-2001 Fuel: Gasoline Approved: Yes
      Fiat Model: Doblo Model series: Doblo Type of engine: i.e. 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 223 Body: Van From date: 01-10-2001 Fuel: Gasoline Approved: Yes Manufacture type: Cargo
      Fiat Model: Multipla Model series: Multipla Model type: GPL Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-10-2001 To date: 01-06-2010 Fuel: Bi-Fuel Approved: Yes
      Fiat Model: Multipla Model series: Multipla Model type: Natural Power Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186_ Body: MPV From date: 01-11-2008 To date: 01-06-2010 Fuel: LNG Approved: Yes
      Fiat Model: Multipla Model series: Multipla Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-05-2004 To date: 01-08-2005 Fuel: Gas Approved: Yes
      Fiat Model: Multipla Model series: Multipla Type of engine: G Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 186 Body: MPV From date: 01-03-2001 To date: 01-08-2005 Fuel: Gas Approved: Yes
      Fiat Model: Siena Model series: Siena Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 178_ From date: 01-11-2000 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Fiat Model: Stilo Model series: Stilo Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Body: Estate From date: 01-01-2003 To date: 01-08-2008 Fuel: Gasoline Approved: Yes Manufacture type: MULTI WAGO
      Fiat Model: Stilo Model series: Stilo Type of engine: 16V Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 192(192_XB1A) Body: Hatchback From date: 01-10-2001 To date: 01-11-2006 Fuel: Gasoline Approved: Yes
      Lancia Model: Lybra Model series: Lybra Model type: SW Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 839BX Body: Estate From date: 01-10-2000 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      Lancia Model: Lybra Model series: Lybra Size of motor: 1.6 Brand of engine: 182B6.000 Type description: 839AX From date: 01-10-2000 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      1 / 3
