Artikelnr: F032115627

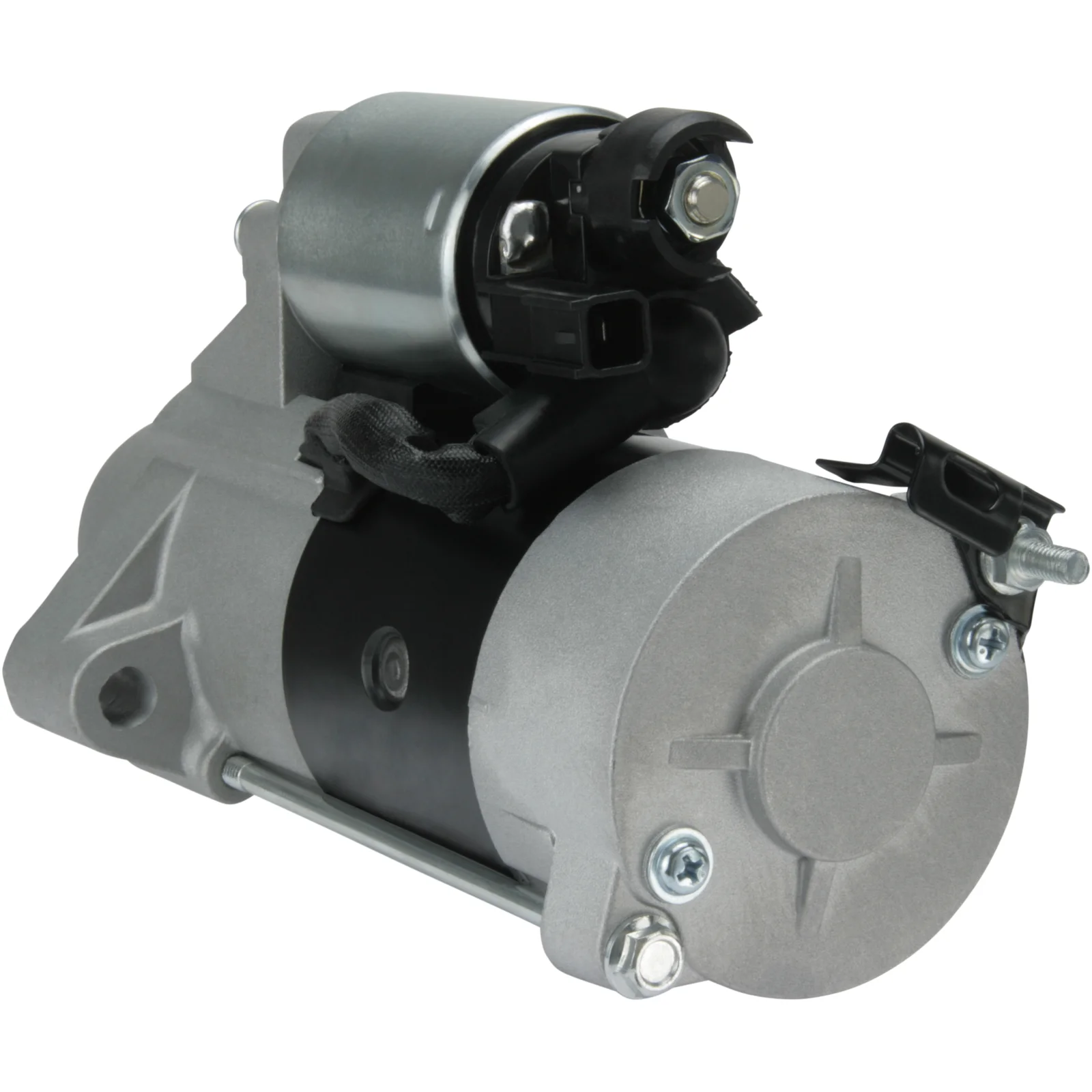

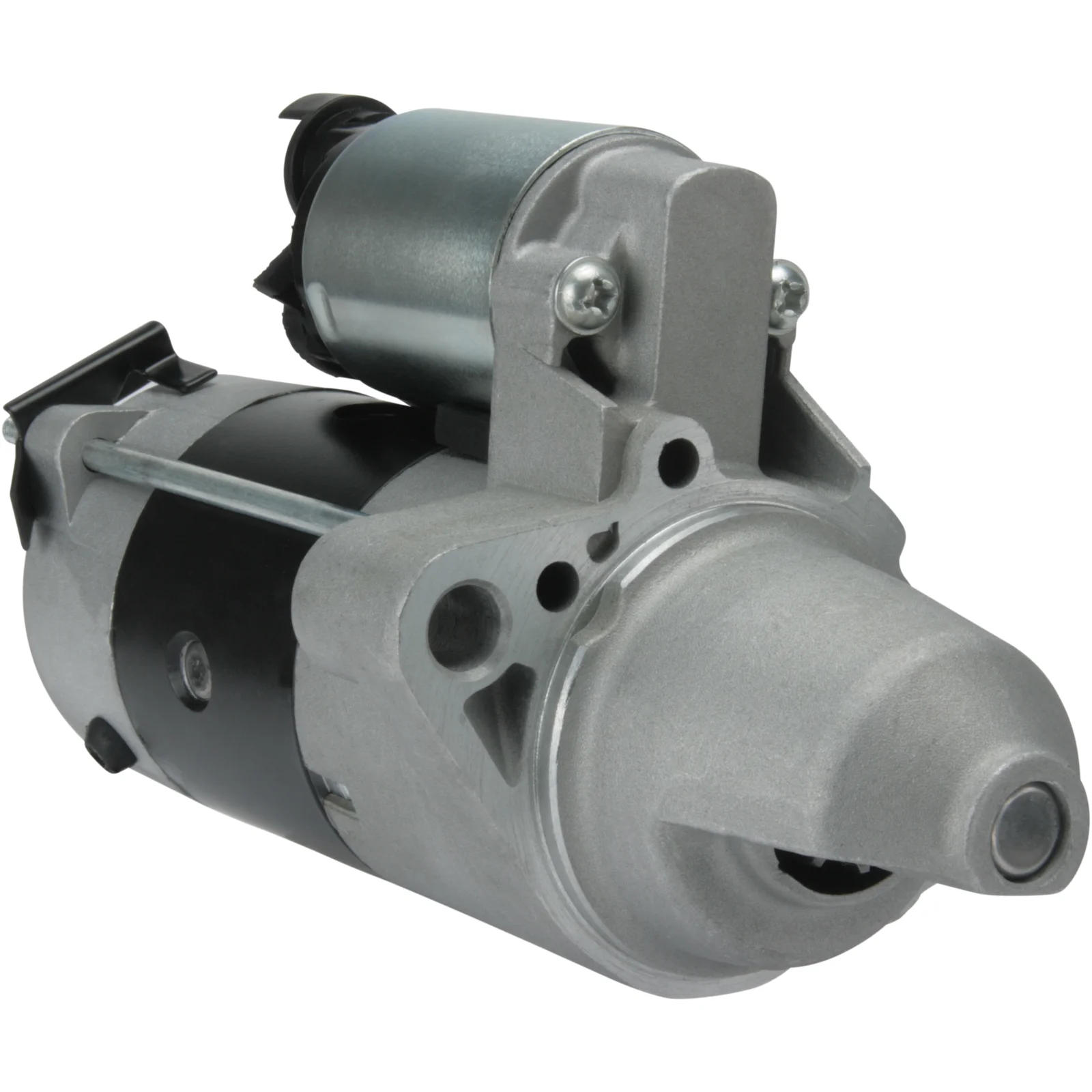

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 75.00
Drive dist.: 33.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 11.00
Dist./back: 170.50
Dist./front: 69.00
No./teeth: 9
B+: M8
Thread length mm: 11.00
Position/50: 40
Terminal 50: Plug
Gear type: GR
Mount. bracket: w/
Dist. mm: 109.50
Rotation: CW
Total length mm: 248.50
Prod. info: BN
No./mount. holes: 2 (0)

Specifikation

B+ M8
No./teeth 9
Mount. bracket w/
Mount. flange 75.00
No./mount. holes 2 (0)
Position/50 40
Prod. info BN
Rotation CW
Dist./back 170.50
Dist./front 69.00
Drive dist. 33.00
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 248.50 mm
Dist. 109.50 mm
Thread length 11.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 11.00 mm
  • OEM

    cs1457, F032115627, M002T85871, M2T85871, MHG025, RGO 116246, 31200-RSR-E01
  • Konkurrentreferens

    CST35309, DRS0402, LRS02281, S5144, 8EA011611-861, 25-3452, 120.533.092, 322.054.092, 33281, 33281N, 101457, 220958, 220958A, 11040855, 0986025750
  • Normaliserat artikelnummer

    cs1457, cst35309, drs0402, f032115627, lrs02281, m002t85871, m2t85871, mhg025, rgo116246, s5144, 8ea011611861, 31200rsre01, 33281, 33281n, 101457, 220958, 220958a, 253452, 11040855, 120533092, 322054092, 0986025750
  • Passar modeller

    Honda Model: Civic Model series: Civic Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: FD_ Body: Hatchback From date: 01-09-2005 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RD_ Body: SUV From date: 01-02-2005 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: i CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RE_ Body: SUV From date: 01-01-2007 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 75.00
    Drive dist.: 33.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 11.00
    Dist./back: 170.50
    Dist./front: 69.00
    No./teeth: 9
    B+: M8
    Thread length mm: 11.00
    Position/50: 40
    Terminal 50: Plug
    Gear type: GR
    Mount. bracket: w/
    Dist. mm: 109.50
    Rotation: CW
    Total length mm: 248.50
    Prod. info: BN
    No./mount. holes: 2 (0)
  • Specifikation
    B+ M8
    No./teeth 9
    Mount. bracket w/
    Mount. flange 75.00
    No./mount. holes 2 (0)
    Position/50 40
    Prod. info BN
    Rotation CW
    Dist./back 170.50
    Dist./front 69.00
    Drive dist. 33.00
    Gear type GR
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 248.50 mm
    Dist. 109.50 mm
    Thread length 11.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning
    • OEM

      cs1457, F032115627, M002T85871, M2T85871, MHG025, RGO 116246, 31200-RSR-E01
    • Konkurrentreferens

      CST35309, DRS0402, LRS02281, S5144, 8EA011611-861, 25-3452, 120.533.092, 322.054.092, 33281, 33281N, 101457, 220958, 220958A, 11040855, 0986025750
    • Normaliserat artikelnummer

      cs1457, cst35309, drs0402, f032115627, lrs02281, m002t85871, m2t85871, mhg025, rgo116246, s5144, 8ea011611861, 31200rsre01, 33281, 33281n, 101457, 220958, 220958a, 253452, 11040855, 120533092, 322054092, 0986025750
    • Passar modeller

      Honda Model: Civic Model series: Civic Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: FD_ Body: Hatchback From date: 01-09-2005 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RD_ Body: SUV From date: 01-02-2005 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: i CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RE_ Body: SUV From date: 01-01-2007 Fuel: Diesel Approved: Yes
