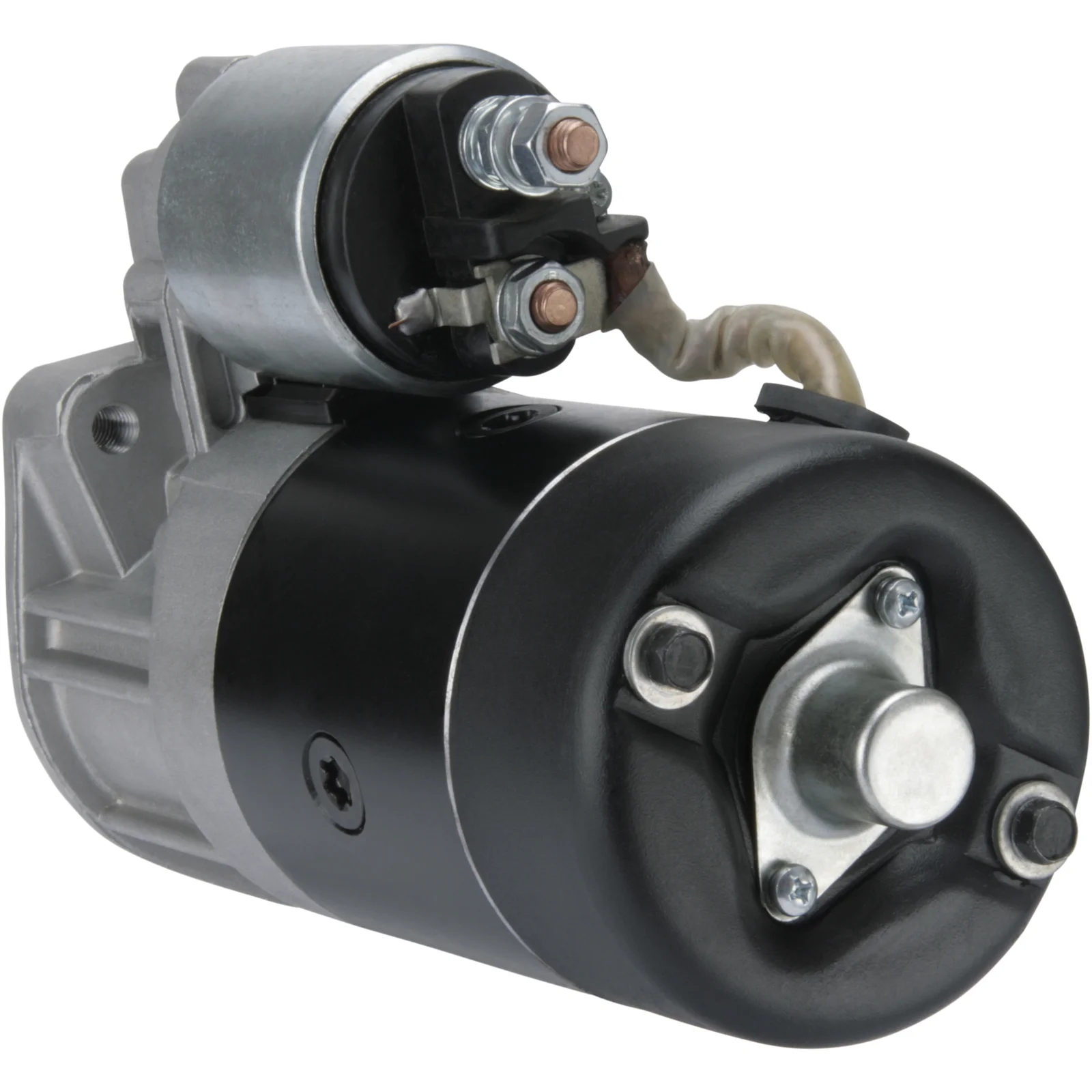

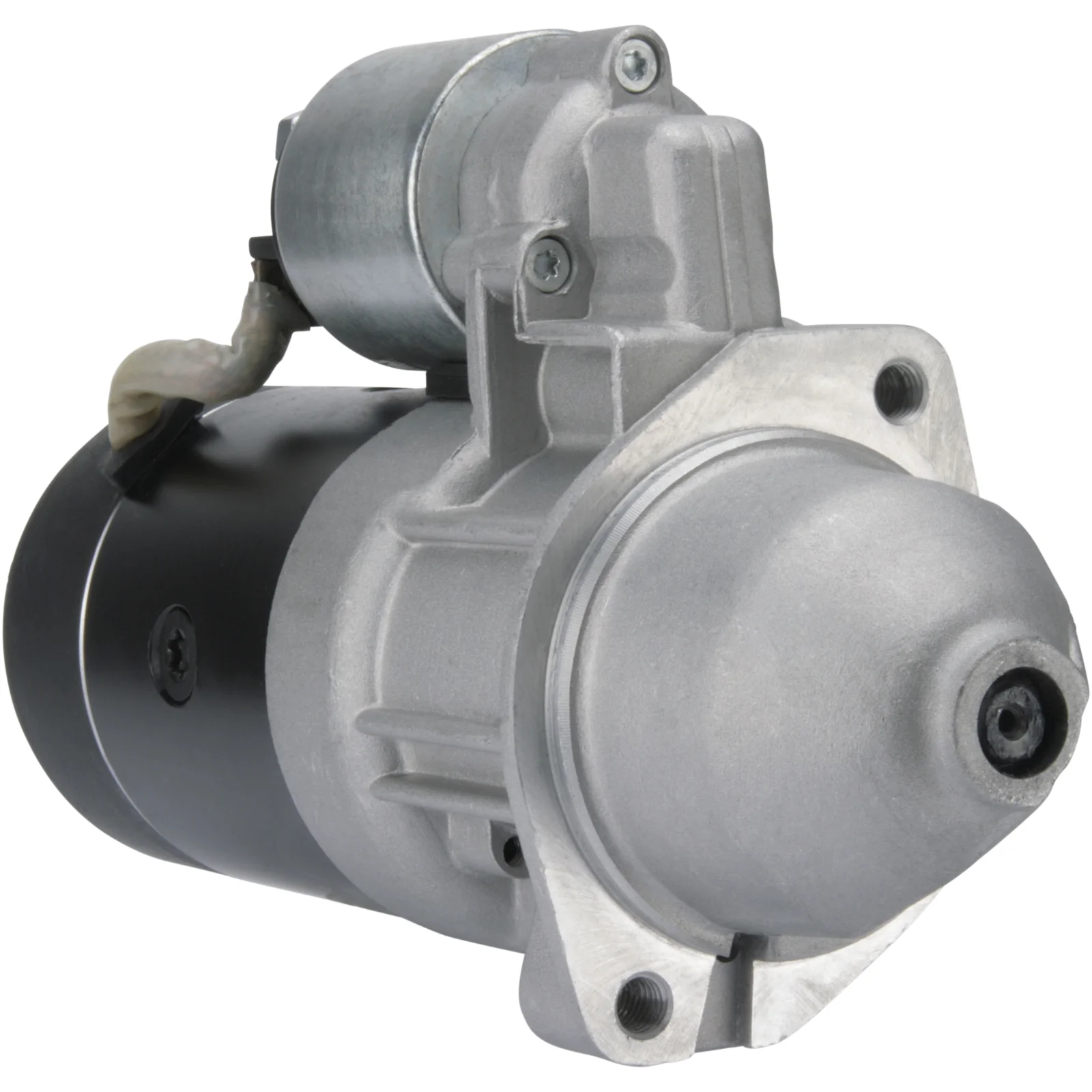

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114319

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 2.5, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 24
kW: 2.5
Mount. flange: 82.50
Drive dist.: 27.00
Dist./back: 198.00
Dist./front: 66.00
No./teeth: 10
B+: M8
Position/50: 20
Terminal 50: M4
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 274.00
Clutch type: Dry
Drive type: Steel
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 82.50
No./mount. holes 2 (2)
Position/50 20
Clutch type Dry
Rotation CW
Dist./back 198.00
Dist./front 66.00
Drive dist. 27.00
Drive type Steel
Gear type GR
kW 2.5
Terminal 50 M4
Voltage 24
Total length 274.00 mm
Dist. 105.00 mm

  • OEM
    A0031519301, A0041513101, A004151310180, A0041513201, A004151930180, A0061516601, A006151660180, A4619062200, F032114319, RGO 114319, 1986S10102, 0001219007, 0001219009, 0001219016, 0001219017, 0031519301, 0041513101, 0041513201, 0061516601, 004151310180, 004151930180, 4619062200, 006151660180

  • Konkurrentreferens
    CST10742, les0389, S0266, 45-2173, 325.012.104, 254285, 11013390, 0986013390, 0986013393, 0986021793

  • Normaliserat artikelnummer
    a0031519301, a0041513101, a004151310180, a0041513201, a004151930180, a0061516601, a006151660180, a4619062200, cst10742, f032114319, les0389, rgo114319, s0266, 1986s10102, 254285, 452173, 0001219007, 0001219009, 0001219016, 0001219017, 11013390, 0031519301, 0041513101, 0041513201, 0061516601, 325012104, 0986013390, 0986013393, 0986021793, 004151310180, 004151930180, 4619062200, 006151660180

  • Passar modeller
    Mercedes-Benz Model: 250 Model series: 250 G Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM602.930 Type description: 460 From date: 01-10-1987 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 250 Model series: 250 G Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM602.930 Type description: 460 From date: 01-12-1988 To date: 01-08-1992 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 250 Model series: 250 G Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM602.931 Type description: 463 From date: 01-06-1990 To date: 01-10-1992 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 250 Model series: 250 GD Type of engine: Diesel Size of motor: 2.5 Type description: W460 From date: 01-10-1987 To date: 01-10-1991 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: G 270 Type of engine: CDI Size of motor: 2.7 Brand of engine: OM612.966 Type description: W461 From date: 01-01-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 290 Model series: 290 G Type of engine: TD Size of motor: 2.9 Brand of engine: OM602.983 Type description: 461 From date: 01-07-1997 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 300 Model series: 300 G Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM603.931 Type description: 463 Body: Convertible From date: 01-12-1990 To date: 01-09-1997 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 300 Model series: 300 G Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM603.931 Type description: 463 From date: 01-09-1989 To date: 01-06-1993 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 300 Model series: G 300 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM603.931 Type description: W463 From date: 01-09-1993 To date: 01-08-1994 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 100 Size of motor: 2.9 Brand of engine: OM602.215 Type description: Unimog Body: Platform / Chassis From date: 01-11-1992 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 100 Size of motor: 2.9 Brand of engine: OM602.948 Type description: Unimog Body: Platform / Chassis From date: 01-11-1992 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Unimog Model series: U 90 Size of motor: 2.9 Brand of engine: OM602.941 Type description: Unimog Body: Platform / Chassis From date: 01-11-1992 Fuel: Diesel Approved: Yes
    Puch (Steyr-Daimler) Model: 250 Model series: 250 GD Size of motor: 2.5 Brand of engine: OM602.930 Type description: W460 From date: 01-10-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Puch (Steyr-Daimler) Model: 290 Model series: G 290 td Size of motor: 2.9 Brand of engine: OM602.983 Type description: W461 From date: 01-04-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Puch (Steyr-Daimler) Model: 300 Model series: 300 GD Size of motor: 3.0 Brand of engine: OM603.931 Type description: W463 From date: 01-06-1989 To date: 01-08-1993 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 24
    kW: 2.5
    Mount. flange: 82.50
    Drive dist.: 27.00
    Dist./back: 198.00
    Dist./front: 66.00
    No./teeth: 10
    B+: M8
    Position/50: 20
    Terminal 50: M4
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 274.00
    Clutch type: Dry
    Drive type: Steel
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 82.50
    No./mount. holes 2 (2)
    Position/50 20
    Clutch type Dry
    Rotation CW
    Dist./back 198.00
    Dist./front 66.00
    Drive dist. 27.00
    Drive type Steel
    Gear type GR
    kW 2.5
    Terminal 50 M4
    Voltage 24
    Total length 274.00 mm
    Dist. 105.00 mm
  • Fordonsmatchning

    • OEM
      A0031519301, A0041513101, A004151310180, A0041513201, A004151930180, A0061516601, A006151660180, A4619062200, F032114319, RGO 114319, 1986S10102, 0001219007, 0001219009, 0001219016, 0001219017, 0031519301, 0041513101, 0041513201, 0061516601, 004151310180, 004151930180, 4619062200, 006151660180

    • Konkurrentreferens
      CST10742, les0389, S0266, 45-2173, 325.012.104, 254285, 11013390, 0986013390, 0986013393, 0986021793

    • Normaliserat artikelnummer
      a0031519301, a0041513101, a004151310180, a0041513201, a004151930180, a0061516601, a006151660180, a4619062200, cst10742, f032114319, les0389, rgo114319, s0266, 1986s10102, 254285, 452173, 0001219007, 0001219009, 0001219016, 0001219017, 11013390, 0031519301, 0041513101, 0041513201, 0061516601, 325012104, 0986013390, 0986013393, 0986021793, 004151310180, 004151930180, 4619062200, 006151660180

    • Passar modeller
      Mercedes-Benz Model: 250 Model series: 250 G Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM602.930 Type description: 460 From date: 01-10-1987 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 250 Model series: 250 G Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM602.930 Type description: 460 From date: 01-12-1988 To date: 01-08-1992 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 250 Model series: 250 G Type of engine: Diesel Size of motor: 2.5 Brand of engine: OM602.931 Type description: 463 From date: 01-06-1990 To date: 01-10-1992 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 250 Model series: 250 GD Type of engine: Diesel Size of motor: 2.5 Type description: W460 From date: 01-10-1987 To date: 01-10-1991 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: G 270 Type of engine: CDI Size of motor: 2.7 Brand of engine: OM612.966 Type description: W461 From date: 01-01-2003 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 290 Model series: 290 G Type of engine: TD Size of motor: 2.9 Brand of engine: OM602.983 Type description: 461 From date: 01-07-1997 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 300 Model series: 300 G Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM603.931 Type description: 463 Body: Convertible From date: 01-12-1990 To date: 01-09-1997 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 300 Model series: 300 G Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM603.931 Type description: 463 From date: 01-09-1989 To date: 01-06-1993 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 300 Model series: G 300 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM603.931 Type description: W463 From date: 01-09-1993 To date: 01-08-1994 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 100 Size of motor: 2.9 Brand of engine: OM602.215 Type description: Unimog Body: Platform / Chassis From date: 01-11-1992 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 100 Size of motor: 2.9 Brand of engine: OM602.948 Type description: Unimog Body: Platform / Chassis From date: 01-11-1992 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Unimog Model series: U 90 Size of motor: 2.9 Brand of engine: OM602.941 Type description: Unimog Body: Platform / Chassis From date: 01-11-1992 Fuel: Diesel Approved: Yes
      Puch (Steyr-Daimler) Model: 250 Model series: 250 GD Size of motor: 2.5 Brand of engine: OM602.930 Type description: W460 From date: 01-10-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
      Puch (Steyr-Daimler) Model: 290 Model series: G 290 td Size of motor: 2.9 Brand of engine: OM602.983 Type description: W461 From date: 01-04-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Puch (Steyr-Daimler) Model: 300 Model series: 300 GD Size of motor: 3.0 Brand of engine: OM603.931 Type description: W463 From date: 01-06-1989 To date: 01-08-1993 Fuel: Diesel Approved: Yes
