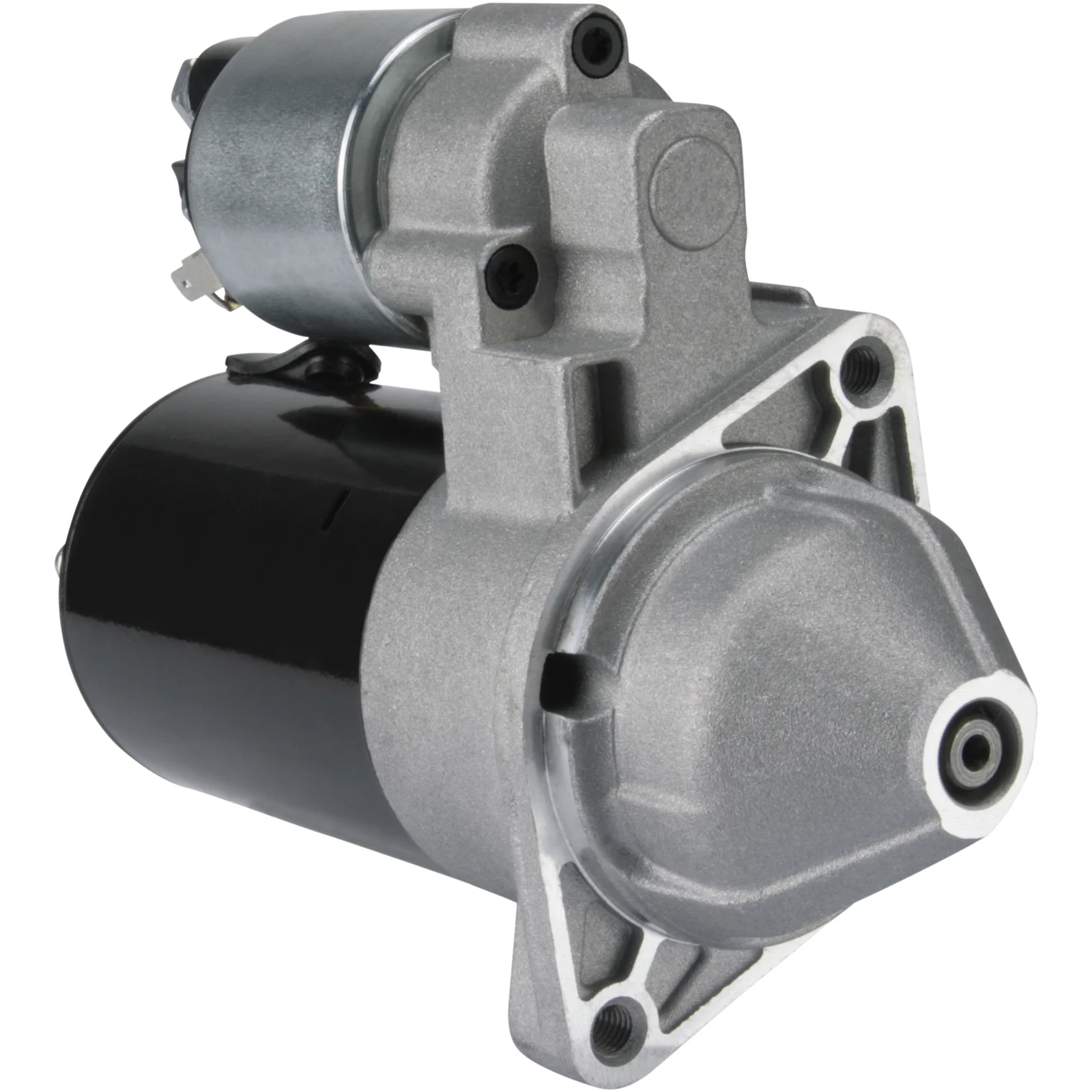

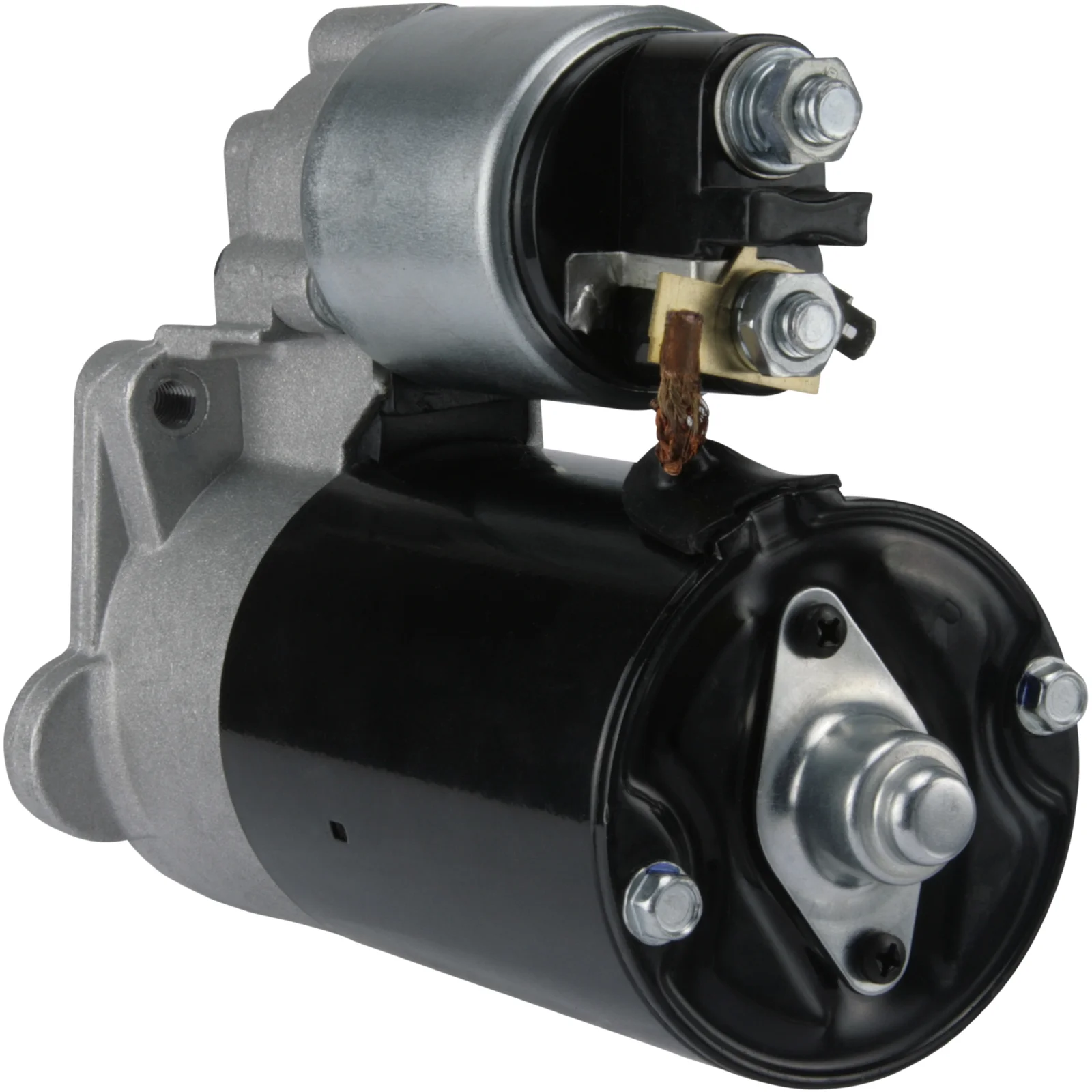

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114051

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.0
Mount. flange: 70.00
Drive dist.: 15.00
Dist./back: 155.50
Dist./front: 48.00
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 20
Terminal 50: M6-6.30
Gear type: GR
Dist. mm: 100.00
Rotation: CW
Total length mm: 203.50
Drive type: Steel
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 70.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 20
Position/B+ 60
Rotation CW
Dist./back 155.50
Dist./front 48.00
Drive dist. 15.00
Drive type Steel
Gear type GR
kW 1.0
Terminal 50 M6-6.30
Voltage 12
Total length 203.50 mm
Waterproof No
Dist. 100.00 mm

  • OEM
    A0001477V006, A0051513801, A005151380180, A6601510101, A660151010180, cs1241, F032114051, Q0001477V006, RGO 114051, 0001477V006, 1986S00649, 0001106014, 0001106025, 0051513801, 005151380180, 6601510101, 660151010180

  • Konkurrentreferens
    CST10194, DRS3877, F042S0H082, lrs01575, S0498, STR-H082, 8EA012527-821, 8EA737906-001, 25-3077, 325.030.092, 325.045.092, 3032, 32545N, 32580, 32580N, 32580R, 101241, 105117, 220214, 220214A, 11019940, 42019940, 063521060, 0986019940, 063521060140, 944280800960

  • Normaliserat artikelnummer
    a0001477v006, a0051513801, a005151380180, a6601510101, a660151010180, cs1241, cst10194, drs3877, f032114051, f042s0h082, lrs01575, q0001477v006, rgo114051, s0498, strh082, 8ea012527821, 8ea737906001, 0001477v006, 1986s00649, 3032, 32545n, 32580, 32580n, 32580r, 101241, 105117, 220214, 220214a, 253077, 0001106014, 0001106025, 11019940, 42019940, 0051513801, 063521060, 325030092, 325045092, 0986019940, 005151380180, 6601510101, 063521060140, 660151010180, 944280800960

  • Passar modeller
    Smart (MCC) Model: City Model series: City Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.940 Type description: 450.. Body: Hatchback From date: 01-11-1999 To date: 01-01-2004 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: City Model series: City Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660DE8LA Type description: 450.. Body: Hatchback From date: 01-11-1999 To date: 01-01-2004 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.940 Type description: 450.. Body: Convertible From date: 01-01-2004 To date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.940 Type description: 450.. Body: Coupe From date: 01-01-2004 To date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Convertible From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Coupe From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Convertible From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Coupe From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660DE8LA Type description: 450.. Body: Convertible From date: 01-01-2004 To date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660DE8LA Type description: 450.. Body: Coupe From date: 01-01-2004 To date: 01-01-2007 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Smart Model series: Smart Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.940 Type description: 450.. Body: Convertible From date: 01-03-2001 To date: 01-01-2004 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Smart Model series: Smart Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660DE8LA Type description: 450.. Body: Convertible From date: 01-03-2001 To date: 01-01-2004 Fuel: Diesel Approved: Yes
    Smart Model: Fortwo Model series: Fortwo Coupe Type of engine: Diesel Size of motor: 0.8 Type description: 450 Body: Coupe From date: 01-09-2004 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 1.0
    Mount. flange: 70.00
    Drive dist.: 15.00
    Dist./back: 155.50
    Dist./front: 48.00
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 20
    Terminal 50: M6-6.30
    Gear type: GR
    Dist. mm: 100.00
    Rotation: CW
    Total length mm: 203.50
    Drive type: Steel
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 70.00
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 20
    Position/B+ 60
    Rotation CW
    Dist./back 155.50
    Dist./front 48.00
    Drive dist. 15.00
    Drive type Steel
    Gear type GR
    kW 1.0
    Terminal 50 M6-6.30
    Voltage 12
    Total length 203.50 mm
    Waterproof No
    Dist. 100.00 mm
  • Fordonsmatchning

    • OEM
      A0001477V006, A0051513801, A005151380180, A6601510101, A660151010180, cs1241, F032114051, Q0001477V006, RGO 114051, 0001477V006, 1986S00649, 0001106014, 0001106025, 0051513801, 005151380180, 6601510101, 660151010180

    • Konkurrentreferens
      CST10194, DRS3877, F042S0H082, lrs01575, S0498, STR-H082, 8EA012527-821, 8EA737906-001, 25-3077, 325.030.092, 325.045.092, 3032, 32545N, 32580, 32580N, 32580R, 101241, 105117, 220214, 220214A, 11019940, 42019940, 063521060, 0986019940, 063521060140, 944280800960

    • Normaliserat artikelnummer
      a0001477v006, a0051513801, a005151380180, a6601510101, a660151010180, cs1241, cst10194, drs3877, f032114051, f042s0h082, lrs01575, q0001477v006, rgo114051, s0498, strh082, 8ea012527821, 8ea737906001, 0001477v006, 1986s00649, 3032, 32545n, 32580, 32580n, 32580r, 101241, 105117, 220214, 220214a, 253077, 0001106014, 0001106025, 11019940, 42019940, 0051513801, 063521060, 325030092, 325045092, 0986019940, 005151380180, 6601510101, 063521060140, 660151010180, 944280800960

    • Passar modeller
      Smart (MCC) Model: City Model series: City Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.940 Type description: 450.. Body: Hatchback From date: 01-11-1999 To date: 01-01-2004 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: City Model series: City Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660DE8LA Type description: 450.. Body: Hatchback From date: 01-11-1999 To date: 01-01-2004 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.940 Type description: 450.. Body: Convertible From date: 01-01-2004 To date: 01-01-2007 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.940 Type description: 450.. Body: Coupe From date: 01-01-2004 To date: 01-01-2007 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Convertible From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.950 Type description: 451 Body: Coupe From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Convertible From date: 01-08-2009 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.951 Type description: 451 Body: Coupe From date: 01-08-2009 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660DE8LA Type description: 450.. Body: Convertible From date: 01-01-2004 To date: 01-01-2007 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Fortwo Model series: Fortwo Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660DE8LA Type description: 450.. Body: Coupe From date: 01-01-2004 To date: 01-01-2007 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Smart Model series: Smart Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660.940 Type description: 450.. Body: Convertible From date: 01-03-2001 To date: 01-01-2004 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Smart Model series: Smart Type of engine: CDi Size of motor: 0.8 Brand of engine: OM660DE8LA Type description: 450.. Body: Convertible From date: 01-03-2001 To date: 01-01-2004 Fuel: Diesel Approved: Yes
      Smart Model: Fortwo Model series: Fortwo Coupe Type of engine: Diesel Size of motor: 0.8 Type description: 450 Body: Coupe From date: 01-09-2004 To date: 01-12-2006 Fuel: Diesel Approved: Yes
