Artikelnr: F032113847

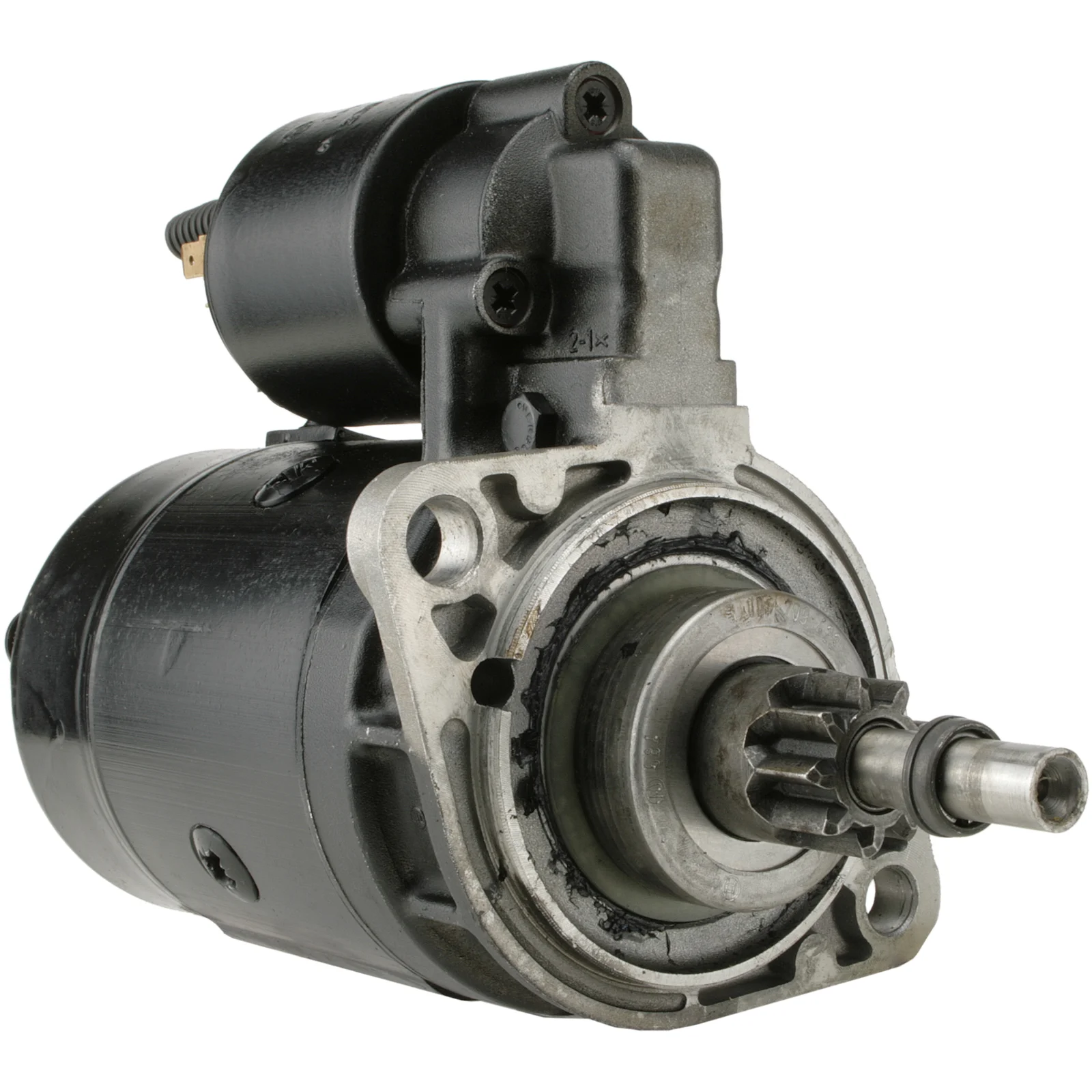

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.95, No./teeth: 9, Rotation: CCW

Beskrivning

VW Startmotor 12V-0.95kW 12V - 0.95kW, 9k, CCW För Yourex produkt order 91-620-1483

Voltage: 12
kW: 0.95
Mount. flange: 76.20
Drive dist.: 43.50
Mount. hole 2 mm: 11.80
Mount. hole 1 mm: 10.40
Dist./back: 159.00
Dist./front: 77.50
No./teeth: 9
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: DD/GR
Dist. mm: 105.00
Rotation: CCW
Total length mm: 241.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 76.20
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Clutch type Dry
Prod. info BN
Rotation CCW
Dist./back 159.00
Dist./front 77.50
Drive dist. 43.50
Drive type Steel
Gear type DD/GR
kW 0.95
Terminal 50 6.30
Voltage 12
Total length 241.00 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.80 mm
Mount. hole 1 10.40 mm

  • OEM
    cs683, F032113847, RGO 113847, 0001 208 425, 0001 208 426, 0001 208 428, 0001 208 429, 0986 014 830, 113847, 0001208425, 0001208426, 0001208428, 0001208429, 1516789R, 025911023, 025911023a, 025911023AX

  • Konkurrentreferens
    CST10541, drs4830, lrs00790, S0077, 8ea730199-001, 25-0385, 41-14.830, 311.031.092, 1325, 10683, 11397, 17066N, 17066R, 103409, 220357, 220357A, 455625, 8014830, 11014830, 42014830, 943251436, 0986014830, 0986014837, 943251436010, 944280148300

  • Bilmärken
    VW

  • Normaliserat artikelnummer
    cs683, cst10541, drs4830, f032113847, lrs00790, rgo113847, s0077, 8ea730199001, 1325, 10683, 11397, 17066n, 17066r, 103409, 113847, 220357, 220357a, 250385, 455625, 0001208425, 0001208426, 0001208428, 0001208429, 1516789r, 4114830, 8014830, 11014830, 025911023, 025911023a, 025911023ax, 42014830, 311031092, 943251436, 0986014830, 0986014837, 943251436010, 944280148300

  • Passar modeller
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DF Body: Bus From date: 01-08-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DF Body: Platform / Chassis From date: 01-09-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DF Body: Van From date: 01-10-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DG Body: Bus From date: 01-08-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DG Body: Platform / Chassis From date: 01-08-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 1.9 Brand of engine: DG Body: Van From date: 01-10-1982 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: DJ Body: Bus From date: 01-08-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: DJ Body: Platform / Chassis From date: 01-03-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: DJ Body: Van From date: 01-03-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: MV Body: Bus From date: 01-06-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: MV Body: Bus From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: MV Body: Platform / Chassis From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: MV Body: Van From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: SR Body: Bus From date: 01-10-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Size of motor: 2.1 Brand of engine: SS Body: Bus From date: 01-07-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 1.9 Brand of engine: DG Body: Bus From date: 01-02-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 1.9 Brand of engine: DG Body: Platform / Chassis From date: 01-12-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 1.9 Brand of engine: DG Body: Van From date: 01-11-1984 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: DJ Body: Bus From date: 01-01-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: DJ Body: Platform / Chassis From date: 01-03-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: DJ Body: Van From date: 01-03-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: MV Body: Bus From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: MV Body: Van From date: 01-08-1985 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Syncro Size of motor: 2.1 Brand of engine: SR Body: Bus From date: 01-10-1986 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: i Size of motor: 2.1 Brand of engine: SS Body: Platform / Chassis From date: 01-07-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T3 Type of engine: i Size of motor: 2.1 Brand of engine: SS Body: Van From date: 01-07-1989 To date: 01-07-1992 Fuel: Gasoline Approved: Yes
    VW Trucks & Vans Series: Transporter III Model: 1.9 MAN Engine volume: 1.9 Engine type: DG Year: 08.82-07.92
    VW Trucks & Vans Series: Transporter III Model: 2.0 Engine volume: 2.0 Engine type: CU / CV Year: 01.81-12.82
    VW Trucks & Vans Series: Transporter III Model: 2.1 Engine volume: 2.1 Engine type: MV / DJ Year: 07.85-07.92
    VW Trucks & Vans Series: Transporter III Model: 2.1 Syncro Engine volume: 2.1 Engine type: MV / DJ Year: 08.85-07.92
    VW Trucks & Vans Series: Transporter III Model: 2.1i Engine volume: 2.1 Engine type: SS Year: 08.89-07.92
    VW Trucks & Vans Series: Transporter III Buss Model: 1.9 Engine volume: 1.9 Engine type: SP Year: 08.87-07.89
    VW Trucks & Vans Series: Transporter III Buss Model: 1.9 Engine volume: 1.9 Year: 08.83-07.92
    VW Trucks & Vans Series: Transporter III Buss Model: 2.1 MAN Engine volume: 2.1 Engine type: DJ Year: 08.85-07.92
    VW Trucks & Vans Series: Transporter III Buss Model: 2.1 Syncro Engine volume: 2.1 Engine type: DJ/MV/SR Year: 08.85-07.92
    VW Trucks & Vans Series: Transporter III Flak Model: 2.1 Engine volume: 2.1 Engine type: DJ Year: 03.86-07.92
    VW Trucks & Vans Series: Transporter III Flak Model: 2.1 Engine volume: 2.1 Engine type: MV Year: 08.85-07.92
