Artikelnr: F032110575

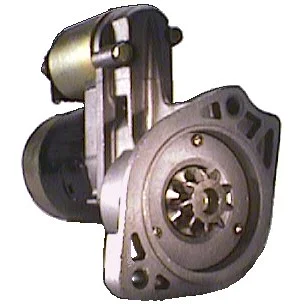

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Beskrivning

Startmotor 12V - 2.0kW, 9k För Yourex produkt order 91-400-1602

Voltage: 12
kW: 2.0
Mount. flange: 82.50
Drive dist.: 3.50
Dist./back: 211.00
Dist./front: 3.50
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.50
Rotation: CW
Total length mm: 218.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (2)
Position/50 15
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 211.00
Dist./front 3.50
Drive dist. 3.50
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 218.00 mm
Waterproof No
Dist. 105.50 mm

  • OEM
    B330M54A01EX, F032110575, js539, RGO 110575, s114-105, S114-357, S114-357A, S114-357B, S114-357C, S13-105, s13-105, S13-105A, s13-105a, S13-305, s13-305, s13-305a, 0986 014 761, 0986 016 021, 23005-4A01RE, 23300-11M00, 23300-11M01, 23300-11M02, 23300-54A00, 23300-54a00, 23300-54A01, 23300-54a01, 23300-54A05, 23300-54a05, 23300-54A06, 110575

  • Konkurrentreferens
    ads-134, CST20129, CST20178, drs6021, F042001156, F042S01156, FRS680, j521037, lrs00973, QS1755, S2015, STR-6032, 8EA011610-841, 8ea726501-001, 25-0498, 25-2192, 28-52.118, 28-52.137, 327.065.092, 4209, 9534, 16809R, 20539, 30972R, 220105, 220105A, 455567, 458931, 8052137, 11040178, 0986016021, 943241141010

  • Bilmärken
    Nissan

  • Normaliserat artikelnummer
    ads134, b330m54a01ex, cst20129, cst20178, drs6021, f032110575, f042001156, f042s01156, frs680, j521037, js539, lrs00973, qs1755, rgo110575, s114105, s114357, s114357a, s114357b, s114357c, s13105, s13105a, s13305, s13305a, s2015, str6032, 8ea011610841, 8ea726501001, 4209, 9534, 16809r, 20539, 30972r, 110575, 220105, 220105a, 230054a01re, 250498, 252192, 455567, 458931, 2330011m00, 2330011m01, 2330011m02, 2330054a00, 2330054a01, 2330054a05, 2330054a06, 2852118, 2852137, 8052137, 11040178, 327065092, 0986014761, 0986016021, 943241141010

  • Passar modeller
    Nissan Model: Almera Model series: Almera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N15 Body: Hatchback From date: 01-11-1995 To date: 01-03-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Almera Model series: Almera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N15 From date: 01-11-1995 To date: 01-07-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Body: Hatchback From date: 01-01-1991 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: P10 From date: 01-01-1991 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: W10 Body: Estate From date: 01-07-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: TD Size of motor: 2.0 Brand of engine: CD20T Type description: P11 Body: Estate From date: 01-04-1998 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: TD Size of motor: 2.0 Brand of engine: CD20T Type description: P11 Body: Hatchback From date: 01-09-1996 To date: 01-07-2002 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: TD Size of motor: 2.0 Brand of engine: CD20T Type description: P11 From date: 01-09-1996 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 1.7 Brand of engine: CD17 Type description: B11 Body: Estate From date: 01-03-1982 To date: 01-10-1986 Fuel: Diesel Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 1.7 Brand of engine: CD17 Type description: B11 From date: 01-03-1982 To date: 01-10-1986 Fuel: Diesel Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 1.7 Brand of engine: CD17 Type description: B12 Body: Estate From date: 01-01-1986 To date: 01-06-1991 Fuel: Diesel Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 1.7 Brand of engine: CD17 Type description: N13 Body: Hatchback From date: 01-06-1986 To date: 01-01-1991 Fuel: Diesel Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 1.7 Brand of engine: CD17 Type description: N13 From date: 01-06-1986 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 1.7 Brand of engine: CD17 Type description: Y10 Body: Van From date: 01-11-1990 To date: 01-03-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N14 Body: Hatchback From date: 01-10-1990 To date: 01-05-1995 Fuel: Diesel Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N14 From date: 01-10-1990 To date: 01-05-1995 Fuel: Diesel Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: Y10 Body: Estate From date: 01-06-1991 To date: 01-03-2000 Fuel: Diesel Approved: Yes
    Nissan Series: Almera I (N15) Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 11.95-07.00
    Nissan Series: Primera (P/W10) Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 01.91-01.96
    Nissan Series: Primera (P11) Model: 2.0 TD Kombi Engine volume: 2.0 Engine type: CD 20 T Year: 06.96-
    Nissan Series: Sunny I (B11) Model: 1.7 D Engine volume: 1.7 Engine type: CD 17 Year: 03.82-10.86
    Nissan Series: Sunny II (B12/N13) Model: 1.7 D Engine volume: 1.7 Engine type: CD 17 Year: 01.86-06.91
    Nissan Series: Sunny III (N14) Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 10.90-05.95
    Nissan Series: Sunny III Kombi Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 06.91-
    1 / 5
  • Beskrivning
    Startmotor 12V - 2.0kW, 9k För Yourex produkt order 91-400-1602

    Voltage: 12
    kW: 2.0
    Mount. flange: 82.50
    Drive dist.: 3.50
    Dist./back: 211.00
    Dist./front: 3.50
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.50
    Rotation: CW
    Total length mm: 218.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 15
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 211.00
    Dist./front 3.50
    Drive dist. 3.50
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 6.30
    Voltage 12
    Total length 218.00 mm
    Waterproof No
    Dist. 105.50 mm
  • Fordonsmatchning

    • OEM
      B330M54A01EX, F032110575, js539, RGO 110575, s114-105, S114-357, S114-357A, S114-357B, S114-357C, S13-105, s13-105, S13-105A, s13-105a, S13-305, s13-305, s13-305a, 0986 014 761, 0986 016 021, 23005-4A01RE, 23300-11M00, 23300-11M01, 23300-11M02, 23300-54A00, 23300-54a00, 23300-54A01, 23300-54a01, 23300-54A05, 23300-54a05, 23300-54A06, 110575

    • Konkurrentreferens
      ads-134, CST20129, CST20178, drs6021, F042001156, F042S01156, FRS680, j521037, lrs00973, QS1755, S2015, STR-6032, 8EA011610-841, 8ea726501-001, 25-0498, 25-2192, 28-52.118, 28-52.137, 327.065.092, 4209, 9534, 16809R, 20539, 30972R, 220105, 220105A, 455567, 458931, 8052137, 11040178, 0986016021, 943241141010

    • Bilmärken
      Nissan

    • Normaliserat artikelnummer
      ads134, b330m54a01ex, cst20129, cst20178, drs6021, f032110575, f042001156, f042s01156, frs680, j521037, js539, lrs00973, qs1755, rgo110575, s114105, s114357, s114357a, s114357b, s114357c, s13105, s13105a, s13305, s13305a, s2015, str6032, 8ea011610841, 8ea726501001, 4209, 9534, 16809r, 20539, 30972r, 110575, 220105, 220105a, 230054a01re, 250498, 252192, 455567, 458931, 2330011m00, 2330011m01, 2330011m02, 2330054a00, 2330054a01, 2330054a05, 2330054a06, 2852118, 2852137, 8052137, 11040178, 327065092, 0986014761, 0986016021, 943241141010

    • Passar modeller
      Nissan Model: Almera Model series: Almera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N15 Body: Hatchback From date: 01-11-1995 To date: 01-03-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Almera Model series: Almera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N15 From date: 01-11-1995 To date: 01-07-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Body: Hatchback From date: 01-01-1991 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: P10 From date: 01-01-1991 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: W10 Body: Estate From date: 01-07-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: TD Size of motor: 2.0 Brand of engine: CD20T Type description: P11 Body: Estate From date: 01-04-1998 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: TD Size of motor: 2.0 Brand of engine: CD20T Type description: P11 Body: Hatchback From date: 01-09-1996 To date: 01-07-2002 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: TD Size of motor: 2.0 Brand of engine: CD20T Type description: P11 From date: 01-09-1996 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 1.7 Brand of engine: CD17 Type description: B11 Body: Estate From date: 01-03-1982 To date: 01-10-1986 Fuel: Diesel Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 1.7 Brand of engine: CD17 Type description: B11 From date: 01-03-1982 To date: 01-10-1986 Fuel: Diesel Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 1.7 Brand of engine: CD17 Type description: B12 Body: Estate From date: 01-01-1986 To date: 01-06-1991 Fuel: Diesel Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 1.7 Brand of engine: CD17 Type description: N13 Body: Hatchback From date: 01-06-1986 To date: 01-01-1991 Fuel: Diesel Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 1.7 Brand of engine: CD17 Type description: N13 From date: 01-06-1986 To date: 01-05-1989 Fuel: Diesel Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 1.7 Brand of engine: CD17 Type description: Y10 Body: Van From date: 01-11-1990 To date: 01-03-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N14 Body: Hatchback From date: 01-10-1990 To date: 01-05-1995 Fuel: Diesel Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N14 From date: 01-10-1990 To date: 01-05-1995 Fuel: Diesel Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: Y10 Body: Estate From date: 01-06-1991 To date: 01-03-2000 Fuel: Diesel Approved: Yes
      Nissan Series: Almera I (N15) Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 11.95-07.00
      Nissan Series: Primera (P/W10) Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 01.91-01.96
      Nissan Series: Primera (P11) Model: 2.0 TD Kombi Engine volume: 2.0 Engine type: CD 20 T Year: 06.96-
      Nissan Series: Sunny I (B11) Model: 1.7 D Engine volume: 1.7 Engine type: CD 17 Year: 03.82-10.86
      Nissan Series: Sunny II (B12/N13) Model: 1.7 D Engine volume: 1.7 Engine type: CD 17 Year: 01.86-06.91
      Nissan Series: Sunny III (N14) Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 10.90-05.95
      Nissan Series: Sunny III Kombi Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 06.91-
