Artikelnr: F032111534

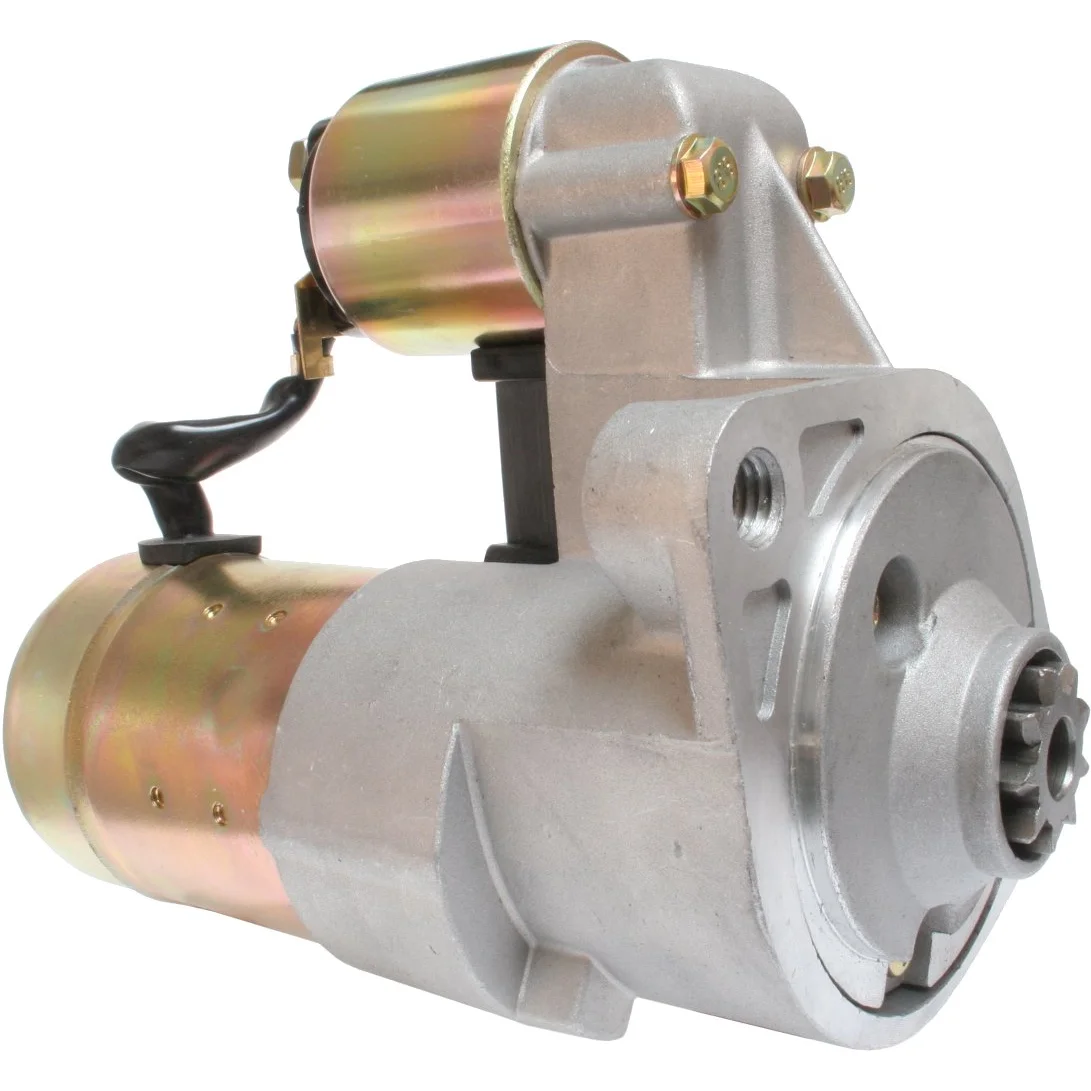

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Beskrivning

Opel Startm. 12V - 1.4kW, 9k 12V - 1.4kW, 9k För Yourex produkt order 91-430-4850

Voltage: 12
kW: 1.4
Mount. flange: 78.00
Drive dist.: 19.00
Mount. hole 1 mm: 10.80
Dist./back: 166.00
Dist./front: 19.00
No./teeth: 9
B+: M8
Position/50: 45
Terminal 50: M4
Gear type: GR
Dist. mm: 118.00
Rotation: CW
Total length mm: 188.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 78.00
Oil sealed No
No./mount. holes 2 (1)
Position/50 45
Prod. info BN
Rotation CW
Dist./back 166.00
Dist./front 19.00
Drive dist. 19.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 M4
Voltage 12
Total length 188.00 mm
Waterproof No
Dist. 118.00 mm
Mount. hole 1 10.80 mm

  • OEM
    F032111534, js941, R1040032, RGO 111534, S114-850, s114-850, S114-850A, s114-850a, S114-850B, s114-850b, S114-850C, S114-850D, S114-850E, s114-890, s114-890a, 0986 018 321, 111534, 1202033, 1202161, 0001208023, 9119793, 09119797, 9119797, 09512269, 9512269, 97133369, 97150203, 8911333691, 8911502030, 8971333690, 8971333691, 8971333692, 8971502030

  • Konkurrentreferens
    BSO7121, CST20101, DRS3189X, drs3394, DRS3394N, DRS3394X, F042001046, F042S01046, FRS671, lrs00974, QS2100, S2004, S2078PR, STR-3045, STR3045, STR72019, 8EA011350-241, 8EA011610-921, 8ea737186-001, 25-2097, 328.034.092, 4430, 9742, 18279, 18279N, 18279R, 20941, 103621, 201193, 220048, 220048A, 455886, 455887, 726013, 726060, 726860, 8212977, 11040195, 42114850, 0986018321, 0986018323

  • Bilmärken
    Opel

  • Normaliserat artikelnummer
    bso7121, cst20101, drs3189x, drs3394, drs3394n, drs3394x, f032111534, f042001046, f042s01046, frs671, js941, lrs00974, qs2100, r1040032, rgo111534, s114850, s114850a, s114850b, s114850c, s114850d, s114850e, s114890, s114890a, s2004, s2078pr, str3045, str72019, 8ea011350241, 8ea011610921, 8ea737186001, 4430, 9742, 18279, 18279n, 18279r, 20941, 103621, 111534, 201193, 220048, 220048a, 252097, 455886, 455887, 726013, 726060, 726860, 1202033, 1202161, 0001208023, 8212977, 9119793, 09119797, 9119797, 09512269, 9512269, 11040195, 42114850, 97133369, 97150203, 328034092, 0986018321, 0986018323, 8911333691, 8911502030, 8971333690, 8971333691, 8971333692, 8971502030

  • Passar modeller
    Opel Model: Combo Model series: Combo Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D (4EE1) Body: Van From date: 01-07-1994 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Combo Model series: Combo Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D (4EE1) Body: Van From date: 01-07-1994 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.5 Brand of engine: 15D (4EC1) Type description: 73,78,79,F35 Body: Hatchback From date: 01-03-1993 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.5 Brand of engine: 15D (4EC1) Type description: S93 Body: Box From date: 01-09-1994 To date: 01-05-1997 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D (4EE1) Body: Van From date: 01-08-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D (4EE1) Type description: 73,78,79,F35 Body: Hatchback From date: 01-02-1996 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D (4EE1) Body: Van From date: 01-08-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D (4EE1) Type description: 73,78,79,F35 Body: Hatchback From date: 01-02-1996 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa B Type of engine: TD Size of motor: 1.5 Brand of engine: 15DT (T4EC1) Type description: 73,78,79,F35 Body: Hatchback From date: 01-03-1993 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Model: Corsa Model series: Corsa B Type of engine: TD Size of motor: 1.5 Brand of engine: X15DT (T4EC1) Type description: 73,78,79,F35 Body: Hatchback From date: 01-03-1993 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Opel Series: Combo Model: 1.7 D Engine volume: 1.7 Engine type: 17 D / X 17 D Year: 07.94-10.01
    Opel Series: Corsa C Model: 1.7 DI 16V Engine volume: 1.7 Engine type: Y 17 DTL Year: 09.00-
    Opel Series: Corsa B Model: 1.7 D Engine volume: 1.7 Engine type: 17 D / X 17 D Year: 02.96-09.00
    Vauxhall Model: Combo Model series: Combo Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D (4EE1) Body: Van From date: 01-07-1994 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Combo Model series: Combo Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D (4EE1) Body: Van From date: 01-07-1994 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.5 Brand of engine: 15D Body: Hatchback From date: 01-12-1992 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D Body: Hatchback From date: 01-02-1996 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D Body: Hatchback From date: 01-02-1996 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa B Type of engine: TD Size of motor: 1.5 Brand of engine: 15DT (T4EC1) Body: Hatchback From date: 01-03-1993 To date: 01-10-1996 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsa Model series: Corsa B Type of engine: TD Size of motor: 1.5 Brand of engine: X15DT (T4EC1) Body: Hatchback From date: 01-03-1993 To date: 01-10-1996 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsavan Model series: Corsavan Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D (4EE1) Body: Van From date: 01-01-1994 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Vauxhall Model: Corsavan Model series: Corsavan Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D (4EE1) Body: Van From date: 01-01-1994 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    1 / 5
  • Beskrivning
    Opel Startm. 12V - 1.4kW, 9k 12V - 1.4kW, 9k För Yourex produkt order 91-430-4850

    Voltage: 12
    kW: 1.4
    Mount. flange: 78.00
    Drive dist.: 19.00
    Mount. hole 1 mm: 10.80
    Dist./back: 166.00
    Dist./front: 19.00
    No./teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: M4
    Gear type: GR
    Dist. mm: 118.00
    Rotation: CW
    Total length mm: 188.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 78.00
    Oil sealed No
    No./mount. holes 2 (1)
    Position/50 45
    Prod. info BN
    Rotation CW
    Dist./back 166.00
    Dist./front 19.00
    Drive dist. 19.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 M4
    Voltage 12
    Total length 188.00 mm
    Waterproof No
    Dist. 118.00 mm
    Mount. hole 1 10.80 mm
  • Fordonsmatchning

    • OEM
      F032111534, js941, R1040032, RGO 111534, S114-850, s114-850, S114-850A, s114-850a, S114-850B, s114-850b, S114-850C, S114-850D, S114-850E, s114-890, s114-890a, 0986 018 321, 111534, 1202033, 1202161, 0001208023, 9119793, 09119797, 9119797, 09512269, 9512269, 97133369, 97150203, 8911333691, 8911502030, 8971333690, 8971333691, 8971333692, 8971502030

    • Konkurrentreferens
      BSO7121, CST20101, DRS3189X, drs3394, DRS3394N, DRS3394X, F042001046, F042S01046, FRS671, lrs00974, QS2100, S2004, S2078PR, STR-3045, STR3045, STR72019, 8EA011350-241, 8EA011610-921, 8ea737186-001, 25-2097, 328.034.092, 4430, 9742, 18279, 18279N, 18279R, 20941, 103621, 201193, 220048, 220048A, 455886, 455887, 726013, 726060, 726860, 8212977, 11040195, 42114850, 0986018321, 0986018323

    • Bilmärken
      Opel

    • Normaliserat artikelnummer
      bso7121, cst20101, drs3189x, drs3394, drs3394n, drs3394x, f032111534, f042001046, f042s01046, frs671, js941, lrs00974, qs2100, r1040032, rgo111534, s114850, s114850a, s114850b, s114850c, s114850d, s114850e, s114890, s114890a, s2004, s2078pr, str3045, str72019, 8ea011350241, 8ea011610921, 8ea737186001, 4430, 9742, 18279, 18279n, 18279r, 20941, 103621, 111534, 201193, 220048, 220048a, 252097, 455886, 455887, 726013, 726060, 726860, 1202033, 1202161, 0001208023, 8212977, 9119793, 09119797, 9119797, 09512269, 9512269, 11040195, 42114850, 97133369, 97150203, 328034092, 0986018321, 0986018323, 8911333691, 8911502030, 8971333690, 8971333691, 8971333692, 8971502030

    • Passar modeller
      Opel Model: Combo Model series: Combo Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D (4EE1) Body: Van From date: 01-07-1994 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Combo Model series: Combo Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D (4EE1) Body: Van From date: 01-07-1994 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.5 Brand of engine: 15D (4EC1) Type description: 73,78,79,F35 Body: Hatchback From date: 01-03-1993 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.5 Brand of engine: 15D (4EC1) Type description: S93 Body: Box From date: 01-09-1994 To date: 01-05-1997 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D (4EE1) Body: Van From date: 01-08-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D (4EE1) Type description: 73,78,79,F35 Body: Hatchback From date: 01-02-1996 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D (4EE1) Body: Van From date: 01-08-1999 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D (4EE1) Type description: 73,78,79,F35 Body: Hatchback From date: 01-02-1996 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa B Type of engine: TD Size of motor: 1.5 Brand of engine: 15DT (T4EC1) Type description: 73,78,79,F35 Body: Hatchback From date: 01-03-1993 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Model: Corsa Model series: Corsa B Type of engine: TD Size of motor: 1.5 Brand of engine: X15DT (T4EC1) Type description: 73,78,79,F35 Body: Hatchback From date: 01-03-1993 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Opel Series: Combo Model: 1.7 D Engine volume: 1.7 Engine type: 17 D / X 17 D Year: 07.94-10.01
      Opel Series: Corsa C Model: 1.7 DI 16V Engine volume: 1.7 Engine type: Y 17 DTL Year: 09.00-
      Opel Series: Corsa B Model: 1.7 D Engine volume: 1.7 Engine type: 17 D / X 17 D Year: 02.96-09.00
      Vauxhall Model: Combo Model series: Combo Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D (4EE1) Body: Van From date: 01-07-1994 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Combo Model series: Combo Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D (4EE1) Body: Van From date: 01-07-1994 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.5 Brand of engine: 15D Body: Hatchback From date: 01-12-1992 To date: 01-12-1996 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D Body: Hatchback From date: 01-02-1996 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsa Model series: Corsa B Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D Body: Hatchback From date: 01-02-1996 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsa Model series: Corsa B Type of engine: TD Size of motor: 1.5 Brand of engine: 15DT (T4EC1) Body: Hatchback From date: 01-03-1993 To date: 01-10-1996 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsa Model series: Corsa B Type of engine: TD Size of motor: 1.5 Brand of engine: X15DT (T4EC1) Body: Hatchback From date: 01-03-1993 To date: 01-10-1996 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsavan Model series: Corsavan Type of engine: Diesel Size of motor: 1.7 Brand of engine: 17D (4EE1) Body: Van From date: 01-01-1994 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Vauxhall Model: Corsavan Model series: Corsavan Type of engine: Diesel Size of motor: 1.7 Brand of engine: X17D (4EE1) Body: Van From date: 01-01-1994 To date: 01-09-2000 Fuel: Diesel Approved: Yes
