Artikelnr: F032113925

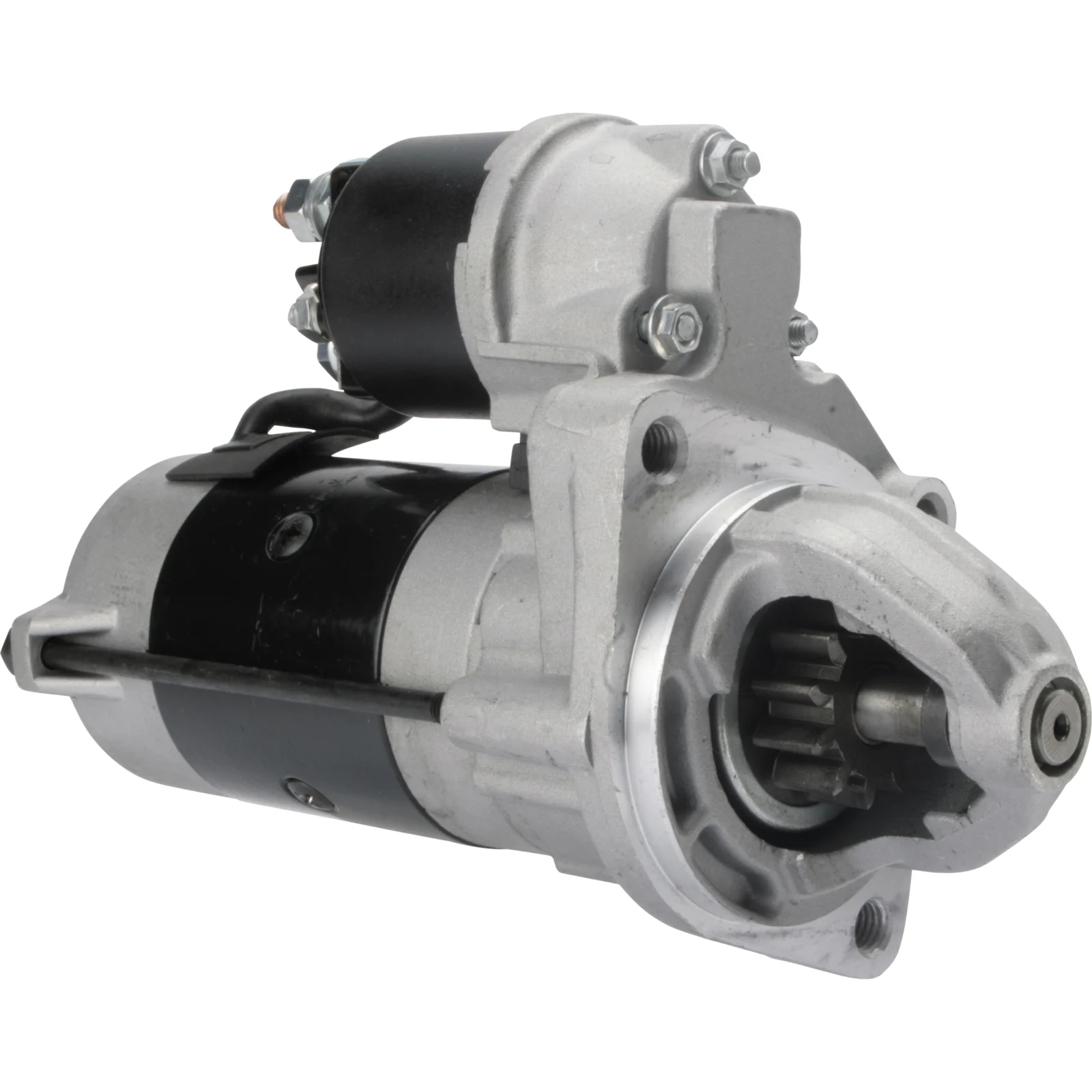

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.8, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.8
Mount. flange: 76.00
Drive dist.: 21.00
Mount. hole 3 mm: M10
Mount. hole 1 mm: 7.80
Dist./back: 167.50
Dist./front: 57.00
No./teeth: 11
B+: M8
Position/50: 18
Terminal 50: M6
Gear type: GR
Dist. 2: 105.00
Dist. 3: 74.00
Dist. mm: 74.00
Rotation: CW
Total length mm: 227.00
Terminal 30h: M5
Position/30h: 45
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (2)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 76.00
Oil sealed No
No./mount. holes 3 (2)
Position/30h 45
Position/50 18
Prod. info BN
Dist. 2 105.00
Dist. 3 74.00
Rotation CW
Dist./back 167.50
Dist./front 57.00
Drive dist. 21.00
Drive type Steel
Gear type GR
kW 1.8
Terminal 50 M6
Voltage 12
Total length 227.00 mm
Waterproof No
Dist. 74.00 mm
Terminal 30H M5 mm
Mount. hole 3 M10 mm
Mount. hole 1 7.80 mm

  • OEM
    cs1265, E5579N, F032113925, RGO 113925, 2247063, 2249295, 4496934, 63113001, 63193001, 12412247063, 12412249295, 12414496934

  • Konkurrentreferens
    CST30154, DENDSN504, DRS3929, DRS3929X, DSN504, F042S0H072, LRS01791, MSN808, S4031, STR-H072, 8EA738027-001, 26-3000, 315.120.112, 3184, 32791, 32791N, 32791R, 101265, 105158, 220508, 220508A, 458888, 8080191, 11022580, 42063193, 0986022581, 0986022583, 063193001010, 944280801910

  • Normaliserat artikelnummer
    cs1265, cst30154, dendsn504, drs3929, drs3929x, dsn504, e5579n, f032113925, f042s0h072, lrs01791, msn808, rgo113925, s4031, strh072, 8ea738027001, 3184, 32791, 32791n, 32791r, 101265, 105158, 220508, 220508a, 263000, 458888, 2247063, 2249295, 4496934, 8080191, 11022580, 42063193, 63113001, 63193001, 315120112, 0986022581, 0986022583, 12412247063, 12412249295, 12414496934, 063193001010, 944280801910

  • Passar modeller
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 Body: Estate From date: 01-10-2002 To date: 01-03-2003 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 From date: 01-09-2001 To date: 01-03-2003 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 Body: Estate From date: 01-10-2002 To date: 01-03-2003 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 From date: 01-09-2001 To date: 01-03-2003 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 From date: 01-02-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 From date: 01-04-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 From date: 01-04-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-09-2003 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-09-2003 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 1.8
    Mount. flange: 76.00
    Drive dist.: 21.00
    Mount. hole 3 mm: M10
    Mount. hole 1 mm: 7.80
    Dist./back: 167.50
    Dist./front: 57.00
    No./teeth: 11
    B+: M8
    Position/50: 18
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 105.00
    Dist. 3: 74.00
    Dist. mm: 74.00
    Rotation: CW
    Total length mm: 227.00
    Terminal 30h: M5
    Position/30h: 45
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 76.00
    Oil sealed No
    No./mount. holes 3 (2)
    Position/30h 45
    Position/50 18
    Prod. info BN
    Dist. 2 105.00
    Dist. 3 74.00
    Rotation CW
    Dist./back 167.50
    Dist./front 57.00
    Drive dist. 21.00
    Drive type Steel
    Gear type GR
    kW 1.8
    Terminal 50 M6
    Voltage 12
    Total length 227.00 mm
    Waterproof No
    Dist. 74.00 mm
    Terminal 30H M5 mm
    Mount. hole 3 M10 mm
    Mount. hole 1 7.80 mm
  • Fordonsmatchning

    • OEM
      cs1265, E5579N, F032113925, RGO 113925, 2247063, 2249295, 4496934, 63113001, 63193001, 12412247063, 12412249295, 12414496934

    • Konkurrentreferens
      CST30154, DENDSN504, DRS3929, DRS3929X, DSN504, F042S0H072, LRS01791, MSN808, S4031, STR-H072, 8EA738027-001, 26-3000, 315.120.112, 3184, 32791, 32791N, 32791R, 101265, 105158, 220508, 220508A, 458888, 8080191, 11022580, 42063193, 0986022581, 0986022583, 063193001010, 944280801910

    • Normaliserat artikelnummer
      cs1265, cst30154, dendsn504, drs3929, drs3929x, dsn504, e5579n, f032113925, f042s0h072, lrs01791, msn808, rgo113925, s4031, strh072, 8ea738027001, 3184, 32791, 32791n, 32791r, 101265, 105158, 220508, 220508a, 263000, 458888, 2247063, 2249295, 4496934, 8080191, 11022580, 42063193, 63113001, 63193001, 315120112, 0986022581, 0986022583, 12412247063, 12412249295, 12414496934, 063193001010, 944280801910

    • Passar modeller
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 Body: Estate From date: 01-10-2002 To date: 01-03-2003 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 From date: 01-09-2001 To date: 01-03-2003 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 Body: Estate From date: 01-10-2002 To date: 01-03-2003 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 From date: 01-09-2001 To date: 01-03-2003 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 From date: 01-02-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E46 From date: 01-04-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 320 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E46 From date: 01-04-1998 To date: 01-09-2001 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-09-2003 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-09-2003 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
