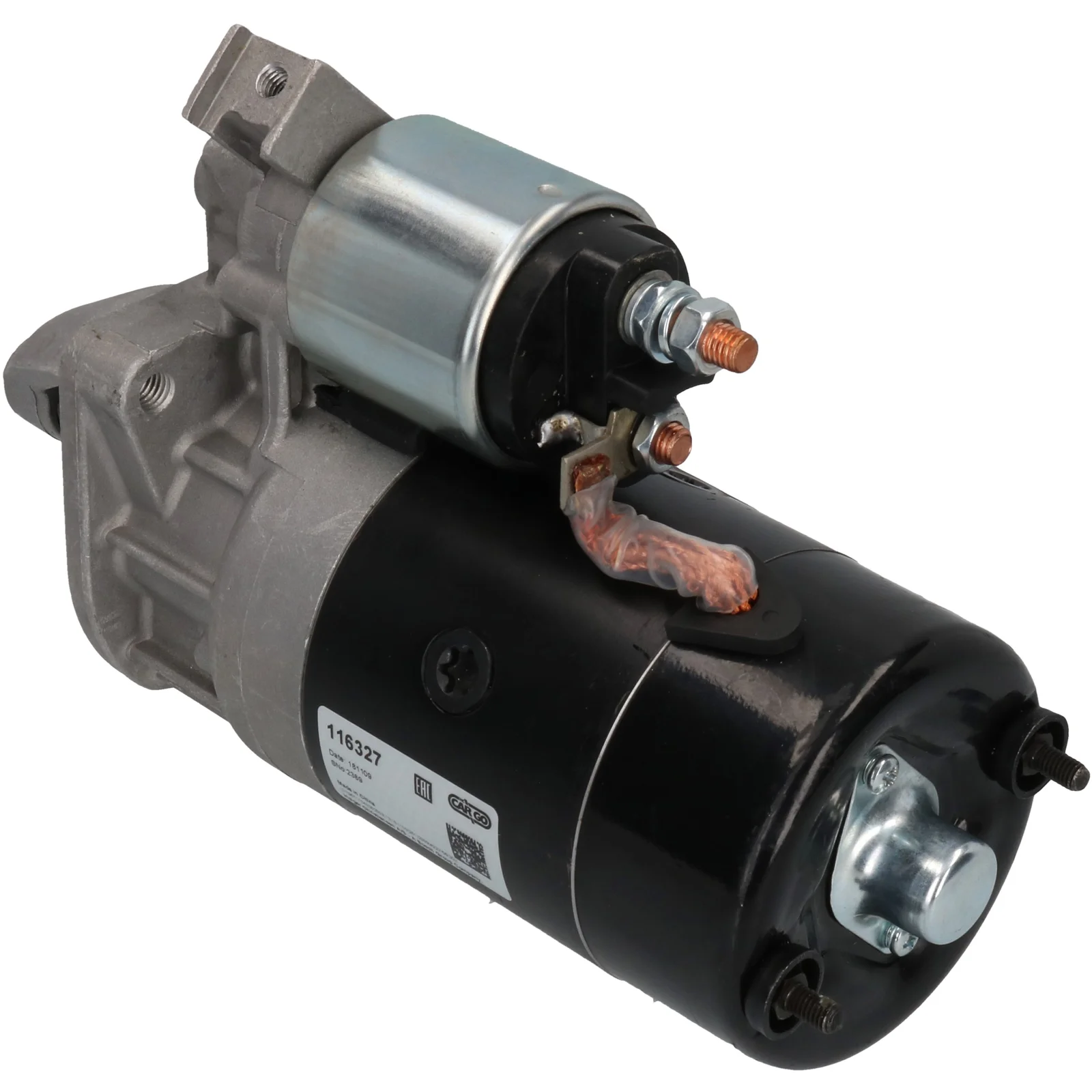

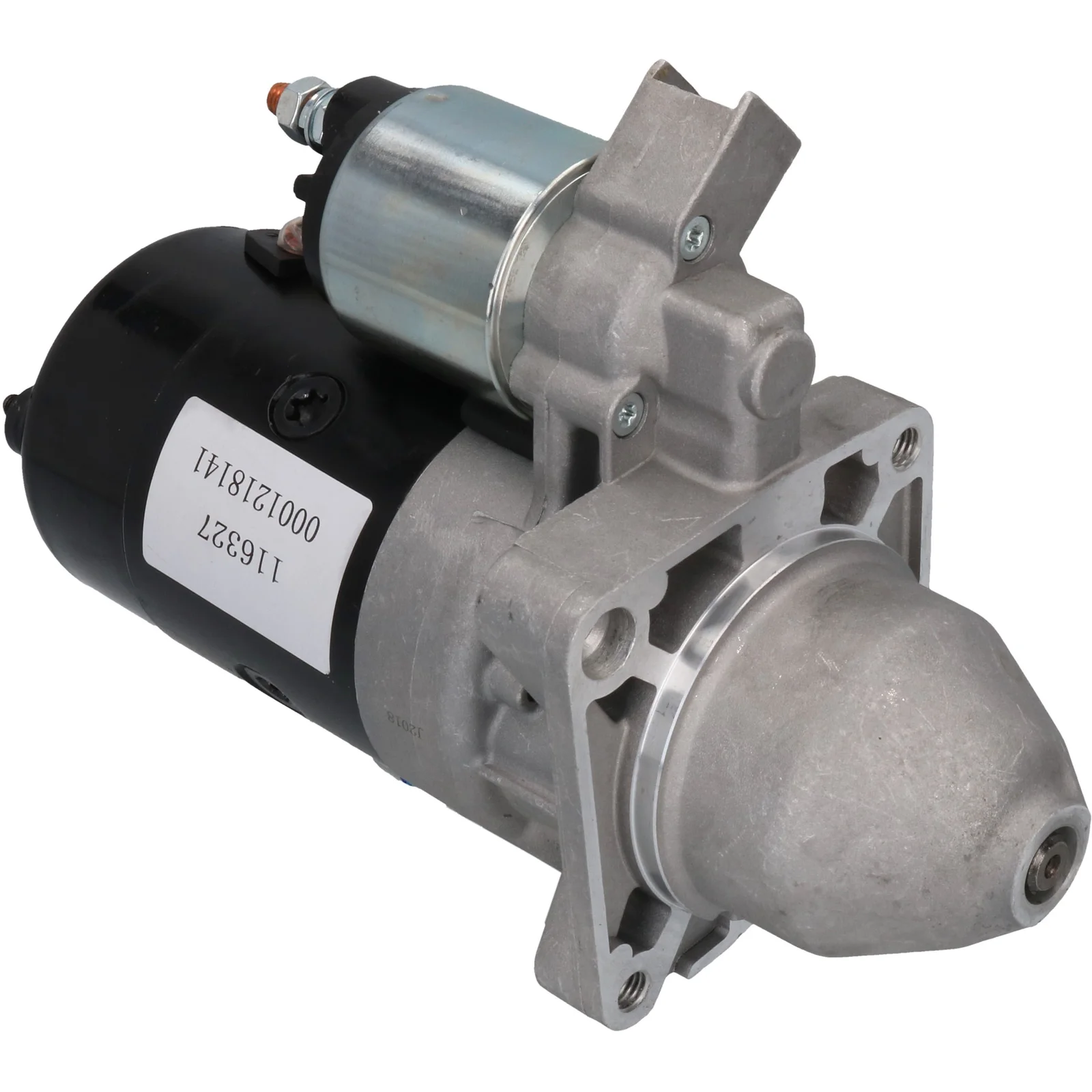

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116327

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.2
Mount. flange: 82.00
Drive dist.: 29.00
Mount. hole 3 mm: M10
Dist./back: 205.00
Dist./front: 69.00
No./teeth: 9
B+: M8
Thread length mm: 11.00
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. 2: 85.00
Dist. 3: 85.00
Dist. mm: 120.00
Rotation: CW
Total length mm: 274.00
No./mount. holes: 3 (3)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.00
No./mount. holes 3 (3)
Position/50 15
Dist. 2 85.00
Dist. 3 85.00
Rotation CW
Dist./back 205.00
Dist./front 69.00
Drive dist. 29.00
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 274.00 mm
Dist. 120.00 mm
Thread length 11.00 mm
Mount. hole 3 M10 mm

  • OEM
    CST10334, CST30117, drs5930, DRS5930, DRS5930X, F032116327, FRS177, lrs00743, LRS00743, lrs02074, LRS02074, QS1580, RGO 116327, S0422, S26047, STR52004, vs292, VS292, 8EA011611-331, 8ea726184-001, 8EA726184001, 16-15.930, 25-1192, 25-2157, 88-15.930, 318.033.092, 318.067.092, 500.509.093, 1649, 3800, 5802E3, 10554, 11643, 14401B2420, 30743R, 103384, 220183, 220183A, 241707, 241787, 0293019R, 293019, 455526, 455626, 0001218141, 0001218741, 1516771R, 7589005, 7589151, 7726946, 8015930, 8080032, 11015930, 35258970, 35260920, 42015930, 46231644, 063222034, 63222034, 063222138, 63222138, 71721282, 71721296, 75891510, 77679430, 943222034, 943222138, 944280159, 0986015930, 063222034010, 063222138010, 944280159300

  • Konkurrentreferens
    CST10334, CST30117, drs5930, DRS5930X, FRS177, lrs00743, lrs02074, QS1580, S0422, STR52004, vs292, 8EA011611-331, 8ea726184-001, 16-15.930, 25-1192, 25-2157, 88-15.930, 318.033.092, 318.067.092, 500.509.093, 1649, 3800, 5802E3, 10554, 11643, 30743R, 103384, 220183, 220183A, 455526, 455626, 8015930, 8080032, 11015930, 35258970, 35260920, 42015930, 063222034, 063222138, 943222034, 943222138, 944280159, 0986015930, 063222034010, 063222138010, 944280159300

  • Bilmärken
    ALFA ROMEO, CITROËN, FIAT

  • Normaliserat artikelnummer
    cst10334, cst30117, drs5930, drs5930x, f032116327, frs177, lrs00743, lrs02074, qs1580, rgo116327, s0422, s26047, str52004, vs292, 8ea011611331, 8ea726184001, 1649, 3800, 5802e3, 10554, 11643, 14401b2420, 30743r, 103384, 220183, 220183a, 241707, 241787, 251192, 252157, 0293019r, 293019, 455526, 455626, 0001218141, 0001218741, 1516771r, 1615930, 7589005, 7589151, 7726946, 8015930, 8080032, 8815930, 11015930, 35258970, 35260920, 42015930, 46231644, 063222034, 63222034, 063222138, 63222138, 71721282, 71721296, 75891510, 77679430, 318033092, 318067092, 500509093, 943222034, 943222138, 944280159, 0986015930, 063222034010, 063222138010, 944280159300

  • Passar modeller
    ALFA ROMEO AR 6 Buss (280_) 1.9 D (280) Engine volume: 1.9 Engine type: 160 D100 Year: 04.85-12.89
    ALFA ROMEO AR 6 Skåp (280_) 1.9 D (280) Engine volume: 1.9 Engine type: 160 D100 Year: 04.85-12.89
    CITROËN C25 Buss (280_, 290_) 1.9 TD Engine volume: 1.9 Engine type: M705 Year: 04.92-02.94
    FIAT DUCATO Buss (230_) 1.9 D Combinato Engine volume: 1.9 Engine type: 230 A2.000 Year: 06.95-04.02
    FIAT DUCATO Buss (230_) 1.9 TD Combinato Engine volume: 1.9 Engine type: 230 A4.000 Year: 08.94-04.02
    FIAT DUCATO Buss (230_) 1.9 TD Panorama/Combinato Engine volume: 1.9 Engine type: 230 A3.000 Year: 03.94-04.02
    FIAT DUCATO Flak/chassi (230_) 1.9 D Engine volume: 1.9 Engine type: 230 A2.000 Year: 03.94-04.02
    FIAT DUCATO Flak/chassi (230_) 1.9 TD CAT Engine volume: 1.9 Engine type: 230 A4.000 Year: 08.94-04.02
    FIAT DUCATO Flak/chassi (230_) 1.9 TD Engine volume: 1.9 Engine type: 230 A3.000 Year: 03.94-04.02
    FIAT DUCATO Flak/chassi (280_) 1.9 D Engine volume: 1.9 Engine type: 149 B1.000 Year: 01.88-08.90
    FIAT DUCATO Flak/chassi (280_) 1.9 TD Engine volume: 1.9 Engine type: 280 A1.000 Year: 03.89-08.90
    FIAT DUCATO Flak/chassi (290_) 1.9 D Engine volume: 1.9 Engine type: 149 B1.000 Year: 06.90-05.94
    FIAT DUCATO Flak/chassi (290_) 1.9 TD Engine volume: 1.9 Engine type: 280 A1.000 Year: 03.89-03.94
    FIAT DUCATO Panorama (280_) 1.9 D Engine volume: 1.9 Engine type: 149 B1.000 Year: 02.87-08.90
    FIAT DUCATO Panorama (280_) 1.9 TD Engine volume: 1.9 Engine type: 280 A1.000 Year: 03.89-08.90
    FIAT DUCATO Panorama (290_) 1.9 D Engine volume: 1.9 Engine type: 149 B1.000 Year: 07.90-03.94
    FIAT DUCATO Panorama (290_) 1.9 TD Engine volume: 1.9 Engine type: 280 A1.000 Year: 07.90-03.94
    FIAT DUCATO Skåp (230_) 1.9 D Engine volume: 1.9 Engine type: 230 A2.000 Year: 03.94-04.02
    FIAT DUCATO Skåp (230_) 1.9 TD CAT Engine volume: 1.9 Engine type: 230 A4.000 Year: 08.94-04.02
    FIAT DUCATO Skåp (230_) 1.9 TD Engine volume: 1.9 Engine type: 230 A3.000 Year: 03.94-04.02
    FIAT DUCATO Skåp (280_) 1.9 D Engine volume: 1.9 Engine type: 149 B1.000 Year: 01.88-08.90
    FIAT DUCATO Skåp (280_) 1.9 TD Engine volume: 1.9 Engine type: 280 A1.000 Year: 03.89-08.90
    FIAT DUCATO Skåp (290_) 1.9 D Engine volume: 1.9 Engine type: 149 B1.000 Year: 07.90-03.94
    FIAT DUCATO Skåp (290_) 1.9 TD Engine volume: 1.9 Engine type: 280 A1.000 Year: 03.89-03.94
    FIAT TALENTO Buss (290_) 1.9 D (290UEHK) Engine volume: 1.9 Engine type: 149 B1.000 Year: 03.89-03.94
    FIAT TALENTO Flak/chassi (290_) 1.9 D (290UAK, 290UTK) Engine volume: 1.9 Engine type: 149 B1.000 Year: 03.89-03.94
    FIAT TALENTO Skåp (290_) 1.9 D (290UK) Engine volume: 1.9 Engine type: 149 B1.000 Year: 03.89-03.94
