HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114487

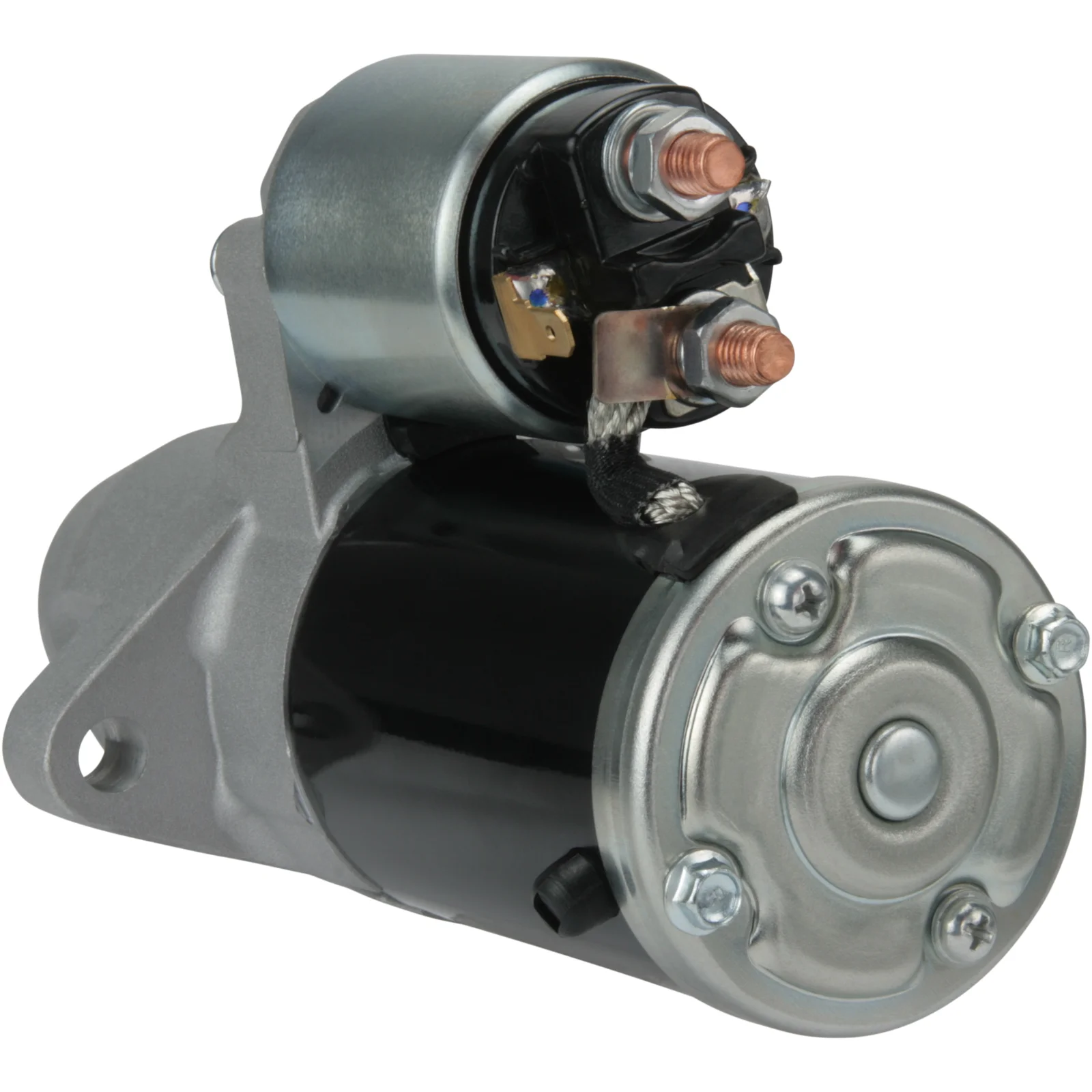

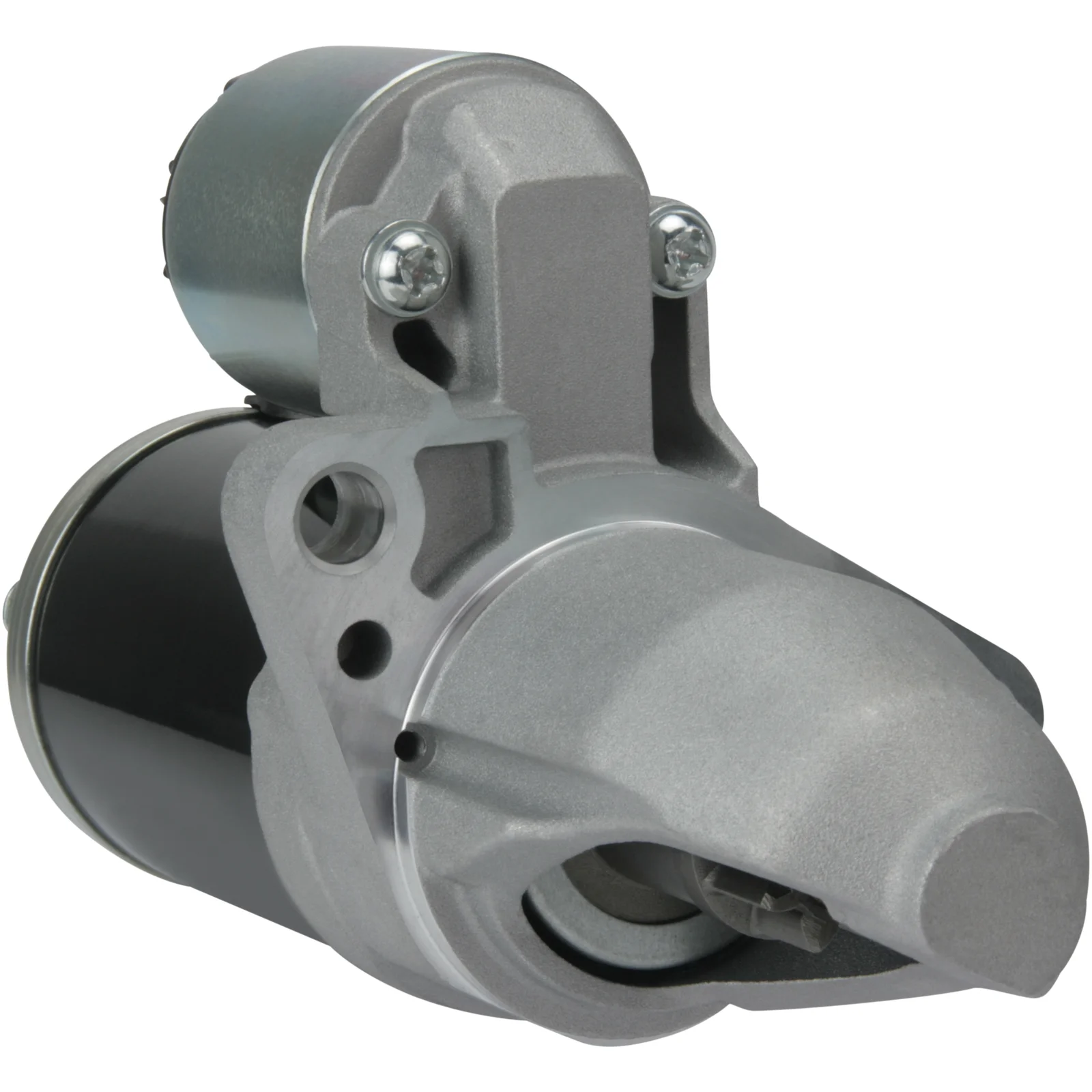

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.0, No./teeth: 8, Rotation: CCW

Beskrivning

Voltage: 12
kW: 1.0
Mount. flange: 65.00
Drive dist.: 52.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 10.80
Dist./back: 131.50
Dist./front: 86.00
No./teeth: 8
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: DD
Dist. mm: 97.00
Rotation: CCW
Total length mm: 217.50
Prod. info: BN
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 65.00
No./mount. holes 2 (0)
Position/50 45
Prod. info BN
Rotation CCW
Dist./back 131.50
Dist./front 86.00
Drive dist. 52.00
Gear type DD
kW 1.0
Terminal 50 6.30
Voltage 12
Total length 217.50 mm
Dist. 97.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 10.80 mm

  • OEM
    A 132 151 00 01, a1321510001, A1321510001005, cs1452, CS1452, CST35255, DRS0484, F032114487, LRS02552, M000T46171, M000T46171AM, M000T46171ZT, M0T46171, M0T46171AM, m0t46171zt, M0T46171ZT, RGO 114487, S5212, 8EA012528-721, 8EA738259-151, 8EA738259-401, 25-4224, 325.065.082, 550.567.082, 1810a104, 1810A104, 1986S01258, 19624N, 101452, 220896, 220896A, 438425, 458772, 11090211, 42024700, 0986024700, 1321510001

  • Konkurrentreferens
    CST35255, DRS0484, LRS02552, S5212, 8EA012528-721, 8EA738259-151, 8EA738259-401, 25-4224, 325.065.082, 550.567.082, 19624N, 101452, 220896, 220896A, 438425, 458772, 11090211, 42024700, 0986024700

  • Bilmärken
    SMART

  • Normaliserat artikelnummer
    a1321510001, a1321510001005, cs1452, cst35255, drs0484, f032114487, lrs02552, m000t46171, m000t46171am, m000t46171zt, m0t46171, m0t46171am, m0t46171zt, rgo114487, s5212, 8ea012528721, 8ea738259151, 8ea738259401, 1810a104, 1986s01258, 19624n, 101452, 220896, 220896a, 254224, 438425, 458772, 11090211, 42024700, 325065082, 550567082, 0986024700, 1321510001

  • Passar modeller
    SMART FORTWO Cabrio (451) 1.0 (451.431, 451.480) Engine volume: 1.0 Engine type: M 132.910 Year: 01.07-
    SMART FORTWO Cabrio (451) 1.0 Brabus (451.433) Engine volume: 1.0 Engine type: M 132.930 Year: 01.08-
    SMART FORTWO Cabrio (451) 1.0 Brabus Engine volume: 1.0 Engine type: M 132.930 Year: 04.12-
    SMART FORTWO Cabrio (451) 1.0 Turbo (451.432) Engine volume: 1.0 Engine type: M 132.930 Year: 01.07-
    SMART FORTWO Cabrio (451) 1.0 Turbo Brabus (451.433) Engine volume: 1.0 Engine type: M 132.930 Year: 07.10-
    SMART FORTWO Coupé (451) 1.0 (451.330, 451.334) Engine volume: 1.0 Engine type: M 132.910 Year: 01.07-
    SMART FORTWO Coupé (451) 1.0 (451.331, 451.380) Engine volume: 1.0 Engine type: M 132.910 Year: 01.07-
    SMART FORTWO Coupé (451) 1.0 Brabus (451.333) Engine volume: 1.0 Engine type: M 132.930 Year: 01.08-
    SMART FORTWO Coupé (451) 1.0 Turbo (451.332) Engine volume: 1.0 Engine type: M 132.930 Year: 01.07-
    SMART FORTWO Coupé (451) 1.0 Turbo Brabus (451.333) Engine volume: 1.0 Engine type: M 132.930 Year: 07.10-
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 1.0
    Mount. flange: 65.00
    Drive dist.: 52.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 10.80
    Dist./back: 131.50
    Dist./front: 86.00
    No./teeth: 8
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: DD
    Dist. mm: 97.00
    Rotation: CCW
    Total length mm: 217.50
    Prod. info: BN
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 65.00
    No./mount. holes 2 (0)
    Position/50 45
    Prod. info BN
    Rotation CCW
    Dist./back 131.50
    Dist./front 86.00
    Drive dist. 52.00
    Gear type DD
    kW 1.0
    Terminal 50 6.30
    Voltage 12
    Total length 217.50 mm
    Dist. 97.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 10.80 mm
  • Fordonsmatchning

    • OEM
      A 132 151 00 01, a1321510001, A1321510001005, cs1452, CS1452, CST35255, DRS0484, F032114487, LRS02552, M000T46171, M000T46171AM, M000T46171ZT, M0T46171, M0T46171AM, m0t46171zt, M0T46171ZT, RGO 114487, S5212, 8EA012528-721, 8EA738259-151, 8EA738259-401, 25-4224, 325.065.082, 550.567.082, 1810a104, 1810A104, 1986S01258, 19624N, 101452, 220896, 220896A, 438425, 458772, 11090211, 42024700, 0986024700, 1321510001

    • Konkurrentreferens
      CST35255, DRS0484, LRS02552, S5212, 8EA012528-721, 8EA738259-151, 8EA738259-401, 25-4224, 325.065.082, 550.567.082, 19624N, 101452, 220896, 220896A, 438425, 458772, 11090211, 42024700, 0986024700

    • Bilmärken
      SMART

    • Normaliserat artikelnummer
      a1321510001, a1321510001005, cs1452, cst35255, drs0484, f032114487, lrs02552, m000t46171, m000t46171am, m000t46171zt, m0t46171, m0t46171am, m0t46171zt, rgo114487, s5212, 8ea012528721, 8ea738259151, 8ea738259401, 1810a104, 1986s01258, 19624n, 101452, 220896, 220896a, 254224, 438425, 458772, 11090211, 42024700, 325065082, 550567082, 0986024700, 1321510001

    • Passar modeller
      SMART FORTWO Cabrio (451) 1.0 (451.431, 451.480) Engine volume: 1.0 Engine type: M 132.910 Year: 01.07-
      SMART FORTWO Cabrio (451) 1.0 Brabus (451.433) Engine volume: 1.0 Engine type: M 132.930 Year: 01.08-
      SMART FORTWO Cabrio (451) 1.0 Brabus Engine volume: 1.0 Engine type: M 132.930 Year: 04.12-
      SMART FORTWO Cabrio (451) 1.0 Turbo (451.432) Engine volume: 1.0 Engine type: M 132.930 Year: 01.07-
      SMART FORTWO Cabrio (451) 1.0 Turbo Brabus (451.433) Engine volume: 1.0 Engine type: M 132.930 Year: 07.10-
      SMART FORTWO Coupé (451) 1.0 (451.330, 451.334) Engine volume: 1.0 Engine type: M 132.910 Year: 01.07-
      SMART FORTWO Coupé (451) 1.0 (451.331, 451.380) Engine volume: 1.0 Engine type: M 132.910 Year: 01.07-
      SMART FORTWO Coupé (451) 1.0 Brabus (451.333) Engine volume: 1.0 Engine type: M 132.930 Year: 01.08-
      SMART FORTWO Coupé (451) 1.0 Turbo (451.332) Engine volume: 1.0 Engine type: M 132.930 Year: 01.07-
      SMART FORTWO Coupé (451) 1.0 Turbo Brabus (451.333) Engine volume: 1.0 Engine type: M 132.930 Year: 07.10-
      1 / 2
