Artikelnr: F032112037

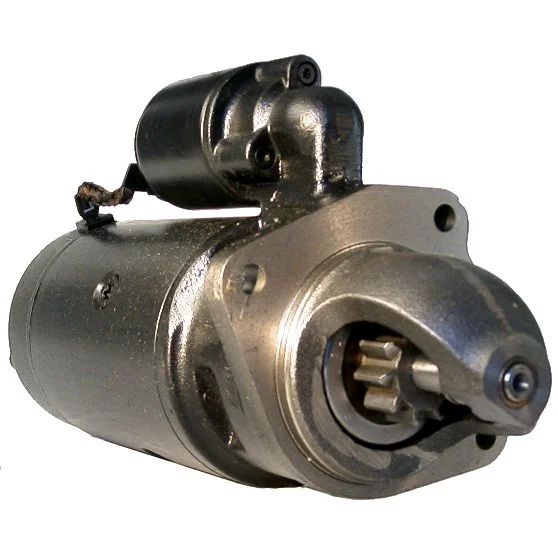

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Beskrivning

HC-Cargo Startmotor

Voltage: 24
kW: 4.0
Mount. flange: 89.00
Drive dist.: 29.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 267.00
Dist./front: 77.00
No./teeth: 10
B+: M10
Position/50: 45
Terminal 50: M5
Gear type: DD
Dist. 2: 127.00
Dist. 3: 89.50
Dist. mm: 89.50
Rotation: CW
Total length mm: 341.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Clutch type Dry
Prod. info BN
Dist. 2 127.00
Dist. 3 89.50
Rotation CW
Dist./back 267.00
Dist./front 77.00
Drive dist. 29.00
Drive type Steel
Gear type DD
kW 4.0
Terminal 50 M5
Voltage 24
Total length 341.00 mm
Waterproof No
Dist. 89.50 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032112037, 109-2361, 714/34000, 2873d304, 0001368085, 11702594, 19024260, 154011053, 9011702594

  • Konkurrentreferens
    BSX1140025, CST10671, DRS0039, LRS01917, S0170, STR22032, 2-2285-BO, 45-2353, 18251N, 220273, 220273A, 254191, 11090069, 0986019753

  • Normaliserat artikelnummer
    bsx1140025, cst10671, drs0039, f032112037, lrs01917, s0170, str22032, 2873d304, 18251n, 22285bo, 220273, 220273a, 254191, 452353, 1092361, 0001368085, 11090069, 11702594, 19024260, 71434000, 154011053, 0986019753, 9011702594

  • Passar modeller
    Perkins Model: Various Models Model series: Various Models Brand of engine: Komatsu From date: 01-01-1988 Fuel: Diesel Approved: Yes
    Volvo Model: E Series Model series: EC130C Brand of engine: TD40GDE Fuel: Diesel Approved: Yes
    Volvo Model: E Series Model series: EW130C Brand of engine: TD40GDE Fuel: Diesel Approved: Yes
    Volvo Model: L Series Model series: L50 Brand of engine: TD40GFE From date: 01-01-1993 Fuel: Diesel Approved: Yes
  • Beskrivning
    HC-Cargo Startmotor

    Voltage: 24
    kW: 4.0
    Mount. flange: 89.00
    Drive dist.: 29.00
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 267.00
    Dist./front: 77.00
    No./teeth: 10
    B+: M10
    Position/50: 45
    Terminal 50: M5
    Gear type: DD
    Dist. 2: 127.00
    Dist. 3: 89.50
    Dist. mm: 89.50
    Rotation: CW
    Total length mm: 341.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Clutch type Dry
    Prod. info BN
    Dist. 2 127.00
    Dist. 3 89.50
    Rotation CW
    Dist./back 267.00
    Dist./front 77.00
    Drive dist. 29.00
    Drive type Steel
    Gear type DD
    kW 4.0
    Terminal 50 M5
    Voltage 24
    Total length 341.00 mm
    Waterproof No
    Dist. 89.50 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      F032112037, 109-2361, 714/34000, 2873d304, 0001368085, 11702594, 19024260, 154011053, 9011702594

    • Konkurrentreferens
      BSX1140025, CST10671, DRS0039, LRS01917, S0170, STR22032, 2-2285-BO, 45-2353, 18251N, 220273, 220273A, 254191, 11090069, 0986019753

    • Normaliserat artikelnummer
      bsx1140025, cst10671, drs0039, f032112037, lrs01917, s0170, str22032, 2873d304, 18251n, 22285bo, 220273, 220273a, 254191, 452353, 1092361, 0001368085, 11090069, 11702594, 19024260, 71434000, 154011053, 0986019753, 9011702594

    • Passar modeller
      Perkins Model: Various Models Model series: Various Models Brand of engine: Komatsu From date: 01-01-1988 Fuel: Diesel Approved: Yes
      Volvo Model: E Series Model series: EC130C Brand of engine: TD40GDE Fuel: Diesel Approved: Yes
      Volvo Model: E Series Model series: EW130C Brand of engine: TD40GDE Fuel: Diesel Approved: Yes
      Volvo Model: L Series Model series: L50 Brand of engine: TD40GFE From date: 01-01-1993 Fuel: Diesel Approved: Yes
