Artikelnr: F032111913

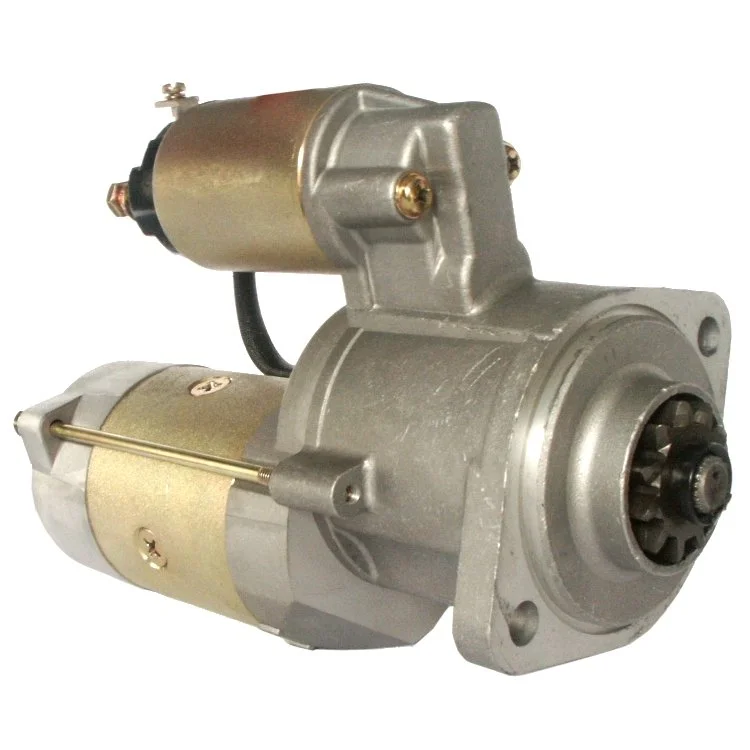

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 3.2, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 24
kW: 3.2
Mount. flange: 82.50
Drive dist.: 22.50
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 218.50
Dist./front: 31.50
No./teeth: 9
B+: M8
Position/B+: 15
Position/50: 60
Terminal 50: M5
Gear type: GR
Dist. mm: 104.50
Rotation: CW
Total length mm: 250.50
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed Yes
No./mount. holes 2 (0)
Position/50 60
Clutch type Dry
Position/B+ 15
Prod. info BN
Rotation CW
Dist./back 218.50
Dist./front 31.50
Drive dist. 22.50
Drive type Steel
Gear type GR
kW 3.2
Terminal 50 M5
Voltage 24
Total length 250.50 mm
Waterproof No
Dist. 104.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032111913, js777, M002T65271, M002T65272, M002T65275, M003T54071, M003T54072, M005T27671, m2t65271, m2t65272, m2t65275, m3t54071, m3t54072, m5t27671, 34466-03101, 34466-15101, 34466-15102, 34466-20102, 3785426

  • Konkurrentreferens
    acs-913, CST35600, drs3284, F042001173, F042S01173, LRS01842, PBNS3017, S5003, STR-6144, STR6144, 2-2103-MI, 8ea732662-001, 27-52.515, 45-1095, 626.008.114, 4297, 8404, 18245, 18245N, 18245R, 20777, 33755, 103624, 107087, 220195, 220195A, 8052515, 11040337, 20513017

  • Normaliserat artikelnummer
    acs913, cst35600, drs3284, f032111913, f042001173, f042s01173, js777, lrs01842, m002t65271, m002t65272, m002t65275, m003t54071, m003t54072, m005t27671, m2t65271, m2t65272, m2t65275, m3t54071, m3t54072, m5t27671, pbns3017, s5003, str6144, 8ea732662001, 4297, 8404, 18245, 18245n, 18245r, 20777, 22103mi, 33755, 103624, 107087, 220195, 220195a, 451095, 2752515, 3785426, 8052515, 11040337, 20513017, 626008114, 3446603101, 3446615101, 3446615102, 3446620102

  • Passar modeller
    Mitsubishi Model: FD Model series: FD20 From date: 01-01-1983 Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 3.2
    Mount. flange: 82.50
    Drive dist.: 22.50
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 218.50
    Dist./front: 31.50
    No./teeth: 9
    B+: M8
    Position/B+: 15
    Position/50: 60
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 104.50
    Rotation: CW
    Total length mm: 250.50
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed Yes
    No./mount. holes 2 (0)
    Position/50 60
    Clutch type Dry
    Position/B+ 15
    Prod. info BN
    Rotation CW
    Dist./back 218.50
    Dist./front 31.50
    Drive dist. 22.50
    Drive type Steel
    Gear type GR
    kW 3.2
    Terminal 50 M5
    Voltage 24
    Total length 250.50 mm
    Waterproof No
    Dist. 104.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032111913, js777, M002T65271, M002T65272, M002T65275, M003T54071, M003T54072, M005T27671, m2t65271, m2t65272, m2t65275, m3t54071, m3t54072, m5t27671, 34466-03101, 34466-15101, 34466-15102, 34466-20102, 3785426

    • Konkurrentreferens
      acs-913, CST35600, drs3284, F042001173, F042S01173, LRS01842, PBNS3017, S5003, STR-6144, STR6144, 2-2103-MI, 8ea732662-001, 27-52.515, 45-1095, 626.008.114, 4297, 8404, 18245, 18245N, 18245R, 20777, 33755, 103624, 107087, 220195, 220195A, 8052515, 11040337, 20513017

    • Normaliserat artikelnummer
      acs913, cst35600, drs3284, f032111913, f042001173, f042s01173, js777, lrs01842, m002t65271, m002t65272, m002t65275, m003t54071, m003t54072, m005t27671, m2t65271, m2t65272, m2t65275, m3t54071, m3t54072, m5t27671, pbns3017, s5003, str6144, 8ea732662001, 4297, 8404, 18245, 18245n, 18245r, 20777, 22103mi, 33755, 103624, 107087, 220195, 220195a, 451095, 2752515, 3785426, 8052515, 11040337, 20513017, 626008114, 3446603101, 3446615101, 3446615102, 3446620102

    • Passar modeller
      Mitsubishi Model: FD Model series: FD20 From date: 01-01-1983 Approved: Yes
