Artikelnr: F032111558

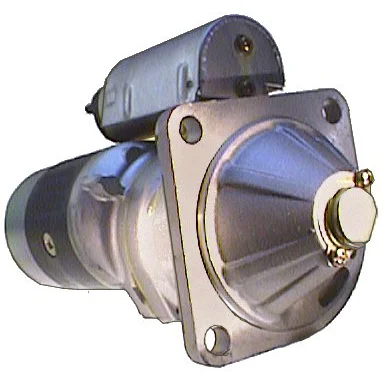

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 3.5, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 3.5
Mount. flange: 105.00
Drive dist.: 9.00
Mount. hole 3 mm: 13.50
Mount. hole 2 mm: 13.50
Mount. hole 1 mm: 13.50
Dist./back: 280.00
Dist./front: 60.50
No./teeth: 11
B+: M8
Position/50: 55
Terminal 50: M4
Gear type: GR
Dist. 2: 99.00
Dist. 3: 93.50
Dist. mm: 140.00
Rotation: CW
Total length mm: 333.50
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 105.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 55
Clutch type Wet
Prod. info BN
Dist. 2 99.00
Dist. 3 93.50
Rotation CW
Dist./back 280.00
Dist./front 60.50
Drive dist. 9.00
Drive type Steel
Gear type GR
kW 3.5
Terminal 50 M4
Voltage 24
Total length 333.50 mm
Waterproof No
Dist. 140.00 mm
Mount. hole 3 13.50 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032111558, js540, s25-156, 23300-c8601

  • Konkurrentreferens
    ads-942, CST20600, DRS3053, DRS3053X, drs3237, F042004059, F042S04059, J5211033, lrt00157, QS1486, STR-7149, STR7149, 8ea726502-001, 28-52.133, 45-1005, 627.013.114, 4210, 9581, 11637, 20540, 30367R, 104354, 455571, 8052133, 11040369, 0986014251, 943254066010

  • Normaliserat artikelnummer
    ads942, cst20600, drs3053, drs3053x, drs3237, f032111558, f042004059, f042s04059, j5211033, js540, lrt00157, qs1486, s25156, str7149, 8ea726502001, 4210, 9581, 11637, 20540, 23300c8601, 30367r, 104354, 451005, 455571, 2852133, 8052133, 11040369, 627013114, 0986014251, 943254066010

  • Passar modeller
    Nissan Model: Patrol Model series: Patrol Type of engine: Diesel Size of motor: 3.2 Brand of engine: SD33T From date: 01-08-1988 To date: 01-06-1990 Fuel: Diesel Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: Diesel Size of motor: 3.2 Brand of engine: SD33T Type description: W260 From date: 01-08-1988 To date: 01-06-1990 Fuel: Diesel Approved: Yes
    Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 3.2 Brand of engine: SD33T Type description: 160 From date: 01-07-1983 To date: 01-08-1988 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 3.5
    Mount. flange: 105.00
    Drive dist.: 9.00
    Mount. hole 3 mm: 13.50
    Mount. hole 2 mm: 13.50
    Mount. hole 1 mm: 13.50
    Dist./back: 280.00
    Dist./front: 60.50
    No./teeth: 11
    B+: M8
    Position/50: 55
    Terminal 50: M4
    Gear type: GR
    Dist. 2: 99.00
    Dist. 3: 93.50
    Dist. mm: 140.00
    Rotation: CW
    Total length mm: 333.50
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 105.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 55
    Clutch type Wet
    Prod. info BN
    Dist. 2 99.00
    Dist. 3 93.50
    Rotation CW
    Dist./back 280.00
    Dist./front 60.50
    Drive dist. 9.00
    Drive type Steel
    Gear type GR
    kW 3.5
    Terminal 50 M4
    Voltage 24
    Total length 333.50 mm
    Waterproof No
    Dist. 140.00 mm
    Mount. hole 3 13.50 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Fordonsmatchning

    • OEM
      F032111558, js540, s25-156, 23300-c8601

    • Konkurrentreferens
      ads-942, CST20600, DRS3053, DRS3053X, drs3237, F042004059, F042S04059, J5211033, lrt00157, QS1486, STR-7149, STR7149, 8ea726502-001, 28-52.133, 45-1005, 627.013.114, 4210, 9581, 11637, 20540, 30367R, 104354, 455571, 8052133, 11040369, 0986014251, 943254066010

    • Normaliserat artikelnummer
      ads942, cst20600, drs3053, drs3053x, drs3237, f032111558, f042004059, f042s04059, j5211033, js540, lrt00157, qs1486, s25156, str7149, 8ea726502001, 4210, 9581, 11637, 20540, 23300c8601, 30367r, 104354, 451005, 455571, 2852133, 8052133, 11040369, 627013114, 0986014251, 943254066010

    • Passar modeller
      Nissan Model: Patrol Model series: Patrol Type of engine: Diesel Size of motor: 3.2 Brand of engine: SD33T From date: 01-08-1988 To date: 01-06-1990 Fuel: Diesel Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: Diesel Size of motor: 3.2 Brand of engine: SD33T Type description: W260 From date: 01-08-1988 To date: 01-06-1990 Fuel: Diesel Approved: Yes
      Nissan Model: Patrol Model series: Patrol Type of engine: TD Size of motor: 3.2 Brand of engine: SD33T Type description: 160 From date: 01-07-1983 To date: 01-08-1988 Fuel: Diesel Approved: Yes
