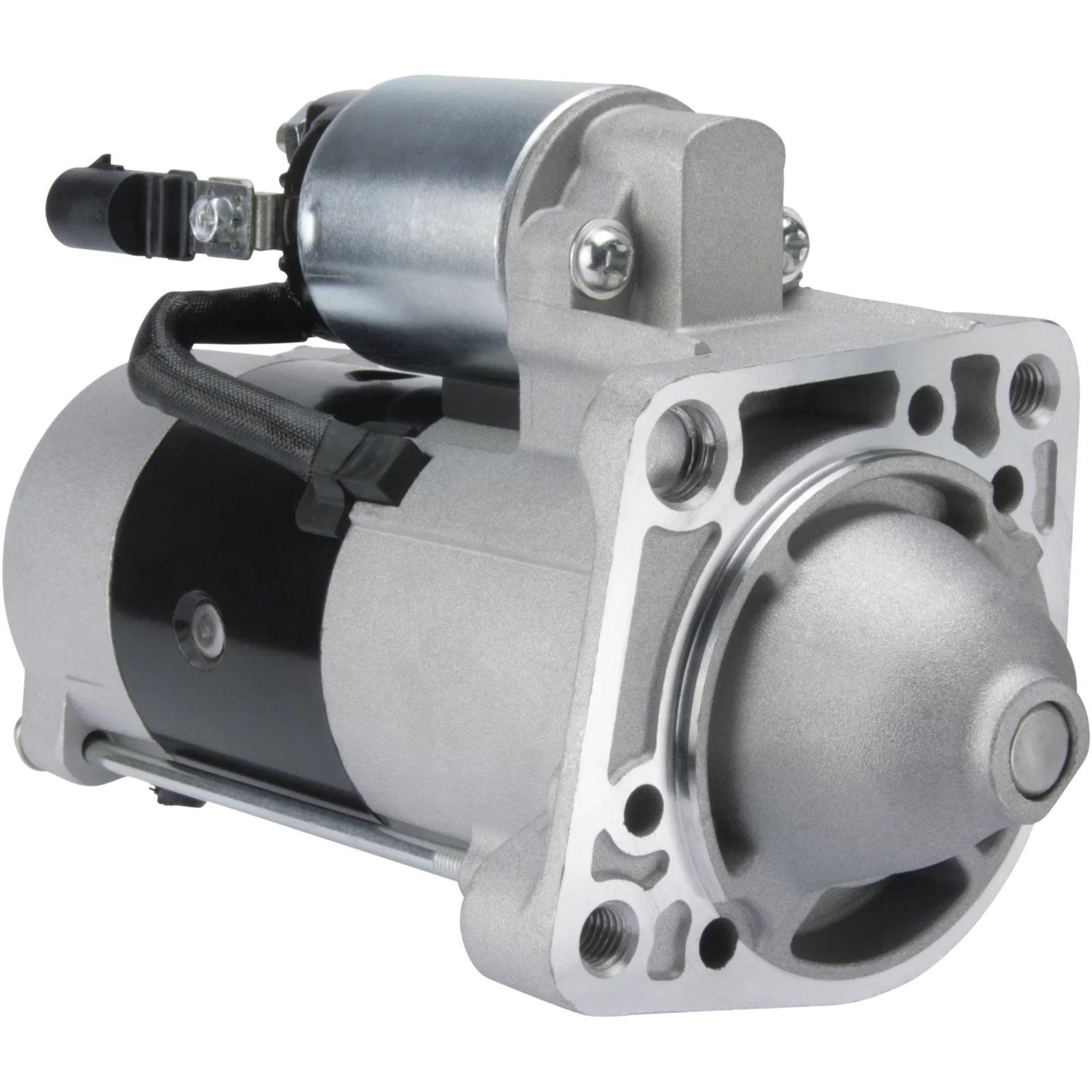

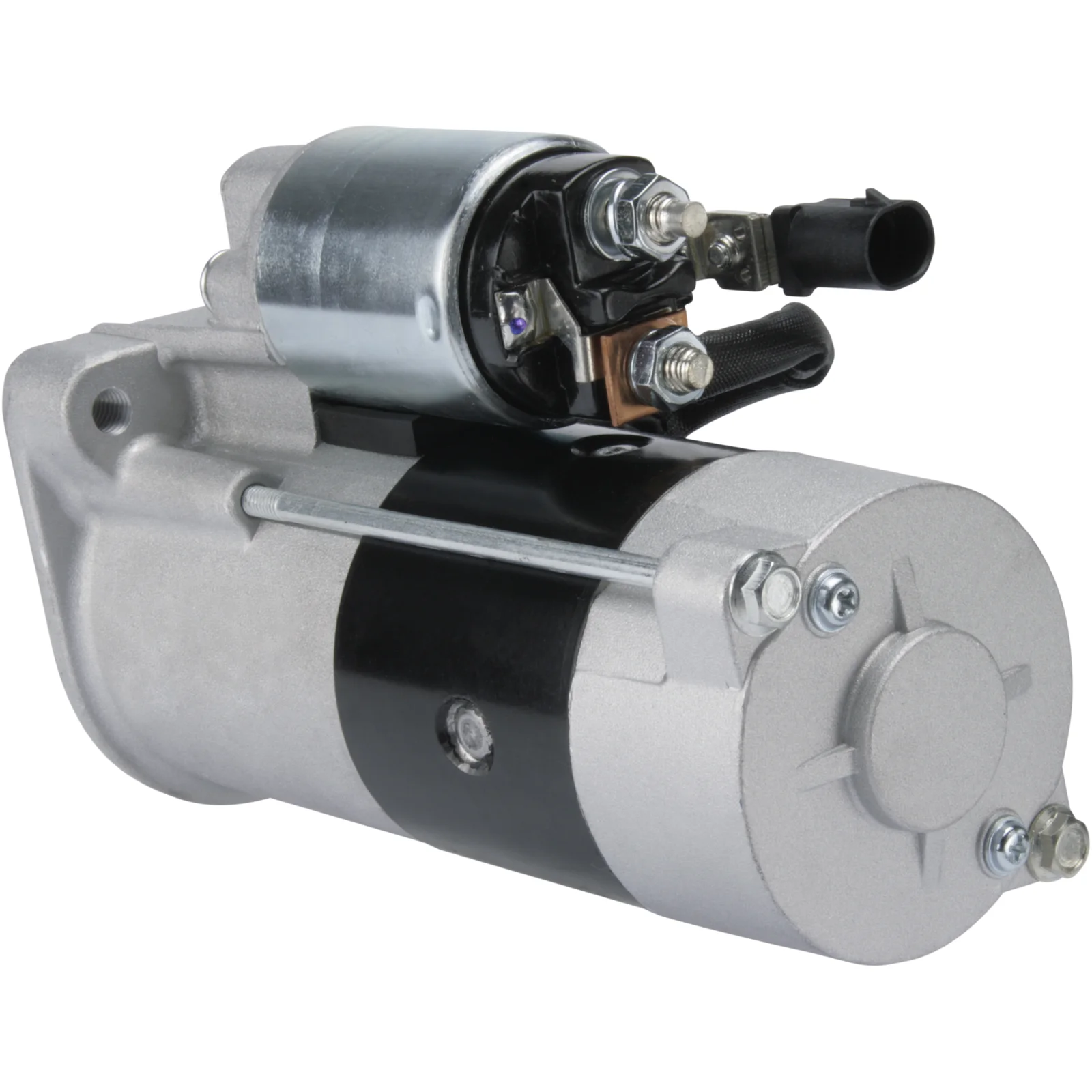

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114283

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 82.50
Drive dist.: 0.00
Mount. hole 3 mm: 10.00
Dist./back: 190.00
Dist./front: 37.00
No./teeth: 10
B+: M8
Position/50: 15
Terminal 50: Plug
Gear type: GR
Dist. 2: 69.00
Dist. 3: 75.00
Dist. mm: 116.00
Rotation: CW
Total length mm: 227.00
No./mount. holes: 3 (2)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 82.50
No./mount. holes 3 (2)
Position/50 15
Dist. 2 69.00
Dist. 3 75.00
Rotation CW
Dist./back 190.00
Dist./front 37.00
Drive dist. 0.00
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 227.00 mm
Dist. 116.00 mm
Mount. hole 3 10.00 mm

  • OEM
    cs1454, F032114283, M002T88471, M002T88472, M002T88473, m2t88471, M2T88472, m2t88473, RGO 116024, 04727313AA, 04727313AB, 04727313Ac, 4727313AA, 4727313AB, 4727313AC

  • Konkurrentreferens
    CST35179, DRS0094, DRS0422, F042S0H105, lrs02212, LRS02339, S5100, STR-H105, 8EA738259-161, 25-3383, 25-4011, 634.033.102, 634.036.102, 830.562.103, 3663, 33212N, 33339N, 101454, 105151, 220692, 220692A, 458846, 11040734, 11040767, 0986024680

  • Normaliserat artikelnummer
    cs1454, cst35179, drs0094, drs0422, f032114283, f042s0h105, lrs02212, lrs02339, m002t88471, m002t88472, m002t88473, m2t88471, m2t88472, m2t88473, rgo116024, s5100, strh105, 8ea738259161, 3663, 33212n, 33339n, 101454, 105151, 220692, 220692a, 253383, 254011, 458846, 04727313aa, 04727313ab, 04727313ac, 4727313aa, 4727313ab, 4727313ac, 11040734, 11040767, 634033102, 634036102, 830562103, 0986024680

  • Passar modeller
    Chrysler Model: Voyager / Grand Voyager Model series: Voyager / Grand Voyager Type of engine: CRD Size of motor: 2.5 Brand of engine: ENJ Type description: RG Body: Van From date: 01-01-2001 To date: 01-02-2008 Fuel: Diesel Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Type of engine: CRD Size of motor: 2.5 Brand of engine: ENC Type description: RG Body: MPV From date: 01-02-2000 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Type of engine: CRD Size of motor: 2.5 Brand of engine: ENJ Type description: RG Body: MPV From date: 01-02-2000 To date: 01-12-2008 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 82.50
    Drive dist.: 0.00
    Mount. hole 3 mm: 10.00
    Dist./back: 190.00
    Dist./front: 37.00
    No./teeth: 10
    B+: M8
    Position/50: 15
    Terminal 50: Plug
    Gear type: GR
    Dist. 2: 69.00
    Dist. 3: 75.00
    Dist. mm: 116.00
    Rotation: CW
    Total length mm: 227.00
    No./mount. holes: 3 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 82.50
    No./mount. holes 3 (2)
    Position/50 15
    Dist. 2 69.00
    Dist. 3 75.00
    Rotation CW
    Dist./back 190.00
    Dist./front 37.00
    Drive dist. 0.00
    Gear type GR
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 227.00 mm
    Dist. 116.00 mm
    Mount. hole 3 10.00 mm
  • Fordonsmatchning

    • OEM
      cs1454, F032114283, M002T88471, M002T88472, M002T88473, m2t88471, M2T88472, m2t88473, RGO 116024, 04727313AA, 04727313AB, 04727313Ac, 4727313AA, 4727313AB, 4727313AC

    • Konkurrentreferens
      CST35179, DRS0094, DRS0422, F042S0H105, lrs02212, LRS02339, S5100, STR-H105, 8EA738259-161, 25-3383, 25-4011, 634.033.102, 634.036.102, 830.562.103, 3663, 33212N, 33339N, 101454, 105151, 220692, 220692A, 458846, 11040734, 11040767, 0986024680

    • Normaliserat artikelnummer
      cs1454, cst35179, drs0094, drs0422, f032114283, f042s0h105, lrs02212, lrs02339, m002t88471, m002t88472, m002t88473, m2t88471, m2t88472, m2t88473, rgo116024, s5100, strh105, 8ea738259161, 3663, 33212n, 33339n, 101454, 105151, 220692, 220692a, 253383, 254011, 458846, 04727313aa, 04727313ab, 04727313ac, 4727313aa, 4727313ab, 4727313ac, 11040734, 11040767, 634033102, 634036102, 830562103, 0986024680

    • Passar modeller
      Chrysler Model: Voyager / Grand Voyager Model series: Voyager / Grand Voyager Type of engine: CRD Size of motor: 2.5 Brand of engine: ENJ Type description: RG Body: Van From date: 01-01-2001 To date: 01-02-2008 Fuel: Diesel Approved: Yes
      Chrysler Model: Voyager Model series: Voyager Type of engine: CRD Size of motor: 2.5 Brand of engine: ENC Type description: RG Body: MPV From date: 01-02-2000 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Chrysler Model: Voyager Model series: Voyager Type of engine: CRD Size of motor: 2.5 Brand of engine: ENJ Type description: RG Body: MPV From date: 01-02-2000 To date: 01-12-2008 Fuel: Diesel Approved: Yes
