Artikelnr: F032113965

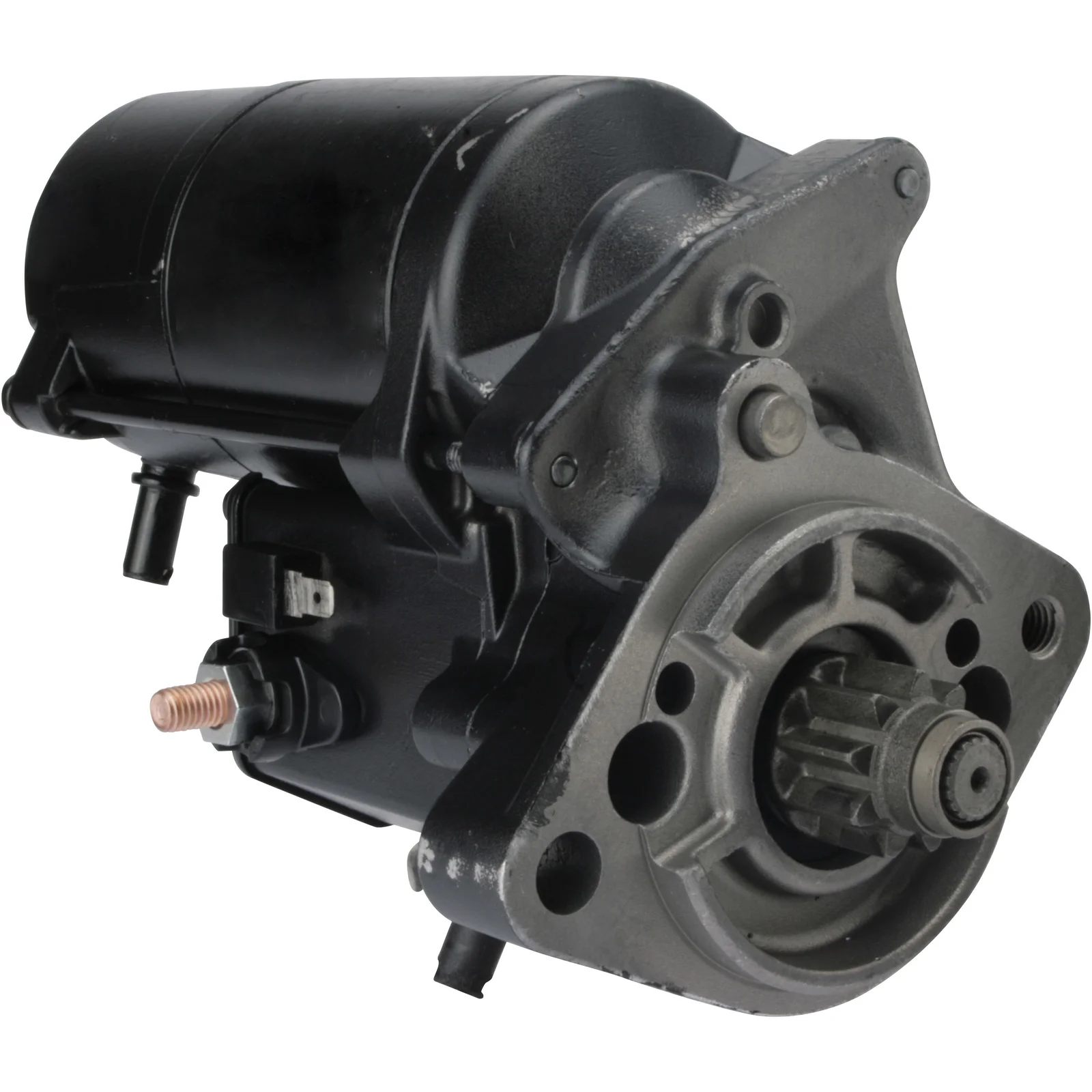

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 76.00
Drive dist.: 21.00
Mount. hole 2 mm: 11.00
Dist./back: 121.50
Dist./front: 33.00
No./teeth: 9
B+: M8
Position/B+: 15
Position/50: 10
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 221.00
Drive type: Steel
Prod. info: BN
Remarks: Available w/ fixing hole 2(1) and 2(2).
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 76.00
No./mount. holes 2 (1)
Position/50 10
Position/B+ 15
Prod. info BN
Remarks Available w/ fixing hole 2(1) and 2(2).
Rotation CW
Dist./back 121.50
Dist./front 33.00
Drive dist. 21.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 6.30
Voltage 12
Total length 221.00 mm
Dist. 105.00 mm
Mount. hole 2 11.00 mm

  • OEM
    F032113965, js1321, NAD101140, nad101500, RGO 113965, 1986S00959, 228000-7800, 228000-7801

  • Konkurrentreferens
    CST40163, DRS3805, DSN601, F042200133, F042202528, F042S00271, LES0274, LRS01551, S6012, STR-5037, 8EA011610-791, 8EA738237-001, 25-3045, 314.028.092, 3658, 32556N, 32556R, 32557R, 105421, 201321, 220207, 220207A, 458379, 8080133, 8212673, 11022620, 42022621, 0986022621, 944280801330

  • Normaliserat artikelnummer
    cst40163, drs3805, dsn601, f032113965, f042200133, f042202528, f042s00271, js1321, les0274, lrs01551, nad101140, nad101500, rgo113965, s6012, str5037, 8ea011610791, 8ea738237001, 1986s00959, 3658, 32556n, 32556r, 32557r, 105421, 201321, 220207, 220207a, 253045, 458379, 8080133, 8212673, 11022620, 42022621, 314028092, 0986022621, 2280007800, 2280007801, 944280801330

  • Passar modeller
    Land Rover Model: Freelander Model series: Freelander Model type: 4x4 Type of engine: TD4 Size of motor: 2.0 Brand of engine: 204D3 Type description: LN From date: 01-03-2001 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Type of engine: TD4 Size of motor: 2.0 Brand of engine: 204D3 Type description: LN From date: 01-11-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Type of engine: TD4 Size of motor: 2.0 Brand of engine: M47 Type description: LN From date: 01-11-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    MG Model: ZT Model series: ZT Type of engine: CDTi Size of motor: 2.0 Brand of engine: 204D2 From date: 01-06-2002 To date: 01-09-2003 Fuel: Diesel Approved: Yes
    MG Model: ZT Model series: ZT Type of engine: CDTi Size of motor: 2.0 Brand of engine: M47R (204D2) From date: 01-11-2002 To date: 01-07-2005 Fuel: Diesel Approved: Yes
    MG Model: ZT Model series: ZT- T Type of engine: CDTi Size of motor: 2.0 Brand of engine: M47R (204D2) Body: Estate From date: 01-11-2002 To date: 01-07-2005 Fuel: Diesel Approved: Yes
    MG Model: ZT Model series: ZT-T Type of engine: CDTi Size of motor: 2.0 Brand of engine: 204D2 Body: Estate From date: 01-06-2002 To date: 01-07-2005 Fuel: Diesel Approved: Yes
    Rover Model: 75 Model series: 75 Type of engine: CDT Size of motor: 2.0 Brand of engine: M47R From date: 01-02-1999 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    Rover Model: 75 Model series: 75 Type of engine: CDT Size of motor: 2.0 Brand of engine: M47R Type description: RJ Body: Estate From date: 01-08-2001 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: Tourer
    Rover Model: 75 Model series: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: 204D2 Type description: RJ Body: Estate From date: 01-02-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: TOURER
    Rover Model: 75 Model series: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: 204D2 Type description: RJ From date: 01-02-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 76.00
    Drive dist.: 21.00
    Mount. hole 2 mm: 11.00
    Dist./back: 121.50
    Dist./front: 33.00
    No./teeth: 9
    B+: M8
    Position/B+: 15
    Position/50: 10
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 221.00
    Drive type: Steel
    Prod. info: BN
    Remarks: Available w/ fixing hole 2(1) and 2(2).
    No./mount. holes: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 76.00
    No./mount. holes 2 (1)
    Position/50 10
    Position/B+ 15
    Prod. info BN
    Remarks Available w/ fixing hole 2(1) and 2(2).
    Rotation CW
    Dist./back 121.50
    Dist./front 33.00
    Drive dist. 21.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 6.30
    Voltage 12
    Total length 221.00 mm
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
  • Fordonsmatchning

    • OEM
      F032113965, js1321, NAD101140, nad101500, RGO 113965, 1986S00959, 228000-7800, 228000-7801

    • Konkurrentreferens
      CST40163, DRS3805, DSN601, F042200133, F042202528, F042S00271, LES0274, LRS01551, S6012, STR-5037, 8EA011610-791, 8EA738237-001, 25-3045, 314.028.092, 3658, 32556N, 32556R, 32557R, 105421, 201321, 220207, 220207A, 458379, 8080133, 8212673, 11022620, 42022621, 0986022621, 944280801330

    • Normaliserat artikelnummer
      cst40163, drs3805, dsn601, f032113965, f042200133, f042202528, f042s00271, js1321, les0274, lrs01551, nad101140, nad101500, rgo113965, s6012, str5037, 8ea011610791, 8ea738237001, 1986s00959, 3658, 32556n, 32556r, 32557r, 105421, 201321, 220207, 220207a, 253045, 458379, 8080133, 8212673, 11022620, 42022621, 314028092, 0986022621, 2280007800, 2280007801, 944280801330

    • Passar modeller
      Land Rover Model: Freelander Model series: Freelander Model type: 4x4 Type of engine: TD4 Size of motor: 2.0 Brand of engine: 204D3 Type description: LN From date: 01-03-2001 To date: 01-10-2006 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Type of engine: TD4 Size of motor: 2.0 Brand of engine: 204D3 Type description: LN From date: 01-11-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Type of engine: TD4 Size of motor: 2.0 Brand of engine: M47 Type description: LN From date: 01-11-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
      MG Model: ZT Model series: ZT Type of engine: CDTi Size of motor: 2.0 Brand of engine: 204D2 From date: 01-06-2002 To date: 01-09-2003 Fuel: Diesel Approved: Yes
      MG Model: ZT Model series: ZT Type of engine: CDTi Size of motor: 2.0 Brand of engine: M47R (204D2) From date: 01-11-2002 To date: 01-07-2005 Fuel: Diesel Approved: Yes
      MG Model: ZT Model series: ZT- T Type of engine: CDTi Size of motor: 2.0 Brand of engine: M47R (204D2) Body: Estate From date: 01-11-2002 To date: 01-07-2005 Fuel: Diesel Approved: Yes
      MG Model: ZT Model series: ZT-T Type of engine: CDTi Size of motor: 2.0 Brand of engine: 204D2 Body: Estate From date: 01-06-2002 To date: 01-07-2005 Fuel: Diesel Approved: Yes
      Rover Model: 75 Model series: 75 Type of engine: CDT Size of motor: 2.0 Brand of engine: M47R From date: 01-02-1999 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      Rover Model: 75 Model series: 75 Type of engine: CDT Size of motor: 2.0 Brand of engine: M47R Type description: RJ Body: Estate From date: 01-08-2001 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: Tourer
      Rover Model: 75 Model series: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: 204D2 Type description: RJ Body: Estate From date: 01-02-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes Manufacture type: TOURER
      Rover Model: 75 Model series: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: 204D2 Type description: RJ From date: 01-02-2003 To date: 01-05-2005 Fuel: Diesel Approved: Yes
      1 / 3
