HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114321

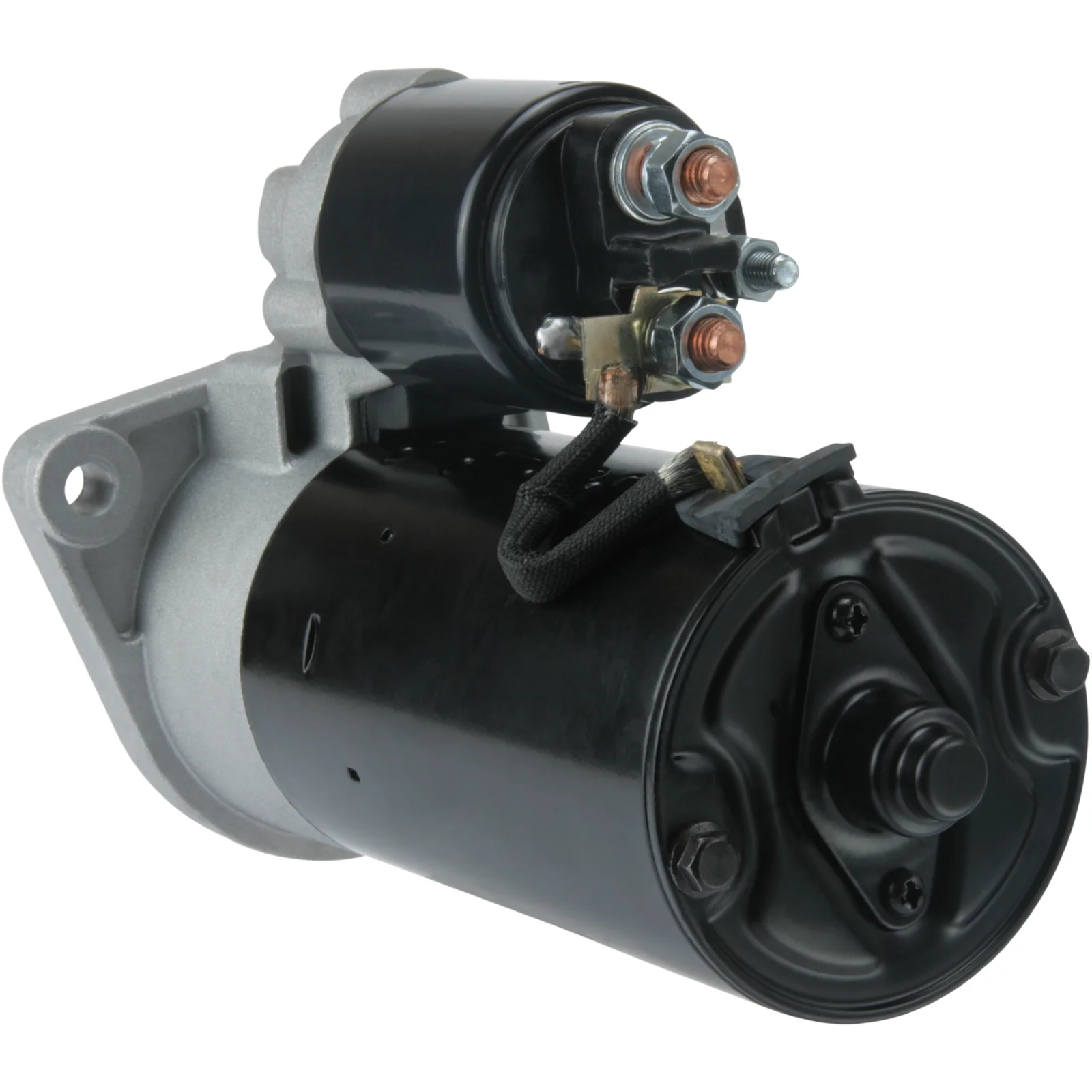

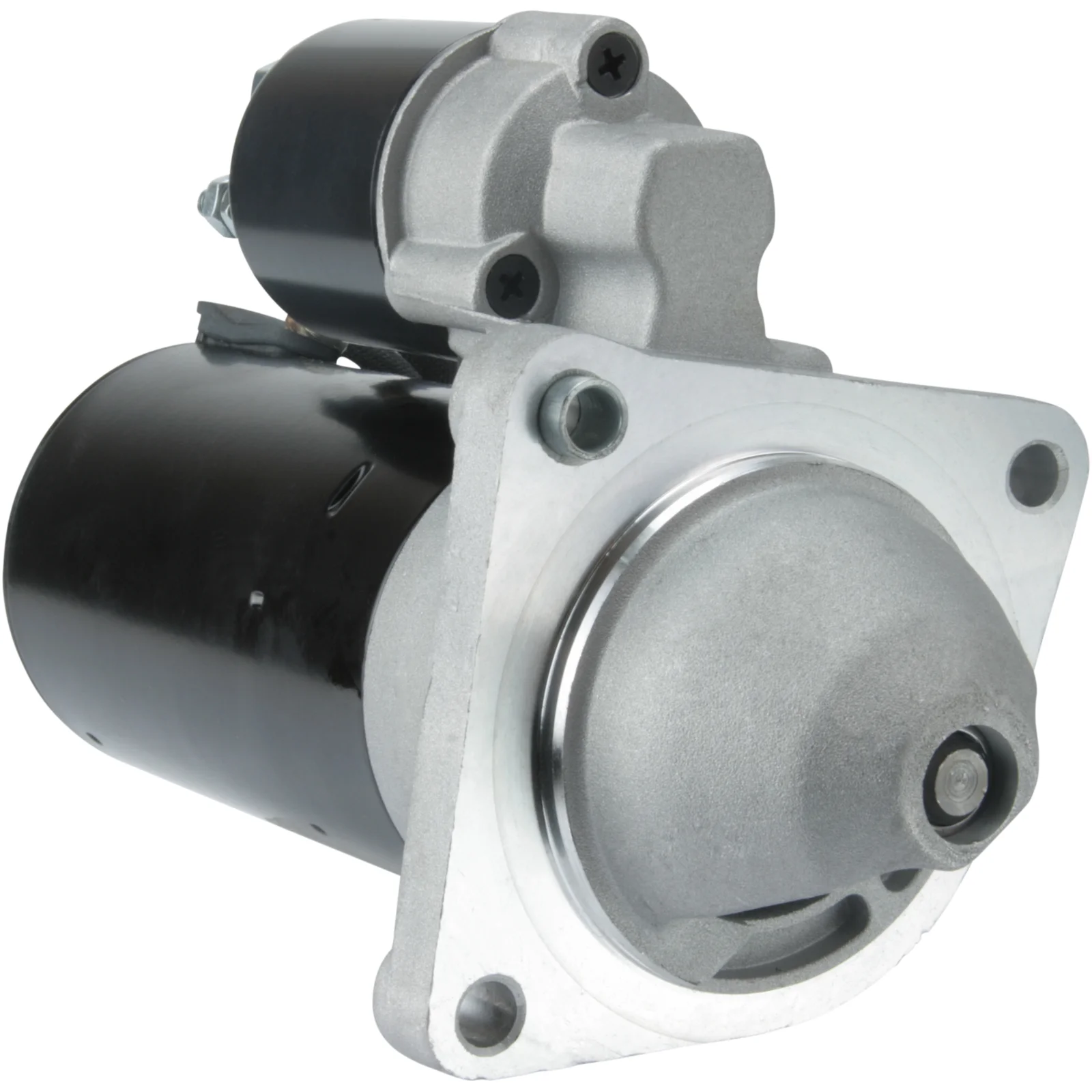

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 82.00
Drive dist.: 11.00
Mount. hole 3 mm: 9.20
Mount. hole 2 mm: 9.20
Mount. hole 1 mm: 9.20
Dist./back: 178.00
Dist./front: 45.00
No./teeth: 9
B+: M8
Position/50: 20
Terminal 50: M6
Gear type: GR
Dist. 2: 115.50
Dist. 3: 82.00
Dist. mm: 82.00
Rotation: CW
Total length mm: 238.00
Clutch type: Dry
Drive type: Steel
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.00
No./mount. holes 3 (0)
Position/50 20
Clutch type Dry
Dist. 2 115.50
Dist. 3 82.00
Rotation CW
Dist./back 178.00
Dist./front 45.00
Drive dist. 11.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 M6
Voltage 12
Total length 238.00 mm
Dist. 82.00 mm
Mount. hole 3 9.20 mm
Mount. hole 2 9.20 mm
Mount. hole 1 9.20 mm

  • OEM
    F032114321, RGO 114321, 1986S00701, 0001108204, 0001108247, 0001109048, 46437520, 46830212, 46835091

  • Konkurrentreferens
    CST10358, DRS8450, DRS8450X, F042S0H109, IS0996, LRT00200, MS372, S0246, STR-H109, 8EA011610-961, 25-3175, 318.086.092, 500.531.093, 3014, 31202N, 201112, 220155, 220155A, 458585, 726905, 8018450, 11018450, 42018450, 0986018450, 063521082040, 944280184500

  • Normaliserat artikelnummer
    cst10358, drs8450, drs8450x, f032114321, f042s0h109, is0996, lrt00200, ms372, rgo114321, s0246, strh109, 8ea011610961, 1986s00701, 3014, 31202n, 201112, 220155, 220155a, 253175, 458585, 726905, 0001108204, 0001108247, 0001109048, 8018450, 11018450, 42018450, 46437520, 46830212, 46835091, 318086092, 500531093, 0986018450, 063521082040, 944280184500

  • Passar modeller
    Fiat Model: Doblo Model series: Doblo Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 223AXB1A Body: MPV From date: 01-03-2001 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 223ZXB1A Body: Van From date: 01-03-2001 Fuel: Diesel Approved: Yes Manufacture type: Cargo
    Fiat Model: Palio Model series: Palio Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 178BX Body: Hatchback From date: 01-01-2003 Fuel: Diesel Approved: Yes
    Fiat Model: Palio Model series: Palio Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 178DYD1A07 Body: Estate From date: 01-03-2001 Fuel: Diesel Approved: Yes Manufacture type: weekend
    Fiat Model: Punto Model series: Punto Type of engine: Diesel Size of motor: 1.9 Brand of engine: 188A3.000 Type description: 188.031,051,231,251 Body: Hatchback From date: 01-09-1999 To date: 01-03-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: Diesel Size of motor: 1.9 Brand of engine: 188A3.000 Type description: 188AX Body: Van From date: 01-02-2000 To date: 01-10-2009 Fuel: Diesel Approved: Yes
    Fiat Model: Strada Model series: Strada Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 178E Body: Pick Up From date: 01-12-2000 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 82.00
    Drive dist.: 11.00
    Mount. hole 3 mm: 9.20
    Mount. hole 2 mm: 9.20
    Mount. hole 1 mm: 9.20
    Dist./back: 178.00
    Dist./front: 45.00
    No./teeth: 9
    B+: M8
    Position/50: 20
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 115.50
    Dist. 3: 82.00
    Dist. mm: 82.00
    Rotation: CW
    Total length mm: 238.00
    Clutch type: Dry
    Drive type: Steel
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.00
    No./mount. holes 3 (0)
    Position/50 20
    Clutch type Dry
    Dist. 2 115.50
    Dist. 3 82.00
    Rotation CW
    Dist./back 178.00
    Dist./front 45.00
    Drive dist. 11.00
    Drive type Steel
    Gear type GR
    kW 2.0
    Terminal 50 M6
    Voltage 12
    Total length 238.00 mm
    Dist. 82.00 mm
    Mount. hole 3 9.20 mm
    Mount. hole 2 9.20 mm
    Mount. hole 1 9.20 mm
  • Fordonsmatchning

    • OEM
      F032114321, RGO 114321, 1986S00701, 0001108204, 0001108247, 0001109048, 46437520, 46830212, 46835091

    • Konkurrentreferens
      CST10358, DRS8450, DRS8450X, F042S0H109, IS0996, LRT00200, MS372, S0246, STR-H109, 8EA011610-961, 25-3175, 318.086.092, 500.531.093, 3014, 31202N, 201112, 220155, 220155A, 458585, 726905, 8018450, 11018450, 42018450, 0986018450, 063521082040, 944280184500

    • Normaliserat artikelnummer
      cst10358, drs8450, drs8450x, f032114321, f042s0h109, is0996, lrt00200, ms372, rgo114321, s0246, strh109, 8ea011610961, 1986s00701, 3014, 31202n, 201112, 220155, 220155a, 253175, 458585, 726905, 0001108204, 0001108247, 0001109048, 8018450, 11018450, 42018450, 46437520, 46830212, 46835091, 318086092, 500531093, 0986018450, 063521082040, 944280184500

    • Passar modeller
      Fiat Model: Doblo Model series: Doblo Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 223AXB1A Body: MPV From date: 01-03-2001 Fuel: Diesel Approved: Yes
      Fiat Model: Doblo Model series: Doblo Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 223ZXB1A Body: Van From date: 01-03-2001 Fuel: Diesel Approved: Yes Manufacture type: Cargo
      Fiat Model: Palio Model series: Palio Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 178BX Body: Hatchback From date: 01-01-2003 Fuel: Diesel Approved: Yes
      Fiat Model: Palio Model series: Palio Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 178DYD1A07 Body: Estate From date: 01-03-2001 Fuel: Diesel Approved: Yes Manufacture type: weekend
      Fiat Model: Punto Model series: Punto Type of engine: Diesel Size of motor: 1.9 Brand of engine: 188A3.000 Type description: 188.031,051,231,251 Body: Hatchback From date: 01-09-1999 To date: 01-03-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: Diesel Size of motor: 1.9 Brand of engine: 188A3.000 Type description: 188AX Body: Van From date: 01-02-2000 To date: 01-10-2009 Fuel: Diesel Approved: Yes
      Fiat Model: Strada Model series: Strada Type of engine: Diesel Size of motor: 1.9 Brand of engine: 223A6.000 Type description: 178E Body: Pick Up From date: 01-12-2000 Fuel: Diesel Approved: Yes
