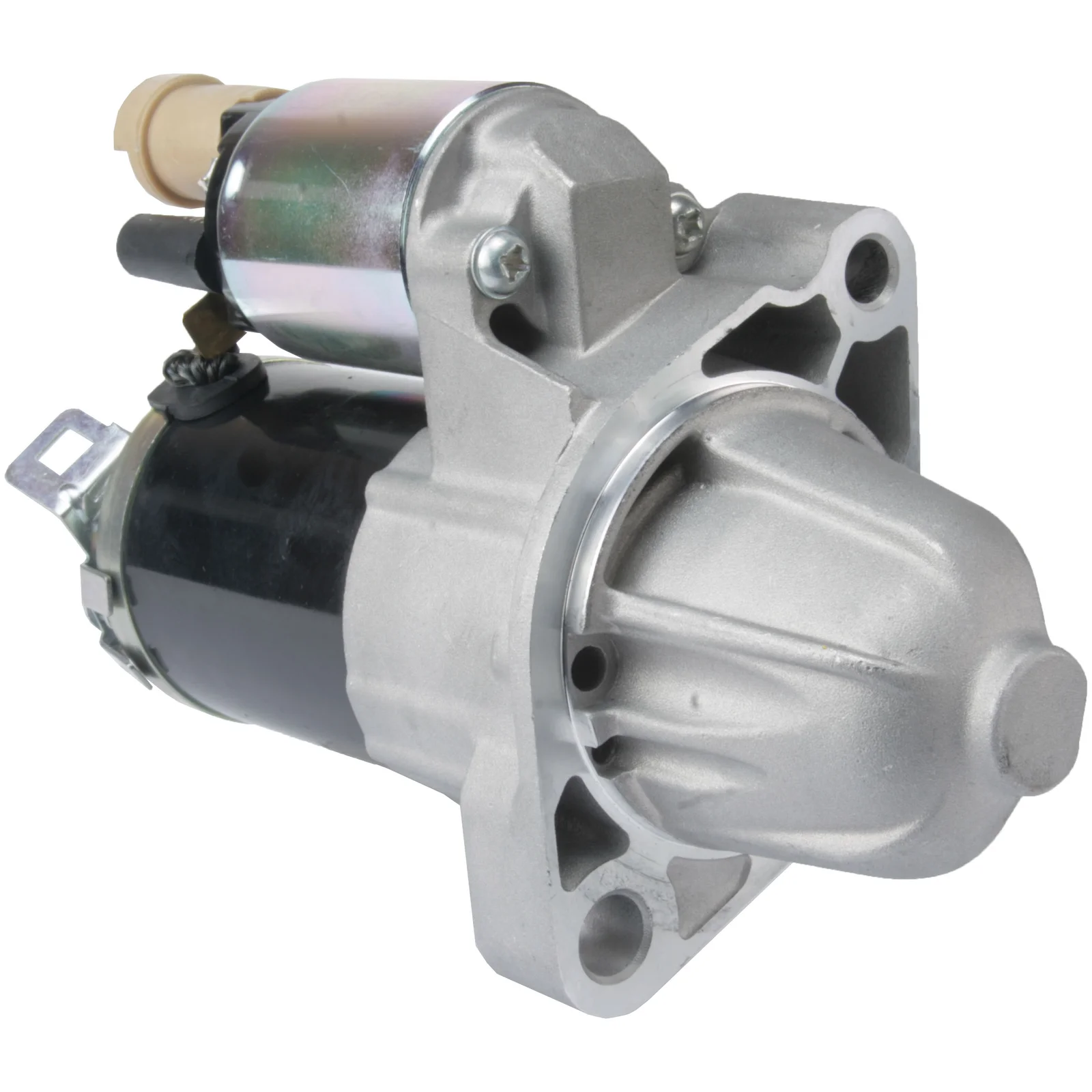

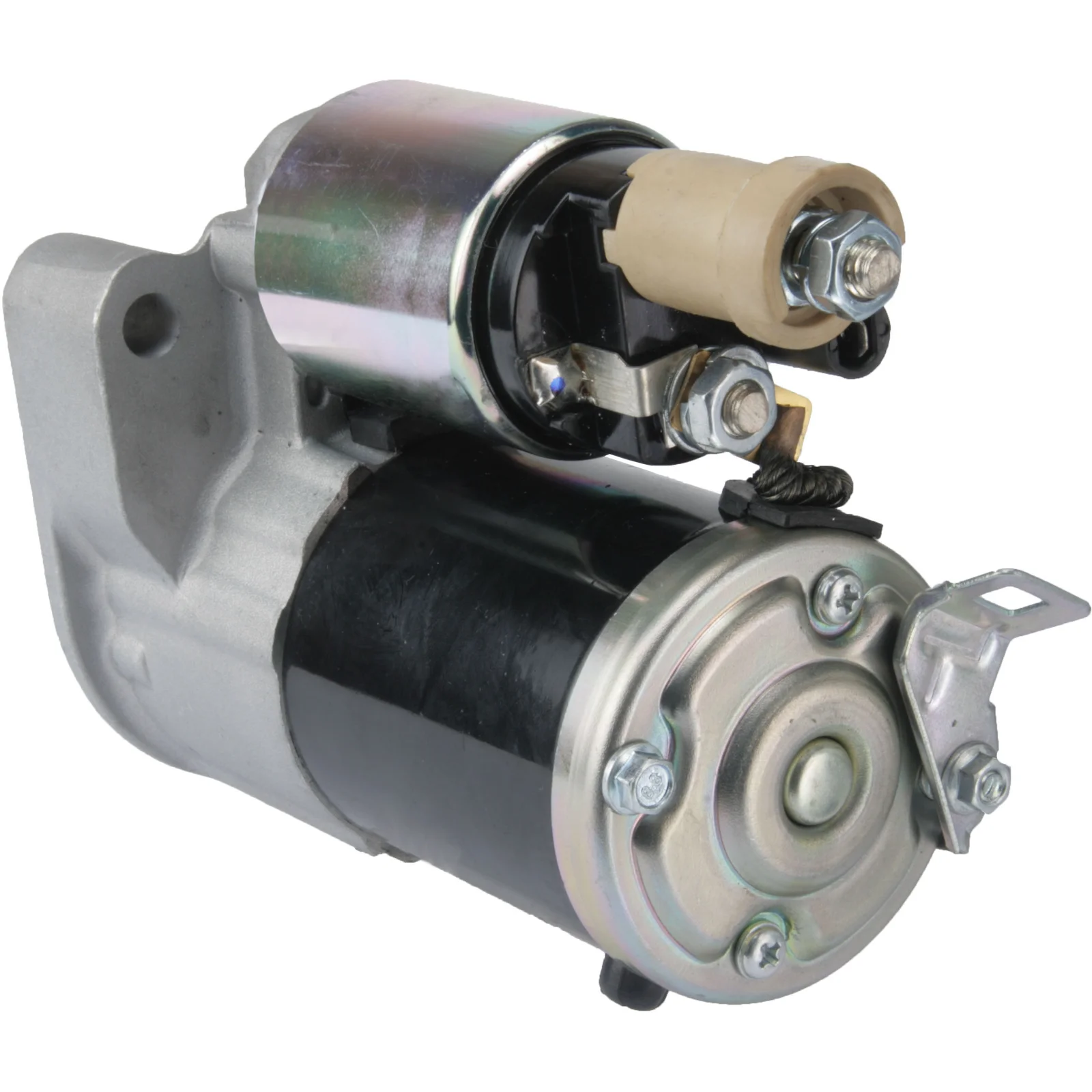

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113821

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 75.00
Drive dist.: 33.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 10.50
Dist./back: 145.00
Dist./front: 65.00
No./teeth: 9
B+: M8
Position/50: 20
Terminal 50: 6.30
Gear type: GR
Dist. mm: 115.00
Rotation: CW
Total length mm: 210.00
Clutch type: Dry
Drive type: Steel
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 75.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 20
Clutch type Dry
Rotation CW
Dist./back 145.00
Dist./front 65.00
Drive dist. 33.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 210.00 mm
Waterproof No
Dist. 115.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 10.50 mm

  • OEM
    F032113821, M000T20371, M0T20371, M0T20371ZC, MHG016, RGO 113821, SM612-09, SM710-02, SM710-05, SM710-07, SM730-01, 1986S01283, 31200-raa-a01, 31200-RAA-A51, 31200-RAA-A52, 31200-RAA-A53, 31200-RAA-A61, 31200-RRA-A51, 31200-RZA-A01

  • Konkurrentreferens
    CST33130, CST33132, CST35355, DRS0584, F042200014, F042S0H064, LRS02351, LRS02429, LRS02435, s-80017, S5351S, S9039, smu0311, STR-H064, 2-2685-mt, 25-4023, 25-4101, 25-4107, 91-26-2053, 120.549.092, 120.560.102, 322.055.092, 322.058.092, 322.059.092, 1787-0, 17844N, 17869N, 17870, 17870N, 17959N, 17960N, 220990, 220990A, 254479, 254792, 255048, 11040779, 11040849

  • Normaliserat artikelnummer
    cst33130, cst33132, cst35355, drs0584, f032113821, f042200014, f042s0h064, lrs02351, lrs02429, lrs02435, m000t20371, m0t20371, m0t20371zc, mhg016, rgo113821, s5351s, s80017, s9039, sm61209, sm71002, sm71005, sm71007, sm73001, smu0311, strh064, 1986s01283, 17844n, 17869n, 17870, 17870n, 17959n, 17960n, 22685mt, 31200raaa01, 31200raaa51, 31200raaa52, 31200raaa53, 31200raaa61, 31200rraa51, 31200rzaa01, 220990, 220990a, 254023, 254101, 254107, 254479, 254792, 255048, 11040779, 11040849, 91262053, 120549092, 120560102, 322055092, 322058092, 322059092

  • Passar modeller
    Acura Model: TSX Model series: TSX Size of motor: 2.4 Brand of engine: K24A2 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Acura Model: TSX Model series: TSX Size of motor: 2.4 Brand of engine: K24A2 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Acura Model: TSX Model series: TSX Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A2 Type description: CL_ From date: 01-10-2003 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Model type: DX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Model type: DX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Model type: DX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Model type: E Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A2 Type description: CL_, CM_ From date: 01-09-2002 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Model type: E Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A2 Type description: CM_ Body: Estate From date: 01-09-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Model type: E Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A2 Type description: CM_ Body: Estate From date: 01-09-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes Manufacture type: AERODECK
    Honda Model: Accord Model series: Accord Model type: EX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Model type: EX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Model type: EX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Model type: LX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Model type: LX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Model type: LX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Model type: T Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A1 Type description: CM_ Body: Estate From date: 01-09-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: K20A6 Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: K20A6 Type description: CM_ Body: Estate From date: 01-04-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes Manufacture type: TOURER
    Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24A Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24A Type description: CM_ Body: Estate From date: 01-04-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes Manufacture type: TOURER
    Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24A3 Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Accord Model series: Accord Type of engine: 16V Size of motor: 2.4 Brand of engine: K24A3 Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Honda Model: Element Model series: Element Model type: 4WD Size of motor: 2.4 Brand of engine: K24A8 Type description: YH Body: SUV From date: 01-09-2006 To date: 01-12-2011 Fuel: Petrol Approved: Yes
    Honda Model: Element Model series: Element Model type: 4x4 Size of motor: 2.4 Brand of engine: K24A4 Type description: YH Body: SUV From date: 01-07-2002 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    Honda Model: Element Model series: Element Size of motor: 2.4 Brand of engine: K24A4 Type description: YH Body: SUV From date: 01-07-2002 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 75.00
    Drive dist.: 33.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 10.50
    Dist./back: 145.00
    Dist./front: 65.00
    No./teeth: 9
    B+: M8
    Position/50: 20
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 115.00
    Rotation: CW
    Total length mm: 210.00
    Clutch type: Dry
    Drive type: Steel
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 75.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 20
    Clutch type Dry
    Rotation CW
    Dist./back 145.00
    Dist./front 65.00
    Drive dist. 33.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 210.00 mm
    Waterproof No
    Dist. 115.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      F032113821, M000T20371, M0T20371, M0T20371ZC, MHG016, RGO 113821, SM612-09, SM710-02, SM710-05, SM710-07, SM730-01, 1986S01283, 31200-raa-a01, 31200-RAA-A51, 31200-RAA-A52, 31200-RAA-A53, 31200-RAA-A61, 31200-RRA-A51, 31200-RZA-A01

    • Konkurrentreferens
      CST33130, CST33132, CST35355, DRS0584, F042200014, F042S0H064, LRS02351, LRS02429, LRS02435, s-80017, S5351S, S9039, smu0311, STR-H064, 2-2685-mt, 25-4023, 25-4101, 25-4107, 91-26-2053, 120.549.092, 120.560.102, 322.055.092, 322.058.092, 322.059.092, 1787-0, 17844N, 17869N, 17870, 17870N, 17959N, 17960N, 220990, 220990A, 254479, 254792, 255048, 11040779, 11040849

    • Normaliserat artikelnummer
      cst33130, cst33132, cst35355, drs0584, f032113821, f042200014, f042s0h064, lrs02351, lrs02429, lrs02435, m000t20371, m0t20371, m0t20371zc, mhg016, rgo113821, s5351s, s80017, s9039, sm61209, sm71002, sm71005, sm71007, sm73001, smu0311, strh064, 1986s01283, 17844n, 17869n, 17870, 17870n, 17959n, 17960n, 22685mt, 31200raaa01, 31200raaa51, 31200raaa52, 31200raaa53, 31200raaa61, 31200rraa51, 31200rzaa01, 220990, 220990a, 254023, 254101, 254107, 254479, 254792, 255048, 11040779, 11040849, 91262053, 120549092, 120560102, 322055092, 322058092, 322059092

    • Passar modeller
      Acura Model: TSX Model series: TSX Size of motor: 2.4 Brand of engine: K24A2 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Acura Model: TSX Model series: TSX Size of motor: 2.4 Brand of engine: K24A2 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
      Acura Model: TSX Model series: TSX Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A2 Type description: CL_ From date: 01-10-2003 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Model type: DX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Model type: DX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Model type: DX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Model type: E Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A2 Type description: CL_, CM_ From date: 01-09-2002 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Model type: E Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A2 Type description: CM_ Body: Estate From date: 01-09-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Model type: E Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A2 Type description: CM_ Body: Estate From date: 01-09-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes Manufacture type: AERODECK
      Honda Model: Accord Model series: Accord Model type: EX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Model type: EX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Model type: EX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Model type: LX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Model type: LX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Model type: LX Size of motor: 2.4 Brand of engine: K24A4 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Model type: T Type of engine: VTEC Size of motor: 2.4 Brand of engine: K24A1 Type description: CM_ Body: Estate From date: 01-09-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: K20A6 Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Size of motor: 2.0 Brand of engine: K20A6 Type description: CM_ Body: Estate From date: 01-04-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes Manufacture type: TOURER
      Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24A Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24A Type description: CM_ Body: Estate From date: 01-04-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes Manufacture type: TOURER
      Honda Model: Accord Model series: Accord Size of motor: 2.4 Brand of engine: K24A3 Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Accord Model series: Accord Type of engine: 16V Size of motor: 2.4 Brand of engine: K24A3 Type description: CL_, CM_ From date: 01-02-2003 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Honda Model: Element Model series: Element Model type: 4WD Size of motor: 2.4 Brand of engine: K24A8 Type description: YH Body: SUV From date: 01-09-2006 To date: 01-12-2011 Fuel: Petrol Approved: Yes
      Honda Model: Element Model series: Element Model type: 4x4 Size of motor: 2.4 Brand of engine: K24A4 Type description: YH Body: SUV From date: 01-07-2002 To date: 01-12-2005 Fuel: Petrol Approved: Yes
      Honda Model: Element Model series: Element Size of motor: 2.4 Brand of engine: K24A4 Type description: YH Body: SUV From date: 01-07-2002 To date: 01-12-2005 Fuel: Petrol Approved: Yes
