Artikelnr: F032113286

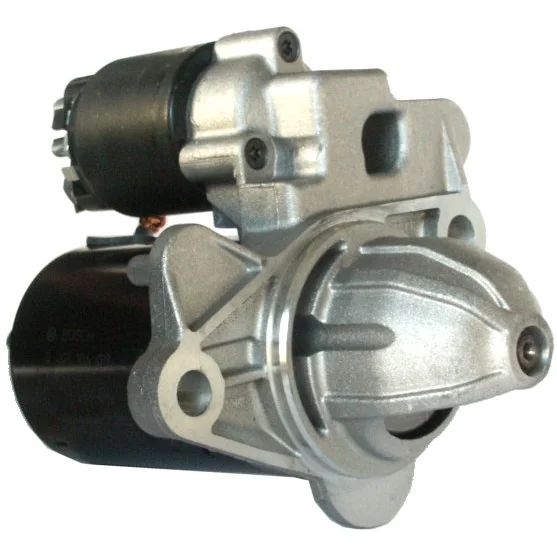

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 0.9, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 0.9
Mount. flange: 74.00
Drive dist.: 22.00
Mount. hole 2 mm: 12.30
Mount. hole 1 mm: 13.00
Dist./back: 145.50
Dist./front: 55.00
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. mm: 119.50
Rotation: CW
Total length mm: 202.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 145.50
Dist./front 55.00
Drive dist. 22.00
Drive type Steel
Gear type GR
kW 0.9
Terminal 50 M6
Voltage 12
Total length 202.50 mm
Waterproof No
Dist. 119.50 mm
Mount. hole 2 12.30 mm
Mount. hole 1 13.00 mm

  • OEM
    cs1254, F032113286, NAD101470, NAD101471, RGO 113286, 1986S00651, 0001106019, 0001106027, 1489994, 4542741, 7570487, 12411489994, 12411517327, 12414542741, 12417570487

  • Konkurrentreferens
    CST10167, DRS8840, LRT00234, S0684PR, S0684S, STR50094, 8EA011610-171, 25-3247, 315.023.092, 3031, 17855N, 17855R, 101254, 220918, 220918A, 438454, 8018840, 11018840, 42018840, 0986018840, 0986018843, 0986018847

  • Normaliserat artikelnummer
    cs1254, cst10167, drs8840, f032113286, lrt00234, nad101470, nad101471, rgo113286, s0684pr, s0684s, str50094, 8ea011610171, 1986s00651, 3031, 17855n, 17855r, 101254, 220918, 220918a, 253247, 438454, 0001106019, 0001106027, 1489994, 4542741, 7570487, 8018840, 11018840, 42018840, 315023092, 0986018840, 0986018843, 0986018847, 12411489994, 12411517327, 12414542741, 12417570487

  • Passar modeller
    Mini Model: Cooper Model series: Cooper S Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Hatchback From date: 01-03-2002 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: Cooper Model series: Cooper S Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Hatchback From date: 01-07-2004 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: Cooper Model series: Cooper S Size of motor: 1.6 Brand of engine: W11B16A Type description: R52 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
    Mini Model: Cooper Model series: Cooper Size of motor: 1.6 Brand of engine: W10B16A Type description: R50, R53 Body: Hatchback From date: 01-06-2001 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: Cooper Model series: Cooper Size of motor: 1.6 Brand of engine: W10B16A Type description: R52 Body: Convertible From date: 01-04-2004 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
    Mini Model: Mini Model series: Mini Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Hatchback From date: 01-11-2003 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: Mini Model series: Mini Works Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
    Mini Model: Mini Model series: One Type of engine: i Size of motor: 1.4 Brand of engine: B14A Type description: R50, R53 Body: Hatchback From date: 01-04-2003 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: One Model series: One Size of motor: 1.6 Brand of engine: W10B16A Type description: R50, R53 Body: Hatchback From date: 01-06-2001 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
    Mini Model: One Model series: One Size of motor: 1.6 Brand of engine: W10B16A Type description: R52 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 0.9
    Mount. flange: 74.00
    Drive dist.: 22.00
    Mount. hole 2 mm: 12.30
    Mount. hole 1 mm: 13.00
    Dist./back: 145.50
    Dist./front: 55.00
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Dist. mm: 119.50
    Rotation: CW
    Total length mm: 202.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 145.50
    Dist./front 55.00
    Drive dist. 22.00
    Drive type Steel
    Gear type GR
    kW 0.9
    Terminal 50 M6
    Voltage 12
    Total length 202.50 mm
    Waterproof No
    Dist. 119.50 mm
    Mount. hole 2 12.30 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      cs1254, F032113286, NAD101470, NAD101471, RGO 113286, 1986S00651, 0001106019, 0001106027, 1489994, 4542741, 7570487, 12411489994, 12411517327, 12414542741, 12417570487

    • Konkurrentreferens
      CST10167, DRS8840, LRT00234, S0684PR, S0684S, STR50094, 8EA011610-171, 25-3247, 315.023.092, 3031, 17855N, 17855R, 101254, 220918, 220918A, 438454, 8018840, 11018840, 42018840, 0986018840, 0986018843, 0986018847

    • Normaliserat artikelnummer
      cs1254, cst10167, drs8840, f032113286, lrt00234, nad101470, nad101471, rgo113286, s0684pr, s0684s, str50094, 8ea011610171, 1986s00651, 3031, 17855n, 17855r, 101254, 220918, 220918a, 253247, 438454, 0001106019, 0001106027, 1489994, 4542741, 7570487, 8018840, 11018840, 42018840, 315023092, 0986018840, 0986018843, 0986018847, 12411489994, 12411517327, 12414542741, 12417570487

    • Passar modeller
      Mini Model: Cooper Model series: Cooper S Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Hatchback From date: 01-03-2002 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: Cooper Model series: Cooper S Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Hatchback From date: 01-07-2004 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: Cooper Model series: Cooper S Size of motor: 1.6 Brand of engine: W11B16A Type description: R52 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
      Mini Model: Cooper Model series: Cooper Size of motor: 1.6 Brand of engine: W10B16A Type description: R50, R53 Body: Hatchback From date: 01-06-2001 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: Cooper Model series: Cooper Size of motor: 1.6 Brand of engine: W10B16A Type description: R52 Body: Convertible From date: 01-04-2004 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
      Mini Model: Mini Model series: Mini Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Hatchback From date: 01-11-2003 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: Mini Model series: Mini Works Size of motor: 1.6 Brand of engine: W11B16A Type description: R50, R53 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
      Mini Model: Mini Model series: One Type of engine: i Size of motor: 1.4 Brand of engine: B14A Type description: R50, R53 Body: Hatchback From date: 01-04-2003 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: One Model series: One Size of motor: 1.6 Brand of engine: W10B16A Type description: R50, R53 Body: Hatchback From date: 01-06-2001 To date: 01-09-2006 Fuel: Gasoline Approved: Yes
      Mini Model: One Model series: One Size of motor: 1.6 Brand of engine: W10B16A Type description: R52 Body: Convertible From date: 01-07-2004 To date: 01-11-2007 Fuel: Gasoline Approved: Yes
