HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113936

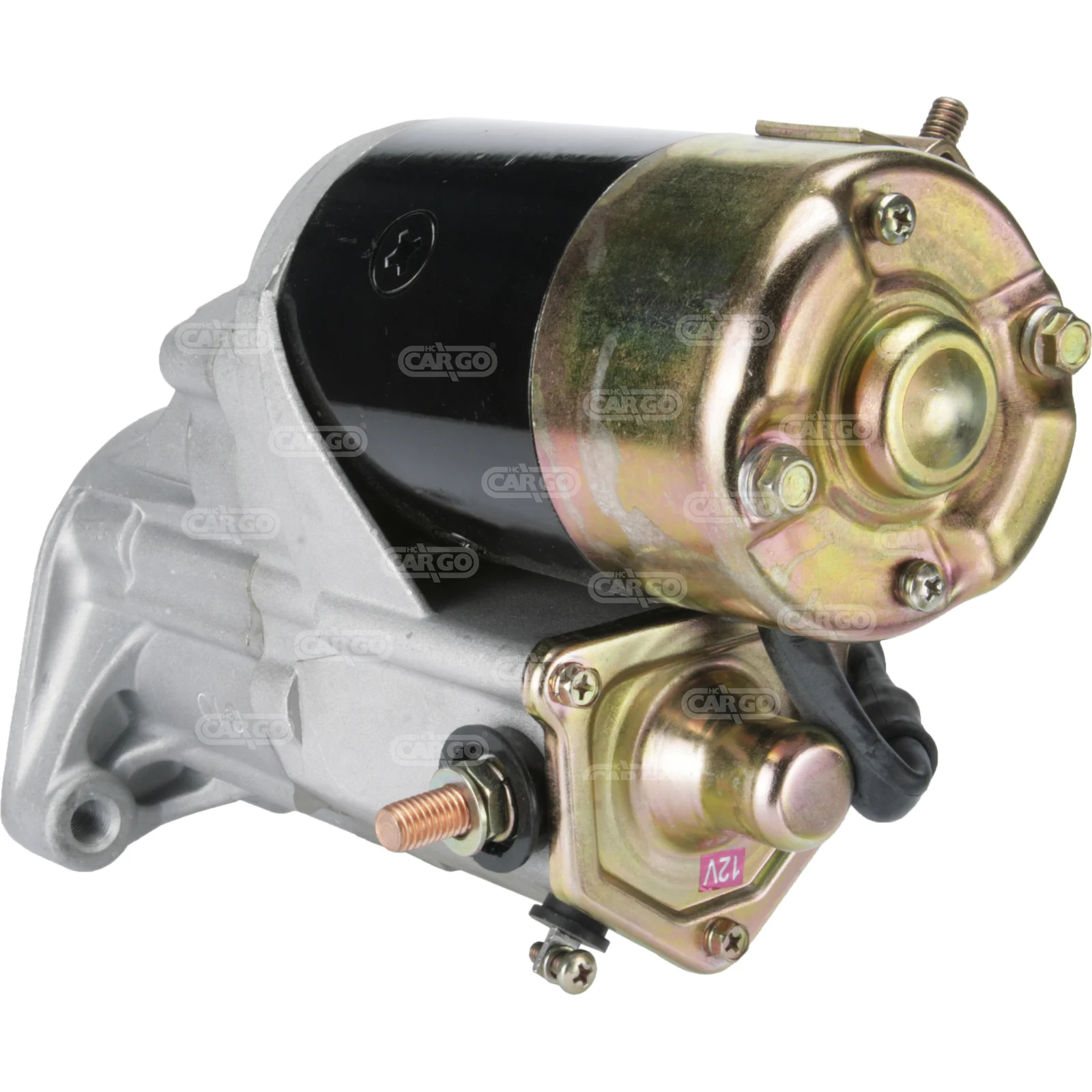

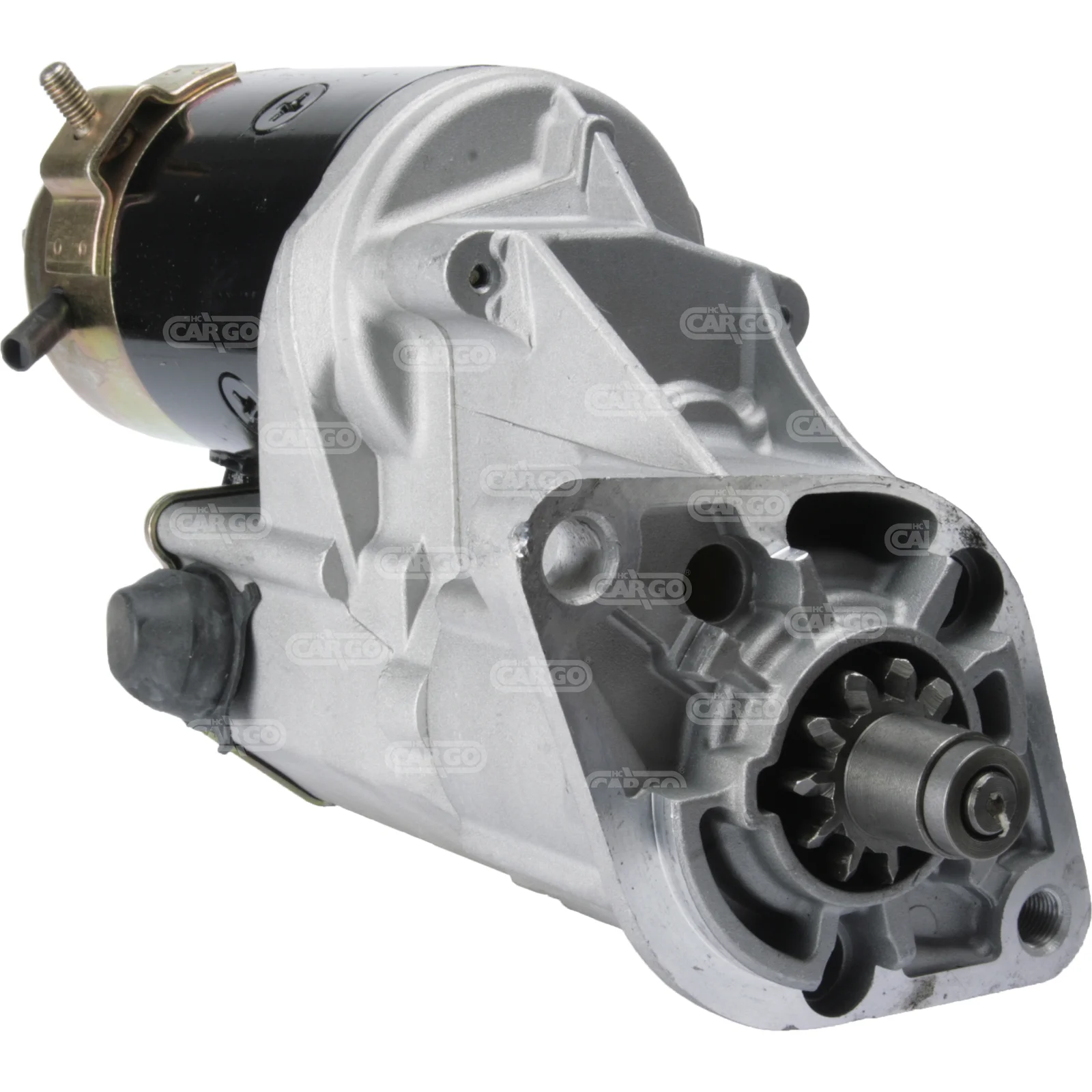

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.7, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.7
Mount. flange: 82.50
Drive dist.: 15.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: M12-1.25
Dist./back: 193.00
Dist./front: 43.00
No./teeth: 11
B+: M10
Position/B+: 45
Position/50: 37
Terminal 50: M5
Gear type: GR
Dist. mm: 135.00
Rotation: CW
Total length mm: 305.00
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 82.50
No./mount. holes 2 (1)
Position/50 37
Position/B+ 45
Rotation CW
Dist./back 193.00
Dist./front 43.00
Drive dist. 15.00
Gear type GR
kW 2.7
Terminal 50 M5
Voltage 12
Total length 305.00 mm
Dist. 135.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 M12-1.25 mm

  • OEM
    F032113936, js1090, RGO 113936, 1986S00965, 28100-54320, 28100-54370, 28100-54390, 28100-54470, 28100-54490, 28100-54491, 228000-0570, 228000-0571, 228000-0572, 228000-0573, 228000-0574, 228000-0575, 228000-1590, 228000-1591, 228000-1660, 228000-1661, 228000-9050

  • Konkurrentreferens
    drs3645, F042S0H076, J5212084, lrs00507, STR-H076, 8EA012527-241, 8ea737422-001, 25-0321, 335.009.112, 4532, 104585, 201090, 458565, 8052284, 8212987, 0986018751

  • Normaliserat artikelnummer
    drs3645, f032113936, f042s0h076, j5212084, js1090, lrs00507, rgo113936, strh076, 8ea012527241, 8ea737422001, 1986s00965, 4532, 104585, 201090, 250321, 458565, 8052284, 8212987, 335009112, 0986018751, 2280000570, 2280000571, 2280000572, 2280000573, 2280000574, 2280000575, 2280001590, 2280001591, 2280001660, 2280001661, 2280009050, 2810054320, 2810054370, 2810054390, 2810054470, 2810054490, 2810054491

  • Passar modeller
    Toyota Model: Dyna 100 Model series: Dyna 100 Platform/Chassis Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LY1_, YY1_ Body: Platform / Chassis From date: 01-05-1995 To date: 01-07-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Dyna Model series: Dyna 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LY100 From date: 01-05-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Dyna Model series: Dyna 150 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 3L Type description: LY61 From date: 01-08-1985 To date: 01-05-1995 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: H18, 22 Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Bus From date: 01-08-1989 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Bus From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: H12G Body: Bus From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LH102 Body: Bus From date: 01-08-1989 To date: 01-08-1995 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: _H10_ Body: Van From date: 01-08-1989 To date: 01-08-2004 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 3.0 Brand of engine: 5L Type description: _H1_, _H2_ Body: Van From date: 01-08-1998 To date: 01-08-2004 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Body: Bus From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Body: Van From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: H18, 22 Body: Bus From date: 01-08-1995 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4WD Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Body: Pick Up From date: 01-08-1998 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Pickup Model type: 4WD Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: _N_, KZN1_, VZN1_ Body: Pickup From date: 01-04-1992 To date: 01-08-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Pick Up From date: 01-03-1995 To date: 01-08-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: IN108 Body: Pick Up From date: 01-10-1991 To date: 01-07-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ70 From date: 01-01-1990 To date: 01-05-1993 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ77 Body: Convertible From date: 01-07-1990 To date: 01-05-1996 Fuel: Diesel Approved: Yes
