Artikelnr: F032113323

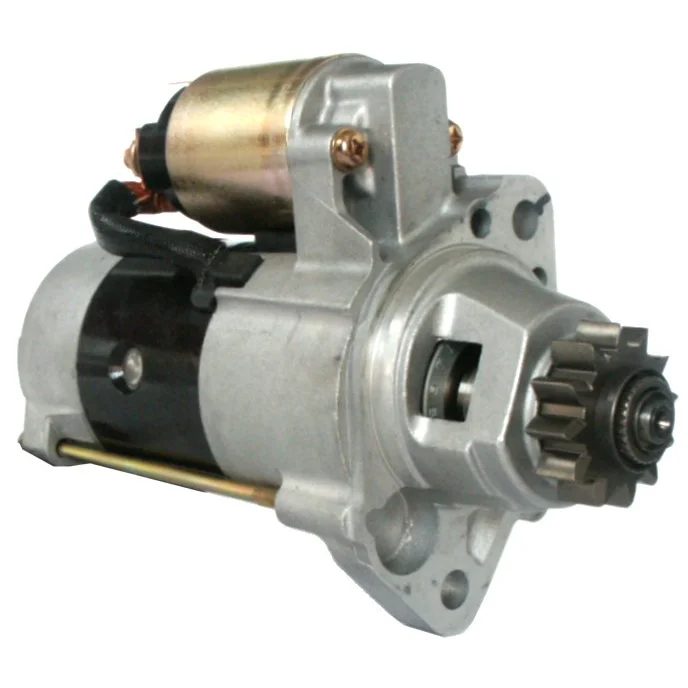

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.7, No./teeth: 12, Rotation: CCW

Beskrivning

Voltage: 12
kW: 1.7
Mount. flange: 70.00
Drive dist.: 54.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 168.00
Dist./front: 64.00
No./teeth: 12
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: GR
Dist. mm: 104.50
Rotation: CCW
Total length mm: 233.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 12
Mount. flange 70.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 60
Prod. info BN
Rotation CCW
Dist./back 168.00
Dist./front 64.00
Drive dist. 54.00
Drive type Steel
Gear type GR
kW 1.7
Terminal 50 6.30
Voltage 12
Total length 233.00 mm
Waterproof No
Dist. 104.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032113323, js1295, M008T71471, M008T71471ZE, m8t71471, M8T71471ZE, RGO 113323, 23300-8h801, 23300-8H80A, 23300-AU600, 23300-AU601

  • Konkurrentreferens
    CST35147, DRS3916, F042S0H050, J5211089, LRS01667, S5032, STR-H050, STR71046, 8EA012526-011, 8EA738034-001, 25-3213, 327.093.122, 9583, 32699N, 32699R, 105411, 201165, 201295, 220464, 220464A, 8052189, 8212419, 11040693, 0986023540, 944280521890

  • Normaliserat artikelnummer
    cst35147, drs3916, f032113323, f042s0h050, j5211089, js1295, lrs01667, m008t71471, m008t71471ze, m8t71471, m8t71471ze, rgo113323, s5032, str71046, strh050, 8ea012526011, 8ea738034001, 9583, 23300au600, 23300au601, 32699n, 32699r, 105411, 201165, 201295, 220464, 220464a, 233008h801, 233008h80a, 253213, 8052189, 8212419, 11040693, 327093122, 0986023540, 944280521890

  • Passar modeller
    Nissan Model: Almera Model series: Almera Tino Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: V10 Body: MPV From date: 01-09-2003 To date: 01-02-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Almera Model series: Almera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16 From date: 01-09-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Almera Model series: Almera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16E Body: Hatchback From date: 01-09-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: P12 Body: Hatchback From date: 01-04-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: P12 From date: 01-04-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: WP12 Body: Estate From date: 01-04-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: P12 Body: Hatchback From date: 01-07-2002 To date: 01-05-2007 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: P12 From date: 01-03-2002 To date: 01-05-2007 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: WP12 Body: Estate From date: 01-03-2002 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Model type: 4WD Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDTI Type description: T30 From date: 01-06-2001 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Model type: 4WD Type of engine: Di Size of motor: 2.2 Brand of engine: YD22ETI Type description: T30 From date: 01-07-2001 To date: 01-10-2005 Fuel: Diesel Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDTI Type description: T30 From date: 01-12-2003 To date: 01-01-2013 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 1.7
    Mount. flange: 70.00
    Drive dist.: 54.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 168.00
    Dist./front: 64.00
    No./teeth: 12
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 104.50
    Rotation: CCW
    Total length mm: 233.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 12
    Mount. flange 70.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 60
    Prod. info BN
    Rotation CCW
    Dist./back 168.00
    Dist./front 64.00
    Drive dist. 54.00
    Drive type Steel
    Gear type GR
    kW 1.7
    Terminal 50 6.30
    Voltage 12
    Total length 233.00 mm
    Waterproof No
    Dist. 104.50 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032113323, js1295, M008T71471, M008T71471ZE, m8t71471, M8T71471ZE, RGO 113323, 23300-8h801, 23300-8H80A, 23300-AU600, 23300-AU601

    • Konkurrentreferens
      CST35147, DRS3916, F042S0H050, J5211089, LRS01667, S5032, STR-H050, STR71046, 8EA012526-011, 8EA738034-001, 25-3213, 327.093.122, 9583, 32699N, 32699R, 105411, 201165, 201295, 220464, 220464A, 8052189, 8212419, 11040693, 0986023540, 944280521890

    • Normaliserat artikelnummer
      cst35147, drs3916, f032113323, f042s0h050, j5211089, js1295, lrs01667, m008t71471, m008t71471ze, m8t71471, m8t71471ze, rgo113323, s5032, str71046, strh050, 8ea012526011, 8ea738034001, 9583, 23300au600, 23300au601, 32699n, 32699r, 105411, 201165, 201295, 220464, 220464a, 233008h801, 233008h80a, 253213, 8052189, 8212419, 11040693, 327093122, 0986023540, 944280521890

    • Passar modeller
      Nissan Model: Almera Model series: Almera Tino Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: V10 Body: MPV From date: 01-09-2003 To date: 01-02-2006 Fuel: Diesel Approved: Yes
      Nissan Model: Almera Model series: Almera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16 From date: 01-09-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Nissan Model: Almera Model series: Almera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16E Body: Hatchback From date: 01-09-2003 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: P12 Body: Hatchback From date: 01-04-2003 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: P12 From date: 01-04-2003 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDT Type description: WP12 Body: Estate From date: 01-04-2003 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: P12 Body: Hatchback From date: 01-07-2002 To date: 01-05-2007 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: P12 From date: 01-03-2002 To date: 01-05-2007 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: WP12 Body: Estate From date: 01-03-2002 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Model type: 4WD Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDTI Type description: T30 From date: 01-06-2001 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Model type: 4WD Type of engine: Di Size of motor: 2.2 Brand of engine: YD22ETI Type description: T30 From date: 01-07-2001 To date: 01-10-2005 Fuel: Diesel Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDTI Type description: T30 From date: 01-12-2003 To date: 01-01-2013 Fuel: Diesel Approved: Yes
