- Startmotor
-

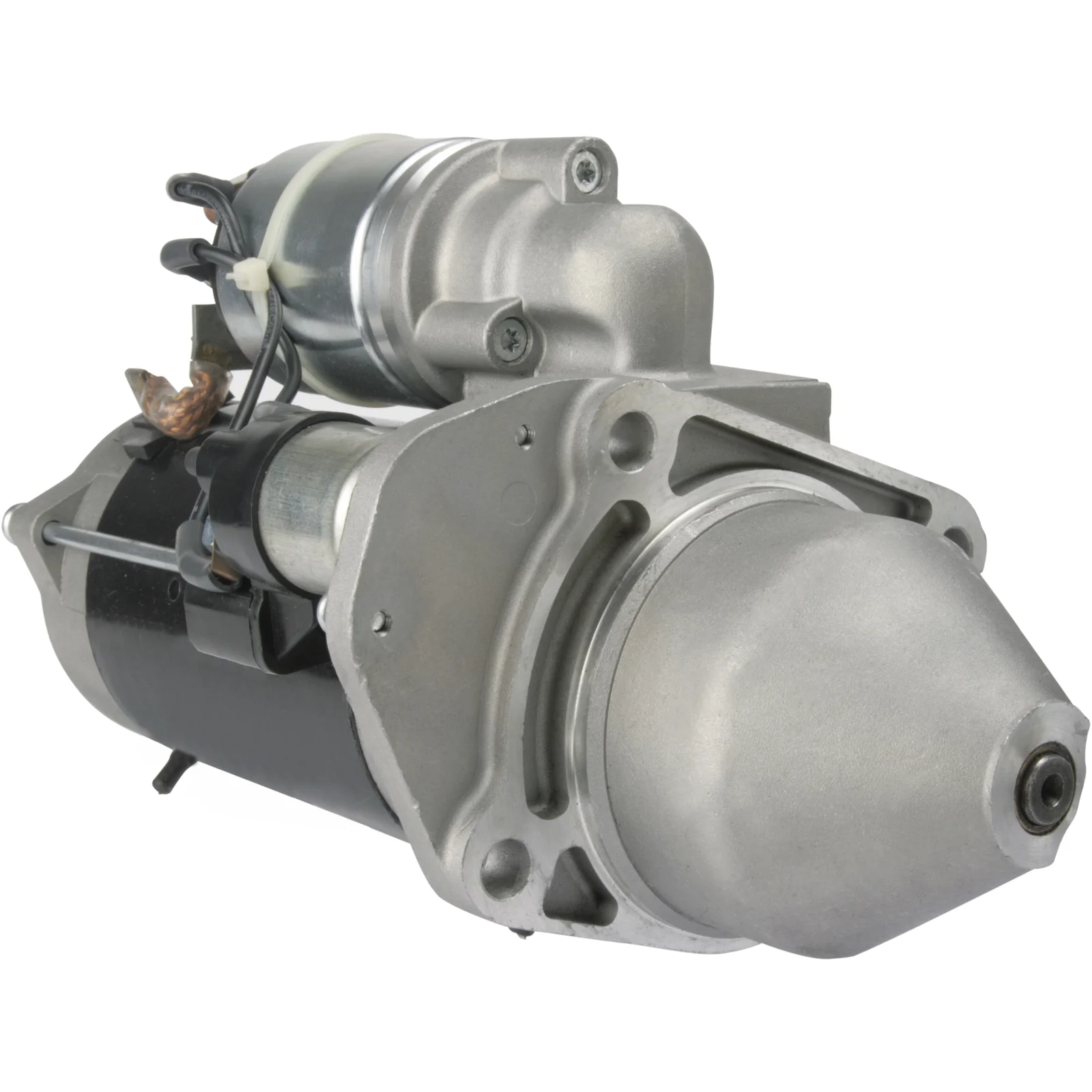

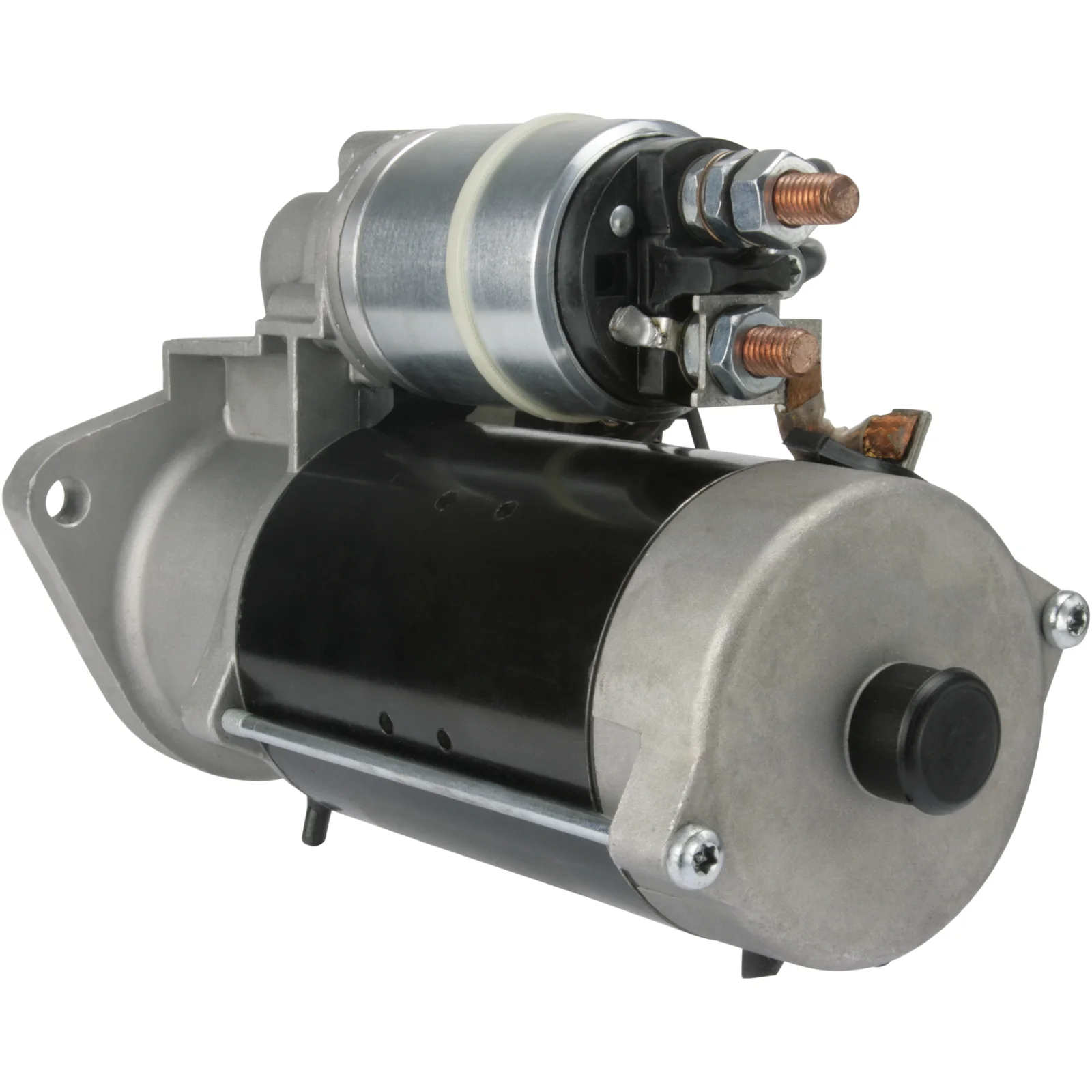

HC-Cargo Startmotor
- Startmotor
-
HC-Cargo Startmotor
Artikelnr: F032114001
HC-Cargo Startmotor
Voltage: 24, kW: 4.0, No./teeth: 11, Rotation: CW
Beskrivning
HC-Cargo Startmotor För Yourex produkt order 91-336-2320
Voltage: 24
kW: 4.0
Mount. flange: 89.00
Drive dist.: 28.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 227.00
Dist./front: 75.00
No./teeth: 11
B+: M10
Position/B+: 60
Terminal 50: Plug
Gear type: GR
Dist. 2: 82.00
Dist. 3: 93.50
Dist. mm: 127.00
Rotation: CW
Total length mm: 317.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Info: Bosch Version
Remarks: w/ safety switch.
No./mount. holes: 3 (0)
Voltage: 24
kW: 4.0
Mount. flange: 89.00
Drive dist.: 28.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 227.00
Dist./front: 75.00
No./teeth: 11
B+: M10
Position/B+: 60
Terminal 50: Plug
Gear type: GR
Dist. 2: 82.00
Dist. 3: 93.50
Dist. mm: 127.00
Rotation: CW
Total length mm: 317.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Info: Bosch Version
Remarks: w/ safety switch.
No./mount. holes: 3 (0)
Filer
Specifikation
| B+ | M10 |
|---|---|
| No./teeth | 11 |
| Mount. flange | 89.00 |
| Oil sealed | No |
| No./mount. holes | 3 (0) |
| Position/B+ | 60 |
| Prod. info | BN |
| Dist. 2 | 82.00 |
| Remarks | w/ safety switch. |
| Dist. 3 | 93.50 |
| Rotation | CW |
| Dist./back | 227.00 |
| Dist./front | 75.00 |
| Drive dist. | 28.00 |
| Drive type | Steel |
| Gear type | GR |
| Info | Bosch Version |
| kW | 4.0 |
| Terminal 50 | Plug |
| Voltage | 24 |
| Total length | 317.00 mm |
| Waterproof | No |
| Dist. | 127.00 mm |
| Mount. hole 3 | 11.00 mm |
| Mount. hole 2 | 11.00 mm |
| Mount. hole 1 | 11.00 mm |
-
OEM
cs1530, F032114001, 0001 231 023, 0001 231 034, 2T2911023B, 51.26201-7193, 51.26201-7222, 51.26201-9222, 0986 023 200, 1986S10077, 114001, 860813, 0910428, 0001231023, 0001231034, 51262017193, 51262017222, 51262019222 -
Konkurrentreferens
CST10722, DRS0061, DRS0061N, F042002205, F042S02205, is1260, MS423, S0180, 8EA012586-311, 30170N, 203048, 220556, 220556A, 254533, 460264, 8823200, 11090147, 0986023200 -
Bilmärken
M.A.N., VW Trucks & Vans -
Normaliserat artikelnummer
cs1530, cst10722, drs0061, drs0061n, f032114001, f042002205, f042s02205, is1260, ms423, s0180, 2t2911023b, 8ea012586311, 1986s10077, 30170n, 114001, 203048, 220556, 220556a, 254533, 460264, 860813, 0910428, 0001231023, 0001231034, 8823200, 11090147, 0986023200, 51262017193, 51262017222, 51262019222 -
Passar modeller
M.A.N. Series: HOCL Model: 14.250 HOCL-NL Engine volume: 6.9 Engine type: Samtliga Year: 05.07- M.A.N. Series: HOCL Model: 14.280 HOCL Engine volume: 6.9 Engine type: Samtliga Year: 08.02-12.14 M.A.N. Series: HOCL Model: 14.290 HOCL-NL Engine volume: 6.9 Engine type: D 0836 LFL 61 Year: 05.07- M.A.N. Series: HOCL Model: 18.290 HOCL-NL Engine volume: 6.9 Engine type: D 0836 LOH 60 Year: 05.07-12.14 M.A.N. Series: LION´S CITY Model: A 35 Engine volume: 6.9 Engine type: D 0836 LOH 60 Year: 10.09- M.A.N. Series: LION´S CITY Model: A 66 Engine volume: 6.9 Engine type: D 0836 LOH 60 Year: 02.09- M.A.N. Series: NM Model: NM 253 Engine volume: 6.9 Engine type: D 0836 LOH 61 Year: 05.07-06.14 M.A.N. Series: NM Model: NM 293 Engine volume: 6.9 Engine type: D 0836 LOH 60 Year: 05.07-06.14 M.A.N. Series: TGA Model: 26.280 Engine volume: 6.9 Engine type: D 0836 LF 41 Year: 11.02- M.A.N. Series: TGA Model: 26.330 Engine volume: 6.9 Engine type: D 0836 LF 44 Year: 11.02- M.A.N. Series: TGL I Model: 10.180 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 10.210 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 10.240 Engine volume: 6.9 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 12.180 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 12.210 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 12.240 Engine volume: 6.9 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 7.150, 8.150 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 8.150 Engine volume: 4.6 Engine type: Samtliga Year: 10.06-03.22 M.A.N. Series: TGL I Model: 8.180 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 8.210 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 8.240 Engine volume: 6.9 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGM I Model: 12.240 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 12.280 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 13.240 Engine volume: 6.9 Engine type: D 0836 LFL 53 Year: 10.05-03.22 M.A.N. Series: TGM I Model: 13.240 Engine volume: 6.9 Engine type: Samtliga Year: 04.06-03.22 M.A.N. Series: TGM I Model: 13.250 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 13.280 Engine volume: 6.9 Engine type: D 0836 LFL 54 Year: 10.05-03.22 M.A.N. Series: TGM I Model: 13.280 Engine volume: 6.9 Engine type: Samtliga Year: 04.06-03.22 M.A.N. Series: TGM I Model: 15.240 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 15.280 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 18.240 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 18.280 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 18.330 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 26.280 Engine volume: 6.9 Engine type: Samtliga Year: 04.06-03.22 M.A.N. Series: TGM I Model: 26.330 Engine volume: 6.9 Engine type: Samtliga Year: 04.06-03.22 MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 10t Model series: 10.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 10t Model series: 10.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 10t Model series: 10.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 10t Model series: 10.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.240 Size of motor: 6.9 Brand of engine: D0836LFL50 Type description: TGM Body: Platform / Chassis From date: 01-12-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Platform / Chassis From date: 01-12-2005 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL50 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL50 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL53 Type description: TGM Body: General Purpose Vehicle From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL53 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.250 Size of motor: 6.9 Brand of engine: D0836LFL63 Type description: TGM Body: General Purpose Vehicle From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.250 Size of motor: 6.9 Brand of engine: D0836LFL66 Type description: TGM Body: General Purpose Vehicle From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL41 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL41 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL54 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL54 Type description: TGM Body: General Purpose Vehicle From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 14t Model series: 14.250 Size of motor: 6.9 Brand of engine: D0836LOH61 Type description: HOCL-NL Body: Bus Fuel: Diesel Approved: Yes MAN Model: 15t Model series: 14.290 Size of motor: 6.9 Brand of engine: D0836LFL61 Type description: HOCL-NL Body: Bus Fuel: Diesel Approved: Yes MAN Model: 15t Model series: 15.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 15t Model series: 15.240 Size of motor: 6.9 Brand of engine: D0836LFL50 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 15t Model series: 15.240 Size of motor: 6.9 Brand of engine: D0836LFL53 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 15t Model series: 15.280 Size of motor: 6.9 Brand of engine: D0836LFL41 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Dump Truck From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.240 Size of motor: 6.9 Brand of engine: D0836LFL53 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.280 Size of motor: 6.9 Brand of engine: D0836LFL41 Type description: TGM Body: Dump Truck From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.280 Size of motor: 6.9 Brand of engine: D0836LFL41 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.290 Size of motor: 6.9 Brand of engine: D0836LOH60 Type description: HOCL-NL Body: Bus Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.330 Size of motor: 6.9 Brand of engine: D0836LFL44 Type description: TGM Body: Dump Truck From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.330 Size of motor: 6.9 Brand of engine: D0836LFL44 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.330 Size of motor: 6.9 Brand of engine: D0836LFL52 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.330 Size of motor: 6.9 Brand of engine: D0836LFL55 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 26t Model series: 26.280 Size of motor: 6.9 Brand of engine: D0836LF41 Type description: TGA Body: Platform / Chassis From date: 01-11-2002 Fuel: Diesel Approved: Yes MAN Model: 26t Model series: 26.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Concrete Mixer From date: 01-04-2006 Fuel: Diesel Approved: Yes MAN Model: 26t Model series: 26.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Dump Truck From date: 01-04-2006 Fuel: Diesel Approved: Yes MAN Model: 26t Model series: 26.330 Size of motor: 6.9 Brand of engine: D0836LF44 Type description: TGA Body: Platform / Chassis From date: 01-11-2002 Fuel: Diesel Approved: Yes MAN Model: 26t Model series: 26.330 Size of motor: 6.9 Brand of engine: D0836LFL52 Type description: TGM Body: Concrete Mixer From date: 01-04-2006 Fuel: Diesel Approved: Yes MAN Model: 26t Model series: 26.330 Size of motor: 6.9 Brand of engine: D0836LFL52 Type description: TGM Body: Dump Truck From date: 01-04-2006 Fuel: Diesel Approved: Yes MAN Model: 7t Model series: 7.150 Size of motor: 4.6 Brand of engine: D0834LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 7t Model series: 7.150 Size of motor: 4.6 Brand of engine: D0834LFL50 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 7t Model series: 7.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 7t Model series: 7.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 7t Model series: 8.150 Size of motor: 4.6 Brand of engine: D0834LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 7t Model series: 8.150 Size of motor: 4.6 Brand of engine: D0834LFL50 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.150 Size of motor: 4.6 Brand of engine: D0834LFL40 Type description: TGL Body: Dump Truck From date: 01-10-2006 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.150 Size of motor: 4.6 Brand of engine: D0834LFL50 Type description: TGL Body: Dump Truck From date: 01-10-2006 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL54 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL64 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL67 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: HOCL Series Model series: 14.280 Size of motor: 6.9 Brand of engine: D0836LOH40 Type description: HOCL Body: Bus Fuel: Diesel Approved: Yes MAN Model: HOCL Series Model series: 14.280 Size of motor: 6.9 Brand of engine: D0836LOH55 Type description: HOCL Body: Bus Fuel: Diesel Approved: Yes MAN Model: Lions City Model series: A 35 Size of motor: 6.9 Brand of engine: D0836LOH60 Type description: Lions City Body: Bus From date: 01-10-2009 Fuel: Diesel Approved: Yes MAN Model: Lions City Model series: A 66 Size of motor: 6.9 Brand of engine: D0836LOH60 Type description: Lions City Body: Bus From date: 01-02-2009 Fuel: Diesel Approved: Yes MAN Model: NM Series Model series: NM 253 Size of motor: 6.9 Brand of engine: D0836LOH61 Type description: NM Series Body: Bus Fuel: Diesel Approved: Yes MAN Model: NM Series Model series: NM 293 Size of motor: 6.9 Brand of engine: D0836LOH60 Type description: NM Series Body: Bus Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 13.190 Size of motor: 4.6 Brand of engine: D0834190 Type description: Constellation Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 15.190 Size of motor: 4.6 Brand of engine: D0834190 Type description: Constellation Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 17.190 Size of motor: 4.6 Brand of engine: D0834190 Type description: Constellation Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 17.280 Size of motor: 6.9 Brand of engine: D0836280 Type description: Constellation Body: Platform / Chassis From date: 01-10-2013 Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 26.280 Size of motor: 6.9 Brand of engine: D0836280 Type description: Constellation Body: Dump Truck From date: 01-01-2016 Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 26.280 Size of motor: 6.9 Brand of engine: D0836280 Type description: Constellation Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 31.280 Size of motor: 6.9 Brand of engine: D0836280 Type description: Constellation Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Worker Model series: 13.190 Size of motor: 4.6 Brand of engine: D0834190 Type description: Worker Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Worker Model series: 15.190 Size of motor: 4.6 Brand of engine: D0834190 Type description: Worker Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Worker Model series: 17.190 Size of motor: 4.6 Brand of engine: D0834190 Type description: Worker Body: Platform / Chassis From date: 01-10-2013 Fuel: Diesel Approved: Yes VW Trucks & Vans Series: CONSTELLATION Model: 13.190 Engine volume: 4.6 Engine type: D 0834 LF 02 Year: 01.12- VW Trucks & Vans Series: CONSTELLATION Model: 15.190 Engine volume: 4.6 Engine type: D 0834 LF 02 Year: 06.18- VW Trucks & Vans Series: CONSTELLATION Model: 17.190 Engine volume: 4.6 Engine type: D 0834 LF 02 Year: 01.12- VW Trucks & Vans Series: CONSTELLATION Model: 17.280 Engine volume: 6.9 Engine type: D 0836 LF 13 Year: 10.13- VW Trucks & Vans Series: CONSTELLATION Model: 31.280 Engine volume: 6.9 Engine type: D 0836 LF 13 Year: 01.12- VW Trucks & Vans Series: WORKER Model: 13.190 Engine volume: 4.6 Engine type: D 0834 190 Year: 01.12- VW Trucks & Vans Series: WORKER Model: 15.190 Engine volume: 4.6 Engine type: D 0834 190 Year: 01.12- VW Trucks & Vans Series: WORKER Model: 17.190 Engine volume: 4.6 Engine type: D 0834 190 Year: 10.13- 1 / 27
-
Beskrivning
HC-Cargo Startmotor För Yourex produkt order 91-336-2320
Voltage: 24
kW: 4.0
Mount. flange: 89.00
Drive dist.: 28.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 227.00
Dist./front: 75.00
No./teeth: 11
B+: M10
Position/B+: 60
Terminal 50: Plug
Gear type: GR
Dist. 2: 82.00
Dist. 3: 93.50
Dist. mm: 127.00
Rotation: CW
Total length mm: 317.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Info: Bosch Version
Remarks: w/ safety switch.
No./mount. holes: 3 (0)Filer
-
Specifikation
B+ M10 No./teeth 11 Mount. flange 89.00 Oil sealed No No./mount. holes 3 (0) Position/B+ 60 Prod. info BN Dist. 2 82.00 Remarks w/ safety switch. Dist. 3 93.50 Rotation CW Dist./back 227.00 Dist./front 75.00 Drive dist. 28.00 Drive type Steel Gear type GR Info Bosch Version kW 4.0 Terminal 50 Plug Voltage 24 Total length 317.00 mm Waterproof No Dist. 127.00 mm Mount. hole 3 11.00 mm Mount. hole 2 11.00 mm Mount. hole 1 11.00 mm -
Fordonsmatchning
-
OEM
cs1530, F032114001, 0001 231 023, 0001 231 034, 2T2911023B, 51.26201-7193, 51.26201-7222, 51.26201-9222, 0986 023 200, 1986S10077, 114001, 860813, 0910428, 0001231023, 0001231034, 51262017193, 51262017222, 51262019222 -
Konkurrentreferens
CST10722, DRS0061, DRS0061N, F042002205, F042S02205, is1260, MS423, S0180, 8EA012586-311, 30170N, 203048, 220556, 220556A, 254533, 460264, 8823200, 11090147, 0986023200 -
Bilmärken
M.A.N., VW Trucks & Vans -
Normaliserat artikelnummer
cs1530, cst10722, drs0061, drs0061n, f032114001, f042002205, f042s02205, is1260, ms423, s0180, 2t2911023b, 8ea012586311, 1986s10077, 30170n, 114001, 203048, 220556, 220556a, 254533, 460264, 860813, 0910428, 0001231023, 0001231034, 8823200, 11090147, 0986023200, 51262017193, 51262017222, 51262019222 -
Passar modeller
M.A.N. Series: HOCL Model: 14.250 HOCL-NL Engine volume: 6.9 Engine type: Samtliga Year: 05.07- M.A.N. Series: HOCL Model: 14.280 HOCL Engine volume: 6.9 Engine type: Samtliga Year: 08.02-12.14 M.A.N. Series: HOCL Model: 14.290 HOCL-NL Engine volume: 6.9 Engine type: D 0836 LFL 61 Year: 05.07- M.A.N. Series: HOCL Model: 18.290 HOCL-NL Engine volume: 6.9 Engine type: D 0836 LOH 60 Year: 05.07-12.14 M.A.N. Series: LION´S CITY Model: A 35 Engine volume: 6.9 Engine type: D 0836 LOH 60 Year: 10.09- M.A.N. Series: LION´S CITY Model: A 66 Engine volume: 6.9 Engine type: D 0836 LOH 60 Year: 02.09- M.A.N. Series: NM Model: NM 253 Engine volume: 6.9 Engine type: D 0836 LOH 61 Year: 05.07-06.14 M.A.N. Series: NM Model: NM 293 Engine volume: 6.9 Engine type: D 0836 LOH 60 Year: 05.07-06.14 M.A.N. Series: TGA Model: 26.280 Engine volume: 6.9 Engine type: D 0836 LF 41 Year: 11.02- M.A.N. Series: TGA Model: 26.330 Engine volume: 6.9 Engine type: D 0836 LF 44 Year: 11.02- M.A.N. Series: TGL I Model: 10.180 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 10.210 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 10.240 Engine volume: 6.9 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 12.180 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 12.210 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 12.240 Engine volume: 6.9 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 7.150, 8.150 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 8.150 Engine volume: 4.6 Engine type: Samtliga Year: 10.06-03.22 M.A.N. Series: TGL I Model: 8.180 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 8.210 Engine volume: 4.6 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGL I Model: 8.240 Engine volume: 6.9 Engine type: Samtliga Year: 04.05-03.22 M.A.N. Series: TGM I Model: 12.240 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 12.280 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 13.240 Engine volume: 6.9 Engine type: D 0836 LFL 53 Year: 10.05-03.22 M.A.N. Series: TGM I Model: 13.240 Engine volume: 6.9 Engine type: Samtliga Year: 04.06-03.22 M.A.N. Series: TGM I Model: 13.250 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 13.280 Engine volume: 6.9 Engine type: D 0836 LFL 54 Year: 10.05-03.22 M.A.N. Series: TGM I Model: 13.280 Engine volume: 6.9 Engine type: Samtliga Year: 04.06-03.22 M.A.N. Series: TGM I Model: 15.240 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 15.280 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 18.240 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 18.280 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 18.330 Engine volume: 6.9 Engine type: Samtliga Year: 10.05-03.22 M.A.N. Series: TGM I Model: 26.280 Engine volume: 6.9 Engine type: Samtliga Year: 04.06-03.22 M.A.N. Series: TGM I Model: 26.330 Engine volume: 6.9 Engine type: Samtliga Year: 04.06-03.22 MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 10t Model series: 10.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 10t Model series: 10.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 10t Model series: 10.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 10t Model series: 10.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 10t Model series: 10.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.240 Size of motor: 6.9 Brand of engine: D0836LFL50 Type description: TGM Body: Platform / Chassis From date: 01-12-2005 Fuel: Diesel Approved: Yes MAN Model: 12t Model series: 12.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Platform / Chassis From date: 01-12-2005 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL50 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL50 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL53 Type description: TGM Body: General Purpose Vehicle From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.240 Size of motor: 6.9 Brand of engine: D0836LFL53 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.250 Size of motor: 6.9 Brand of engine: D0836LFL63 Type description: TGM Body: General Purpose Vehicle From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.250 Size of motor: 6.9 Brand of engine: D0836LFL66 Type description: TGM Body: General Purpose Vehicle From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL41 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL41 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Platform / Chassis From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL54 Type description: TGM Body: Dump Truck From date: 01-05-2006 Fuel: Diesel Approved: Yes MAN Model: 13t Model series: 13.280 Size of motor: 6.9 Brand of engine: D0836LFL54 Type description: TGM Body: General Purpose Vehicle From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 14t Model series: 14.250 Size of motor: 6.9 Brand of engine: D0836LOH61 Type description: HOCL-NL Body: Bus Fuel: Diesel Approved: Yes MAN Model: 15t Model series: 14.290 Size of motor: 6.9 Brand of engine: D0836LFL61 Type description: HOCL-NL Body: Bus Fuel: Diesel Approved: Yes MAN Model: 15t Model series: 15.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 15t Model series: 15.240 Size of motor: 6.9 Brand of engine: D0836LFL50 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 15t Model series: 15.240 Size of motor: 6.9 Brand of engine: D0836LFL53 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 15t Model series: 15.280 Size of motor: 6.9 Brand of engine: D0836LFL41 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Dump Truck From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.240 Size of motor: 6.9 Brand of engine: D0836LFL53 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.280 Size of motor: 6.9 Brand of engine: D0836LFL41 Type description: TGM Body: Dump Truck From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.280 Size of motor: 6.9 Brand of engine: D0836LFL41 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.290 Size of motor: 6.9 Brand of engine: D0836LOH60 Type description: HOCL-NL Body: Bus Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.330 Size of motor: 6.9 Brand of engine: D0836LFL44 Type description: TGM Body: Dump Truck From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.330 Size of motor: 6.9 Brand of engine: D0836LFL44 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.330 Size of motor: 6.9 Brand of engine: D0836LFL52 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 18t Model series: 18.330 Size of motor: 6.9 Brand of engine: D0836LFL55 Type description: TGM Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes MAN Model: 26t Model series: 26.280 Size of motor: 6.9 Brand of engine: D0836LF41 Type description: TGA Body: Platform / Chassis From date: 01-11-2002 Fuel: Diesel Approved: Yes MAN Model: 26t Model series: 26.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Concrete Mixer From date: 01-04-2006 Fuel: Diesel Approved: Yes MAN Model: 26t Model series: 26.280 Size of motor: 6.9 Brand of engine: D0836LFL51 Type description: TGM Body: Dump Truck From date: 01-04-2006 Fuel: Diesel Approved: Yes MAN Model: 26t Model series: 26.330 Size of motor: 6.9 Brand of engine: D0836LF44 Type description: TGA Body: Platform / Chassis From date: 01-11-2002 Fuel: Diesel Approved: Yes MAN Model: 26t Model series: 26.330 Size of motor: 6.9 Brand of engine: D0836LFL52 Type description: TGM Body: Concrete Mixer From date: 01-04-2006 Fuel: Diesel Approved: Yes MAN Model: 26t Model series: 26.330 Size of motor: 6.9 Brand of engine: D0836LFL52 Type description: TGM Body: Dump Truck From date: 01-04-2006 Fuel: Diesel Approved: Yes MAN Model: 7t Model series: 7.150 Size of motor: 4.6 Brand of engine: D0834LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 7t Model series: 7.150 Size of motor: 4.6 Brand of engine: D0834LFL50 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 7t Model series: 7.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 7t Model series: 7.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 7t Model series: 8.150 Size of motor: 4.6 Brand of engine: D0834LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 7t Model series: 8.150 Size of motor: 4.6 Brand of engine: D0834LFL50 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.150 Size of motor: 4.6 Brand of engine: D0834LFL40 Type description: TGL Body: Dump Truck From date: 01-10-2006 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.150 Size of motor: 4.6 Brand of engine: D0834LFL50 Type description: TGL Body: Dump Truck From date: 01-10-2006 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL41 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL51 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL54 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL64 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.180 Size of motor: 4.6 Brand of engine: D0834LFL67 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.210 Size of motor: 4.6 Brand of engine: D0834LFL42 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Dump Truck From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: 8t Model series: 8.240 Size of motor: 6.9 Brand of engine: D0836LFL40 Type description: TGL Body: Platform / Chassis From date: 01-04-2005 Fuel: Diesel Approved: Yes MAN Model: HOCL Series Model series: 14.280 Size of motor: 6.9 Brand of engine: D0836LOH40 Type description: HOCL Body: Bus Fuel: Diesel Approved: Yes MAN Model: HOCL Series Model series: 14.280 Size of motor: 6.9 Brand of engine: D0836LOH55 Type description: HOCL Body: Bus Fuel: Diesel Approved: Yes MAN Model: Lions City Model series: A 35 Size of motor: 6.9 Brand of engine: D0836LOH60 Type description: Lions City Body: Bus From date: 01-10-2009 Fuel: Diesel Approved: Yes MAN Model: Lions City Model series: A 66 Size of motor: 6.9 Brand of engine: D0836LOH60 Type description: Lions City Body: Bus From date: 01-02-2009 Fuel: Diesel Approved: Yes MAN Model: NM Series Model series: NM 253 Size of motor: 6.9 Brand of engine: D0836LOH61 Type description: NM Series Body: Bus Fuel: Diesel Approved: Yes MAN Model: NM Series Model series: NM 293 Size of motor: 6.9 Brand of engine: D0836LOH60 Type description: NM Series Body: Bus Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 13.190 Size of motor: 4.6 Brand of engine: D0834190 Type description: Constellation Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 15.190 Size of motor: 4.6 Brand of engine: D0834190 Type description: Constellation Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 17.190 Size of motor: 4.6 Brand of engine: D0834190 Type description: Constellation Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 17.280 Size of motor: 6.9 Brand of engine: D0836280 Type description: Constellation Body: Platform / Chassis From date: 01-10-2013 Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 26.280 Size of motor: 6.9 Brand of engine: D0836280 Type description: Constellation Body: Dump Truck From date: 01-01-2016 Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 26.280 Size of motor: 6.9 Brand of engine: D0836280 Type description: Constellation Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Constellation Model series: 31.280 Size of motor: 6.9 Brand of engine: D0836280 Type description: Constellation Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Worker Model series: 13.190 Size of motor: 4.6 Brand of engine: D0834190 Type description: Worker Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Worker Model series: 15.190 Size of motor: 4.6 Brand of engine: D0834190 Type description: Worker Body: Platform / Chassis From date: 01-01-2012 Fuel: Diesel Approved: Yes VW Model: Worker Model series: 17.190 Size of motor: 4.6 Brand of engine: D0834190 Type description: Worker Body: Platform / Chassis From date: 01-10-2013 Fuel: Diesel Approved: Yes VW Trucks & Vans Series: CONSTELLATION Model: 13.190 Engine volume: 4.6 Engine type: D 0834 LF 02 Year: 01.12- VW Trucks & Vans Series: CONSTELLATION Model: 15.190 Engine volume: 4.6 Engine type: D 0834 LF 02 Year: 06.18- VW Trucks & Vans Series: CONSTELLATION Model: 17.190 Engine volume: 4.6 Engine type: D 0834 LF 02 Year: 01.12- VW Trucks & Vans Series: CONSTELLATION Model: 17.280 Engine volume: 6.9 Engine type: D 0836 LF 13 Year: 10.13- VW Trucks & Vans Series: CONSTELLATION Model: 31.280 Engine volume: 6.9 Engine type: D 0836 LF 13 Year: 01.12- VW Trucks & Vans Series: WORKER Model: 13.190 Engine volume: 4.6 Engine type: D 0834 190 Year: 01.12- VW Trucks & Vans Series: WORKER Model: 15.190 Engine volume: 4.6 Engine type: D 0834 190 Year: 01.12- VW Trucks & Vans Series: WORKER Model: 17.190 Engine volume: 4.6 Engine type: D 0834 190 Year: 10.13- 1 / 27
-
