Artikelnr: F032110844

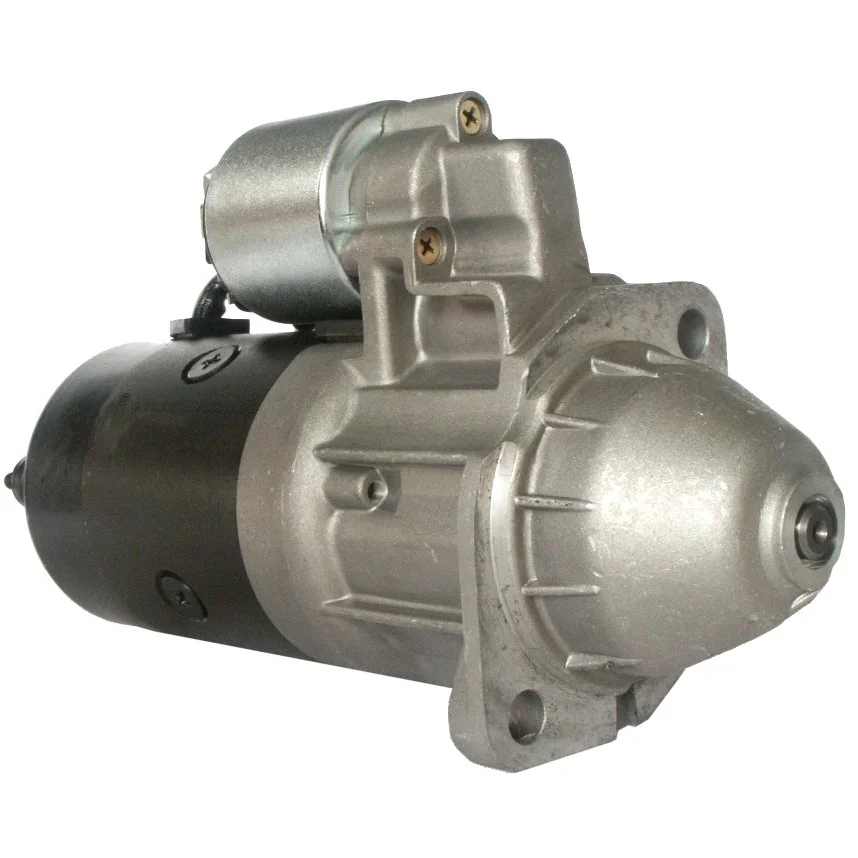

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Beskrivning

Opel Diesel Startm. 12V-2.2kW 12V - 2.2kW, 9k För Yourex produkt order 91-430-1310

Voltage: 12
kW: 2.2
Mount. flange: 82.50
Drive dist.: 16.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 222.50
Dist./front: 56.00
No./teeth: 9
B+: M8
Position/50: 15
Terminal 50: M4
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 278.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 222.50
Dist./front 56.00
Drive dist. 16.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 M4
Voltage 12
Total length 278.50 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    cs356, F032110844, LRS 658, RGO 110844, 0001 218 122, 0986 011 070, 0986 013 100, 110844, 1202048, 1202960, 0001218011, 0001218122, 1516748R, 90008258, 90376895

  • Konkurrentreferens
    CST10187, drs3100, F042002141, F042S02141, FRS595, lrs00658, QS0759, S0306, STR-B002, STRB002, vs173, 8ea726104-001, 25-1058, 29-13.100, 328.012.092, 1177, 3570, 10356, 11314, 30658R, 103184, 201194, 220093, 220093A, 436041, 726110, 726910, 11013100, 943251697, 0986013100, 943251697010, 944280131000

  • Bilmärken
    Bedford, Goldoni, Lombardini, Opel, Vauxhall

  • Normaliserat artikelnummer
    cs356, cst10187, drs3100, f032110844, f042002141, f042s02141, frs595, lrs00658, lrs658, qs0759, rgo110844, s0306, strb002, vs173, 8ea726104001, 1177, 3570, 10356, 11314, 30658r, 103184, 110844, 201194, 220093, 220093a, 251058, 436041, 726110, 726910, 1202048, 1202960, 0001218011, 0001218122, 1516748r, 2913100, 11013100, 90008258, 90376895, 328012092, 943251697, 0986011070, 0986013100, 943251697010, 944280131000

  • Passar modeller
    Agrifull Series: A Model: 35 Engine volume: 1.6 Year: 06.89-
    Bedford Model: Blitz Model series: Blitz Type of engine: Diesel Size of motor: 2.3 Brand of engine: 23D Body: Van From date: 01-01-1973 To date: 01-10-1987 Fuel: Diesel Approved: Yes
    Bedford Series: Blitz Model: 2.0 D 9700-series Engine volume: 2.0 Year: 10.78-12.80
    Bedford Series: Blitz Model: 2.1 D 97000-series Engine volume: 2.1 Year: 09.75-09.78
    Bedford Series: CF 2 Model: /230, /250, /280, /350 Engine volume: 2.3 Engine type: Opel Year: 05.84-
    Ferrari Model: 40 Model series: 40 WDT Size of motor: 1.6 Brand of engine: LDW1503 From date: 01-04-1991 Fuel: Diesel Approved: Yes
    Goldoni Model: Various Models Model series: Various Models Approved: Yes
    Goldoni Series: 40 Model: BW Engine volume: 1.6 Engine type: LDW 1503 Year: 06.91-12.91
    Goldoni Series: 42 Engine volume: 1.6 Engine type: LDW 1503 Year: 06.91-
    Lombardini Model: Engine Model series: Various Models Size of motor: 1.6 Brand of engine: LDW1503 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    Lombardini Model: Engine Model series: Various Models Size of motor: 2.1 Brand of engine: LDW2004 From date: 01-01-1990 Fuel: Diesel Approved: Yes
    Lombardini Series: LDW Model: 1503 Engine volume: 1.6 Year: 06.89-
    Lombardini Series: LDW Model: 2004 Engine volume: 2.4 Year: 01.90-
    Opel Model: Frontera Model series: Frontera A Type of engine: TD Size of motor: 2.3 Brand of engine: 23DTR Type description: 5JMWL4 From date: 01-03-1992 To date: 01-10-1998 Fuel: Diesel Approved: Yes
    Opel Model: Omega Model series: Omega A Type of engine: Diesel Size of motor: 2.3 Brand of engine: 23YD Body: Estate From date: 01-09-1986 To date: 01-03-1994 Fuel: Diesel Approved: Yes Manufacture type: Caravan
    Opel Model: Omega Model series: Omega A Type of engine: Diesel Size of motor: 2.3 Brand of engine: 23YD From date: 01-10-1986 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Opel Model: Omega Model series: Omega A Type of engine: TD Size of motor: 2.3 Brand of engine: 23DTR Body: Estate From date: 01-09-1988 To date: 01-03-1994 Fuel: Diesel Approved: Yes Manufacture type: Caravan
    Opel Model: Omega Model series: Omega A Type of engine: TD Size of motor: 2.3 Brand of engine: 23DTR From date: 01-08-1988 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Opel Model: Omega Model series: Omega A Type of engine: TD Size of motor: 2.3 Brand of engine: 23YDT Body: Estate From date: 01-09-1986 To date: 01-08-1988 Fuel: Diesel Approved: Yes Manufacture type: Caravan
    Opel Model: Omega Model series: Omega A Type of engine: TD Size of motor: 2.3 Brand of engine: 23YDT From date: 01-10-1986 To date: 01-08-1988 Fuel: Diesel Approved: Yes
    Opel Model: Rekord Model series: Rekord E Type of engine: Diesel Size of motor: 2.3 Brand of engine: 23D Body: Estate From date: 01-11-1982 To date: 01-08-1986 Fuel: Diesel Approved: Yes Manufacture type: Caravan
    Opel Model: Rekord Model series: Rekord E Type of engine: Diesel Size of motor: 2.3 Brand of engine: 23D From date: 01-11-1982 To date: 01-08-1986 Fuel: Diesel Approved: Yes
    Opel Model: Rekord Model series: Rekord E Type of engine: TD Size of motor: 2.3 Brand of engine: 23TD Body: Estate From date: 01-06-1984 To date: 01-08-1986 Fuel: Diesel Approved: Yes Manufacture type: Caravan
    Opel Model: Rekord Model series: Rekord E Type of engine: TD Size of motor: 2.3 Brand of engine: 23TD From date: 01-06-1984 To date: 01-08-1986 Fuel: Diesel Approved: Yes
    Opel Model: Senator Model series: Senator A Type of engine: TD Size of motor: 2.3 Brand of engine: 23TD From date: 01-11-1984 To date: 01-08-1987 Fuel: Diesel Approved: Yes
    Opel Series: Ascona B Model: 2.0 D Engine volume: 2.0 Engine type: 20 D Year: 08.78-08.81
    Opel Series: Astra F Halvkombi Model: 1.4 Si Engine volume: 1.4 Engine type: C 14 SE Year: 03.92-08.97
    Opel Series: Frontera A Model: 2.3 TD Engine volume: 2.3 Engine type: 23 DTR Year: 09.92-10.98
    Opel Series: Omega A Model: 2.3 D Engine volume: 2.3 Engine type: 23 YD Year: 09.86-03.94
    Opel Series: Omega A Model: 2.3 TD Engine volume: 2.3 Engine type: 23 YDT Year: 09.86-08.88
    Opel Series: Omega A Model: 2.3 TDI Engine volume: 2.3 Engine type: 23 DTR Year: 08.88-03.94
    Opel Series: Rekord D Model: 2.1 D Engine volume: 2.1 Engine type: 21 D Year: 09.72-07.78
    Opel Series: Rekord E Model: 2.0 D Engine volume: 2.0 Engine type: 20 D Year: 08.74-10.82
    Opel Series: Rekord E Model: 2.3 D Engine volume: 2.3 Engine type: 23 D Year: 08.78-08.86
    Opel Series: Rekord E Model: 2.3 TD Engine volume: 2.3 Engine type: 23 DT Year: 06.84-08.86
    Valpadana Model: Various Models Model series: Various Models Approved: Yes
    Vauxhall Model: Carlton Model series: Carlton Model type: Intercooler Type of engine: TD Size of motor: 2.3 Brand of engine: 23DTR Body: Estate From date: 01-09-1988 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Vauxhall Model: Carlton Model series: Carlton Model type: Intercooler Type of engine: TD Size of motor: 2.3 Brand of engine: 23DTR From date: 01-08-1988 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Vauxhall Model: Carlton Model series: Carlton Type of engine: Diesel Size of motor: 2.3 Brand of engine: 23YD Body: Estate From date: 01-09-1986 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Vauxhall Model: Carlton Model series: Carlton Type of engine: Diesel Size of motor: 2.3 Brand of engine: 23YD From date: 01-09-1986 To date: 01-03-1994 Fuel: Diesel Approved: Yes
    Vauxhall Model: Carlton Model series: Carlton Type of engine: TD Size of motor: 2.3 Brand of engine: 23YDT Body: Estate From date: 01-09-1986 To date: 01-08-1988 Fuel: Diesel Approved: Yes
    Vauxhall Model: Carlton Model series: Carlton Type of engine: TD Size of motor: 2.3 Brand of engine: 23YDT From date: 01-10-1986 To date: 01-08-1988 Fuel: Diesel Approved: Yes
    Vauxhall Model: Frontera Model series: Frontera A Model type: 4x4 Long Type of engine: TD Size of motor: 2.3 Brand of engine: 23DTR From date: 01-09-1991 To date: 01-06-1998 Fuel: Diesel Approved: Yes
    Vauxhall Series: Carlton Model: 2.3 D Engine volume: 2.3 Engine type: 23 D Year: 05.83-10.94
    Vauxhall Series: Frontera Model: 2.3 TD Engine volume: 2.3 Engine type: 23 DTR OHC Year: 01.92-09.95
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Platform / Chassis From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.8 Brand of engine: ATA Body: Platform / Chassis From date: 01-01-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    1 / 10
