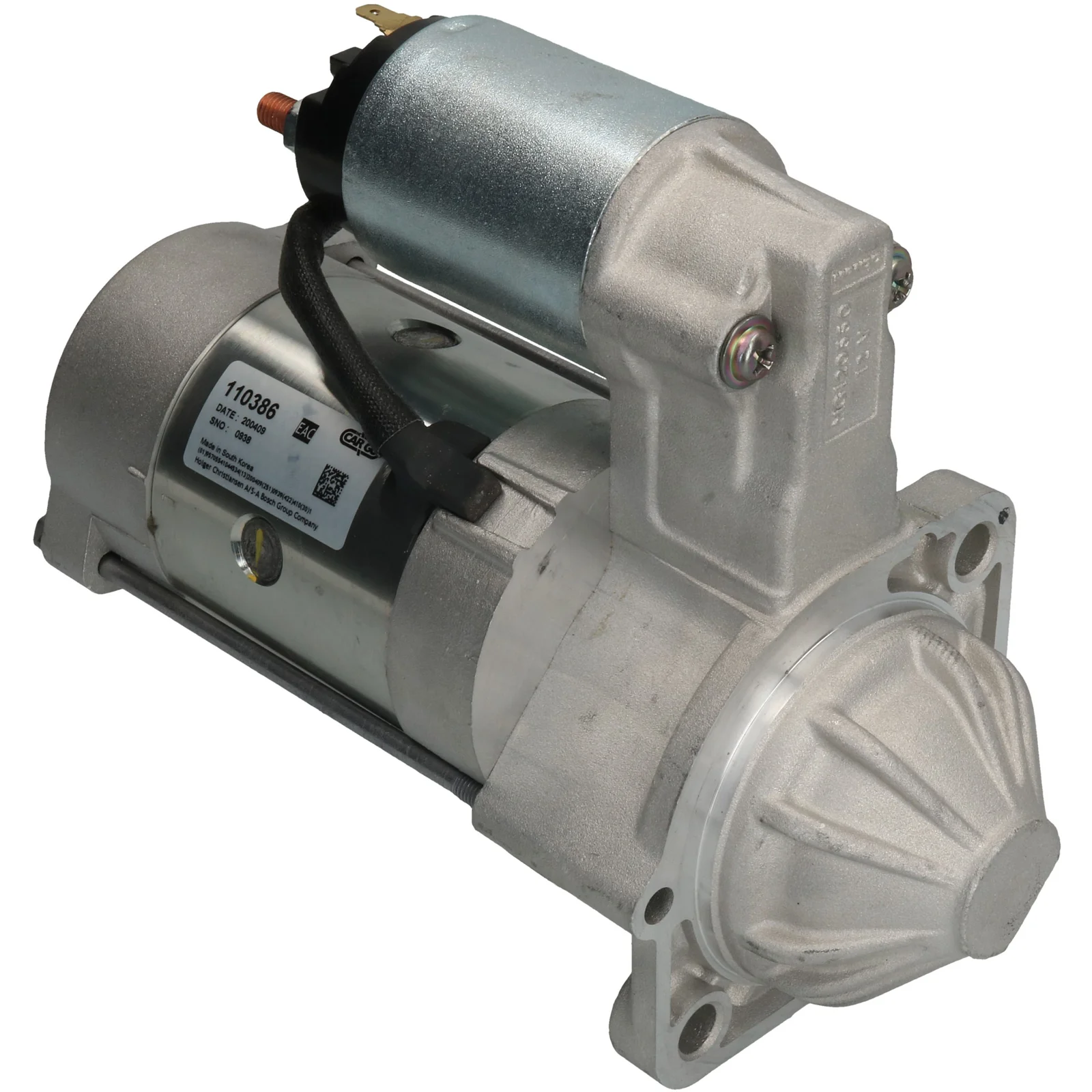

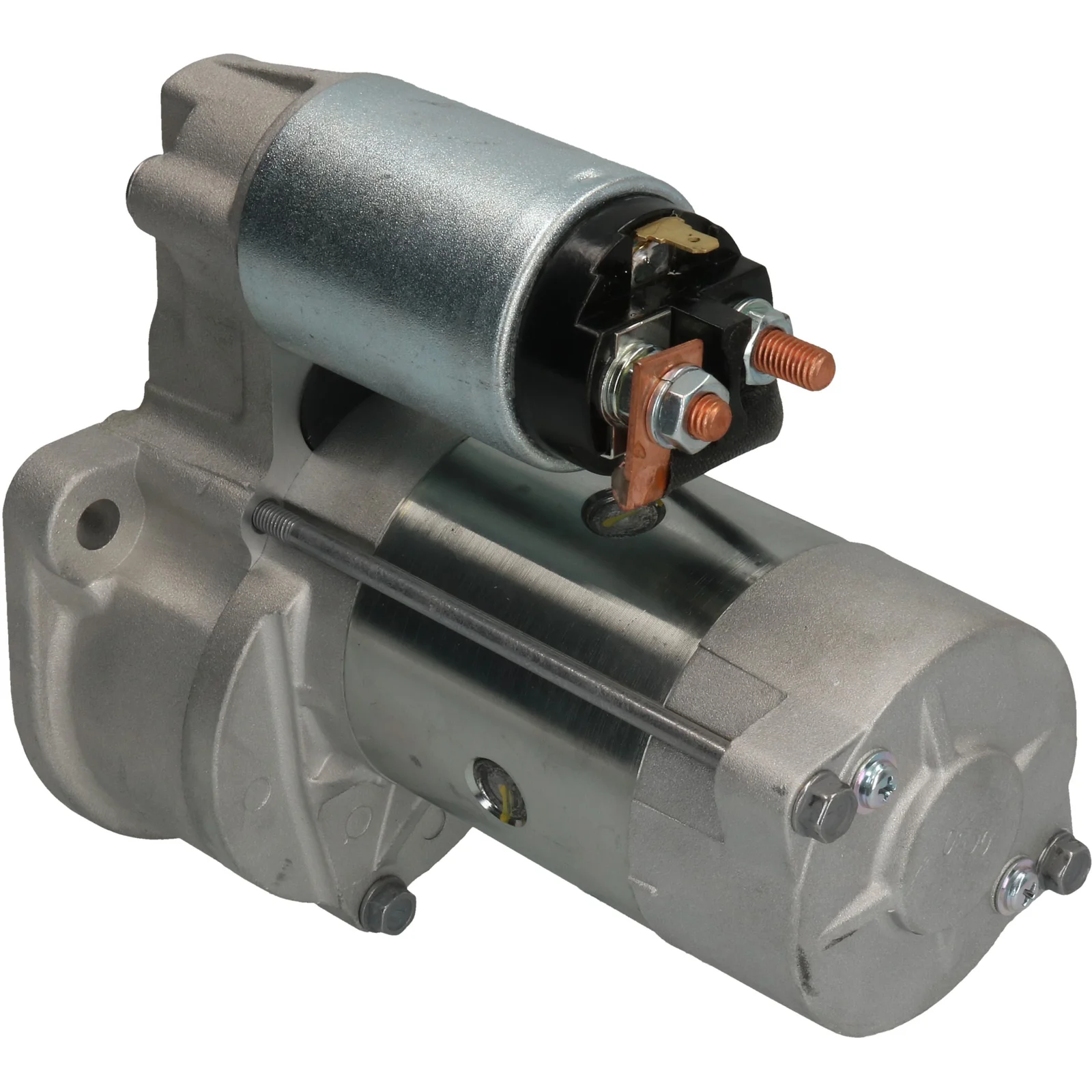

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032110386

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.9, No./teeth: 9, Rotation: CW

Beskrivning

Nissan Diesel Startm.12V-1.8kW 12V - 1.8kW, 9/10k För Yourex produkt order 91-400-1534

Voltage: 12
kW: 1.9
Mount. flange: 82.50
Drive dist.: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 190.00
Dist./front: 43.00
No./teeth: 9
B+: M8
Position/B+: 15
Position/50: 60
Terminal 50: 6.30
Gear type: GR
Dist. mm: 110.00
Rotation: CW
Total length mm: 233.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Source: Valeo/Mando
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 60
Position/B+ 15
Prod. info BN
Rotation CW
Dist./back 190.00
Dist./front 43.00
Drive dist. 10.50
Drive type Steel
Gear type GR
Source Valeo/Mando
kW 1.9
Terminal 50 6.30
Voltage 12
Total length 233.00 mm
Waterproof No
Dist. 110.00 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    B330M31W04EX, F032110386, js359, MG120560, RGO 110386, s12-19, s12-19c, s12-19k, s12-19ka, s12-19kb, s12-63, s12-63a, s12-63b, s12-63c, s12-68, s12-68a, s12-68b, S12-68C, s12-68d, s13-36, S13-38A, s13-38a, S13-38B, s13-38b, S13-43, S13-45, S13-45A, S13-45B, S13-46A, 44-0359, 0986 015 341, 23300-21800, 23300-31w00, 23300-31w01, 23300-31W02, 23300-31w02, 23300-31w03, 23300-31W04, 23300-31w04, 23300-31WO2, 23300-37500, 23300-37502, 23300-37503, 23300-37504, 23300-37505, 23300-37506, 23300-37507, 23300-37508, 23300-37553, 23300-G7003, 23300-l1800, 23300-T3470, 23300-V0600, 23300-v0600, 23300-V0602, 23300-V0603, 23300-v0603, 23300-V0605, 23300-v0605, 23300-V0606, 23300-v0606, 23300-V0607, 23300-v0607, 110386, 1516961R

  • Konkurrentreferens
    ads-135, ads-151, CST20141, drs3038, drs3169, drs5341, F042001163, F042S01163, lrs00502, lrs00510, lrs00786, SR257X, STR-6041, STR6041, 2-1046-ND, 2-1088-HI, 2-1089-HI, 8ea726451-001, 8ea726467-001, 25-0403, 25-0404, 25-0405, 25-0444, 25-0458, 28-52.114, 28-52.154, 327.018.092, 327.204.092, 1224, 4189, 11474, 16771, 16771R, 16986R, 18061N, 20359, 20379, 103244, 103303, 455574, 8052154, 11040132, 0986014281, 0986015341

  • Bilmärken
    Nissan

  • Normaliserat artikelnummer
    ads135, ads151, b330m31w04ex, cst20141, drs3038, drs3169, drs5341, f032110386, f042001163, f042s01163, js359, lrs00502, lrs00510, lrs00786, mg120560, rgo110386, s1219, s1219c, s1219k, s1219ka, s1219kb, s1263, s1263a, s1263b, s1263c, s1268, s1268a, s1268b, s1268c, s1268d, s1336, s1338a, s1338b, s1343, s1345, s1345a, s1345b, s1346a, sr257x, str6041, 8ea726451001, 8ea726467001, 1224, 4189, 11474, 16771, 16771r, 16986r, 18061n, 20359, 20379, 21046nd, 21088hi, 21089hi, 23300g7003, 23300l1800, 23300t3470, 23300v0600, 23300v0602, 23300v0603, 23300v0605, 23300v0606, 23300v0607, 103244, 103303, 110386, 250403, 250404, 250405, 250444, 250458, 440359, 455574, 1516961r, 2330031w00, 2330031w01, 2330031w02, 2330031w03, 2330031w04, 2330031wo2, 2852114, 2852154, 8052154, 11040132, 327018092, 327204092, 0986014281, 0986015341, 2330021800, 2330037500, 2330037502, 2330037503, 2330037504, 2330037505, 2330037506, 2330037507, 2330037508, 2330037553

  • Passar modeller
    Nissan Model: 720 Model series: 720 Size of motor: 2.2 Brand of engine: SD22 Body: Pick Up From date: 01-01-1981 To date: 01-01-1982 Fuel: Diesel Approved: Yes
    Nissan Model: 720 Model series: 720 Size of motor: 2.5 Brand of engine: SD25 Body: Pick Up From date: 01-01-1983 To date: 01-01-1986 Fuel: Diesel Approved: Yes
    Nissan Model: King Cab Model series: King Cab Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: 720 From date: 01-01-1983 To date: 01-05-1985 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: Diesel Size of motor: 2.5 Brand of engine: SD25 Type description: 720 Body: Pick Up From date: 01-04-1983 To date: 01-03-1986 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: 720 Body: Pick Up From date: 01-04-1983 To date: 01-03-1986 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.2 Brand of engine: SD22 Type description: E23 Body: Van From date: 01-07-1981 To date: 01-11-1982 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: E23 Body: Bus From date: 01-04-1985 To date: 01-11-1988 Fuel: Diesel Approved: Yes
    Nissan Model: Urvan Model series: Urvan Type of engine: Diesel Size of motor: 2.3 Brand of engine: SD23 Type description: E23 Body: Van From date: 01-11-1982 To date: 01-05-1987 Fuel: Diesel Approved: Yes
    Nissan Model: Various Models Model series: Various Models Approved: Yes
    Nissan Series: Cab Star Model: 2.2 D Engine type: SD 22; 23 Year: 00.76-00.84
    Nissan Series: Cabstar (F22) Model: 2.5 D Engine type: SD25 Year: 05.82-02.86
    Nissan Series: Cedric Model: 2.0, 2.2 Diesel Year: 08.80-
    Nissan Series: Cedric Model: 2.2 D Engine volume: 2.2 Engine type: SD22 Year: 01.73-06.79
    Nissan Series: Datsun Model: 220 C Year: 00.75-00.79
    Nissan Series: Gloria Model: 2.0, 2.2 Diesel Year: 08.80-
    Nissan Series: Pick-Up (720) Model: 2.2 D Engine volume: 2.2 Engine type: SD 22 Year: 01.82-01.84
    Nissan Series: Pick-Up (720) Model: 2.3 D Engine volume: 2.3 Engine type: SD 23 Year: 04.83-03.86
    Nissan Series: Pick-Up (720) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: SD 25 Year: 04.83-03.86
    Nissan Series: Urvan (E23) Model: 2.2 D Engine volume: 2.2 Engine type: SD 22 Year: 07.80-04.82
    Nissan Series: Urvan (E23) Model: 2.3 D Engine volume: 2.3 Engine type: SD 23 Year: 11.82-11.88
    1 / 4
