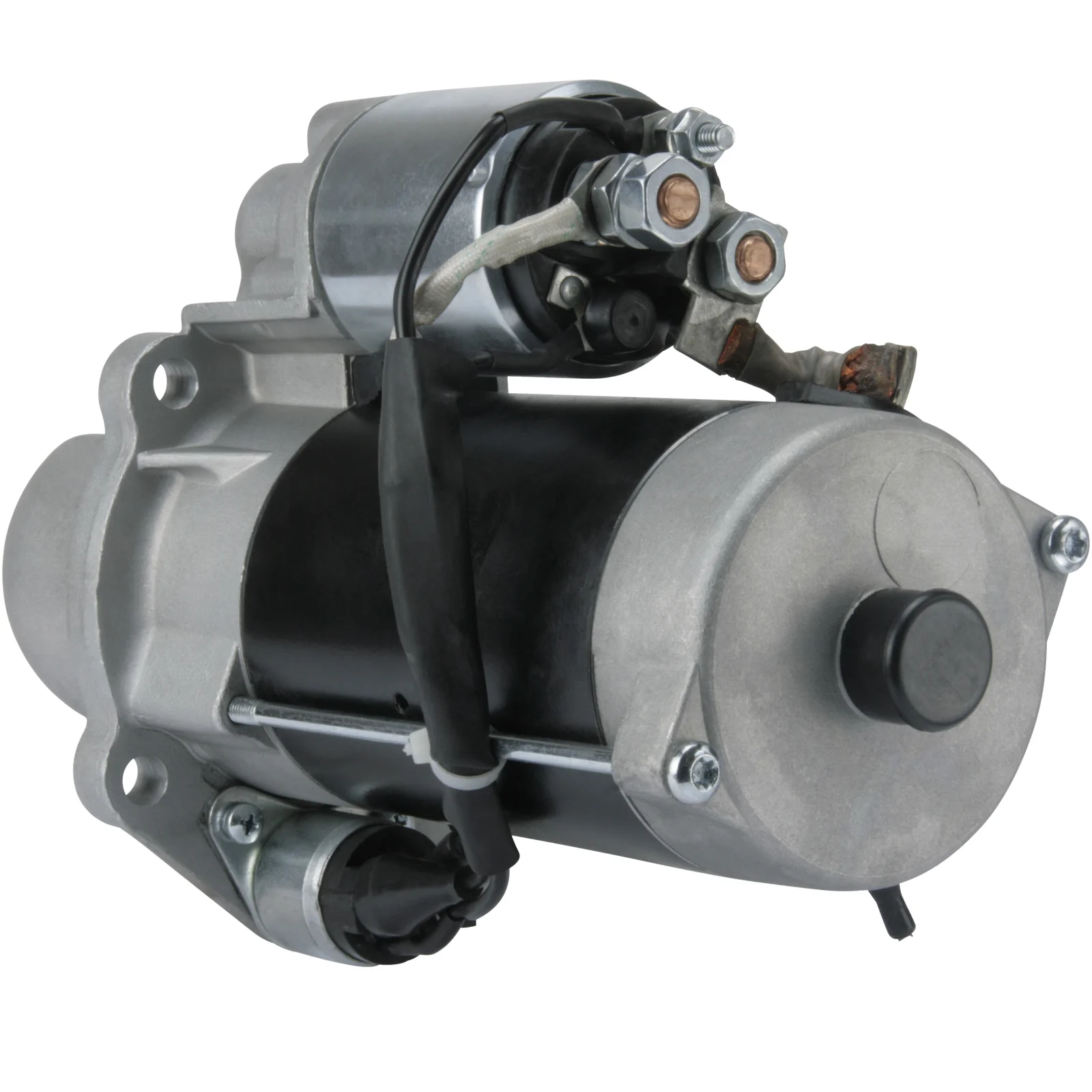

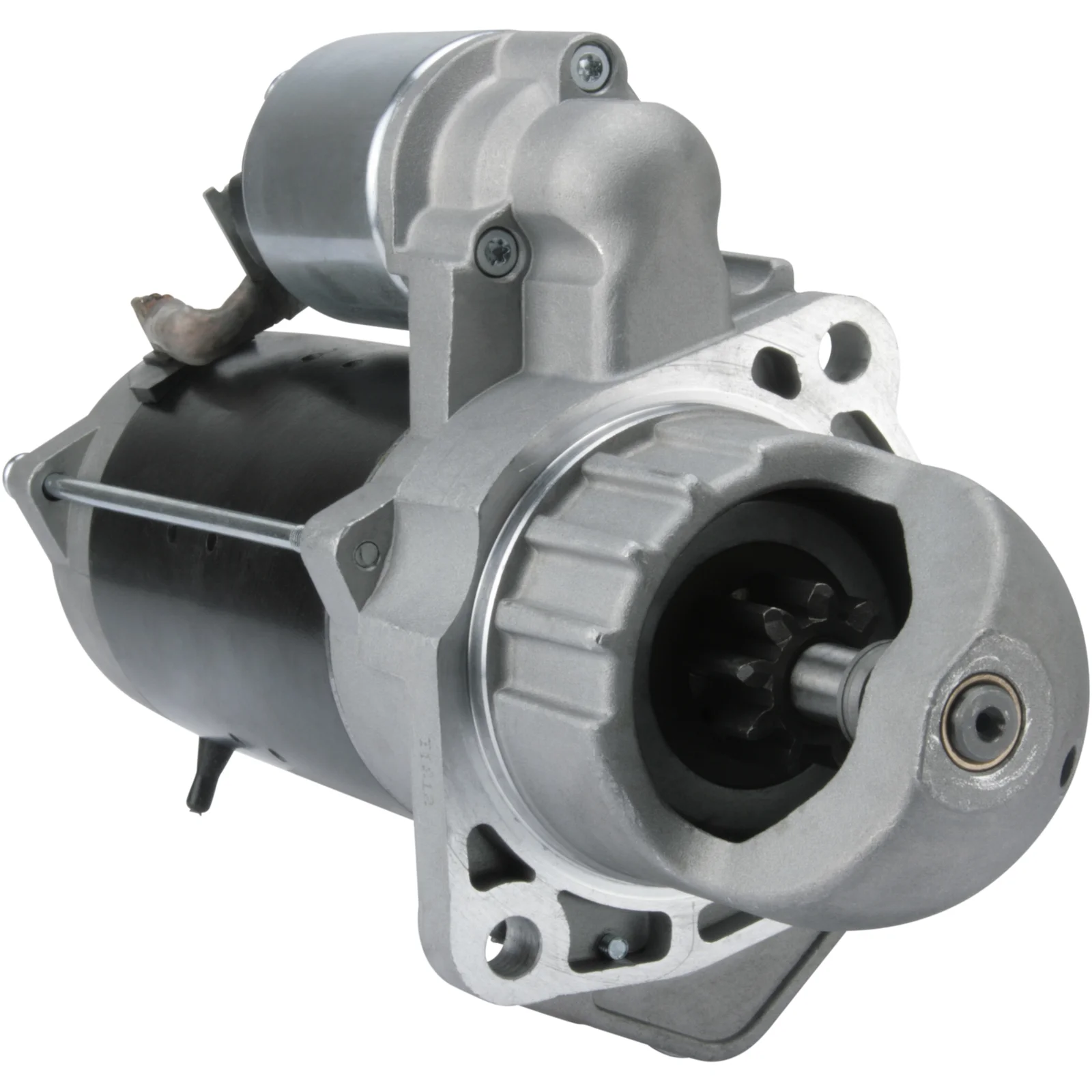

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114395

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.0
Mount. flange: 89.00
Drive dist.: 49.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 207.00
Dist./front: 94.00
No./teeth: 9
B+: M10
Position/50: 5
Terminal 50: M6
Gear type: GR
Dist. 2: 90.00
Dist. 3: 127.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 316.50
Clutch type: Dry
Drive type: Steel
Servicing: Mercedes-Benz
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 5
Clutch type Dry
Dist. 2 90.00
Dist. 3 127.00
Rotation CW
Dist./back 207.00
Dist./front 94.00
Servicing Mercedes-Benz
Drive dist. 49.00
Drive type Steel
Gear type GR
kW 3.0
Terminal 50 M6
Voltage 12
Total length 316.50 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    a0041519301, A0061512301, A00615123010080, a0061512303, F032114395, 922354, 958982, 0001230001, 0001230027, 0001262006, 0041519301, 0061512301, 0061512303, 00615123010080

  • Konkurrentreferens
    CST10227, CST10385, DRS0381, DRT1340, LRS02447, MS199, S0149, S0785S, 25-4119, 550.593.093, 220857, 220857A, 254588, 11021340, 0986021340

  • Normaliserat artikelnummer
    a0041519301, a0061512301, a00615123010080, a0061512303, cst10227, cst10385, drs0381, drt1340, f032114395, lrs02447, ms199, s0149, s0785s, 220857, 220857a, 254119, 254588, 922354, 958982, 0001230001, 0001230027, 0001262006, 11021340, 0041519301, 0061512301, 0061512303, 550593093, 0986021340, 00615123010080

  • Passar modeller
    Mercedes-Benz Model: Econic Model series: 1828L Size of motor: 6.4 Brand of engine: OM906 From date: 01-07-1998 To date: 01-09-2006 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 3.0
    Mount. flange: 89.00
    Drive dist.: 49.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 207.00
    Dist./front: 94.00
    No./teeth: 9
    B+: M10
    Position/50: 5
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 90.00
    Dist. 3: 127.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 316.50
    Clutch type: Dry
    Drive type: Steel
    Servicing: Mercedes-Benz
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 5
    Clutch type Dry
    Dist. 2 90.00
    Dist. 3 127.00
    Rotation CW
    Dist./back 207.00
    Dist./front 94.00
    Servicing Mercedes-Benz
    Drive dist. 49.00
    Drive type Steel
    Gear type GR
    kW 3.0
    Terminal 50 M6
    Voltage 12
    Total length 316.50 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      a0041519301, A0061512301, A00615123010080, a0061512303, F032114395, 922354, 958982, 0001230001, 0001230027, 0001262006, 0041519301, 0061512301, 0061512303, 00615123010080

    • Konkurrentreferens
      CST10227, CST10385, DRS0381, DRT1340, LRS02447, MS199, S0149, S0785S, 25-4119, 550.593.093, 220857, 220857A, 254588, 11021340, 0986021340

    • Normaliserat artikelnummer
      a0041519301, a0061512301, a00615123010080, a0061512303, cst10227, cst10385, drs0381, drt1340, f032114395, lrs02447, ms199, s0149, s0785s, 220857, 220857a, 254119, 254588, 922354, 958982, 0001230001, 0001230027, 0001262006, 11021340, 0041519301, 0061512301, 0061512303, 550593093, 0986021340, 00615123010080

    • Passar modeller
      Mercedes-Benz Model: Econic Model series: 1828L Size of motor: 6.4 Brand of engine: OM906 From date: 01-07-1998 To date: 01-09-2006 Approved: Yes
