HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114033

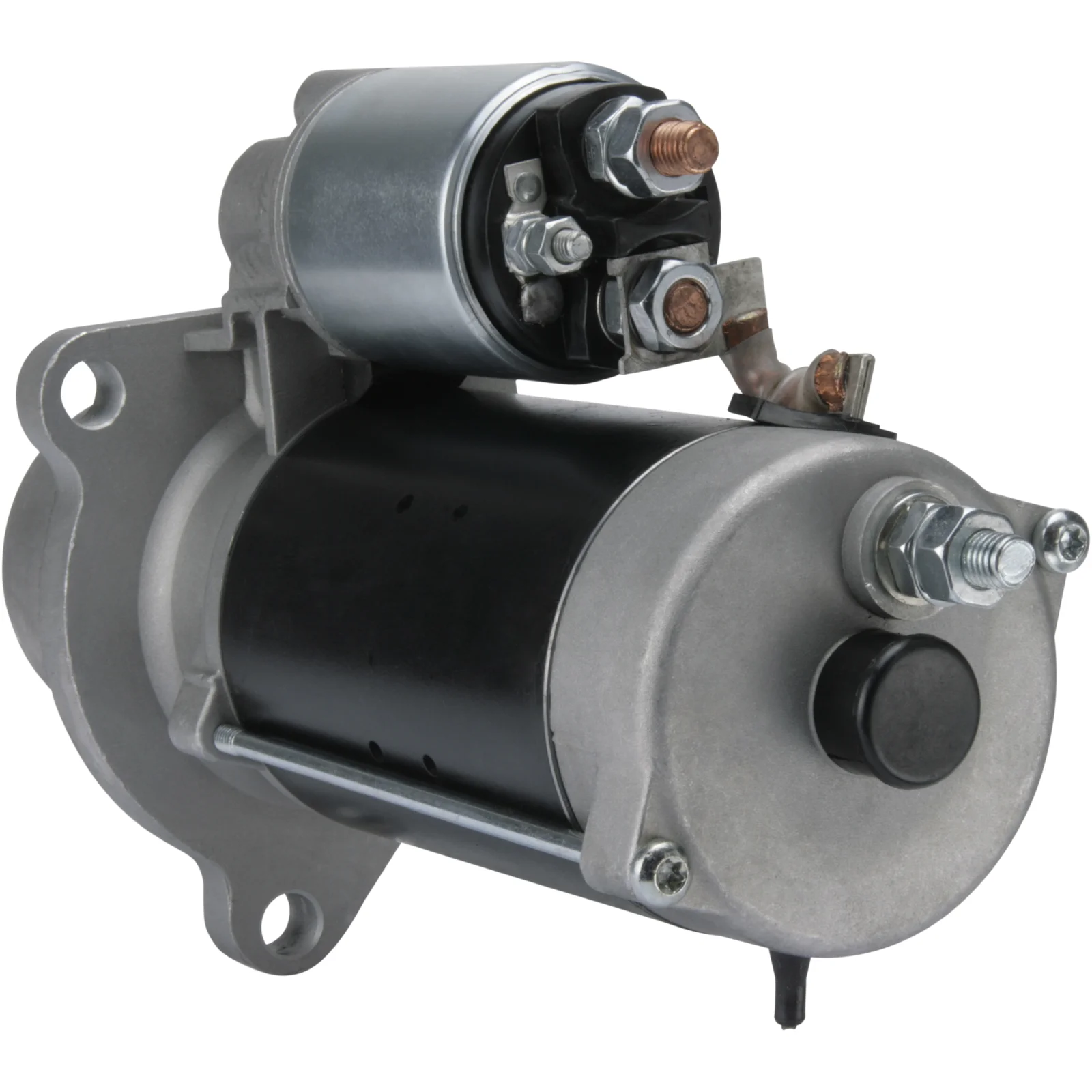

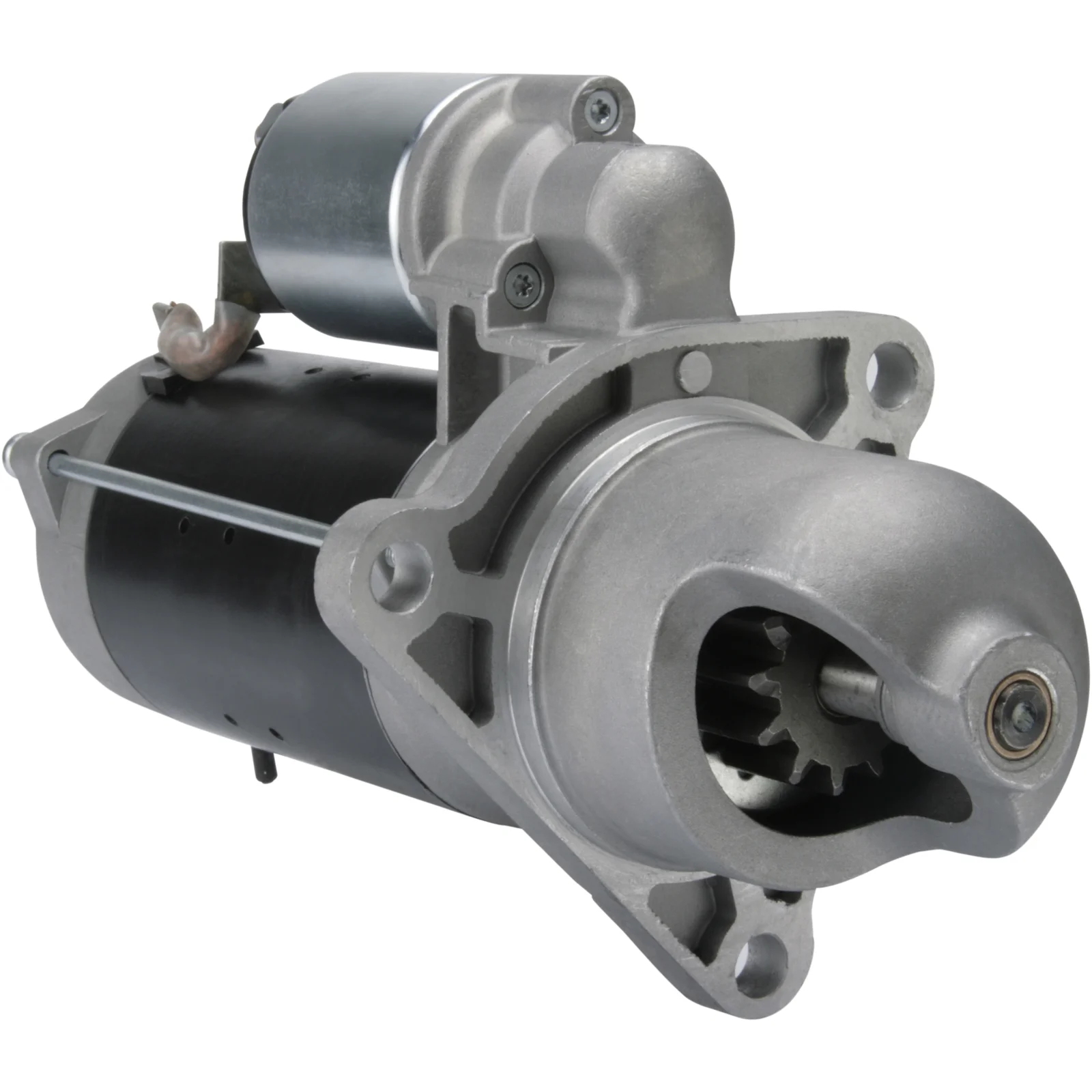

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 4.0, No./teeth: 12, Rotation: CW

Beskrivning

Start 24V-4.0kW passar Volvo 24V - 4.0kW, 12k A - 92mm, B - 48mm Bilar med PTO (power take-off) För Yourex produkt order 91-600-1983

Voltage: 24
kW: 4.0
Mount. flange: 92.00
Drive dist.: 47.00
Mount. hole 3 mm: 13.20
Mount. hole 2 mm: 13.20
Mount. hole 1 mm: 13.20
Dist./back: 221.00
Dist./front: 97.00
No./teeth: 12
B+: M10
Thread length mm: 20.00
Position/50: 45
Terminal 50: M6
Gear type: GR
Dist. 2: 126.50
Dist. 3: 126.50
Dist. 4: 126.50
Dist. mm: 126.50
Rotation: CW
Position/b-: 5
B-: M10
Total length mm: 334.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 12
Mount. flange 92.00
No./mount. holes 3 (0)
Position/50 45
Position/b- 5
Dist. 2 126.50
Dist. 3 126.50
Dist. 4 126.50
Rotation CW
Dist./back 221.00
Dist./front 97.00
Drive dist. 47.00
Gear type GR
kW 4.0
Terminal 50 M6
Voltage 24
Total length 334.00 mm
Dist. 126.50 mm
Thread length 20.00 mm
Mount. hole 3 13.20 mm
Mount. hole 2 13.20 mm
Mount. hole 1 13.20 mm

  • OEM
    cs1285, F032114033, 0001 231 004, 0986 019 830, 1986S10121, 114033, 0001231004, 3978710, 8113230, 8192965, 19084031, 21477586, 85000447, 85003304

  • Konkurrentreferens
    CST10656, DRS3898, F042S02190, S0108, 8EA012586-481, 45-3067, 18956N, 101285, 220726, 220726A, 860618, 11019830, 0986019830, 0986019833

  • Bilmärken
    Volvo Trucks & Buses

  • Normaliserat artikelnummer
    cs1285, cst10656, drs3898, f032114033, f042s02190, s0108, 8ea012586481, 1986s10121, 18956n, 101285, 114033, 220726, 220726a, 453067, 860618, 0001231004, 3978710, 8113230, 8192965, 11019830, 19084031, 21477586, 85000447, 85003304, 0986019830, 0986019833

  • Passar modeller
    Volvo Model: FM Series Model series: FM 7/250 Size of motor: 7.3 Brand of engine: D7C250 Body: Dump Truck From date: 01-08-1998 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Volvo Model: FM Series Model series: FM 7/250 Size of motor: 7.3 Brand of engine: D7C250 Body: Platform / Chassis From date: 01-08-1998 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Volvo Model: FM Series Model series: FM 7/250 Size of motor: 7.3 Brand of engine: D7C250 Body: Semi-Trailer From date: 01-08-1998 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Volvo Model: FM Series Model series: FM 7/290 Size of motor: 7.3 Brand of engine: D7C290 Body: Dump Truck From date: 01-08-1998 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Volvo Model: FM Series Model series: FM 7/290 Size of motor: 7.3 Brand of engine: D7C290 Body: Platform / Chassis From date: 01-08-1998 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Volvo Model: FM Series Model series: FM 7/290 Size of motor: 7.3 Brand of engine: D7C290 Body: Semi-Trailer From date: 01-08-1998 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Volvo Trucks & Buses Series: FM 7 Model: 250 / 290 Engine volume: 7.3 Engine type: D 7C 250 /290 Year: 09.98-
