- Startmotor
-
HC-Cargo Startmotor
- Startmotor
-
HC-Cargo Startmotor

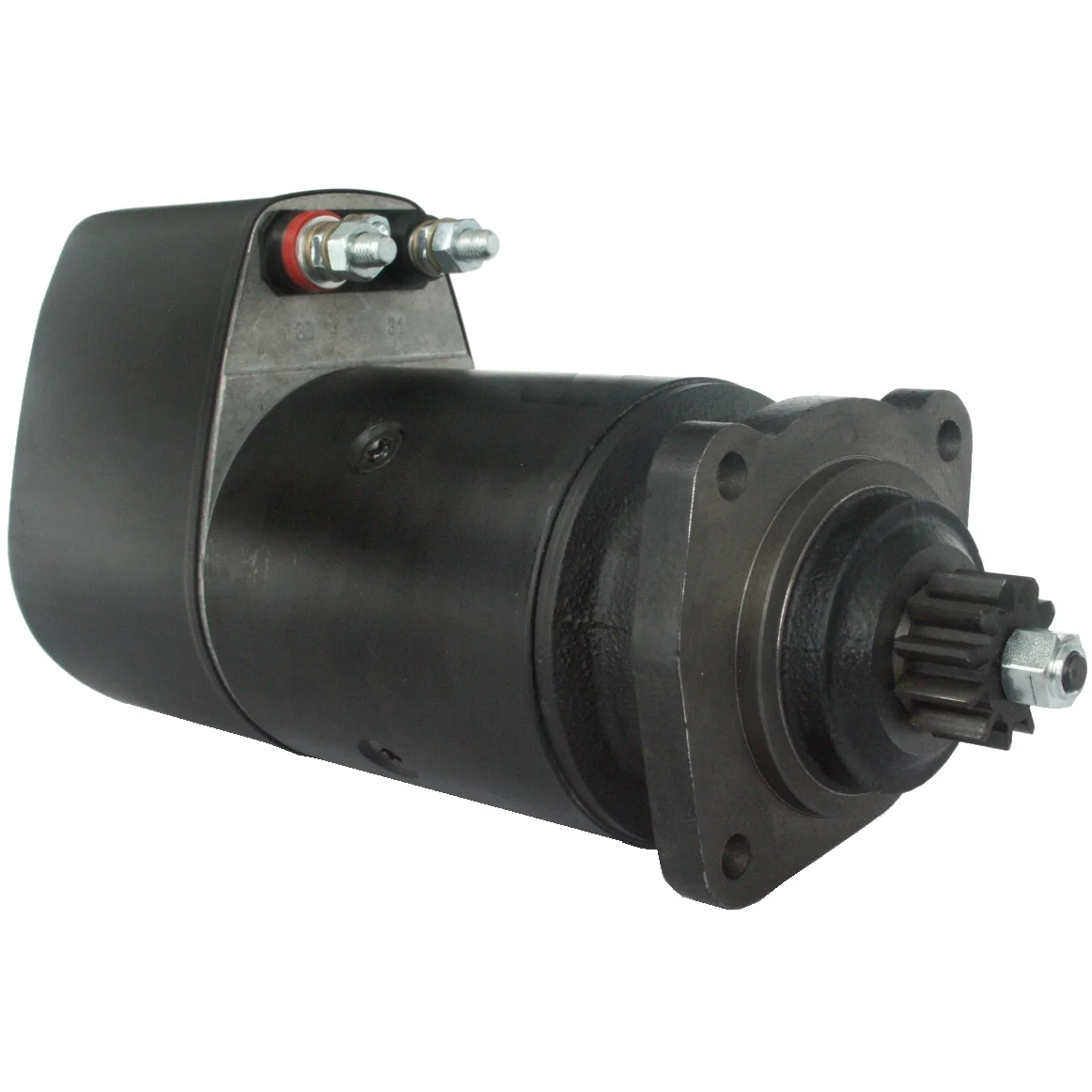

Artikelnr: F032110208
HC-Cargo Startmotor
Voltage: 24, kW: 5.4, No./teeth: 11, Rotation: CW
Beskrivning
Start 24V-5.4kW passar Volvo 24V - 5.4kW, 11k A - 89mm, B - 48mm Samma typ av starmotor med 9kugg = 91-365-1155 För Yourex produkt order 91-600-1326
Voltage: 24
kW: 5.4
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 322.50
Dist./front: 63.00
No./teeth: 11
B+: M10
Position/50: 60
Terminal 50: M6
Gear type: DD
Dist. 2: 90.00
Dist. 3: 128.00
Dist. mm: 90.00
Rotation: CW
Position/b-: 2
B-: M10
Total length mm: 387.00
Drive type: Steel
Prod. info: BN/OE
Waterproof: Yes
Oil sealed: Yes
No./mount. holes: 3 (0)
Voltage: 24
kW: 5.4
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 322.50
Dist./front: 63.00
No./teeth: 11
B+: M10
Position/50: 60
Terminal 50: M6
Gear type: DD
Dist. 2: 90.00
Dist. 3: 128.00
Dist. mm: 90.00
Rotation: CW
Position/b-: 2
B-: M10
Total length mm: 387.00
Drive type: Steel
Prod. info: BN/OE
Waterproof: Yes
Oil sealed: Yes
No./mount. holes: 3 (0)
Filer
Specifikation
| B+ | M10 |
|---|---|
| B- | M10 |
| No./teeth | 11 |
| Mount. flange | 89.00 |
| Oil sealed | Yes |
| No./mount. holes | 3 (0) |
| Position/50 | 60 |
| Position/b- | 2 |
| Prod. info | BN/OE |
| Dist. 2 | 90.00 |
| Dist. 3 | 128.00 |
| Rotation | CW |
| Dist./back | 322.50 |
| Dist./front | 63.00 |
| Drive dist. | 48.00 |
| Drive type | Steel |
| Gear type | DD |
| kW | 5.4 |
| Terminal 50 | M6 |
| Voltage | 24 |
| Total length | 387.00 mm |
| Waterproof | Yes |
| Dist. | 90.00 mm |
| Mount. hole 3 | 10.50 mm |
| Mount. hole 2 | 10.50 mm |
| Mount. hole 1 | 10.50 mm |
-
OEM
A0011512901, A001151290180, bng4/24crs162, BNG424CRS162, C2R24X4H7622, cs506, D2R24X6H7622, F032110208, R23.11, RGO 110208, 0001 402 053, 0001 410 044, 0001 411 016, 0001 414 008, 0001 415 004, 0001 415 016, 0001 416 008, 0001 416 009, 0001 416 021, 002/703, 51.26201-7034, 51.26201-7048, 51.26201-7100, 51.26201-9034, 51.26201-9100, 325, 350, 508, 509, 521, 576, 0601, 0986 012 740, 0986 013 260, 08790, 12950, 22605, 22606, 110208, 000227993, 240504, 293020, 465929, 469414, 636306, 000662550, 860121, 860504, 01161280, 1161280, 01161563, 1161563, 1199872, 0001402053, 0001410044, 0001411016, 0001414008, 0001415004, 0001415016, 0001416008, 0001416009, 0001416021, 0001416076, 0001416209, 1516764R, 1516800R, 5001683, 5003027, 6000733, 6110000, 9125250, 11030906, 11129121, 0011512901, 19024015, 19024016, 19024037, 19024099, 19024555, 19024576, 061227993, 61227993, 061662550, 81466003, 81466009, 81468009, 85000438, 85000450, 001151290180, 5000270909, 9000084018, 9009084018, 9011030906, 81400090003, 81500090049 -
Konkurrentreferens
BSO7102, CST10770, CST10771, DRS0316, drs2740, drs3260, F042002115, F042S02115, is0115, is0601, IS9016, IS9062, lrs00860, lrs00863, lrs00922, LRS02149, MS474, MS545, MS705, S0007, S0151, S0216, S0343, STR-2382, STR50137, 8EA012586-571, 8ea726154-001, 8ea730226-001, 45-0327, 45-0488, 88-12.740, 88-13.260, 338.014.114, 338.039.114, 521.202.113, 638.044.114, 1511, 1622, 10506, 10710, 11275N, 18253, 18253N, 18380N, 33346, 33350, 33446, 33448, 103474, 103487, 105076, 203041, 220251, 220251A, 458340, 860504, 11013260, 42013260, 943252190, 943252210, 0986012740, 0986012743, 0986013260, 0986013263, 0986019693, 943252190010 -
Bilmärken
Fiat Trucks & Buses, Hanomag, M.A.N., Saviem, Steyr, Unic, Volvo, Volvo Trucks & Buses -
Normaliserat artikelnummer
a0011512901, a001151290180, bng424crs162, bso7102, c2r24x4h7622, cs506, cst10770, cst10771, d2r24x6h7622, drs0316, drs2740, drs3260, f032110208, f042002115, f042s02115, is0115, is0601, is9016, is9062, lrs00860, lrs00863, lrs00922, lrs02149, ms474, ms545, ms705, r2311, rgo110208, s0007, s0151, s0216, s0343, str2382, str50137, 8ea012586571, 8ea726154001, 8ea730226001, 325, 350, 508, 509, 521, 576, 0601, 1511, 1622, 002703, 08790, 10506, 10710, 11275n, 12950, 18253, 18253n, 18380n, 22605, 22606, 33346, 33350, 33446, 33448, 103474, 103487, 105076, 110208, 203041, 220251, 220251a, 000227993, 240504, 293020, 450327, 450488, 458340, 465929, 469414, 636306, 000662550, 860121, 860504, 01161280, 1161280, 01161563, 1161563, 1199872, 0001402053, 0001410044, 0001411016, 0001414008, 0001415004, 0001415016, 0001416008, 0001416009, 0001416021, 0001416076, 0001416209, 1516764r, 1516800r, 5001683, 5003027, 6000733, 6110000, 8812740, 8813260, 9125250, 11013260, 11030906, 11129121, 0011512901, 19024015, 19024016, 19024037, 19024099, 19024555, 19024576, 42013260, 061227993, 61227993, 061662550, 81466003, 81466009, 81468009, 85000438, 85000450, 338014114, 338039114, 521202113, 638044114, 943252190, 943252210, 0986012740, 0986012743, 0986013260, 0986013263, 0986019693, 001151290180, 5000270909, 9000084018, 9009084018, 9011030906, 51262017034, 51262017048, 51262017100, 51262019034, 51262019100, 81400090003, 81500090049, 943252190010 -
Passar modeller
Fiat Trucks & Buses Series: 190 Engine volume: 15.0 Engine type: Unic V 85 S Year: 02.72-10.82 Fiat Trucks & Buses Series: 260 Engine volume: 14.9 Engine type: Unic V 85 S Year: 02.72-10.82 Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes Hanomag Series: K Model: 12 C Engine volume: 8.2 Engine type: D 562 Year: 07.72-05.73 M.A.N. Series: 26 t Model: 26.304 DF, DFK, DFKA, DFS Engine volume: 15.4 Engine type: D 2558MX-090 Year: 05.71-12.73 M.A.N. Series: 30 t Model: 30.304 DFSA Engine volume: 15.4 Engine type: D 2858 MX-090 Year: 05.71-12.73 Mercedes Benz Engines Series: MB Model: 856 Engine volume: 8.7 Year: 01.62-06.67 Mercedes Benz Engines Series: MB Model: 858 Engine volume: 11.6 Year: 08.65-06.67 Mercedes Benz Engines Series: MB Model: 866 Engine volume: 8.7 Year: 01.62-06.67 Mercedes Benz Engines Series: MB Model: 868 Engine volume: 11.6 Year: 08.65-06.67 Mercedes-Benz Model: Unimog Model series: U 1300 Size of motor: 5.7 Brand of engine: OM353.973 Type description: Unimog Body: Platform / Chassis From date: 01-01-1977 To date: 01-05-1988 Fuel: Diesel Approved: Yes Mercedes-Benz Model: Unimog Model series: U 1300 Size of motor: 5.7 Brand of engine: OM353.973 Type description: Unimog Body: Platform / Chassis From date: 01-01-1977 To date: 01-12-1984 Fuel: Diesel Approved: Yes Saviem Series: SM Model: 280 TU Engine volume: 15.0 Engine type: MAN-D2658M4 Year: 01.71-12.76 Saviem Series: SM Model: 300, T Engine volume: 15.0 Engine type: MAN-D2658M41 Year: 01.71-12.76 Saviem Series: SM Model: 340 V Engine volume: 15.0 Engine type: MAN-D2858M4 Year: 01.71-06.80 Steyr Model: 1290-Serie Model series: 1290.320 Size of motor: 12.0 Brand of engine: WD815.60 Body: Dump Truck From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Model: 1490-Serie Model series: 1490.320 Size of motor: 12.0 Brand of engine: WD815.60 Body: Concrete Mixer From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Model: 1490-Serie Model series: 1490.320 Size of motor: 12.0 Brand of engine: WD815.60 Body: Dump Truck From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Model: 1490-Serie Model series: 1490.320 Size of motor: 12.0 Brand of engine: WD815.60 Body: Platform / Chassis From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Model: 1490-Serie Model series: 1490.320 Size of motor: 12.0 Brand of engine: WD815.60 Body: Platform / Chassis From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Model: 1490-Serie Model series: 1490.320 Size of motor: 12.0 Brand of engine: WD815.70 Body: Dump Truck From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Model: 1490-Serie Model series: 1490.320 Size of motor: 12.0 Brand of engine: WD815.70 Body: Platform / Chassis From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Series: 1291 Model: 320 Engine volume: 12.0 Engine type: WD 815.61 Year: 08.82-11.82 Steyr Series: 1291 Model: 330 Engine volume: 12.0 Engine type: WD 815.64 Year: 09.82-09.87 Steyr Series: 1491 Model: 320 Engine volume: 12.0 Engine type: WD 815.61 Year: 08.82-11.82 Steyr Series: 1491 Model: 330 Engine volume: 12.0 Engine type: WD 815.64 Year: 09.82-09.87 Steyr Series: 1891 Model: 320 Engine volume: 12.0 Engine type: WD 815.61 Year: 05.82-06.82 Steyr Series: 1891 Model: 330 Engine volume: 12.0 Engine type: WD 815.62, 72 Year: 09.82-09.87 Steyr Series: 19 S Model: 34 Engine volume: 12.0 Engine type: WD 815.64, 79 Year: 10.87- Steyr Series: 19 S Model: 37 Engine volume: 12.0 Engine type: WD 815.66, 76 Year: 10.87- Steyr Series: 19 S Model: 39 Engine volume: 12.0 Engine type: WD 815.66 Year: 05.90- Steyr Series: 22 S Model: 34 Engine volume: 12.0 Engine type: WD 815.64 Year: 10.87- Steyr Series: 22 S Model: 37 Engine volume: 12.0 Engine type: WD 815.66 Year: 10.87- Steyr Series: 26 S Model: 34 Engine volume: 12.0 Engine type: WD 815.64 Year: 10.87- Steyr Series: 26 S Model: 37 Engine volume: 12.0 Engine type: WD 815.66, 76 Year: 10.87- Steyr Series: 2891 Model: 330 Engine volume: 12.0 Engine type: WD 815.97 Year: 10.83-12.87 Steyr Series: 32 S Model: 34 Engine volume: 12.0 Engine type: WD 815.64, 79 Year: 10.87- Steyr Series: 32 S Model: 37 Engine volume: 12.0 Engine type: WD 815.66, 76 Year: 10.87- Steyr Series: 33 S Model: 34 Engine volume: 12.0 Engine type: WD 815.67 Year: 10.87- Steyr Series: 40 S Model: 34 Engine volume: 12.0 Engine type: WD 815.67 Year: 01.88- Steyr Series: 40 S Model: 37 Engine volume: 12.0 Engine type: WD 815.66 Year: 01.88- Unic Series: M Model: 62 S Engine volume: 11.0 Year: 10.67-06.80 Unic Series: P Model: 270 A Engine volume: 11.0 Engine type: M 62 S Year: 01.74-12.81 Unic Series: T Model: 340 A Engine volume: 15.0 Engine type: V 85 S Year: 01.72-12.81 Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: DH10A360 Body: Bus From date: 01-01-1996 To date: 01-12-2001 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101GB Body: Bus From date: 01-01-1985 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101GB Body: Bus From date: 01-01-1996 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101GD Body: Bus From date: 01-01-1985 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101GD Body: Bus From date: 01-01-1990 To date: 01-12-2001 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101GD Body: Bus From date: 01-01-1996 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101KC Body: Bus From date: 01-01-1985 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101KC Body: Bus From date: 01-01-1996 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101KE Body: Bus From date: 01-01-1978 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD102KD Body: Bus From date: 01-01-1988 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD102KD Body: Bus From date: 01-01-1990 To date: 01-12-2001 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD102KE Body: Bus From date: 01-01-1978 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD103KD Body: Bus From date: 01-01-1988 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD103KD Body: Bus From date: 01-01-1990 To date: 01-12-2001 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10M Size of motor: 9.6 Brand of engine: THD100DC Body: Bus Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10R Size of motor: 9.6 Brand of engine: D10B360 Body: Bus From date: 01-06-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10R Size of motor: 9.6 Brand of engine: DH10A360 Body: Bus From date: 01-06-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes Volvo Model: B Series Model series: B10M Size of motor: 9.6 Brand of engine: THD100DA Body: Bus Fuel: Diesel Approved: Yes Volvo Model: B Series Model series: B10M Size of motor: 9.6 Brand of engine: THD100DD Body: Bus Fuel: Diesel Approved: Yes Volvo Model: B Series Model series: B10M Size of motor: 9.6 Brand of engine: THD100EA Body: Bus Fuel: Diesel Approved: Yes Volvo Series: C Model: 10 M Engine volume: 9.6 Engine type: THD 101 GD Year: 10.84-12.87 Volvo Trucks & Buses Series: B 10 Model: B / BLE Engine volume: 10.0 Engine type: DH 10 A Year: 01.92- Volvo Trucks & Buses Series: B 10 Model: B / BLE Engine volume: 10.0 Engine type: THD 101 GC/GD Year: 01.92-01.96 Volvo Trucks & Buses Series: B 10 Model: B / BLE Engine volume: 10.0 Engine type: THD 102 KB/KD/KF Year: 01.92-01.96 Volvo Trucks & Buses Series: B 10 Model: B / BLE Engine volume: 10.0 Engine type: THD 103 KB/KD/KF Year: 01.92-01.96 Volvo Trucks & Buses Series: B 10 Model: B / BLE Engine volume: 10.0 Engine type: THD 104 KB/KF Year: 01.92-01.96 Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: DH 10 A 245/285 Year: 01.95- Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: DH 10 A 340/350/360 Year: 01.95- Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: GH 10 B 180/210 Year: 08.00- Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: THD 100 DA/ DC/ DD Year: 10.79-10.86 Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: THD 100 EA/ EB/ EC Year: 10.79-10.86 Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: THD 100 ED; EE; EK Year: 10.79-10.86 Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: THD 102 KB/KF Year: 05.88-01.96 Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: THD 103 KD/KF Year: 05.93-01.97 Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: THD 104 KB/KF Year: 01.94- Volvo Trucks & Buses Series: B 10 Model: R Engine volume: 9.6 Engine type: THD 100 D / DA / DB Year: 06.78-01.84 Volvo Trucks & Buses Series: B 10 Model: R Engine volume: 9.6 Engine type: THD 100 EB / EC Year: 06.86-01.96 Volvo Trucks & Buses Series: B Model: 58 Engine volume: 9.6 Engine type: HD 100 D Year: 08.72-03.80 Volvo Trucks & Buses Series: B Model: 58 T Engine volume: 9.6 Engine type: THD 100 D Year: 01.72-03.80 Volvo Trucks & Buses Series: B Model: 59 T Engine volume: 9.6 Engine type: THD 100 D Year: 10.72-01.79 Volvo Trucks & Buses Series: C 10 Model: M Engine volume: 9.6 Engine type: THD 100 GD/KC Year: 10.84-12.87 1 / 17
-
Beskrivning
Start 24V-5.4kW passar Volvo 24V - 5.4kW, 11k A - 89mm, B - 48mm Samma typ av starmotor med 9kugg = 91-365-1155 För Yourex produkt order 91-600-1326
Voltage: 24
kW: 5.4
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 322.50
Dist./front: 63.00
No./teeth: 11
B+: M10
Position/50: 60
Terminal 50: M6
Gear type: DD
Dist. 2: 90.00
Dist. 3: 128.00
Dist. mm: 90.00
Rotation: CW
Position/b-: 2
B-: M10
Total length mm: 387.00
Drive type: Steel
Prod. info: BN/OE
Waterproof: Yes
Oil sealed: Yes
No./mount. holes: 3 (0)Filer
-
Specifikation
B+ M10 B- M10 No./teeth 11 Mount. flange 89.00 Oil sealed Yes No./mount. holes 3 (0) Position/50 60 Position/b- 2 Prod. info BN/OE Dist. 2 90.00 Dist. 3 128.00 Rotation CW Dist./back 322.50 Dist./front 63.00 Drive dist. 48.00 Drive type Steel Gear type DD kW 5.4 Terminal 50 M6 Voltage 24 Total length 387.00 mm Waterproof Yes Dist. 90.00 mm Mount. hole 3 10.50 mm Mount. hole 2 10.50 mm Mount. hole 1 10.50 mm -
Fordonsmatchning
-
OEM
A0011512901, A001151290180, bng4/24crs162, BNG424CRS162, C2R24X4H7622, cs506, D2R24X6H7622, F032110208, R23.11, RGO 110208, 0001 402 053, 0001 410 044, 0001 411 016, 0001 414 008, 0001 415 004, 0001 415 016, 0001 416 008, 0001 416 009, 0001 416 021, 002/703, 51.26201-7034, 51.26201-7048, 51.26201-7100, 51.26201-9034, 51.26201-9100, 325, 350, 508, 509, 521, 576, 0601, 0986 012 740, 0986 013 260, 08790, 12950, 22605, 22606, 110208, 000227993, 240504, 293020, 465929, 469414, 636306, 000662550, 860121, 860504, 01161280, 1161280, 01161563, 1161563, 1199872, 0001402053, 0001410044, 0001411016, 0001414008, 0001415004, 0001415016, 0001416008, 0001416009, 0001416021, 0001416076, 0001416209, 1516764R, 1516800R, 5001683, 5003027, 6000733, 6110000, 9125250, 11030906, 11129121, 0011512901, 19024015, 19024016, 19024037, 19024099, 19024555, 19024576, 061227993, 61227993, 061662550, 81466003, 81466009, 81468009, 85000438, 85000450, 001151290180, 5000270909, 9000084018, 9009084018, 9011030906, 81400090003, 81500090049 -
Konkurrentreferens
BSO7102, CST10770, CST10771, DRS0316, drs2740, drs3260, F042002115, F042S02115, is0115, is0601, IS9016, IS9062, lrs00860, lrs00863, lrs00922, LRS02149, MS474, MS545, MS705, S0007, S0151, S0216, S0343, STR-2382, STR50137, 8EA012586-571, 8ea726154-001, 8ea730226-001, 45-0327, 45-0488, 88-12.740, 88-13.260, 338.014.114, 338.039.114, 521.202.113, 638.044.114, 1511, 1622, 10506, 10710, 11275N, 18253, 18253N, 18380N, 33346, 33350, 33446, 33448, 103474, 103487, 105076, 203041, 220251, 220251A, 458340, 860504, 11013260, 42013260, 943252190, 943252210, 0986012740, 0986012743, 0986013260, 0986013263, 0986019693, 943252190010 -
Bilmärken
Fiat Trucks & Buses, Hanomag, M.A.N., Saviem, Steyr, Unic, Volvo, Volvo Trucks & Buses -
Normaliserat artikelnummer
a0011512901, a001151290180, bng424crs162, bso7102, c2r24x4h7622, cs506, cst10770, cst10771, d2r24x6h7622, drs0316, drs2740, drs3260, f032110208, f042002115, f042s02115, is0115, is0601, is9016, is9062, lrs00860, lrs00863, lrs00922, lrs02149, ms474, ms545, ms705, r2311, rgo110208, s0007, s0151, s0216, s0343, str2382, str50137, 8ea012586571, 8ea726154001, 8ea730226001, 325, 350, 508, 509, 521, 576, 0601, 1511, 1622, 002703, 08790, 10506, 10710, 11275n, 12950, 18253, 18253n, 18380n, 22605, 22606, 33346, 33350, 33446, 33448, 103474, 103487, 105076, 110208, 203041, 220251, 220251a, 000227993, 240504, 293020, 450327, 450488, 458340, 465929, 469414, 636306, 000662550, 860121, 860504, 01161280, 1161280, 01161563, 1161563, 1199872, 0001402053, 0001410044, 0001411016, 0001414008, 0001415004, 0001415016, 0001416008, 0001416009, 0001416021, 0001416076, 0001416209, 1516764r, 1516800r, 5001683, 5003027, 6000733, 6110000, 8812740, 8813260, 9125250, 11013260, 11030906, 11129121, 0011512901, 19024015, 19024016, 19024037, 19024099, 19024555, 19024576, 42013260, 061227993, 61227993, 061662550, 81466003, 81466009, 81468009, 85000438, 85000450, 338014114, 338039114, 521202113, 638044114, 943252190, 943252210, 0986012740, 0986012743, 0986013260, 0986013263, 0986019693, 001151290180, 5000270909, 9000084018, 9009084018, 9011030906, 51262017034, 51262017048, 51262017100, 51262019034, 51262019100, 81400090003, 81500090049, 943252190010 -
Passar modeller
Fiat Trucks & Buses Series: 190 Engine volume: 15.0 Engine type: Unic V 85 S Year: 02.72-10.82 Fiat Trucks & Buses Series: 260 Engine volume: 14.9 Engine type: Unic V 85 S Year: 02.72-10.82 Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes Hanomag Series: K Model: 12 C Engine volume: 8.2 Engine type: D 562 Year: 07.72-05.73 M.A.N. Series: 26 t Model: 26.304 DF, DFK, DFKA, DFS Engine volume: 15.4 Engine type: D 2558MX-090 Year: 05.71-12.73 M.A.N. Series: 30 t Model: 30.304 DFSA Engine volume: 15.4 Engine type: D 2858 MX-090 Year: 05.71-12.73 Mercedes Benz Engines Series: MB Model: 856 Engine volume: 8.7 Year: 01.62-06.67 Mercedes Benz Engines Series: MB Model: 858 Engine volume: 11.6 Year: 08.65-06.67 Mercedes Benz Engines Series: MB Model: 866 Engine volume: 8.7 Year: 01.62-06.67 Mercedes Benz Engines Series: MB Model: 868 Engine volume: 11.6 Year: 08.65-06.67 Mercedes-Benz Model: Unimog Model series: U 1300 Size of motor: 5.7 Brand of engine: OM353.973 Type description: Unimog Body: Platform / Chassis From date: 01-01-1977 To date: 01-05-1988 Fuel: Diesel Approved: Yes Mercedes-Benz Model: Unimog Model series: U 1300 Size of motor: 5.7 Brand of engine: OM353.973 Type description: Unimog Body: Platform / Chassis From date: 01-01-1977 To date: 01-12-1984 Fuel: Diesel Approved: Yes Saviem Series: SM Model: 280 TU Engine volume: 15.0 Engine type: MAN-D2658M4 Year: 01.71-12.76 Saviem Series: SM Model: 300, T Engine volume: 15.0 Engine type: MAN-D2658M41 Year: 01.71-12.76 Saviem Series: SM Model: 340 V Engine volume: 15.0 Engine type: MAN-D2858M4 Year: 01.71-06.80 Steyr Model: 1290-Serie Model series: 1290.320 Size of motor: 12.0 Brand of engine: WD815.60 Body: Dump Truck From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Model: 1490-Serie Model series: 1490.320 Size of motor: 12.0 Brand of engine: WD815.60 Body: Concrete Mixer From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Model: 1490-Serie Model series: 1490.320 Size of motor: 12.0 Brand of engine: WD815.60 Body: Dump Truck From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Model: 1490-Serie Model series: 1490.320 Size of motor: 12.0 Brand of engine: WD815.60 Body: Platform / Chassis From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Model: 1490-Serie Model series: 1490.320 Size of motor: 12.0 Brand of engine: WD815.60 Body: Platform / Chassis From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Model: 1490-Serie Model series: 1490.320 Size of motor: 12.0 Brand of engine: WD815.70 Body: Dump Truck From date: 01-01-1972 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Model: 1490-Serie Model series: 1490.320 Size of motor: 12.0 Brand of engine: WD815.70 Body: Platform / Chassis From date: 01-01-1971 To date: 01-12-1978 Fuel: Diesel Approved: Yes Steyr Series: 1291 Model: 320 Engine volume: 12.0 Engine type: WD 815.61 Year: 08.82-11.82 Steyr Series: 1291 Model: 330 Engine volume: 12.0 Engine type: WD 815.64 Year: 09.82-09.87 Steyr Series: 1491 Model: 320 Engine volume: 12.0 Engine type: WD 815.61 Year: 08.82-11.82 Steyr Series: 1491 Model: 330 Engine volume: 12.0 Engine type: WD 815.64 Year: 09.82-09.87 Steyr Series: 1891 Model: 320 Engine volume: 12.0 Engine type: WD 815.61 Year: 05.82-06.82 Steyr Series: 1891 Model: 330 Engine volume: 12.0 Engine type: WD 815.62, 72 Year: 09.82-09.87 Steyr Series: 19 S Model: 34 Engine volume: 12.0 Engine type: WD 815.64, 79 Year: 10.87- Steyr Series: 19 S Model: 37 Engine volume: 12.0 Engine type: WD 815.66, 76 Year: 10.87- Steyr Series: 19 S Model: 39 Engine volume: 12.0 Engine type: WD 815.66 Year: 05.90- Steyr Series: 22 S Model: 34 Engine volume: 12.0 Engine type: WD 815.64 Year: 10.87- Steyr Series: 22 S Model: 37 Engine volume: 12.0 Engine type: WD 815.66 Year: 10.87- Steyr Series: 26 S Model: 34 Engine volume: 12.0 Engine type: WD 815.64 Year: 10.87- Steyr Series: 26 S Model: 37 Engine volume: 12.0 Engine type: WD 815.66, 76 Year: 10.87- Steyr Series: 2891 Model: 330 Engine volume: 12.0 Engine type: WD 815.97 Year: 10.83-12.87 Steyr Series: 32 S Model: 34 Engine volume: 12.0 Engine type: WD 815.64, 79 Year: 10.87- Steyr Series: 32 S Model: 37 Engine volume: 12.0 Engine type: WD 815.66, 76 Year: 10.87- Steyr Series: 33 S Model: 34 Engine volume: 12.0 Engine type: WD 815.67 Year: 10.87- Steyr Series: 40 S Model: 34 Engine volume: 12.0 Engine type: WD 815.67 Year: 01.88- Steyr Series: 40 S Model: 37 Engine volume: 12.0 Engine type: WD 815.66 Year: 01.88- Unic Series: M Model: 62 S Engine volume: 11.0 Year: 10.67-06.80 Unic Series: P Model: 270 A Engine volume: 11.0 Engine type: M 62 S Year: 01.74-12.81 Unic Series: T Model: 340 A Engine volume: 15.0 Engine type: V 85 S Year: 01.72-12.81 Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: DH10A360 Body: Bus From date: 01-01-1996 To date: 01-12-2001 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101GB Body: Bus From date: 01-01-1985 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101GB Body: Bus From date: 01-01-1996 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101GD Body: Bus From date: 01-01-1985 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101GD Body: Bus From date: 01-01-1990 To date: 01-12-2001 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101GD Body: Bus From date: 01-01-1996 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101KC Body: Bus From date: 01-01-1985 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101KC Body: Bus From date: 01-01-1996 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD101KE Body: Bus From date: 01-01-1978 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD102KD Body: Bus From date: 01-01-1988 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD102KD Body: Bus From date: 01-01-1990 To date: 01-12-2001 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD102KE Body: Bus From date: 01-01-1978 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD103KD Body: Bus From date: 01-01-1988 To date: 01-12-2003 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10 Size of motor: 9.6 Brand of engine: THD103KD Body: Bus From date: 01-01-1990 To date: 01-12-2001 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10M Size of motor: 9.6 Brand of engine: THD100DC Body: Bus Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10R Size of motor: 9.6 Brand of engine: D10B360 Body: Bus From date: 01-06-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes Volvo Model: B 10 Model series: B10R Size of motor: 9.6 Brand of engine: DH10A360 Body: Bus From date: 01-06-2006 To date: 01-08-2011 Fuel: Diesel Approved: Yes Volvo Model: B Series Model series: B10M Size of motor: 9.6 Brand of engine: THD100DA Body: Bus Fuel: Diesel Approved: Yes Volvo Model: B Series Model series: B10M Size of motor: 9.6 Brand of engine: THD100DD Body: Bus Fuel: Diesel Approved: Yes Volvo Model: B Series Model series: B10M Size of motor: 9.6 Brand of engine: THD100EA Body: Bus Fuel: Diesel Approved: Yes Volvo Series: C Model: 10 M Engine volume: 9.6 Engine type: THD 101 GD Year: 10.84-12.87 Volvo Trucks & Buses Series: B 10 Model: B / BLE Engine volume: 10.0 Engine type: DH 10 A Year: 01.92- Volvo Trucks & Buses Series: B 10 Model: B / BLE Engine volume: 10.0 Engine type: THD 101 GC/GD Year: 01.92-01.96 Volvo Trucks & Buses Series: B 10 Model: B / BLE Engine volume: 10.0 Engine type: THD 102 KB/KD/KF Year: 01.92-01.96 Volvo Trucks & Buses Series: B 10 Model: B / BLE Engine volume: 10.0 Engine type: THD 103 KB/KD/KF Year: 01.92-01.96 Volvo Trucks & Buses Series: B 10 Model: B / BLE Engine volume: 10.0 Engine type: THD 104 KB/KF Year: 01.92-01.96 Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: DH 10 A 245/285 Year: 01.95- Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: DH 10 A 340/350/360 Year: 01.95- Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: GH 10 B 180/210 Year: 08.00- Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: THD 100 DA/ DC/ DD Year: 10.79-10.86 Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: THD 100 EA/ EB/ EC Year: 10.79-10.86 Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: THD 100 ED; EE; EK Year: 10.79-10.86 Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: THD 102 KB/KF Year: 05.88-01.96 Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: THD 103 KD/KF Year: 05.93-01.97 Volvo Trucks & Buses Series: B 10 Model: M Engine volume: 9.6 Engine type: THD 104 KB/KF Year: 01.94- Volvo Trucks & Buses Series: B 10 Model: R Engine volume: 9.6 Engine type: THD 100 D / DA / DB Year: 06.78-01.84 Volvo Trucks & Buses Series: B 10 Model: R Engine volume: 9.6 Engine type: THD 100 EB / EC Year: 06.86-01.96 Volvo Trucks & Buses Series: B Model: 58 Engine volume: 9.6 Engine type: HD 100 D Year: 08.72-03.80 Volvo Trucks & Buses Series: B Model: 58 T Engine volume: 9.6 Engine type: THD 100 D Year: 01.72-03.80 Volvo Trucks & Buses Series: B Model: 59 T Engine volume: 9.6 Engine type: THD 100 D Year: 10.72-01.79 Volvo Trucks & Buses Series: C 10 Model: M Engine volume: 9.6 Engine type: THD 100 GD/KC Year: 10.84-12.87 1 / 17
-
