HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115439

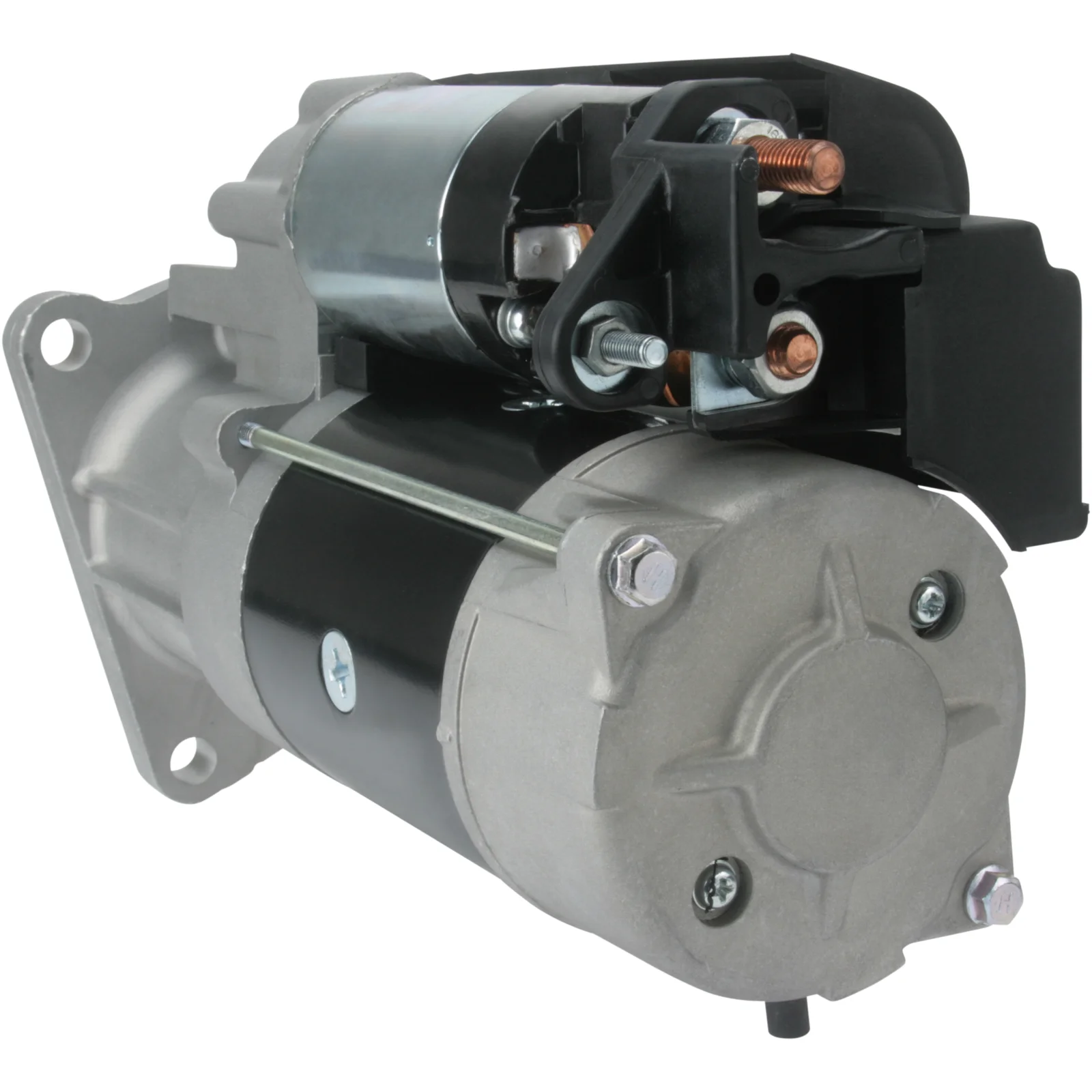

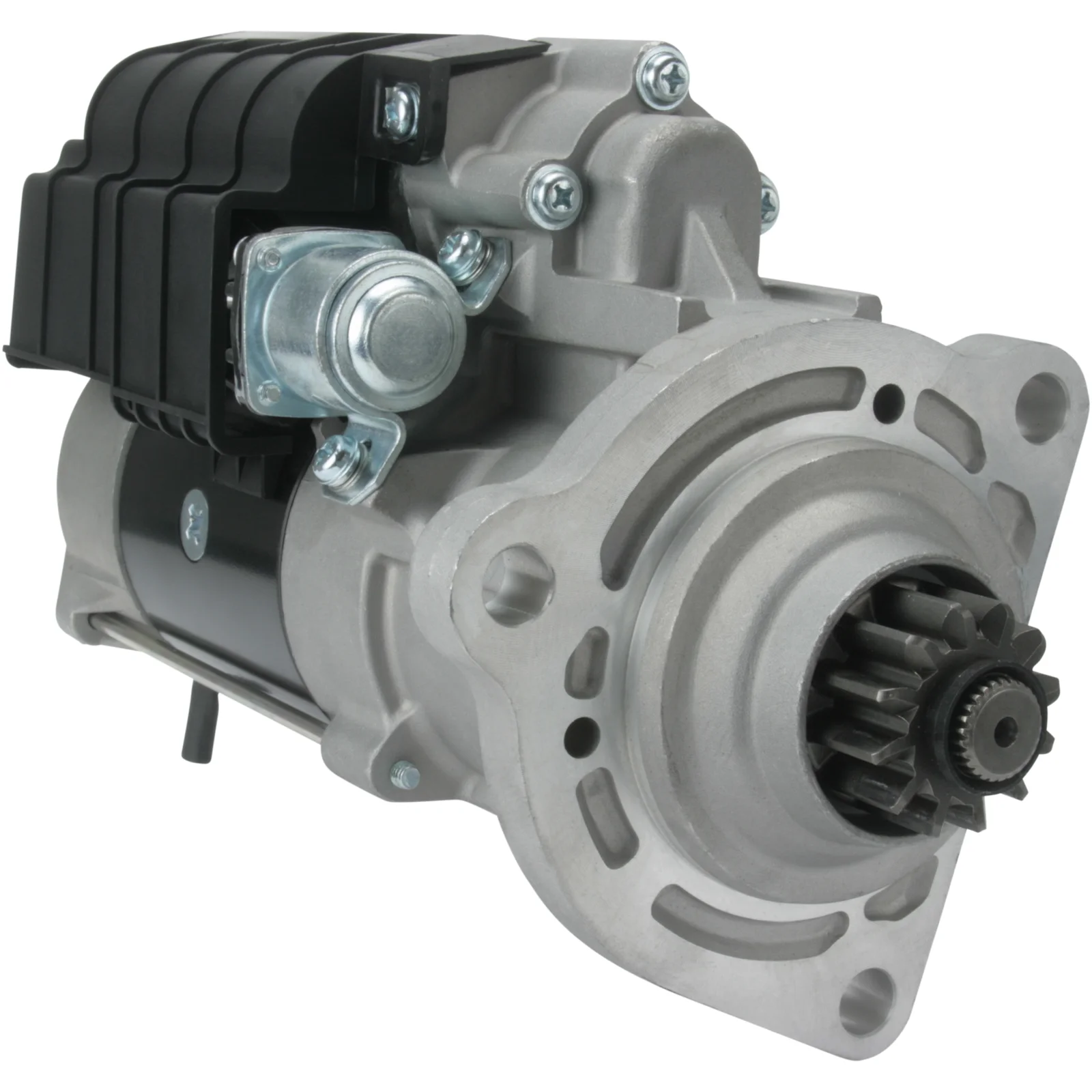

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 7.0, No./teeth: 12, Rotation: CW

Beskrivning

Scania DC16 Startm.24V-7kW 24V - 7.0kW, 12k A - 92mm, B - 48mm Scania P,R lastbilar med DC16 Ch 2046404-SSS>, 5225263-SNL>, 9141512-SAN, 364484-SLA> För Yourex produkt order 91-500-9837

Voltage: 24
kW: 7.0
Mount. flange: 92.00
Drive dist.: 47.50
Mount. hole 3 mm: 14.00
Mount. hole 2 mm: 14.00
Mount. hole 1 mm: 14.00
Dist./back: 292.00
Dist./front: 55.00
No./teeth: 12
B+: M10
Position/50: 38
Terminal 50: M6
Gear type: GR
Dist. 2: 126.00
Dist. 3: 126.00
Dist. mm: 126.00
Rotation: CW
Total length mm: 349.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 12
Mount. flange 92.00
No./mount. holes 3 (0)
Position/50 38
Dist. 2 126.00
Dist. 3 126.00
Rotation CW
Dist./back 292.00
Dist./front 55.00
Drive dist. 47.50
Gear type GR
kW 7.0
Terminal 50 M6
Voltage 24
Total length 349.00 mm
Dist. 126.00 mm
Mount. hole 3 14.00 mm
Mount. hole 2 14.00 mm
Mount. hole 1 14.00 mm

  • OEM
    cs1550, F032115439, M009T83771, M105R3527SE-VPP, M9T-83771, m9t83771, M9T83771AM, SCA 1797880, SCA 2008268, 115439, 571231, 573175, 1797880, 2008268, 2403301, 2777872, 2969380

  • Konkurrentreferens
    CST35635, DRS0542, F042001210, F042S01210, M105R3527SE, MITM9T83771, MS765, S5227, S5240S, str-7951, STR71232, 8EA012586-671, 8EA012586-681, 45-5028, 080.814-00A, 332.013.124, 911.504.123, 31264N, 220572, 220572A, 11022250, 0986022250

  • Bilmärken
    Scania

  • Normaliserat artikelnummer
    cs1550, cst35635, drs0542, f032115439, f042001210, f042s01210, m009t83771, m105r3527se, m105r3527sevpp, m9t83771, m9t83771am, mitm9t83771, ms765, s5227, s5240s, sca1797880, sca2008268, str71232, str7951, 8ea012586671, 8ea012586681, 31264n, 115439, 220572, 220572a, 455028, 571231, 573175, 1797880, 2008268, 2403301, 2777872, 2969380, 08081400a, 11022250, 332013124, 911504123, 0986022250

  • Passar modeller
    Scania Model: L,P,G,R,S - series Model series: R520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Platform/Chassis From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Scania Model: L,P,G,R,S - series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Platform/Chassis From date: 01-09-2016 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.06 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.06 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.06 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.09 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.09 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.09 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.19 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 580 Size of motor: 15.6 Brand of engine: DC16.03 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 580 Size of motor: 15.6 Brand of engine: DC16.03 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 580 Size of motor: 15.6 Brand of engine: DC16.03 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-08-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-09-2005 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-08-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DT16.08 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Platform / Chassis From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Semi-Trailer From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Scania Series: P Model: P 500 Engine volume: 15.6 Year: 07.09-
    Scania Series: P Model: P 560 Engine volume: 15.6 Year: 07.09-
    Scania Series: P Model: P 580 Engine volume: 15.6 Year: 07.09-
    Scania Series: R Model: R 500 Engine volume: 15.6 Year: 07.09-
    Scania Series: R Model: R 560 Engine volume: 15.6 Year: 03.08-
    Scania Series: R Model: R 580 Engine volume: 15.6 Year: 07.09-
    Scania Series: R Model: R 620 Engine volume: 15.6 Year: 03.08-
    1 / 10
  • Beskrivning
    Scania DC16 Startm.24V-7kW 24V - 7.0kW, 12k A - 92mm, B - 48mm Scania P,R lastbilar med DC16 Ch 2046404-SSS>, 5225263-SNL>, 9141512-SAN, 364484-SLA> För Yourex produkt order 91-500-9837

    Voltage: 24
    kW: 7.0
    Mount. flange: 92.00
    Drive dist.: 47.50
    Mount. hole 3 mm: 14.00
    Mount. hole 2 mm: 14.00
    Mount. hole 1 mm: 14.00
    Dist./back: 292.00
    Dist./front: 55.00
    No./teeth: 12
    B+: M10
    Position/50: 38
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 126.00
    Dist. 3: 126.00
    Dist. mm: 126.00
    Rotation: CW
    Total length mm: 349.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 12
    Mount. flange 92.00
    No./mount. holes 3 (0)
    Position/50 38
    Dist. 2 126.00
    Dist. 3 126.00
    Rotation CW
    Dist./back 292.00
    Dist./front 55.00
    Drive dist. 47.50
    Gear type GR
    kW 7.0
    Terminal 50 M6
    Voltage 24
    Total length 349.00 mm
    Dist. 126.00 mm
    Mount. hole 3 14.00 mm
    Mount. hole 2 14.00 mm
    Mount. hole 1 14.00 mm
  • Fordonsmatchning

    • OEM
      cs1550, F032115439, M009T83771, M105R3527SE-VPP, M9T-83771, m9t83771, M9T83771AM, SCA 1797880, SCA 2008268, 115439, 571231, 573175, 1797880, 2008268, 2403301, 2777872, 2969380

    • Konkurrentreferens
      CST35635, DRS0542, F042001210, F042S01210, M105R3527SE, MITM9T83771, MS765, S5227, S5240S, str-7951, STR71232, 8EA012586-671, 8EA012586-681, 45-5028, 080.814-00A, 332.013.124, 911.504.123, 31264N, 220572, 220572A, 11022250, 0986022250

    • Bilmärken
      Scania

    • Normaliserat artikelnummer
      cs1550, cst35635, drs0542, f032115439, f042001210, f042s01210, m009t83771, m105r3527se, m105r3527sevpp, m9t83771, m9t83771am, mitm9t83771, ms765, s5227, s5240s, sca1797880, sca2008268, str71232, str7951, 8ea012586671, 8ea012586681, 31264n, 115439, 220572, 220572a, 455028, 571231, 573175, 1797880, 2008268, 2403301, 2777872, 2969380, 08081400a, 11022250, 332013124, 911504123, 0986022250

    • Passar modeller
      Scania Model: L,P,G,R,S - series Model series: R520 Size of motor: 16.4 Brand of engine: DC16.101 Body: Platform/Chassis From date: 01-09-2016 Fuel: Diesel Approved: Yes
      Scania Model: L,P,G,R,S - series Model series: R580 Size of motor: 16.4 Brand of engine: DC16.102 Body: Platform/Chassis From date: 01-09-2016 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.04 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.06 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.06 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.06 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.09 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.09 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.09 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 500 Size of motor: 15.6 Brand of engine: DC16.19 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.05 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 560 Size of motor: 15.6 Brand of engine: DC16.18 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 580 Size of motor: 15.6 Brand of engine: DC16.03 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 580 Size of motor: 15.6 Brand of engine: DC16.03 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 580 Size of motor: 15.6 Brand of engine: DC16.03 Body: Semi-Trailer From date: 01-04-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-08-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-09-2005 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.08 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-03-2008 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-08-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DC16.17 Body: Semi-Trailer From date: 01-11-2006 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 620 Size of motor: 15.6 Brand of engine: DT16.08 Body: Platform / Chassis From date: 01-03-2004 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Platform / Chassis From date: 01-04-2010 Fuel: Diesel Approved: Yes
      Scania Model: P,G,R,T - Series Model series: 730 Size of motor: 16.4 Brand of engine: DC16.21 Body: Semi-Trailer From date: 01-04-2010 Fuel: Diesel Approved: Yes
      Scania Series: P Model: P 500 Engine volume: 15.6 Year: 07.09-
      Scania Series: P Model: P 560 Engine volume: 15.6 Year: 07.09-
      Scania Series: P Model: P 580 Engine volume: 15.6 Year: 07.09-
      Scania Series: R Model: R 500 Engine volume: 15.6 Year: 07.09-
      Scania Series: R Model: R 560 Engine volume: 15.6 Year: 03.08-
      Scania Series: R Model: R 580 Engine volume: 15.6 Year: 07.09-
      Scania Series: R Model: R 620 Engine volume: 15.6 Year: 03.08-
      1 / 10
