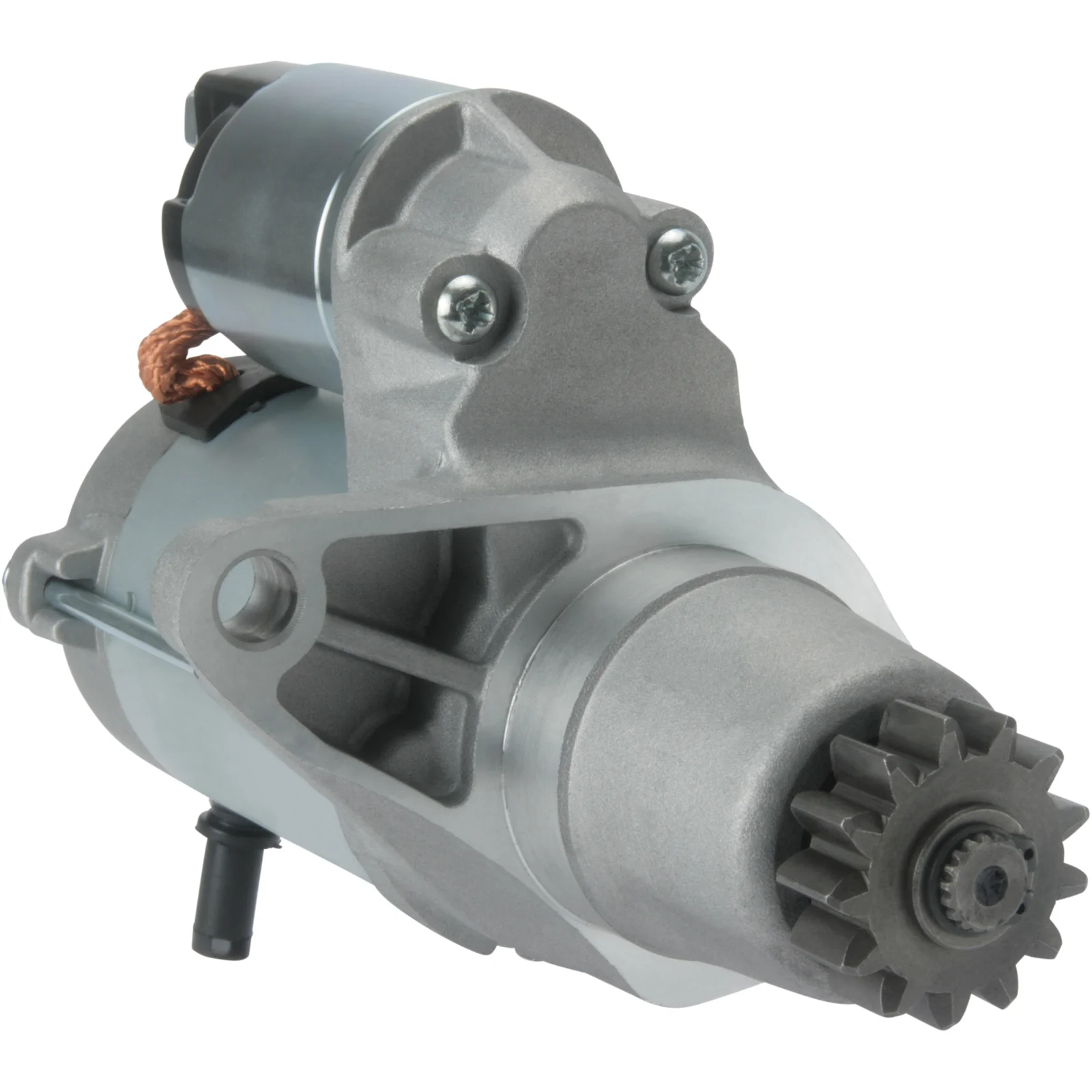

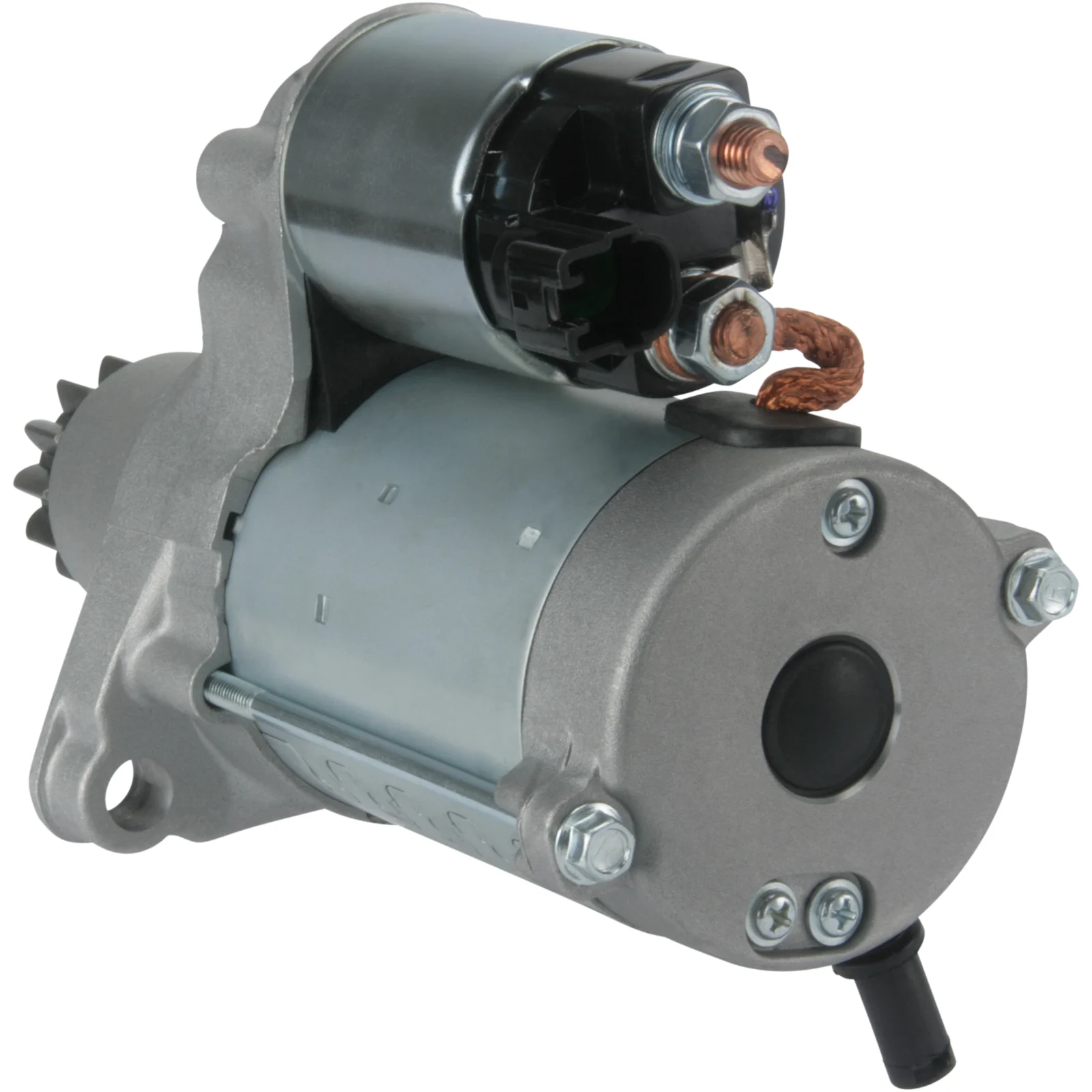

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114255

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.3, No./teeth: 13, Rotation: CCW

Beskrivning

Voltage: 12
kW: 1.3
Mount. flange: 55.00
Drive dist.: 66.00
Mount. hole 2 mm: 11.40
Mount. hole 1 mm: 11.40
Dist./back: 143.00
Dist./front: 69.50
No./teeth: 13
B+: M8
Position/50: 40
Terminal 50: Plug
Gear type: GR
Dist. mm: 122.00
Rotation: CCW
Total length mm: 212.50
Prod. info: BN
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 13
Mount. flange 55.00
No./mount. holes 2 (0)
Position/50 40
Prod. info BN
Rotation CCW
Dist./back 143.00
Dist./front 69.50
Drive dist. 66.00
Gear type GR
kW 1.3
Terminal 50 Plug
Voltage 12
Total length 212.50 mm
Dist. 122.00 mm
Mount. hole 2 11.40 mm
Mount. hole 1 11.40 mm

  • OEM
    cs1476, F032114255, 28100-0h100, 28100-28050, 28100-28051, 28100-28052, 28100-28053, 28100-28070, 28100-28082, 428000-0150, 428000-0151, 428000-0152, 428000-0153, 428000-3090, 428000-3091, 428000-3092, 428000-5880

  • Konkurrentreferens
    CST40326, DRS0297, DSN977, LRS02294, S6108(DENSO), S6237S, 25-3465, 335.221.132, 17534N, 17687R, 17825N, 106468, 8072100, 11040629, 944280721, 0986025340, 944280721000

  • Normaliserat artikelnummer
    cs1476, cst40326, drs0297, dsn977, f032114255, lrs02294, s6108denso, s6237s, 17534n, 17687r, 17825n, 106468, 253465, 281000h100, 8072100, 11040629, 335221132, 944280721, 0986025340, 2810028050, 2810028051, 2810028052, 2810028053, 2810028070, 2810028082, 4280000150, 4280000151, 4280000152, 4280000153, 4280003090, 4280003091, 4280003092, 4280005880, 944280721000

  • Passar modeller
    Toyota Model: Allion Model series: Allion Model type: 4x4 Size of motor: 2.0 From date: 01-06-2001 To date: 01-04-2007 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Model type: Verso GLS Type of engine: VVTi Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Model type: Verso Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: T25 Body: Hatchback From date: 01-03-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Toyota Model: Highlander / Kluger Model series: Highlander / Kluger Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _U2_ Body: SUV From date: 01-09-2000 To date: 01-05-2007 Fuel: Petrol Approved: Yes
    Toyota Model: Picnic Model series: Picnic Model type: 4x4 Type of engine: VVTi Size of motor: 2.4 Brand of engine: 2AZ-FE Body: MPV From date: 01-11-2003 To date: 01-08-2006 Fuel: Gasoline Approved: Yes
    Toyota Model: Premio Model series: Premio Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: _T24_ From date: 01-12-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: ACA_, ACE_ From date: 01-02-2006 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    Toyota Model: Wish Model series: Wish Model type: Zi Size of motor: 2.0 Body: MPV From date: 01-04-2003 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 1.3
    Mount. flange: 55.00
    Drive dist.: 66.00
    Mount. hole 2 mm: 11.40
    Mount. hole 1 mm: 11.40
    Dist./back: 143.00
    Dist./front: 69.50
    No./teeth: 13
    B+: M8
    Position/50: 40
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 122.00
    Rotation: CCW
    Total length mm: 212.50
    Prod. info: BN
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 13
    Mount. flange 55.00
    No./mount. holes 2 (0)
    Position/50 40
    Prod. info BN
    Rotation CCW
    Dist./back 143.00
    Dist./front 69.50
    Drive dist. 66.00
    Gear type GR
    kW 1.3
    Terminal 50 Plug
    Voltage 12
    Total length 212.50 mm
    Dist. 122.00 mm
    Mount. hole 2 11.40 mm
    Mount. hole 1 11.40 mm
  • Fordonsmatchning

    • OEM
      cs1476, F032114255, 28100-0h100, 28100-28050, 28100-28051, 28100-28052, 28100-28053, 28100-28070, 28100-28082, 428000-0150, 428000-0151, 428000-0152, 428000-0153, 428000-3090, 428000-3091, 428000-3092, 428000-5880

    • Konkurrentreferens
      CST40326, DRS0297, DSN977, LRS02294, S6108(DENSO), S6237S, 25-3465, 335.221.132, 17534N, 17687R, 17825N, 106468, 8072100, 11040629, 944280721, 0986025340, 944280721000

    • Normaliserat artikelnummer
      cs1476, cst40326, drs0297, dsn977, f032114255, lrs02294, s6108denso, s6237s, 17534n, 17687r, 17825n, 106468, 253465, 281000h100, 8072100, 11040629, 335221132, 944280721, 0986025340, 2810028050, 2810028051, 2810028052, 2810028053, 2810028070, 2810028082, 4280000150, 4280000151, 4280000152, 4280000153, 4280003090, 4280003091, 4280003092, 4280005880, 944280721000

    • Passar modeller
      Toyota Model: Allion Model series: Allion Model type: 4x4 Size of motor: 2.0 From date: 01-06-2001 To date: 01-04-2007 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Model type: Verso GLS Type of engine: VVTi Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Model type: Verso Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: T25 Body: Hatchback From date: 01-03-2003 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Toyota Model: Highlander / Kluger Model series: Highlander / Kluger Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _U2_ Body: SUV From date: 01-09-2000 To date: 01-05-2007 Fuel: Petrol Approved: Yes
      Toyota Model: Picnic Model series: Picnic Model type: 4x4 Type of engine: VVTi Size of motor: 2.4 Brand of engine: 2AZ-FE Body: MPV From date: 01-11-2003 To date: 01-08-2006 Fuel: Gasoline Approved: Yes
      Toyota Model: Premio Model series: Premio Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: _T24_ From date: 01-12-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: ACA_, ACE_ From date: 01-02-2006 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
      Toyota Model: Wish Model series: Wish Model type: Zi Size of motor: 2.0 Body: MPV From date: 01-04-2003 To date: 01-03-2009 Fuel: Gasoline Approved: Yes
