HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114240

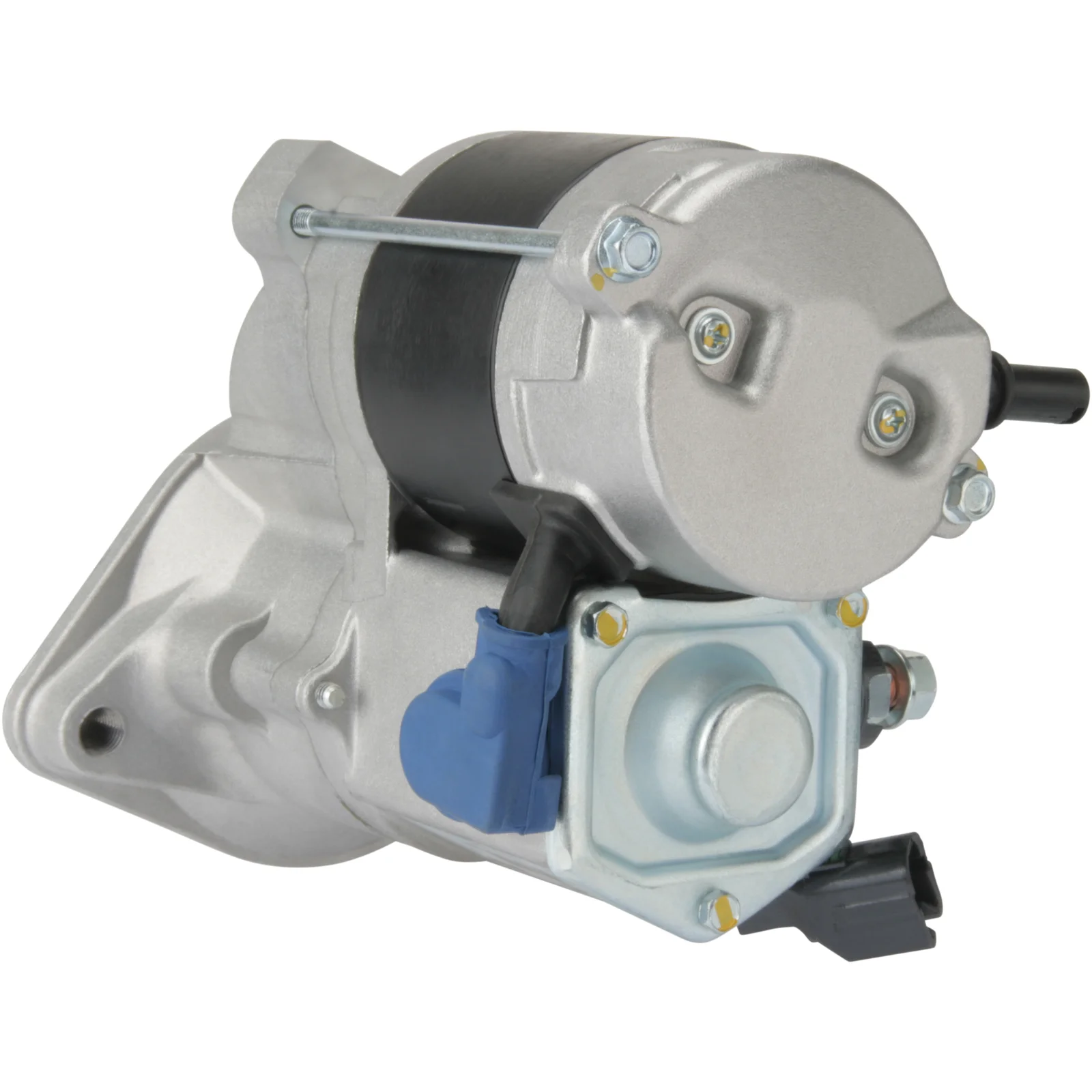

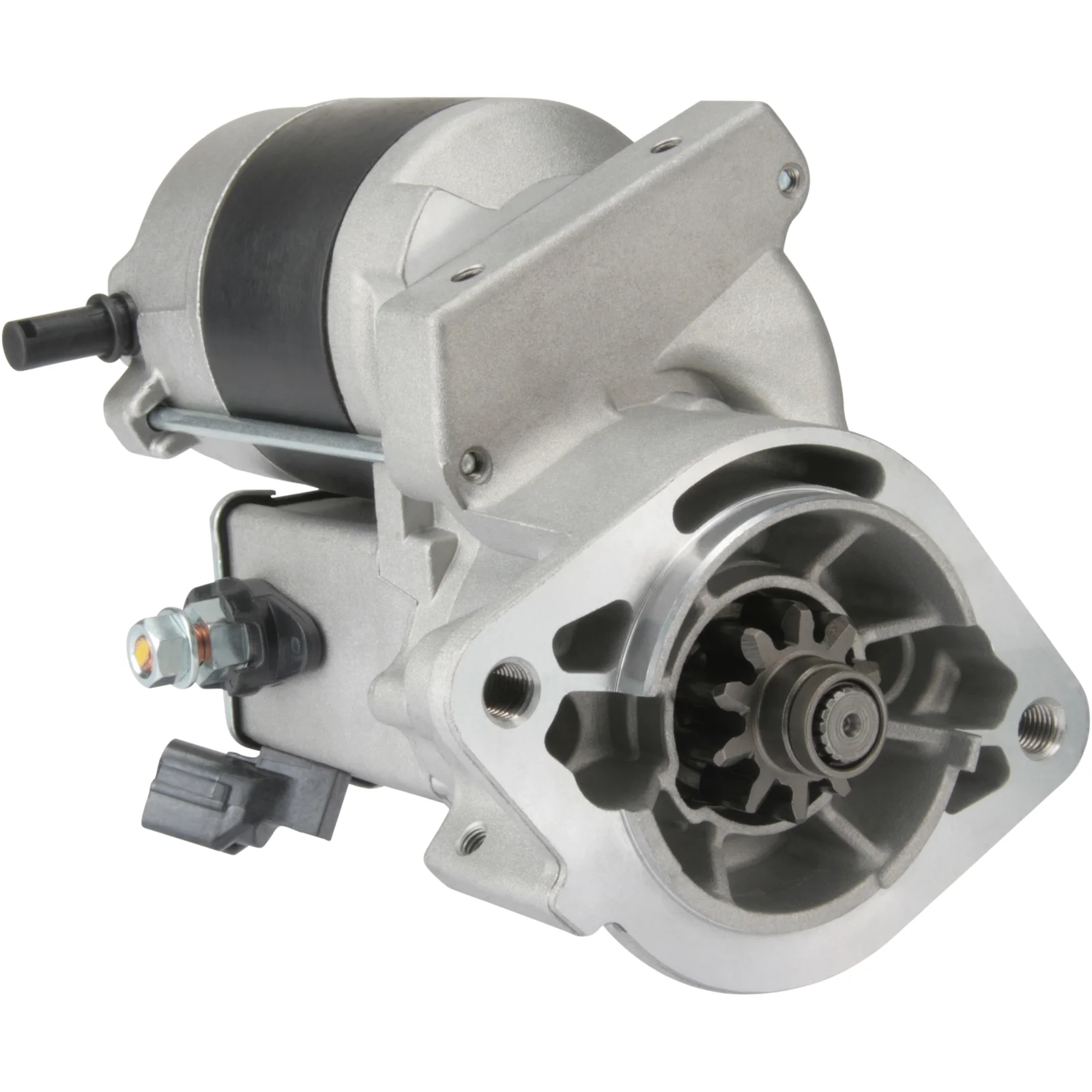

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 74.00
Drive dist.: 3.00
Dist./back: 140.00
Dist./front: 15.50
No./teeth: 10
B+: M8
Position/50: 25
Terminal 50: Plug
Gear type: GR
Dist. mm: 115.00
Rotation: CW
Total length mm: 187.50
Prod. info: BN
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 74.00
No./mount. holes 2 (2)
Position/50 25
Prod. info BN
Rotation CW
Dist./back 140.00
Dist./front 15.50
Drive dist. 3.00
Gear type GR
kW 1.4
Terminal 50 Plug
Voltage 12
Total length 187.50 mm
Dist. 115.00 mm

  • OEM
    cs1500, F032114240, 28100-64300, 228000-3620, 228000-3621, 228000-3622

  • Konkurrentreferens
    CST40146, DRS0073, lrs01528, S6213S, 25-3005, 335.066.102, 31379R, 104367, 8080345, 11040821, 0986026760

  • Normaliserat artikelnummer
    cs1500, cst40146, drs0073, f032114240, lrs01528, s6213s, 31379r, 104367, 253005, 8080345, 11040821, 335066102, 0986026760, 2280003620, 2280003621, 2280003622, 2810064300

  • Passar modeller
    Toyota Model: Avensis Model series: Avensis Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-08-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Caldina Model series: Caldina Type of engine: TD Size of motor: 2.2 Brand of engine: 3C-TE Type description: _T21_ Body: Estate From date: 01-08-1997 To date: 01-09-2002 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: GS Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Estate From date: 01-08-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes Manufacture type: wagon
    Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12 Body: MPV From date: 01-01-2002 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: verso
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Estate From date: 01-01-2002 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Hatchback From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Box From date: 01-09-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Estate From date: 01-09-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Hatchback From date: 01-09-2000 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ From date: 01-09-2000 To date: 01-11-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12J_, _E12T_ Body: Estate From date: 01-04-2004 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-05-2003 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Picnic Model series: Picnic Type of engine: Diesel Size of motor: 2.2 Brand of engine: 3C-TE Body: MPV From date: 01-08-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Model type: 4WD Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: XA2 From date: 01-05-2001 To date: 01-11-2005 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 74.00
    Drive dist.: 3.00
    Dist./back: 140.00
    Dist./front: 15.50
    No./teeth: 10
    B+: M8
    Position/50: 25
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 115.00
    Rotation: CW
    Total length mm: 187.50
    Prod. info: BN
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 74.00
    No./mount. holes 2 (2)
    Position/50 25
    Prod. info BN
    Rotation CW
    Dist./back 140.00
    Dist./front 15.50
    Drive dist. 3.00
    Gear type GR
    kW 1.4
    Terminal 50 Plug
    Voltage 12
    Total length 187.50 mm
    Dist. 115.00 mm
  • Fordonsmatchning

    • OEM
      cs1500, F032114240, 28100-64300, 228000-3620, 228000-3621, 228000-3622

    • Konkurrentreferens
      CST40146, DRS0073, lrs01528, S6213S, 25-3005, 335.066.102, 31379R, 104367, 8080345, 11040821, 0986026760

    • Normaliserat artikelnummer
      cs1500, cst40146, drs0073, f032114240, lrs01528, s6213s, 31379r, 104367, 253005, 8080345, 11040821, 335066102, 0986026760, 2280003620, 2280003621, 2280003622, 2810064300

    • Passar modeller
      Toyota Model: Avensis Model series: Avensis Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-08-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Caldina Model series: Caldina Type of engine: TD Size of motor: 2.2 Brand of engine: 3C-TE Type description: _T21_ Body: Estate From date: 01-08-1997 To date: 01-09-2002 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: GS Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Estate From date: 01-08-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes Manufacture type: wagon
      Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12 Body: MPV From date: 01-01-2002 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: verso
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Estate From date: 01-01-2002 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Hatchback From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Box From date: 01-09-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Estate From date: 01-09-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Hatchback From date: 01-09-2000 To date: 01-01-2002 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ From date: 01-09-2000 To date: 01-11-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12J_, _E12T_ Body: Estate From date: 01-04-2004 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-05-2003 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Picnic Model series: Picnic Type of engine: Diesel Size of motor: 2.2 Brand of engine: 3C-TE Body: MPV From date: 01-08-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Model type: 4WD Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: XA2 From date: 01-05-2001 To date: 01-11-2005 Fuel: Diesel Approved: Yes
