Artikelnr: F032113238

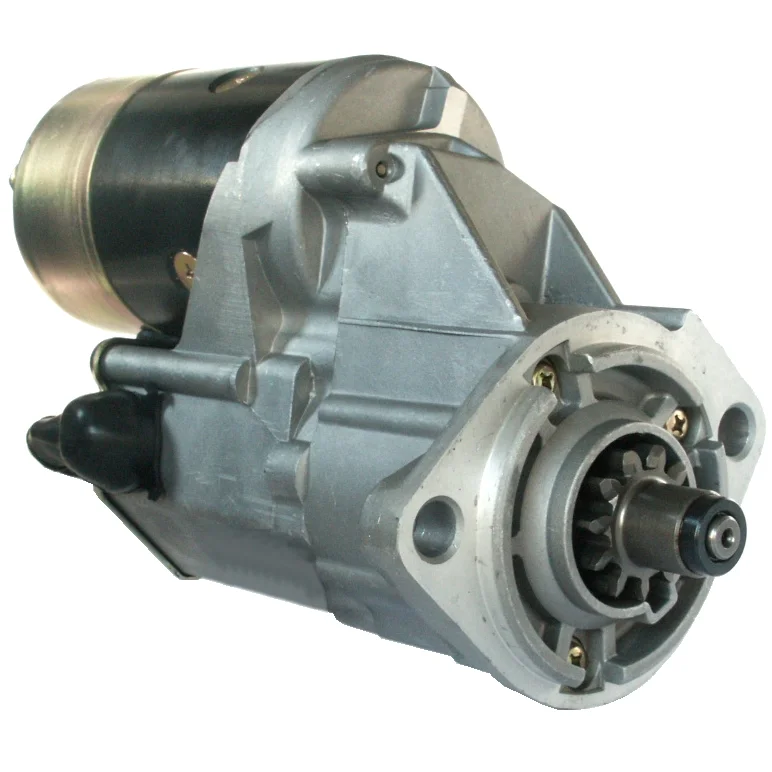

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 90.00
Drive dist.: 16.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 192.00
Dist./front: 42.00
No./teeth: 11
B+: M10
Position/50: 35
Terminal 50: M5
Gear type: GR
Dist. mm: 113.00
Rotation: CW
Total length mm: 293.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Specifikation

B+ M10
No./teeth 11
Mount. flange 90.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 35
Prod. info BN
Rotation CW
Dist./back 192.00
Dist./front 42.00
Drive dist. 16.00
Drive type Steel
Gear type GR
kW 2.5
Terminal 50 M5
Voltage 12
Total length 293.00 mm
Waterproof No
Dist. 113.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm
  • OEM

    F032113238, 28100-23660-71, 228000-3710, 228000-3711
  • Konkurrentreferens

    DSN2112, F042000072, F042S00072, s-8512, STR-6073, STR6053, 25-2373, 91-29-5320, 17311N
  • Normaliserat artikelnummer

    dsn2112, f032113238, f042000072, f042s00072, s8512, str6053, str6073, 17311n, 252373, 91295320, 2280003710, 2280003711, 281002366071
  • Passar modeller

    Toyota Model: 7FD Model series: 7FD20 From date: 01-01-1998 Approved: Yes
    Toyota Model: 7FD Model series: 7FD23 From date: 01-01-1998 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.5
    Mount. flange: 90.00
    Drive dist.: 16.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 192.00
    Dist./front: 42.00
    No./teeth: 11
    B+: M10
    Position/50: 35
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 113.00
    Rotation: CW
    Total length mm: 293.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)
  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 90.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 35
    Prod. info BN
    Rotation CW
    Dist./back 192.00
    Dist./front 42.00
    Drive dist. 16.00
    Drive type Steel
    Gear type GR
    kW 2.5
    Terminal 50 M5
    Voltage 12
    Total length 293.00 mm
    Waterproof No
    Dist. 113.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning
    • OEM

      F032113238, 28100-23660-71, 228000-3710, 228000-3711
    • Konkurrentreferens

      DSN2112, F042000072, F042S00072, s-8512, STR-6073, STR6053, 25-2373, 91-29-5320, 17311N
    • Normaliserat artikelnummer

      dsn2112, f032113238, f042000072, f042s00072, s8512, str6053, str6073, 17311n, 252373, 91295320, 2280003710, 2280003711, 281002366071
    • Passar modeller

      Toyota Model: 7FD Model series: 7FD20 From date: 01-01-1998 Approved: Yes
      Toyota Model: 7FD Model series: 7FD23 From date: 01-01-1998 Approved: Yes
