Artikelnr: F032113206

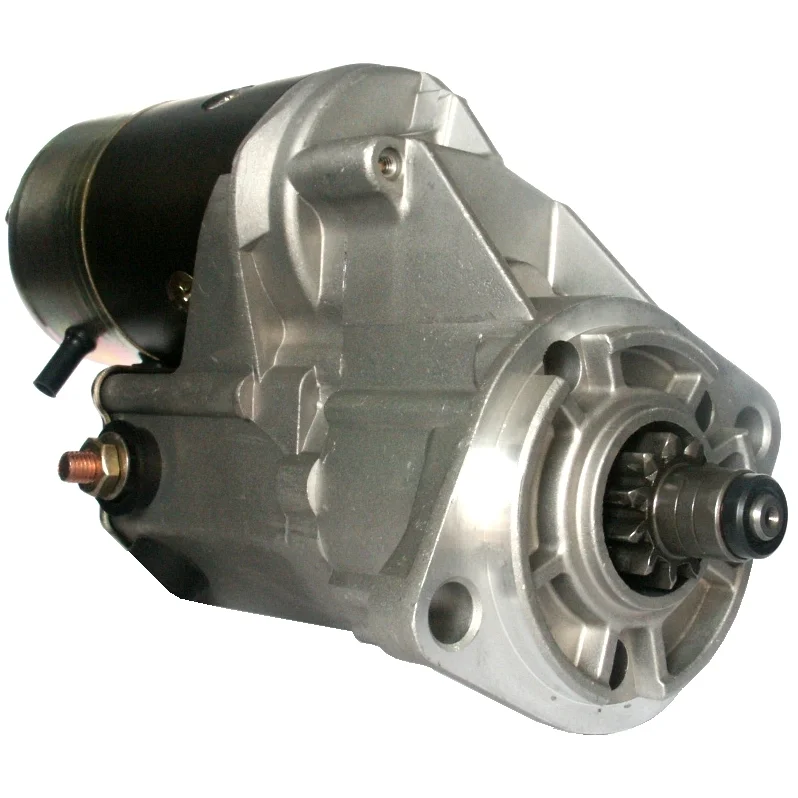

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 95.00
Drive dist.: 21.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 189.00
Dist./front: 47.50
No./teeth: 11
B+: M10
Position/50: 25
Terminal 50: M5
Gear type: GR
Dist. mm: 120.00
Rotation: CW
Total length mm: 297.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 11
Mount. flange 95.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 25
Prod. info BN
Rotation CW
Dist./back 189.00
Dist./front 47.50
Drive dist. 21.00
Drive type Steel
Gear type GR
kW 2.5
Terminal 50 M5
Voltage 12
Total length 297.00 mm
Waterproof No
Dist. 120.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    F032113206, 600-813-1420, 128000-9970, 128000-9971, 128000-9972

  • Konkurrentreferens
    CST40516, F042000082, F042S00082, LRS01449, s-8529, S6359S, snd0142, STR-6088, STR30019, STR6088, 2-2232-ND, 25-2378, 91-29-5428, 19747N, 254477

  • Normaliserat artikelnummer
    cst40516, f032113206, f042000082, f042s00082, lrs01449, s6359s, s8529, snd0142, str30019, str6088, 19747n, 22232nd, 252378, 254477, 91295428, 1280009970, 1280009971, 1280009972, 6008131420

  • Passar modeller
    Komatsu Model: FD Model series: FD20 Brand of engine: 4D95 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.5
    Mount. flange: 95.00
    Drive dist.: 21.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 189.00
    Dist./front: 47.50
    No./teeth: 11
    B+: M10
    Position/50: 25
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 120.00
    Rotation: CW
    Total length mm: 297.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 11
    Mount. flange 95.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 25
    Prod. info BN
    Rotation CW
    Dist./back 189.00
    Dist./front 47.50
    Drive dist. 21.00
    Drive type Steel
    Gear type GR
    kW 2.5
    Terminal 50 M5
    Voltage 12
    Total length 297.00 mm
    Waterproof No
    Dist. 120.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      F032113206, 600-813-1420, 128000-9970, 128000-9971, 128000-9972

    • Konkurrentreferens
      CST40516, F042000082, F042S00082, LRS01449, s-8529, S6359S, snd0142, STR-6088, STR30019, STR6088, 2-2232-ND, 25-2378, 91-29-5428, 19747N, 254477

    • Normaliserat artikelnummer
      cst40516, f032113206, f042000082, f042s00082, lrs01449, s6359s, s8529, snd0142, str30019, str6088, 19747n, 22232nd, 252378, 254477, 91295428, 1280009970, 1280009971, 1280009972, 6008131420

    • Passar modeller
      Komatsu Model: FD Model series: FD20 Brand of engine: 4D95 Approved: Yes
