Artikelnr: F032113182

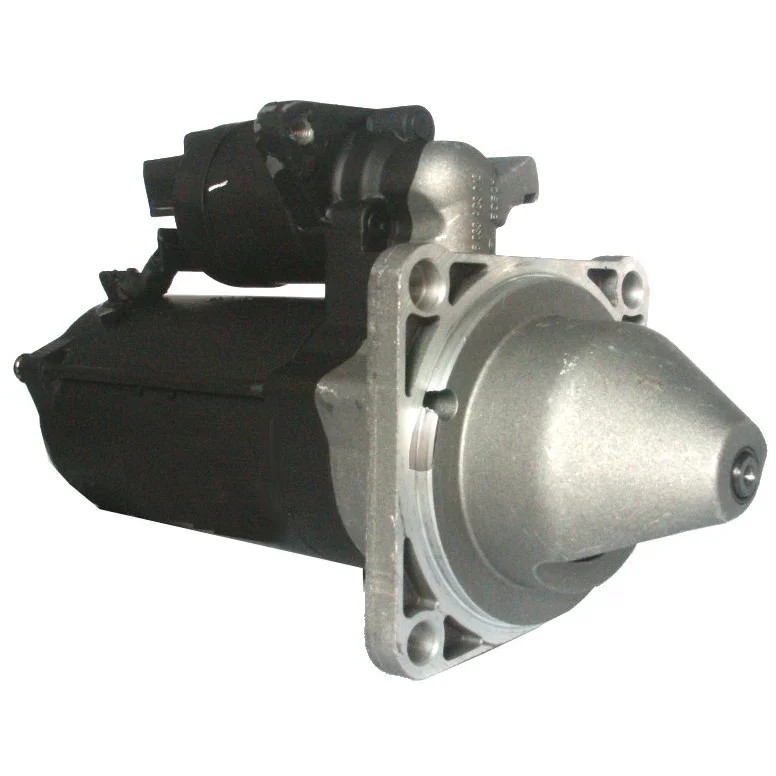

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Beskrivning

Iveco Startmotor 12V-3.0kW 12V - 3.0kW, 9k A - 110mm, B - 27mm Alternative 4.2kW, original Mahle = 91-255-1262 För Yourex produkt order 91-255-1898

Voltage: 12
kW: 3.0
Mount. flange: 110.00
Drive dist.: 27.00
Mount. hole 3 mm: 12.00
Mount. hole 2 mm: 12.00
Mount. hole 1 mm: 12.00
Dist./back: 229.00
Dist./front: 74.50
No./teeth: 9
B+: M10
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. 2: 103.00
Dist. 3: 103.50
Dist. mm: 146.00
Rotation: CW
Total length mm: 320.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 110.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Prod. info BN
Dist. 2 103.00
Dist. 3 103.50
Rotation CW
Dist./back 229.00
Dist./front 74.50
Drive dist. 27.00
Drive type Steel
Gear type GR
kW 3.0
Terminal 50 6.30
Voltage 12
Total length 320.00 mm
Waterproof No
Dist. 146.00 mm
Mount. hole 3 12.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    azf4155, F002G20814, F032113182, MSN2039, 0001 230 007, 0001 230 010, 0001 230 023, 0001 262 008, 11.131.604, 0986 018 980, 1262, 0001230007, 0001230010, 0001230023, 0001262007, 0001262008, 47783079, 87470949, 500325145, 0000500338952, 500338952, 0000504059251, 504059251, 0005801441814, 5801441814

  • Konkurrentreferens
    CST10153, CST10518, CST21220, DRS0023, DRS8980, MS114, MS207, MS79, S0081, S9243, STR22029, 2-3189-BO, 8EA015642-361, 25-3059, 8039, 18374N, 220550, 220550A, 220753, 220753A, 254521, 11018980, 0986018980, 0986018987, 063522300070, 063522300230

  • Bilmärken
    Case IH, Iveco, New Holland

  • Normaliserat artikelnummer
    azf4155, cst10153, cst10518, cst21220, drs0023, drs8980, f002g20814, f032113182, ms114, ms207, ms79, msn2039, s0081, s9243, str22029, 8ea015642361, 1262, 8039, 18374n, 23189bo, 220550, 220550a, 220753, 220753a, 253059, 254521, 0001230007, 0001230010, 0001230023, 0001262007, 0001262008, 11018980, 11131604, 47783079, 87470949, 500325145, 0000500338952, 500338952, 0000504059251, 504059251, 0986018980, 0986018987, 0005801441814, 5801441814, 063522300070, 063522300230

  • Passar modeller
    Case IH Series: Traktor Model: JX 75, 85, 90 Year: 11.02-
    Case IH Series: Traktor Model: JX 90 Year: 01.06-
    New Holland Model: L Model series: L60 Size of motor: 2.9 Brand of engine: Fiat From date: 01-09-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    New Holland Model: L Model series: L65 Size of motor: 3.6 Brand of engine: Fiat From date: 01-09-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    New Holland Model: L Model series: L75 Size of motor: 3.9 Brand of engine: Fiat From date: 01-09-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    New Holland Model: L Model series: L85 Size of motor: 3.9 Brand of engine: Fiat From date: 01-09-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    New Holland Model: L Model series: L95 Size of motor: 3.9 Brand of engine: Fiat From date: 01-09-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    New Holland Model: TL Model series: TL Series From date: 01-10-1998 Approved: Yes
    New Holland Series: Traktor Model: TL 70, 80, 90 Year: 10.98-12.03
    1 / 2
  • Beskrivning
    Iveco Startmotor 12V-3.0kW 12V - 3.0kW, 9k A - 110mm, B - 27mm Alternative 4.2kW, original Mahle = 91-255-1262 För Yourex produkt order 91-255-1898

    Voltage: 12
    kW: 3.0
    Mount. flange: 110.00
    Drive dist.: 27.00
    Mount. hole 3 mm: 12.00
    Mount. hole 2 mm: 12.00
    Mount. hole 1 mm: 12.00
    Dist./back: 229.00
    Dist./front: 74.50
    No./teeth: 9
    B+: M10
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. 2: 103.00
    Dist. 3: 103.50
    Dist. mm: 146.00
    Rotation: CW
    Total length mm: 320.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 110.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Prod. info BN
    Dist. 2 103.00
    Dist. 3 103.50
    Rotation CW
    Dist./back 229.00
    Dist./front 74.50
    Drive dist. 27.00
    Drive type Steel
    Gear type GR
    kW 3.0
    Terminal 50 6.30
    Voltage 12
    Total length 320.00 mm
    Waterproof No
    Dist. 146.00 mm
    Mount. hole 3 12.00 mm
    Mount. hole 2 12.00 mm
    Mount. hole 1 12.00 mm
  • Fordonsmatchning

    • OEM
      azf4155, F002G20814, F032113182, MSN2039, 0001 230 007, 0001 230 010, 0001 230 023, 0001 262 008, 11.131.604, 0986 018 980, 1262, 0001230007, 0001230010, 0001230023, 0001262007, 0001262008, 47783079, 87470949, 500325145, 0000500338952, 500338952, 0000504059251, 504059251, 0005801441814, 5801441814

    • Konkurrentreferens
      CST10153, CST10518, CST21220, DRS0023, DRS8980, MS114, MS207, MS79, S0081, S9243, STR22029, 2-3189-BO, 8EA015642-361, 25-3059, 8039, 18374N, 220550, 220550A, 220753, 220753A, 254521, 11018980, 0986018980, 0986018987, 063522300070, 063522300230

    • Bilmärken
      Case IH, Iveco, New Holland

    • Normaliserat artikelnummer
      azf4155, cst10153, cst10518, cst21220, drs0023, drs8980, f002g20814, f032113182, ms114, ms207, ms79, msn2039, s0081, s9243, str22029, 8ea015642361, 1262, 8039, 18374n, 23189bo, 220550, 220550a, 220753, 220753a, 253059, 254521, 0001230007, 0001230010, 0001230023, 0001262007, 0001262008, 11018980, 11131604, 47783079, 87470949, 500325145, 0000500338952, 500338952, 0000504059251, 504059251, 0986018980, 0986018987, 0005801441814, 5801441814, 063522300070, 063522300230

    • Passar modeller
      Case IH Series: Traktor Model: JX 75, 85, 90 Year: 11.02-
      Case IH Series: Traktor Model: JX 90 Year: 01.06-
      New Holland Model: L Model series: L60 Size of motor: 2.9 Brand of engine: Fiat From date: 01-09-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      New Holland Model: L Model series: L65 Size of motor: 3.6 Brand of engine: Fiat From date: 01-09-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      New Holland Model: L Model series: L75 Size of motor: 3.9 Brand of engine: Fiat From date: 01-09-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      New Holland Model: L Model series: L85 Size of motor: 3.9 Brand of engine: Fiat From date: 01-09-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      New Holland Model: L Model series: L95 Size of motor: 3.9 Brand of engine: Fiat From date: 01-09-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      New Holland Model: TL Model series: TL Series From date: 01-10-1998 Approved: Yes
      New Holland Series: Traktor Model: TL 70, 80, 90 Year: 10.98-12.03
      1 / 2
