Artikelnr: F032113281

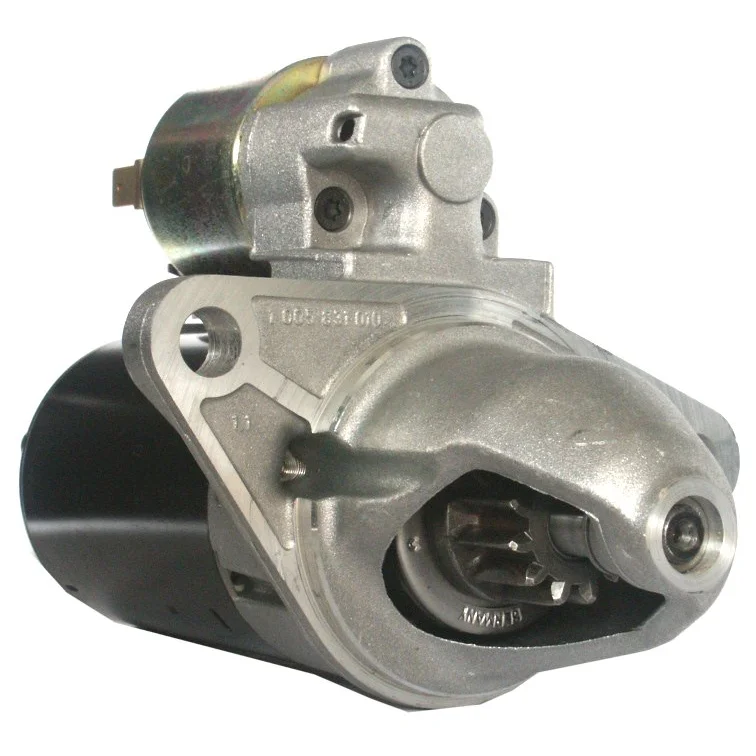

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.1, No./teeth: 12, Rotation: CCW

Beskrivning

Voltage: 12
kW: 1.1
Mount. flange: 75.00
Drive dist.: 43.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 157.50
Dist./front: 73.00
No./teeth: 12
B+: M8
Position/50: 15
Terminal 50: 9.50
Gear type: GR
Dist. mm: 120.00
Rotation: CCW
Total length mm: 231.50
Clutch type: Dry
Drive type: Steel
Prod. info: BN
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 12
Mount. flange 75.00
No./mount. holes 2 (0)
Position/50 15
Clutch type Dry
Prod. info BN
Rotation CCW
Dist./back 157.50
Dist./front 73.00
Drive dist. 43.00
Drive type Steel
Gear type GR
kW 1.1
Terminal 50 9.50
Voltage 12
Total length 231.50 mm
Dist. 120.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    aze2211, cs1253, F032113281, nad101340, RGO 113281, 11.139.448, 0001107080

  • Konkurrentreferens
    BSO7285, CST10379, DRS3839, IS9440, LRT00208, MS16, S0380, STR50017, 8EA011611-381, 25-3182, 450.506.122, 31208N, 101253, 105266, 8019920, 8212685, 11019920, 0986019920, 944280199200

  • Normaliserat artikelnummer
    aze2211, bso7285, cs1253, cst10379, drs3839, f032113281, is9440, lrt00208, ms16, nad101340, rgo113281, s0380, str50017, 8ea011611381, 31208n, 101253, 105266, 253182, 0001107080, 8019920, 8212685, 11019920, 11139448, 450506122, 0986019920, 944280199200

  • Passar modeller
    MG Model: Express Model series: Express Size of motor: 1.8 Brand of engine: 18K4F Body: Hatchback From date: 01-03-2003 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    MG Model: MGF Model series: MGF Model type: VVC Type of engine: i Size of motor: 1.8 Brand of engine: 18K4K Body: Convertible From date: 01-03-1995 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
    MG Model: MGF Model series: MGF Model type: WC Type of engine: i Size of motor: 1.8 Brand of engine: 18K4K Body: Convertible From date: 01-10-2001 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
    MG Model: MGF Model series: MGF Size of motor: 1.6 Brand of engine: 16K4F Type description: RD Body: Convertible From date: 01-02-2000 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
    MG Model: MGF Model series: MGF Type of engine: i 16V Size of motor: 1.8 Brand of engine: 18K4F Body: Convertible From date: 01-03-1995 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
    MG Model: TF Model series: TF Model type: 120 Size of motor: 1.8 Brand of engine: 18K4F Body: Convertible From date: 01-03-2002 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    MG Model: TF Model series: TF Model type: 135 Size of motor: 1.8 Brand of engine: 18K4F Body: Convertible From date: 01-03-2002 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    MG Model: TF Model series: TF Size of motor: 1.8 Brand of engine: 18K4K Body: Convertible From date: 01-03-2002 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
    MG Model: ZR Model series: ZR 120 Size of motor: 1.8 Brand of engine: 18K4F Body: Hatchback From date: 01-06-2001 To date: 01-04-2005 Fuel: Gasoline Approved: Yes
    MG Model: ZR Model series: ZR 160 Size of motor: 1.8 Brand of engine: 18K4K Body: Hatchback From date: 01-06-2001 To date: 01-04-2005 Fuel: Gasoline Approved: Yes
    MG Model: ZR Model series: ZS 120 Size of motor: 1.8 Brand of engine: 18K4F From date: 01-07-2001 To date: 01-04-2005 Fuel: Gasoline Approved: Yes
    MG Model: ZS Model series: ZS 120 Size of motor: 1.8 Brand of engine: 18K4F Body: Hatchback From date: 01-07-2001 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    MG Model: ZS Model series: ZS 180 Size of motor: 2.5 Brand of engine: 25 K4F Body: Hatchback From date: 01-07-2001 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    MG Model: ZS Model series: ZS 180 Size of motor: 2.5 Brand of engine: 25 K4F From date: 01-07-2001 To date: 01-04-2005 Fuel: Gasoline Approved: Yes
    Rover Model: 200 Model series: 200 Size of motor: 1.8 Brand of engine: 18K4F Type description: RF Body: Hatchback From date: 01-08-1999 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Rover Model: 200 Model series: 218 Type of engine: i Size of motor: 1.8 Brand of engine: 18K4K Body: Hatchback From date: 01-11-1995 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Rover Model: 25 Model series: 25 Type of engine: 16V Size of motor: 1.8 Brand of engine: 18K4F Type description: RF Body: Hatchback From date: 01-10-1999 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Rover Model: 25 Model series: 25 Type of engine: 16V Size of motor: 1.8 Brand of engine: 18K4K Type description: RF Body: Hatchback From date: 01-02-2000 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Rover Model: 400 Model series: 400 Type of engine: i Size of motor: 1.8 Brand of engine: 18K4K Body: Estate From date: 01-06-1996 To date: 01-11-1998 Fuel: Gasoline Approved: Yes Manufacture type: tourer
    Rover Model: 45 Model series: 45 Size of motor: 1.8 Brand of engine: 18K4F Type description: RT Body: Hatchback From date: 01-02-2000 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    Rover Model: 45 Model series: 45 Size of motor: 1.8 Brand of engine: 18K4F Type description: RT From date: 01-02-2000 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 12
    kW: 1.1
    Mount. flange: 75.00
    Drive dist.: 43.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 157.50
    Dist./front: 73.00
    No./teeth: 12
    B+: M8
    Position/50: 15
    Terminal 50: 9.50
    Gear type: GR
    Dist. mm: 120.00
    Rotation: CCW
    Total length mm: 231.50
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 12
    Mount. flange 75.00
    No./mount. holes 2 (0)
    Position/50 15
    Clutch type Dry
    Prod. info BN
    Rotation CCW
    Dist./back 157.50
    Dist./front 73.00
    Drive dist. 43.00
    Drive type Steel
    Gear type GR
    kW 1.1
    Terminal 50 9.50
    Voltage 12
    Total length 231.50 mm
    Dist. 120.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      aze2211, cs1253, F032113281, nad101340, RGO 113281, 11.139.448, 0001107080

    • Konkurrentreferens
      BSO7285, CST10379, DRS3839, IS9440, LRT00208, MS16, S0380, STR50017, 8EA011611-381, 25-3182, 450.506.122, 31208N, 101253, 105266, 8019920, 8212685, 11019920, 0986019920, 944280199200

    • Normaliserat artikelnummer
      aze2211, bso7285, cs1253, cst10379, drs3839, f032113281, is9440, lrt00208, ms16, nad101340, rgo113281, s0380, str50017, 8ea011611381, 31208n, 101253, 105266, 253182, 0001107080, 8019920, 8212685, 11019920, 11139448, 450506122, 0986019920, 944280199200

    • Passar modeller
      MG Model: Express Model series: Express Size of motor: 1.8 Brand of engine: 18K4F Body: Hatchback From date: 01-03-2003 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      MG Model: MGF Model series: MGF Model type: VVC Type of engine: i Size of motor: 1.8 Brand of engine: 18K4K Body: Convertible From date: 01-03-1995 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
      MG Model: MGF Model series: MGF Model type: WC Type of engine: i Size of motor: 1.8 Brand of engine: 18K4K Body: Convertible From date: 01-10-2001 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
      MG Model: MGF Model series: MGF Size of motor: 1.6 Brand of engine: 16K4F Type description: RD Body: Convertible From date: 01-02-2000 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
      MG Model: MGF Model series: MGF Type of engine: i 16V Size of motor: 1.8 Brand of engine: 18K4F Body: Convertible From date: 01-03-1995 To date: 01-03-2002 Fuel: Gasoline Approved: Yes
      MG Model: TF Model series: TF Model type: 120 Size of motor: 1.8 Brand of engine: 18K4F Body: Convertible From date: 01-03-2002 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
      MG Model: TF Model series: TF Model type: 135 Size of motor: 1.8 Brand of engine: 18K4F Body: Convertible From date: 01-03-2002 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
      MG Model: TF Model series: TF Size of motor: 1.8 Brand of engine: 18K4K Body: Convertible From date: 01-03-2002 To date: 01-12-2009 Fuel: Gasoline Approved: Yes
      MG Model: ZR Model series: ZR 120 Size of motor: 1.8 Brand of engine: 18K4F Body: Hatchback From date: 01-06-2001 To date: 01-04-2005 Fuel: Gasoline Approved: Yes
      MG Model: ZR Model series: ZR 160 Size of motor: 1.8 Brand of engine: 18K4K Body: Hatchback From date: 01-06-2001 To date: 01-04-2005 Fuel: Gasoline Approved: Yes
      MG Model: ZR Model series: ZS 120 Size of motor: 1.8 Brand of engine: 18K4F From date: 01-07-2001 To date: 01-04-2005 Fuel: Gasoline Approved: Yes
      MG Model: ZS Model series: ZS 120 Size of motor: 1.8 Brand of engine: 18K4F Body: Hatchback From date: 01-07-2001 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      MG Model: ZS Model series: ZS 180 Size of motor: 2.5 Brand of engine: 25 K4F Body: Hatchback From date: 01-07-2001 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      MG Model: ZS Model series: ZS 180 Size of motor: 2.5 Brand of engine: 25 K4F From date: 01-07-2001 To date: 01-04-2005 Fuel: Gasoline Approved: Yes
      Rover Model: 200 Model series: 200 Size of motor: 1.8 Brand of engine: 18K4F Type description: RF Body: Hatchback From date: 01-08-1999 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Rover Model: 200 Model series: 218 Type of engine: i Size of motor: 1.8 Brand of engine: 18K4K Body: Hatchback From date: 01-11-1995 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Rover Model: 25 Model series: 25 Type of engine: 16V Size of motor: 1.8 Brand of engine: 18K4F Type description: RF Body: Hatchback From date: 01-10-1999 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Rover Model: 25 Model series: 25 Type of engine: 16V Size of motor: 1.8 Brand of engine: 18K4K Type description: RF Body: Hatchback From date: 01-02-2000 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Rover Model: 400 Model series: 400 Type of engine: i Size of motor: 1.8 Brand of engine: 18K4K Body: Estate From date: 01-06-1996 To date: 01-11-1998 Fuel: Gasoline Approved: Yes Manufacture type: tourer
      Rover Model: 45 Model series: 45 Size of motor: 1.8 Brand of engine: 18K4F Type description: RT Body: Hatchback From date: 01-02-2000 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      Rover Model: 45 Model series: 45 Size of motor: 1.8 Brand of engine: 18K4F Type description: RT From date: 01-02-2000 To date: 01-05-2005 Fuel: Gasoline Approved: Yes
      1 / 5
