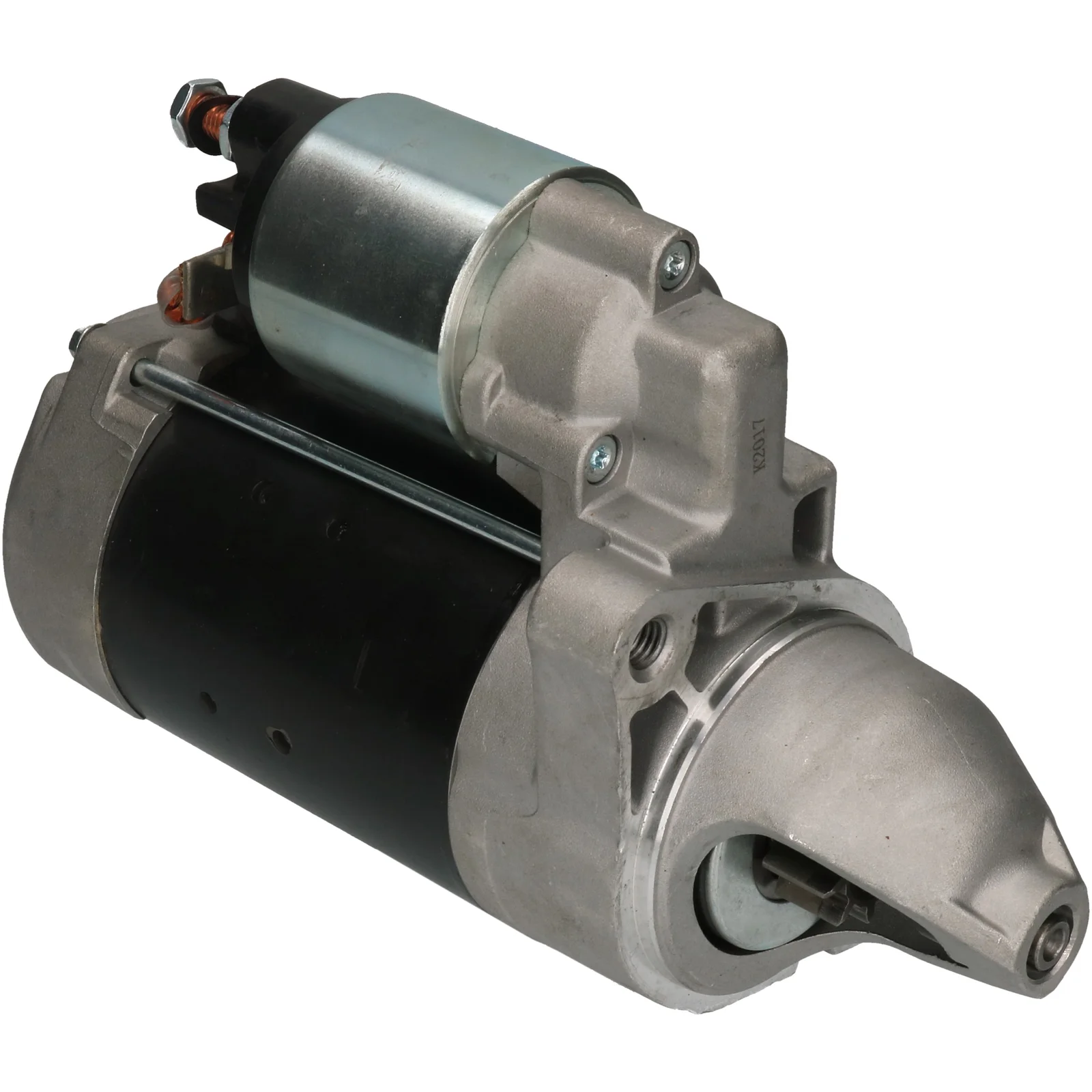

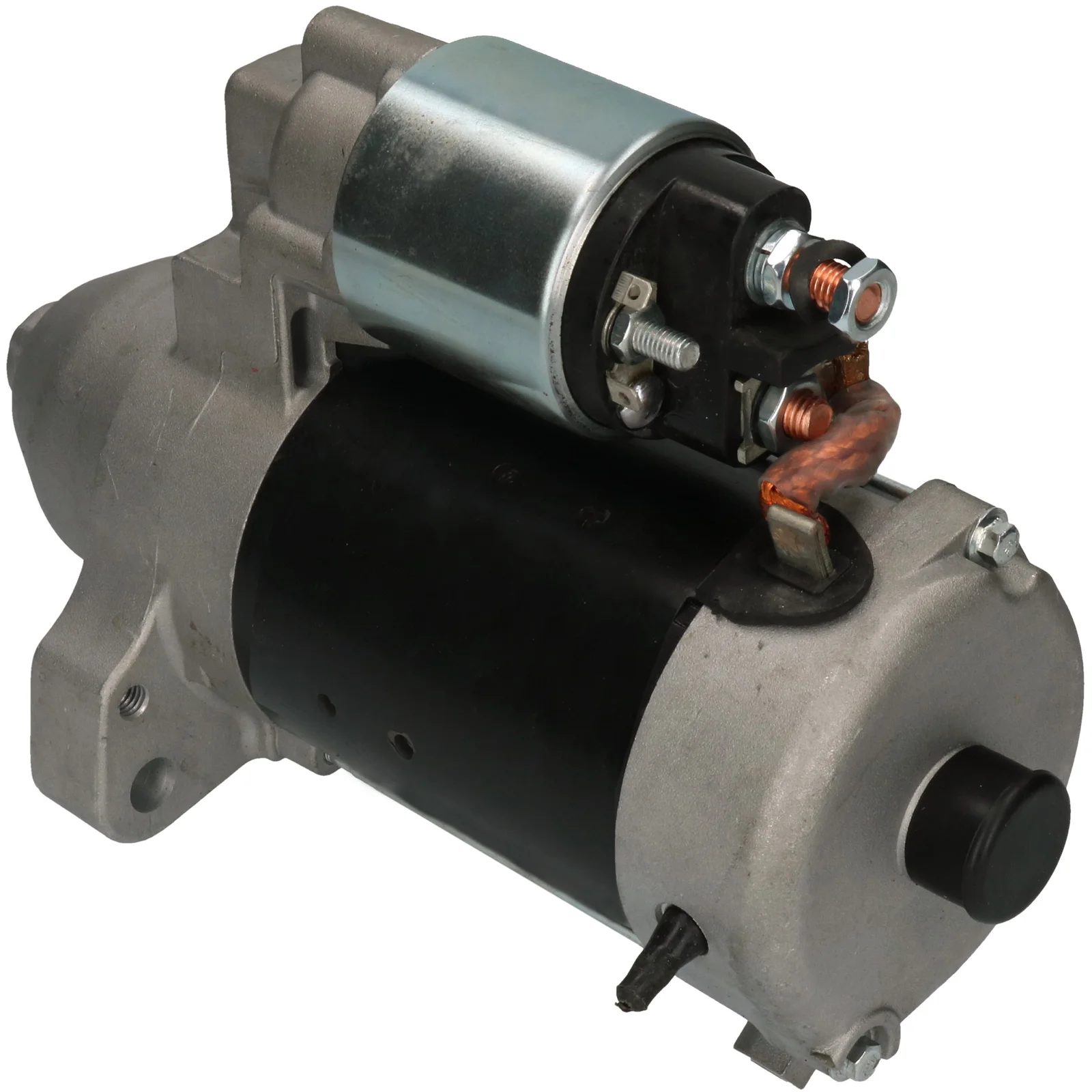

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114776

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.3, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.3
Mount. flange: 74.00
Drive dist.: 26.00
Mount. hole 3 mm: M10
Mount. hole 2 mm: 11.00
Dist./back: 170.00
Dist./front: 63.00
No./teeth: 9
B+: M8
Position/50: 45
Terminal 50: M6
Gear type: GR
Dist. 2: 121.00
Dist. 3: 109.00
Dist. mm: 21.00
Rotation: CW
Total length mm: 248.00
Prod. info: BN
No./mount. holes: 3 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 3 (2)
Position/50 45
Prod. info BN
Dist. 2 121.00
Dist. 3 109.00
Rotation CW
Dist./back 170.00
Dist./front 63.00
Drive dist. 26.00
Gear type GR
kW 2.3
Terminal 50 M6
Voltage 12
Total length 248.00 mm
Dist. 21.00 mm
Mount. hole 3 M10 mm
Mount. hole 2 11.00 mm

  • OEM
    F032114776, RGO 114776, 1986S10086, 0001223018, 0001223019, 057911023e, 057911023EX

  • Konkurrentreferens
    CST10466, DRS0224, lrs01720, S0454, S0454PR, 25-3276, 200.524.092, 32720, 32720R, 11090103, 0986024120

  • Normaliserat artikelnummer
    cst10466, drs0224, f032114776, lrs01720, rgo114776, s0454, s0454pr, 1986s10086, 32720, 32720r, 253276, 0001223018, 0001223019, 11090103, 057911023e, 057911023ex, 200524092, 0986024120

  • Passar modeller
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 4.2 Brand of engine: BMC Type description: 4E_ From date: 01-01-2005 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 4.2 Brand of engine: BTR Type description: 4LB Body: Box Body / Estate From date: 01-03-2007 To date: 01-06-2009 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 4.2 Brand of engine: CCFC,CCFA Type description: 4LB Body: Box Body / Estate From date: 01-03-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 4.1 Brand of engine: CCFA Type description: 4L Body: SUV From date: 01-05-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 4.1 Brand of engine: CCFC Type description: 4L Body: SUV From date: 01-05-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.3
    Mount. flange: 74.00
    Drive dist.: 26.00
    Mount. hole 3 mm: M10
    Mount. hole 2 mm: 11.00
    Dist./back: 170.00
    Dist./front: 63.00
    No./teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 121.00
    Dist. 3: 109.00
    Dist. mm: 21.00
    Rotation: CW
    Total length mm: 248.00
    Prod. info: BN
    No./mount. holes: 3 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 3 (2)
    Position/50 45
    Prod. info BN
    Dist. 2 121.00
    Dist. 3 109.00
    Rotation CW
    Dist./back 170.00
    Dist./front 63.00
    Drive dist. 26.00
    Gear type GR
    kW 2.3
    Terminal 50 M6
    Voltage 12
    Total length 248.00 mm
    Dist. 21.00 mm
    Mount. hole 3 M10 mm
    Mount. hole 2 11.00 mm
  • Fordonsmatchning

    • OEM
      F032114776, RGO 114776, 1986S10086, 0001223018, 0001223019, 057911023e, 057911023EX

    • Konkurrentreferens
      CST10466, DRS0224, lrs01720, S0454, S0454PR, 25-3276, 200.524.092, 32720, 32720R, 11090103, 0986024120

    • Normaliserat artikelnummer
      cst10466, drs0224, f032114776, lrs01720, rgo114776, s0454, s0454pr, 1986s10086, 32720, 32720r, 253276, 0001223018, 0001223019, 11090103, 057911023e, 057911023ex, 200524092, 0986024120

    • Passar modeller
      Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: TDi Size of motor: 4.2 Brand of engine: BMC Type description: 4E_ From date: 01-01-2005 To date: 01-06-2005 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 4.2 Brand of engine: BTR Type description: 4LB Body: Box Body / Estate From date: 01-03-2007 To date: 01-06-2009 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 4.2 Brand of engine: CCFC,CCFA Type description: 4LB Body: Box Body / Estate From date: 01-03-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 4.1 Brand of engine: CCFA Type description: 4L Body: SUV From date: 01-05-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 4.1 Brand of engine: CCFC Type description: 4L Body: SUV From date: 01-05-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes
