Artikelnr: F032112668

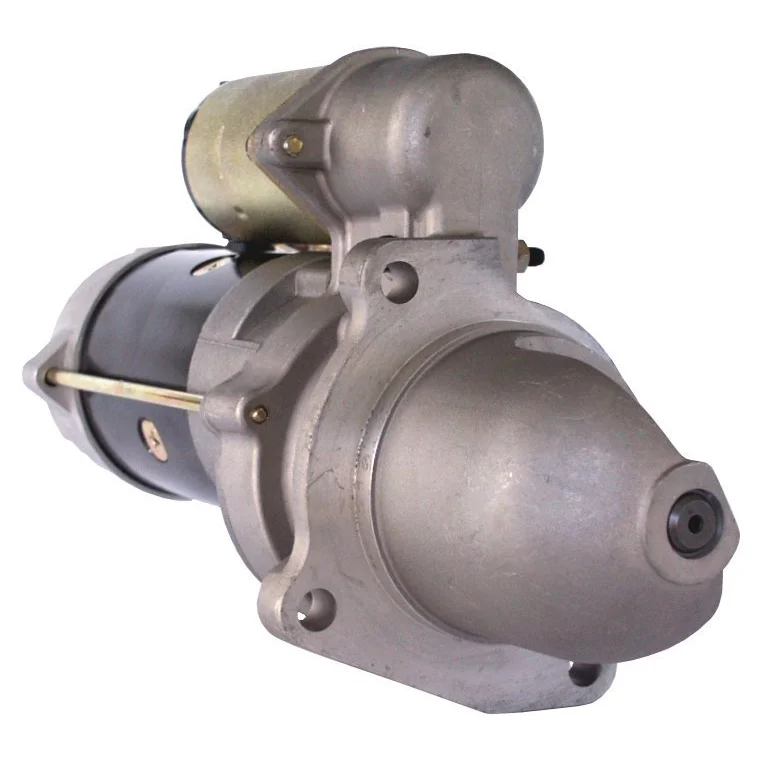

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.5, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.5
Mount. flange: 89.00
Drive dist.: 46.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 250.00
Dist./front: 88.00
No./teeth: 10
B+: M10
Position/50: 45
Terminal 50: M5
Gear type: GR
Dist. 2: 90.00
Dist. 3: 127.00
Dist. mm: 90.00
Rotation: CW
Total length mm: 338.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: Replacing: 28MT.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Clutch type Wet
Prod. info BN
Dist. 2 90.00
Remarks Replacing: 28MT.
Dist. 3 127.00
Rotation CW
Dist./back 250.00
Dist./front 88.00
Drive dist. 46.00
Drive type Steel
Gear type GR
kW 2.5
Terminal 50 M5
Voltage 12
Total length 338.00 mm
Waterproof No
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    0-23000-2070, F032112668, 1113248, 1113284, 10461483

  • Konkurrentreferens
    F042003109, F042S03109, S1065, SNK0005, SNK0032, STR-7076, TS-1648, 50-8436, 91-01-4414, 6572R, 6600, 6600N, 6600R

  • Normaliserat artikelnummer
    f032112668, f042003109, f042s03109, s1065, snk0005, snk0032, str7076, ts1648, 6572r, 6600, 6600n, 6600r, 508436, 1113248, 1113284, 10461483, 91014414, 0230002070

  • Passar modeller
    Hough Model: Various Models Model series: Various Models From date: 01-01-1989 Fuel: Diesel Approved: Yes
    Komatsu Model: Various Models Model series: Various Models From date: 01-01-1988 Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.5
    Mount. flange: 89.00
    Drive dist.: 46.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 250.00
    Dist./front: 88.00
    No./teeth: 10
    B+: M10
    Position/50: 45
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 90.00
    Dist. 3: 127.00
    Dist. mm: 90.00
    Rotation: CW
    Total length mm: 338.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Replacing: 28MT.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Clutch type Wet
    Prod. info BN
    Dist. 2 90.00
    Remarks Replacing: 28MT.
    Dist. 3 127.00
    Rotation CW
    Dist./back 250.00
    Dist./front 88.00
    Drive dist. 46.00
    Drive type Steel
    Gear type GR
    kW 2.5
    Terminal 50 M5
    Voltage 12
    Total length 338.00 mm
    Waterproof No
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      0-23000-2070, F032112668, 1113248, 1113284, 10461483

    • Konkurrentreferens
      F042003109, F042S03109, S1065, SNK0005, SNK0032, STR-7076, TS-1648, 50-8436, 91-01-4414, 6572R, 6600, 6600N, 6600R

    • Normaliserat artikelnummer
      f032112668, f042003109, f042s03109, s1065, snk0005, snk0032, str7076, ts1648, 6572r, 6600, 6600n, 6600r, 508436, 1113248, 1113284, 10461483, 91014414, 0230002070

    • Passar modeller
      Hough Model: Various Models Model series: Various Models From date: 01-01-1989 Fuel: Diesel Approved: Yes
      Komatsu Model: Various Models Model series: Various Models From date: 01-01-1988 Approved: Yes
