Artikelnr: F032112608

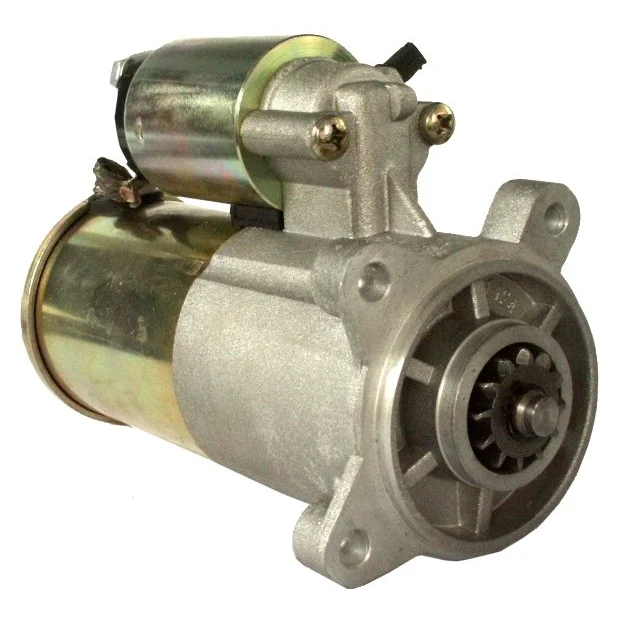

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 12, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 76.00
Drive dist.: 14.00
Mount. hole 3 mm: 9.30
Dist./back: 196.50
Dist./front: 21.00
No./teeth: 12
B+: M8
Position/50: 40
Terminal 50: M6
Gear type: GR
Dist. 2: 64.50
Dist. 3: 63.00
Dist. mm: 100.50
Rotation: CW
Total length mm: 220.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 12
Mount. flange 76.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 40
Clutch type Wet
Prod. info BN
Dist. 2 64.50
Dist. 3 63.00
Rotation CW
Dist./back 196.50
Dist./front 21.00
Drive dist. 14.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 M6
Voltage 12
Total length 220.00 mm
Waterproof No
Dist. 100.50 mm
Mount. hole 3 9.30 mm

  • OEM
    F032112608, F81U11000AA, F81U11000AB, F81U11000AC, F81U11000AD, F81U11000AE, F81Z11002A, F81Z11002AA, sa873, yc3u11000aa

  • Konkurrentreferens
    CST14139, F042005023, F042S05023, s-2095, s8100, S9375S, sfd0024, sg-00128r, STR-2839, 2-1910-fd, 2-1910-fd-1, 91-02-5885, 6646, 6646N, 6646R

  • Normaliserat artikelnummer
    cst14139, f032112608, f042005023, f042s05023, f81u11000aa, f81u11000ab, f81u11000ac, f81u11000ad, f81u11000ae, f81z11002a, f81z11002aa, s2095, s8100, s9375s, sa873, sfd0024, sg00128r, str2839, yc3u11000aa, 6646, 6646n, 6646r, 21910fd, 21910fd1, 91025885

  • Passar modeller
    Ford Model: Excursion Model series: Excursion Size of motor: 5.4 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Excursion Model series: Excursion Size of motor: 6.8 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Expedition Model series: Expedition Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Ford Model: Expedition Model series: Expedition Size of motor: 4.6 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Expedition Model series: Expedition Size of motor: 5.4 From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 150 Model type: Harley-Davidson Edition Type of engine: Super Size of motor: 5.4 Body: Pick Up From date: 01-01-2002 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 150 Model type: Lightning Type of engine: Super Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 150 Size of motor: 4.6 Body: Pick Up From date: 01-01-1998 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 150 Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 150 Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 150 Size of motor: 5.4 Body: Pick Up From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 150 Size of motor: 5.4 Body: Pick Up From date: 01-01-2000 To date: 01-01-2002 Fuel: Natural gas Approved: Yes
    Ford Model: F Model series: F 250 Model type: Super Cab Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 250 Model type: Super Duty Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 250 Model type: Super Duty Size of motor: 6.8 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 250 Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 250 Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-1999 Fuel: Natural gas Approved: Yes
    Ford Model: F Model series: F 350 Model type: Super Duty Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 350 Model type: Super Duty Size of motor: 6.8 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 450 Model type: Super Duty Size of motor: 6.8 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: F Model series: F 550 Model type: Super Duty Size of motor: 6.8 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Lincoln Model: Blackwood Model series: Blackwood Size of motor: 5.4 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Lincoln Model: Navigator Model series: Navigator Size of motor: 5.4 From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Lincoln Model: Navigator Model series: Navigator Size of motor: 5.4 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Lincoln Model: Navigator Model series: Navigator Size of motor: 5.4 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 76.00
    Drive dist.: 14.00
    Mount. hole 3 mm: 9.30
    Dist./back: 196.50
    Dist./front: 21.00
    No./teeth: 12
    B+: M8
    Position/50: 40
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 64.50
    Dist. 3: 63.00
    Dist. mm: 100.50
    Rotation: CW
    Total length mm: 220.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M8
    No./teeth 12
    Mount. flange 76.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 40
    Clutch type Wet
    Prod. info BN
    Dist. 2 64.50
    Dist. 3 63.00
    Rotation CW
    Dist./back 196.50
    Dist./front 21.00
    Drive dist. 14.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 M6
    Voltage 12
    Total length 220.00 mm
    Waterproof No
    Dist. 100.50 mm
    Mount. hole 3 9.30 mm
  • Fordonsmatchning

    • OEM
      F032112608, F81U11000AA, F81U11000AB, F81U11000AC, F81U11000AD, F81U11000AE, F81Z11002A, F81Z11002AA, sa873, yc3u11000aa

    • Konkurrentreferens
      CST14139, F042005023, F042S05023, s-2095, s8100, S9375S, sfd0024, sg-00128r, STR-2839, 2-1910-fd, 2-1910-fd-1, 91-02-5885, 6646, 6646N, 6646R

    • Normaliserat artikelnummer
      cst14139, f032112608, f042005023, f042s05023, f81u11000aa, f81u11000ab, f81u11000ac, f81u11000ad, f81u11000ae, f81z11002a, f81z11002aa, s2095, s8100, s9375s, sa873, sfd0024, sg00128r, str2839, yc3u11000aa, 6646, 6646n, 6646r, 21910fd, 21910fd1, 91025885

    • Passar modeller
      Ford Model: Excursion Model series: Excursion Size of motor: 5.4 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Excursion Model series: Excursion Size of motor: 6.8 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Expedition Model series: Expedition Size of motor: 4.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
      Ford Model: Expedition Model series: Expedition Size of motor: 4.6 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Expedition Model series: Expedition Size of motor: 5.4 From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 150 Model type: Harley-Davidson Edition Type of engine: Super Size of motor: 5.4 Body: Pick Up From date: 01-01-2002 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 150 Model type: Lightning Type of engine: Super Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 150 Size of motor: 4.6 Body: Pick Up From date: 01-01-1998 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 150 Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 150 Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 150 Size of motor: 5.4 Body: Pick Up From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 150 Size of motor: 5.4 Body: Pick Up From date: 01-01-2000 To date: 01-01-2002 Fuel: Natural gas Approved: Yes
      Ford Model: F Model series: F 250 Model type: Super Cab Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 250 Model type: Super Duty Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 250 Model type: Super Duty Size of motor: 6.8 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 250 Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 250 Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-1999 Fuel: Natural gas Approved: Yes
      Ford Model: F Model series: F 350 Model type: Super Duty Size of motor: 5.4 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 350 Model type: Super Duty Size of motor: 6.8 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 450 Model type: Super Duty Size of motor: 6.8 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: F Model series: F 550 Model type: Super Duty Size of motor: 6.8 Body: Pick Up From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Lincoln Model: Blackwood Model series: Blackwood Size of motor: 5.4 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Lincoln Model: Navigator Model series: Navigator Size of motor: 5.4 From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      Lincoln Model: Navigator Model series: Navigator Size of motor: 5.4 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
      Lincoln Model: Navigator Model series: Navigator Size of motor: 5.4 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
