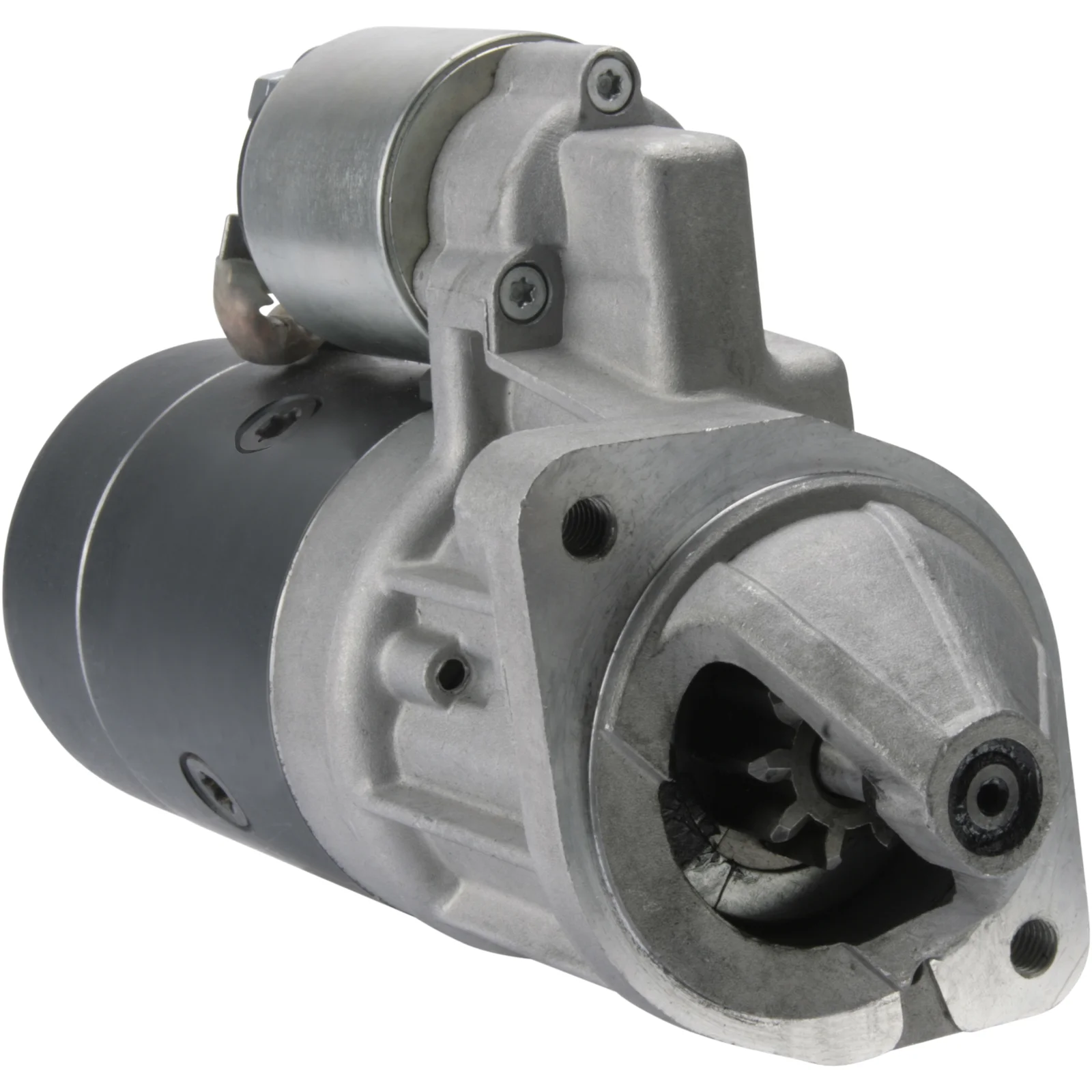

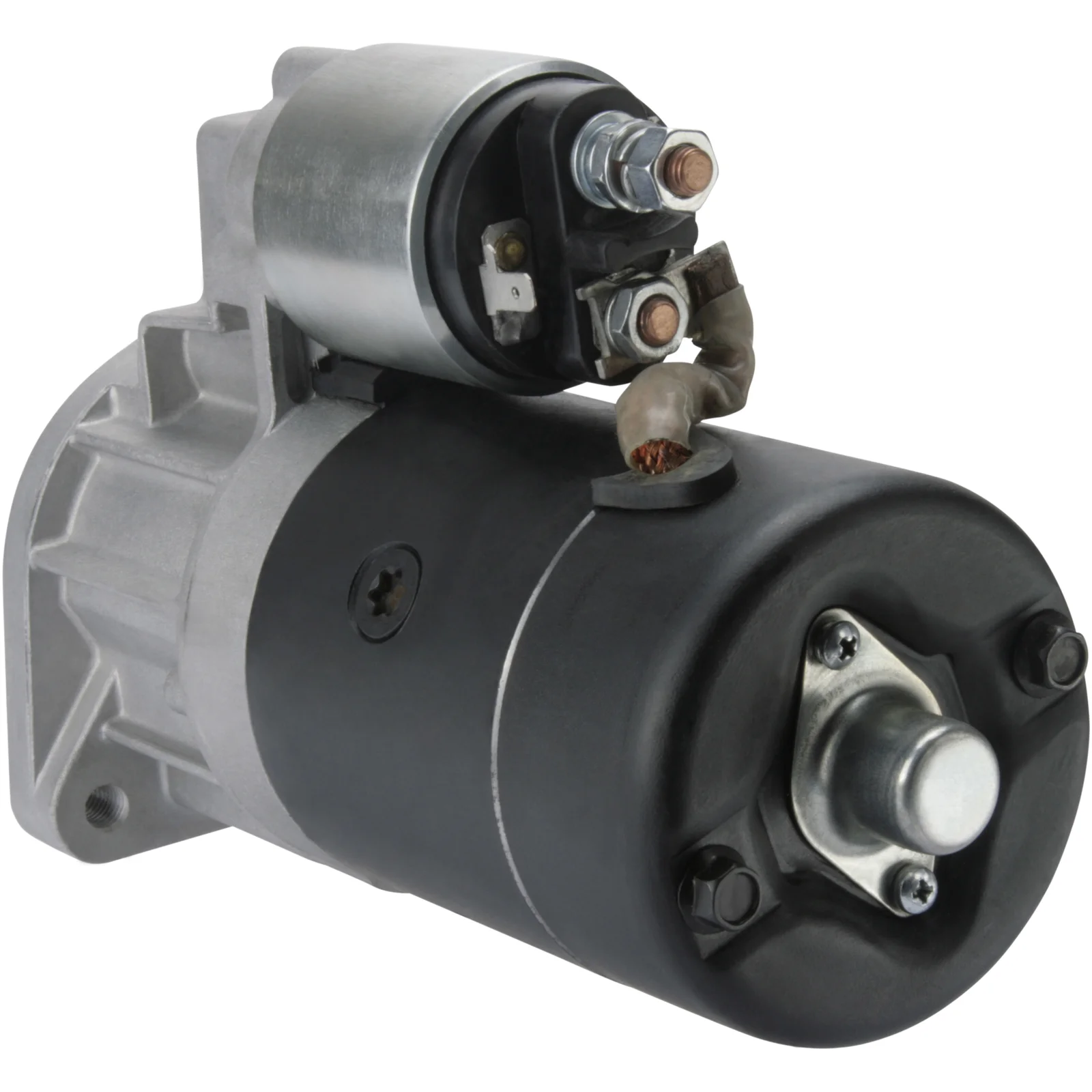

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114318

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.2
Mount. flange: 82.50
Drive dist.: 9.00
Dist./back: 209.00
Dist./front: 42.00
No./teeth: 9
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 110.00
Rotation: CW
Total length mm: 262.00
Clutch type: Dry
Drive type: Steel
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (2)
Position/50 45
Clutch type Dry
Rotation CW
Dist./back 209.00
Dist./front 42.00
Drive dist. 9.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 262.00 mm
Dist. 110.00 mm

  • OEM
    F032114318, js568, RGO 114318, 23300-7C600, 23300-7C625, 23300-9c600, 23300-d9700, 23300-d9701, 23300-d9702, 23300-G9900, 23300-y9700, 0001218818, 1516974R, 9000331421, 9000331424, 9000331428, 9000331430

  • Konkurrentreferens
    CST45107, drs3173, lrt00104, S0165, 8ea726511-001, 25-1075, 327.025.092, 4214, 9590, 11481, 20568, 30009R, 32239R, 103744, 201119, 220822, 220822A, 726114, 726914, 11040139, 0986015920, 943251890010

  • Normaliserat artikelnummer
    cst45107, drs3173, f032114318, js568, lrt00104, rgo114318, s0165, 8ea726511001, 4214, 9590, 11481, 20568, 23300d9700, 23300d9701, 23300d9702, 23300g9900, 23300y9700, 30009r, 32239r, 103744, 201119, 220822, 220822a, 233007c600, 233007c625, 233009c600, 251075, 726114, 726914, 0001218818, 1516974r, 11040139, 327025092, 0986015920, 9000331421, 9000331424, 9000331428, 9000331430, 943251890010

  • Passar modeller
    Nissan Model: Serena Model series: Serena Type of engine: Diesel Size of motor: 2.0 Brand of engine: LD20 Type description: C23M Body: MPV From date: 01-06-1991 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    Nissan Model: Serena Model series: Serena Type of engine: Diesel Size of motor: 2.3 Brand of engine: LD23 Type description: C23M Body: MPV From date: 01-01-1995 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    Nissan Model: Serena Model series: Serena Van Type of engine: Diesel Size of motor: 2.0 Brand of engine: LD20 Type description: C23 Body: Van From date: 01-07-1992 To date: 01-09-1994 Fuel: Diesel Approved: Yes
    Nissan Model: Serena Model series: Serena Van Type of engine: Diesel Size of motor: 2.3 Brand of engine: LD23 Type description: C23 Body: Van From date: 01-10-1994 To date: 01-09-2001 Fuel: Diesel Approved: Yes
    Nissan Model: Vanette Model series: Vanette Cargo Type of engine: Diesel Size of motor: 2.0 Brand of engine: LD20 Type description: C23M Body: Bus From date: 01-01-1996 To date: 01-05-2001 Fuel: Diesel Approved: Yes
    Nissan Model: Vanette Model series: Vanette Type of engine: Diesel Size of motor: 2.0 Brand of engine: LD20-II Type description: C22 Body: Van From date: 01-07-1991 To date: 01-01-1995 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.2
    Mount. flange: 82.50
    Drive dist.: 9.00
    Dist./back: 209.00
    Dist./front: 42.00
    No./teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 110.00
    Rotation: CW
    Total length mm: 262.00
    Clutch type: Dry
    Drive type: Steel
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (2)
    Position/50 45
    Clutch type Dry
    Rotation CW
    Dist./back 209.00
    Dist./front 42.00
    Drive dist. 9.00
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 262.00 mm
    Dist. 110.00 mm
  • Fordonsmatchning

    • OEM
      F032114318, js568, RGO 114318, 23300-7C600, 23300-7C625, 23300-9c600, 23300-d9700, 23300-d9701, 23300-d9702, 23300-G9900, 23300-y9700, 0001218818, 1516974R, 9000331421, 9000331424, 9000331428, 9000331430

    • Konkurrentreferens
      CST45107, drs3173, lrt00104, S0165, 8ea726511-001, 25-1075, 327.025.092, 4214, 9590, 11481, 20568, 30009R, 32239R, 103744, 201119, 220822, 220822A, 726114, 726914, 11040139, 0986015920, 943251890010

    • Normaliserat artikelnummer
      cst45107, drs3173, f032114318, js568, lrt00104, rgo114318, s0165, 8ea726511001, 4214, 9590, 11481, 20568, 23300d9700, 23300d9701, 23300d9702, 23300g9900, 23300y9700, 30009r, 32239r, 103744, 201119, 220822, 220822a, 233007c600, 233007c625, 233009c600, 251075, 726114, 726914, 0001218818, 1516974r, 11040139, 327025092, 0986015920, 9000331421, 9000331424, 9000331428, 9000331430, 943251890010

    • Passar modeller
      Nissan Model: Serena Model series: Serena Type of engine: Diesel Size of motor: 2.0 Brand of engine: LD20 Type description: C23M Body: MPV From date: 01-06-1991 To date: 01-09-2001 Fuel: Diesel Approved: Yes
      Nissan Model: Serena Model series: Serena Type of engine: Diesel Size of motor: 2.3 Brand of engine: LD23 Type description: C23M Body: MPV From date: 01-01-1995 To date: 01-09-2001 Fuel: Diesel Approved: Yes
      Nissan Model: Serena Model series: Serena Van Type of engine: Diesel Size of motor: 2.0 Brand of engine: LD20 Type description: C23 Body: Van From date: 01-07-1992 To date: 01-09-1994 Fuel: Diesel Approved: Yes
      Nissan Model: Serena Model series: Serena Van Type of engine: Diesel Size of motor: 2.3 Brand of engine: LD23 Type description: C23 Body: Van From date: 01-10-1994 To date: 01-09-2001 Fuel: Diesel Approved: Yes
      Nissan Model: Vanette Model series: Vanette Cargo Type of engine: Diesel Size of motor: 2.0 Brand of engine: LD20 Type description: C23M Body: Bus From date: 01-01-1996 To date: 01-05-2001 Fuel: Diesel Approved: Yes
      Nissan Model: Vanette Model series: Vanette Type of engine: Diesel Size of motor: 2.0 Brand of engine: LD20-II Type description: C22 Body: Van From date: 01-07-1991 To date: 01-01-1995 Fuel: Diesel Approved: Yes
