Artikelnr: F032113134

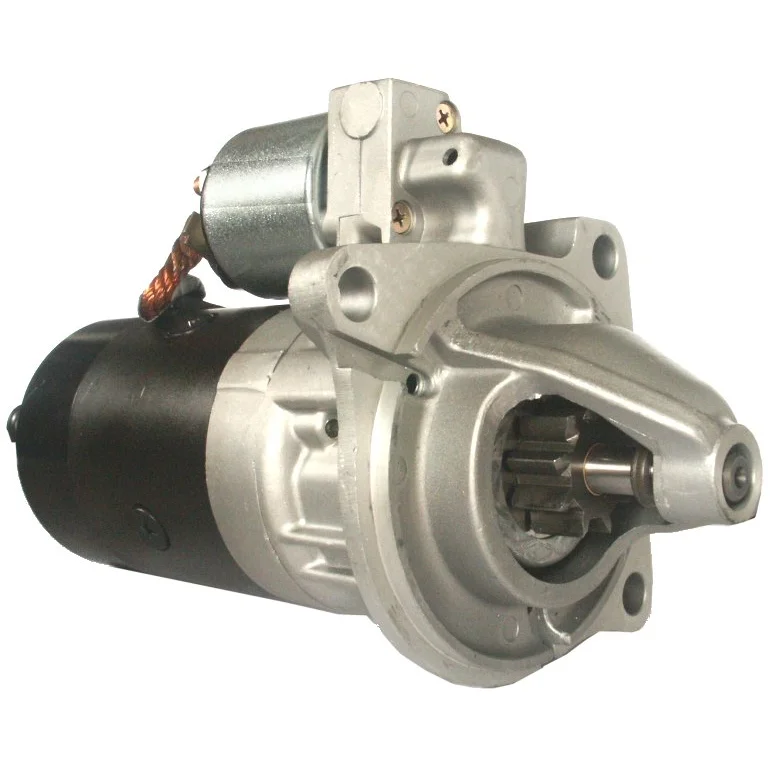

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.2
Mount. flange: 110.00
Drive dist.: 27.00
Mount. hole 3 mm: 12.20
Mount. hole 2 mm: 12.20
Mount. hole 1 mm: 12.20
Dist./back: 195.00
Dist./front: 67.00
No./teeth: 9
B+: M8
Thread length mm: 7.00
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. 2: 146.00
Dist. 3: 103.00
Dist. mm: 103.00
Rotation: CW
Total length mm: 272.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 110.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Prod. info BN
Dist. 2 146.00
Dist. 3 103.00
Rotation CW
Dist./back 195.00
Dist./front 67.00
Drive dist. 27.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 272.00 mm
Waterproof No
Dist. 103.00 mm
Thread length 7.00 mm
Mount. hole 3 12.20 mm
Mount. hole 2 12.20 mm
Mount. hole 1 12.20 mm

  • OEM
    AZE4564, cs370, D7R41, F032113134, R1040041, RGO 113134, 11.139.333, 1986S10131, 573387, 0001218019, 0001218101, 0001218163, 0001218167, 0001218767, 1516752R, 4403249, 9108667, 09111249, 9562002, 93178785, 5001014230, 7700301993, 7700723189, 7700730756, 7700868184, 7701381647

  • Konkurrentreferens
    BSO7048, CST10224, CST15220, drs3650, DRS3650X, F032US0010, F042002144, F042S02144, IS9333, LES0091, lrs00940, MS176, MS665, S0127, S4057, STR-B010, STR22003, STRB010, vs251, 8EA011350-261, 8EA012528-271, 8ea726118-001, 25-1077, 88-13.650, 300.029.092, 3591, 4037, 10370, 11439, 30131N, 103400, 201125, 220038, 220038A, 436044, 439638, 455508, 726058, 726858, 8813650, 11013650, 42013650, 943251300, 0986013650, 0986013653, 943251300010, 944288136500

  • Normaliserat artikelnummer
    aze4564, bso7048, cs370, cst10224, cst15220, d7r41, drs3650, drs3650x, f032113134, f032us0010, f042002144, f042s02144, is9333, les0091, lrs00940, ms176, ms665, r1040041, rgo113134, s0127, s4057, str22003, strb010, vs251, 8ea011350261, 8ea012528271, 8ea726118001, 1986s10131, 3591, 4037, 10370, 11439, 30131n, 103400, 201125, 220038, 220038a, 251077, 436044, 439638, 455508, 573387, 726058, 726858, 0001218019, 0001218101, 0001218163, 0001218167, 0001218767, 1516752r, 4403249, 8813650, 9108667, 09111249, 9562002, 11013650, 11139333, 42013650, 93178785, 300029092, 943251300, 0986013650, 0986013653, 5001014230, 7700301993, 7700723189, 7700730756, 7700868184, 7701381647, 943251300010, 944288136500

  • Passar modeller
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DG Body: Bus From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DG Body: Van From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DM Body: Bus From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: 25DM Body: Van From date: 01-01-1997 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Van From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 28-35 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 8140.61.2300 Type description: T_ Body: Bus From date: 01-08-1980 To date: 01-08-1989 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 28-35 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 8140.61.2300 Type description: T_ Body: Van From date: 01-08-1980 To date: 01-08-1989 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 28-35 Type of engine: Diesel Size of motor: 2.4 Brand of engine: S8U731 Body: Van From date: 01-08-1980 To date: 01-08-1989 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 28-35 Type of engine: Diesel Size of motor: 2.4 Brand of engine: S8U731 Type description: T_ Body: Bus From date: 01-08-1980 To date: 01-08-1989 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 28-35 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.61.2300 Type description: P_ Body: Platform / Chassis From date: 01-09-1980 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 28-35 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67.2510 Type description: T_ Body: Bus From date: 01-08-1989 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 28-35 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67.2510 Type description: T_ Body: Van From date: 01-08-1989 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 28-35 Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U731 Type description: P_ Body: Platform / Chassis From date: 01-09-1980 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 28-35 Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U742 Type description: T_ Body: Bus From date: 01-08-1989 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 28-35 Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U742 Type description: T_ Body: Van From date: 01-08-1989 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 28-35 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27.2580 Type description: T_ Body: Van From date: 01-08-1989 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 28-35 Type of engine: TD Size of motor: 2.5 Brand of engine: S9U702 Type description: T_ Body: Van From date: 01-08-1989 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 35 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27.2500 Type description: T_ Body: Bus From date: 01-08-1989 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 35 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27.2500 Type description: T_ Body: Van From date: 01-08-1989 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 35 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27.2510 Type description: T_ Body: Bus From date: 01-08-1989 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 35 Type of engine: TD Size of motor: 2.5 Brand of engine: 8140.27.2510 Type description: T_ Body: Van From date: 01-08-1989 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 35 Type of engine: TD Size of motor: 2.5 Brand of engine: S9U714 Type description: T_ Body: Bus From date: 01-08-1989 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Master Model series: Master 35 Type of engine: TD Size of motor: 2.5 Brand of engine: S9U714 Type description: T_ Body: Van From date: 01-08-1989 To date: 01-07-1998 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67.2500 Type description: TXX Body: Van From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67.2580 Type description: TXX Body: Van From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 814067.2500 Type description: TXW Body: Bus From date: 01-08-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 814067.2580 Type description: TXW Body: Bus From date: 01-08-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U750 Type description: TXW Body: Bus From date: 01-08-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U750 Type description: TXX Body: Van From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U752 Type description: TXW Body: Bus From date: 01-08-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U752 Type description: TXX Body: Van From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U758 Type description: TXW Body: Bus From date: 01-08-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.61.240 Type description: PXX Body: Platform / Chassis From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67.2500 Body: Bus From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67.2500 Body: Van From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67.2550 Body: Bus From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67.2550 Body: Van From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67.2580 Body: Bus From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.67.2580 Body: Van From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U720 Type description: PXX Body: Platform / Chassis From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U722 Type description: PXX Body: Platform / Chassis From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U750 Body: Bus From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U750 Body: Van From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U752 Body: Bus From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U752 Body: Van From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U758 Body: Bus From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault Model: Trafic Model series: Trafic Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U758 Body: Van From date: 01-05-1989 To date: 01-03-2001 Fuel: Diesel Approved: Yes
    Renault V.I. Model: B Series Model series: B 70 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 8140.61.235 Body: Platform / Chassis From date: 01-01-1983 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: B Series Model series: B 70 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 8140.61.235 Body: Twin Cab From date: 01-01-1983 To date: 01-12-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: B Series Model series: B 90 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 8140.21.235 IDS Body: Platform / Chassis From date: 01-04-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: B Series Model series: B 90 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 8140.21.235 IDS Body: Platform / Chassis From date: 01-08-1990 To date: 01-01-1992 Fuel: Diesel Approved: Yes
    Renault V.I. Model: B Series Model series: B 90 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 8140.21.235 IDS Body: Twin Cab From date: 01-04-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: B Series Model series: B 90 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.27.2530 IDS Body: Platform / Chassis From date: 01-08-1990 To date: 01-01-1992 Fuel: Diesel Approved: Yes
    Renault V.I. Model: B Series Model series: B 90 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 8140.27.2530 IDS Body: Twin Cab From date: 01-08-1990 To date: 01-01-1992 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 110.45 Size of motor: 2.8 Brand of engine: 8140.23.2565 Type description: Messenger Body: Platform / Chassis From date: 01-09-1996 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 110.45 Size of motor: 2.8 Brand of engine: 8140.23.2585 Type description: Messenger Body: Twin Cab From date: 01-09-1996 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 120.35 Size of motor: 2.8 Brand of engine: 8140.43.2585 Type description: Messenger Body: Platform / Chassis From date: 01-09-1996 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 120.35 Size of motor: 2.8 Brand of engine: 8140.43.2585 Type description: Messenger Body: Twin Cab From date: 01-09-1996 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 120.55 Size of motor: 2.5 Brand of engine: 8140.47.2585 Type description: Messenger Body: Platform / Chassis From date: 01-01-1994 To date: 01-09-1996 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 120.55 Size of motor: 2.5 Brand of engine: 8140.47.2585 Type description: Messenger Body: Semi-Trailer From date: 01-01-1994 To date: 01-09-1996 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 120.55 Size of motor: 2.5 Brand of engine: 8140.47.2585 Type description: Messenger Body: Twin Cab From date: 01-01-1994 To date: 01-09-1996 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 120.55 Size of motor: 2.8 Brand of engine: 8140.43.2585 Type description: Messenger Body: Platform / Chassis From date: 01-09-1996 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 120.55 Size of motor: 2.8 Brand of engine: 8140.43.2585 Type description: Messenger Body: Semi-Trailer From date: 01-09-1996 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 120.55 Size of motor: 2.8 Brand of engine: 8140.43.2585 Type description: Messenger Body: Twin Cab From date: 01-09-1996 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 120.65 Size of motor: 2.5 Brand of engine: 8140.47.2585 Type description: Messenger Body: Platform / Chassis From date: 01-01-1994 To date: 01-09-1996 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 120.65 Size of motor: 2.8 Brand of engine: 8140.43.2585 Type description: Messenger Body: Platform / Chassis From date: 01-09-1996 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 80.35 Size of motor: 2.5 Brand of engine: 8140.07.2530ID Type description: Messenger Body: Platform / Chassis From date: 01-09-1990 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 80.35 Size of motor: 2.5 Brand of engine: 8140.07.2530ID Type description: Messenger Body: Twin Cab From date: 01-09-1990 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 80.35 Size of motor: 2.5 Brand of engine: 8140.07.2585 Type description: Messenger Body: Platform / Chassis From date: 01-09-1990 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 80.35 Size of motor: 2.5 Brand of engine: 8140.07.2585 Type description: Messenger Body: Twin Cab From date: 01-09-1990 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 80.35 Size of motor: 2.5 Brand of engine: 8140.67.2585 Type description: Messenger Body: Platform / Chassis From date: 01-09-1990 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 80.35 Size of motor: 2.5 Brand of engine: 8140.67.2585 Type description: Messenger Body: Twin Cab From date: 01-09-1990 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 80.45 Size of motor: 2.5 Brand of engine: 8140.07.2530ID Type description: Messenger Body: Platform / Chassis From date: 01-09-1990 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 80.45 Size of motor: 2.5 Brand of engine: 8140.07.2530ID Type description: Messenger Body: Twin Cab From date: 01-09-1990 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 80.45 Size of motor: 2.5 Brand of engine: 8140.07.2585 Type description: Messenger Body: Platform / Chassis From date: 01-09-1990 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 80.45 Size of motor: 2.5 Brand of engine: 8140.07.2585 Type description: Messenger Body: Twin Cab From date: 01-09-1990 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 80.45 Size of motor: 2.5 Brand of engine: 8140.67.2585 Type description: Messenger Body: Platform / Chassis From date: 01-09-1990 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Messenger Model series: B 80.45 Size of motor: 2.5 Brand of engine: 8140.67.2585 Type description: Messenger Body: Twin Cab From date: 01-09-1990 To date: 01-06-1999 Fuel: Diesel Approved: Yes
    Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U758 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U780 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Arena Model series: Arena Type of engine: Diesel Size of motor: 2.5 Brand of engine: S8U782 Body: Bus From date: 01-03-1998 To date: 01-08-2001 Fuel: Diesel Approved: Yes
