Artikelnr: F032111608

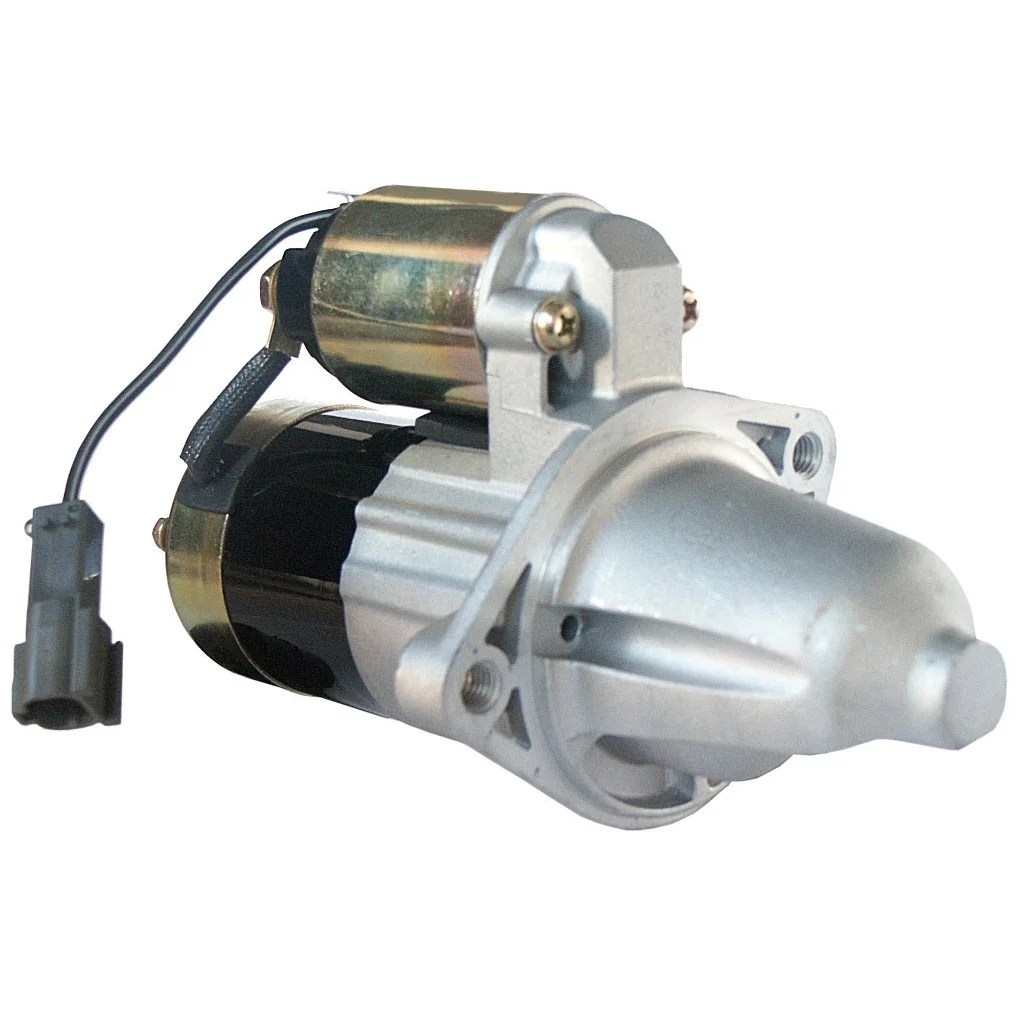

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.4, No./teeth: 8, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.4
Mount. flange: 82.50
Drive dist.: 43.00
Dist./back: 134.00
Dist./front: 78.00
No./teeth: 8
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 106.00
Rotation: CW
Total length mm: 216.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (2)
Position/50 45
Prod. info BN
Rotation CW
Dist./back 134.00
Dist./front 78.00
Drive dist. 43.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 216.00 mm
Waterproof No
Dist. 106.00 mm

  • OEM
    F032111608, js627, M001T72981, M001T72981A, M001T78881, m1t72981, m1t72981a, m1t78881, RGO 111608, s114-523, 23300-2J261, 23300-35F00, 23300-4e210, 23300-53j11, 23300-53j12, 23300-63j10, 23300-63j11, 23300-70j10, 23300-70j11, 23300-70j12, 26813, 26834, 26841, 26845

  • Konkurrentreferens
    ads-164, CST35119, d1s7246, drs3207, DRS3729, ds17246, ds17455, dste174, F042001072, F042S01072, FRS600, lrs00710, LRS02046, MS145, MSN157, QS1424, s1770, S5017, s9237, sd-00122r, sd-00124r, smt0061, SR2262X, STR-3080, STR3026, vs244, 2-1128-mi, 8EA012528-011, 8ea726513-001, 25-1246, 25-1405, 25-1484, 28-52.146, 28-52.155, 28-52.156, 35-2430, 44-6534, 91-27-3117, 327.041.082, 327.054.082, 327.213.082, 1462, 9562, 9574, 11689, 17246, 17246N, 17264, 17745N, 17745R, 31476, 220192, 220192A, 455581, 458206, 8052156, 8212912, 11040155, 11040169, 063226845, 0986016591

  • Normaliserat artikelnummer
    ads164, cst35119, d1s7246, drs3207, drs3729, ds17246, ds17455, dste174, f032111608, f042001072, f042s01072, frs600, js627, lrs00710, lrs02046, m001t72981, m001t72981a, m001t78881, m1t72981, m1t72981a, m1t78881, ms145, msn157, qs1424, rgo111608, s114523, s1770, s5017, s9237, sd00122r, sd00124r, smt0061, sr2262x, str3026, str3080, vs244, 8ea012528011, 8ea726513001, 1462, 9562, 9574, 11689, 17246, 17246n, 17264, 17745n, 17745r, 21128mi, 26813, 26834, 26841, 26845, 31476, 220192, 220192a, 233002j261, 233004e210, 251246, 251405, 251484, 352430, 446534, 455581, 458206, 2330035f00, 2330053j11, 2330053j12, 2330063j10, 2330063j11, 2330070j10, 2330070j11, 2330070j12, 2852146, 2852155, 2852156, 8052156, 8212912, 11040155, 11040169, 063226845, 91273117, 327041082, 327054082, 327213082, 0986016591

  • Passar modeller
    Infiniti Model: G20 Model series: G20 Size of motor: 2.0 Brand of engine: SR20DE From date: 01-01-1991 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    Infiniti Model: G20 Model series: G20 Size of motor: 2.0 Brand of engine: SR20DE From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Nissan Model: 100 Model series: 100NX Type of engine: GTi Size of motor: 2.0 Brand of engine: SR20DE Type description: B13 Body: Coupe From date: 01-03-1991 To date: 01-10-1994 Fuel: Gasoline Approved: Yes
    Nissan Model: 200 Model series: 200SX Model type: SE-R Size of motor: 2.0 Brand of engine: SR20DE From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Nissan Model: 200 Model series: 200SX Size of motor: 2.0 Brand of engine: SR20DE From date: 01-01-1995 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Nissan Model: NX Model series: NX Size of motor: 2.0 Brand of engine: SR20DE From date: 01-01-1991 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Model type: 4WD Type of engine: 16V Size of motor: 2.0 Brand of engine: SR20DI Type description: P10 Body: Hatchback From date: 01-04-1991 To date: 01-06-1996 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Model type: 4WD Type of engine: 16V Size of motor: 2.0 Brand of engine: SR20DI Type description: P10 From date: 01-04-1991 To date: 01-06-1996 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Model type: GT Size of motor: 2.0 Brand of engine: SR20DE Type description: P10 From date: 01-06-1990 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: SR20DE Type description: P10 Body: Hatchback From date: 01-06-1990 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: SR20DE Type description: P10 Body: Hatchback From date: 01-09-1990 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: SR20DI Type description: P10 Body: Hatchback From date: 01-06-1990 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: SR20DI Type description: P10 From date: 01-06-1990 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: SR20DI Type description: W10 Body: Estate From date: 01-07-1990 To date: 01-03-1998 Fuel: Gasoline Approved: Yes Manufacture type: traveller
    Nissan Model: Primera Model series: Primera Type of engine: 16V Size of motor: 2.0 Brand of engine: SR20DE Type description: P11 Body: Hatchback From date: 01-09-1996 To date: 01-07-2002 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: 16V Size of motor: 2.0 Brand of engine: SR20DE Type description: P11 From date: 01-09-1996 To date: 01-12-2001 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: i Size of motor: 2.0 Brand of engine: SR20DE Type description: P10 From date: 01-01-1995 To date: 01-06-1996 Fuel: Gasoline Approved: Yes
    Nissan Model: Sentra Model series: Sentra Model type: SE-R Size of motor: 2.0 Brand of engine: SR20DE From date: 01-01-1991 To date: 01-01-1994 Fuel: Gasoline Approved: Yes
    Nissan Model: Sentra Model series: Sentra Size of motor: 2.0 Brand of engine: SR20DE Type description: B13 Body: Saloon From date: 01-02-1992 To date: 01-12-1994 Fuel: Petrol Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: GTi 16V Size of motor: 2.0 Brand of engine: SR20DE Type description: N14 Body: Hatchback From date: 01-10-1990 To date: 01-05-1995 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: i 16V Size of motor: 2.0 Brand of engine: SR20DE Type description: N14 Body: Hatchback From date: 01-10-1990 To date: 01-05-1995 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 12
    kW: 1.4
    Mount. flange: 82.50
    Drive dist.: 43.00
    Dist./back: 134.00
    Dist./front: 78.00
    No./teeth: 8
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 106.00
    Rotation: CW
    Total length mm: 216.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 45
    Prod. info BN
    Rotation CW
    Dist./back 134.00
    Dist./front 78.00
    Drive dist. 43.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 216.00 mm
    Waterproof No
    Dist. 106.00 mm
  • Fordonsmatchning

    • OEM
      F032111608, js627, M001T72981, M001T72981A, M001T78881, m1t72981, m1t72981a, m1t78881, RGO 111608, s114-523, 23300-2J261, 23300-35F00, 23300-4e210, 23300-53j11, 23300-53j12, 23300-63j10, 23300-63j11, 23300-70j10, 23300-70j11, 23300-70j12, 26813, 26834, 26841, 26845

    • Konkurrentreferens
      ads-164, CST35119, d1s7246, drs3207, DRS3729, ds17246, ds17455, dste174, F042001072, F042S01072, FRS600, lrs00710, LRS02046, MS145, MSN157, QS1424, s1770, S5017, s9237, sd-00122r, sd-00124r, smt0061, SR2262X, STR-3080, STR3026, vs244, 2-1128-mi, 8EA012528-011, 8ea726513-001, 25-1246, 25-1405, 25-1484, 28-52.146, 28-52.155, 28-52.156, 35-2430, 44-6534, 91-27-3117, 327.041.082, 327.054.082, 327.213.082, 1462, 9562, 9574, 11689, 17246, 17246N, 17264, 17745N, 17745R, 31476, 220192, 220192A, 455581, 458206, 8052156, 8212912, 11040155, 11040169, 063226845, 0986016591

    • Normaliserat artikelnummer
      ads164, cst35119, d1s7246, drs3207, drs3729, ds17246, ds17455, dste174, f032111608, f042001072, f042s01072, frs600, js627, lrs00710, lrs02046, m001t72981, m001t72981a, m001t78881, m1t72981, m1t72981a, m1t78881, ms145, msn157, qs1424, rgo111608, s114523, s1770, s5017, s9237, sd00122r, sd00124r, smt0061, sr2262x, str3026, str3080, vs244, 8ea012528011, 8ea726513001, 1462, 9562, 9574, 11689, 17246, 17246n, 17264, 17745n, 17745r, 21128mi, 26813, 26834, 26841, 26845, 31476, 220192, 220192a, 233002j261, 233004e210, 251246, 251405, 251484, 352430, 446534, 455581, 458206, 2330035f00, 2330053j11, 2330053j12, 2330063j10, 2330063j11, 2330070j10, 2330070j11, 2330070j12, 2852146, 2852155, 2852156, 8052156, 8212912, 11040155, 11040169, 063226845, 91273117, 327041082, 327054082, 327213082, 0986016591

    • Passar modeller
      Infiniti Model: G20 Model series: G20 Size of motor: 2.0 Brand of engine: SR20DE From date: 01-01-1991 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
      Infiniti Model: G20 Model series: G20 Size of motor: 2.0 Brand of engine: SR20DE From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      Nissan Model: 100 Model series: 100NX Type of engine: GTi Size of motor: 2.0 Brand of engine: SR20DE Type description: B13 Body: Coupe From date: 01-03-1991 To date: 01-10-1994 Fuel: Gasoline Approved: Yes
      Nissan Model: 200 Model series: 200SX Model type: SE-R Size of motor: 2.0 Brand of engine: SR20DE From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Nissan Model: 200 Model series: 200SX Size of motor: 2.0 Brand of engine: SR20DE From date: 01-01-1995 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
      Nissan Model: NX Model series: NX Size of motor: 2.0 Brand of engine: SR20DE From date: 01-01-1991 To date: 01-01-1993 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Model type: 4WD Type of engine: 16V Size of motor: 2.0 Brand of engine: SR20DI Type description: P10 Body: Hatchback From date: 01-04-1991 To date: 01-06-1996 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Model type: 4WD Type of engine: 16V Size of motor: 2.0 Brand of engine: SR20DI Type description: P10 From date: 01-04-1991 To date: 01-06-1996 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Model type: GT Size of motor: 2.0 Brand of engine: SR20DE Type description: P10 From date: 01-06-1990 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: SR20DE Type description: P10 Body: Hatchback From date: 01-06-1990 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: SR20DE Type description: P10 Body: Hatchback From date: 01-09-1990 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: SR20DI Type description: P10 Body: Hatchback From date: 01-06-1990 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: SR20DI Type description: P10 From date: 01-06-1990 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Size of motor: 2.0 Brand of engine: SR20DI Type description: W10 Body: Estate From date: 01-07-1990 To date: 01-03-1998 Fuel: Gasoline Approved: Yes Manufacture type: traveller
      Nissan Model: Primera Model series: Primera Type of engine: 16V Size of motor: 2.0 Brand of engine: SR20DE Type description: P11 Body: Hatchback From date: 01-09-1996 To date: 01-07-2002 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: 16V Size of motor: 2.0 Brand of engine: SR20DE Type description: P11 From date: 01-09-1996 To date: 01-12-2001 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: i Size of motor: 2.0 Brand of engine: SR20DE Type description: P10 From date: 01-01-1995 To date: 01-06-1996 Fuel: Gasoline Approved: Yes
      Nissan Model: Sentra Model series: Sentra Model type: SE-R Size of motor: 2.0 Brand of engine: SR20DE From date: 01-01-1991 To date: 01-01-1994 Fuel: Gasoline Approved: Yes
      Nissan Model: Sentra Model series: Sentra Size of motor: 2.0 Brand of engine: SR20DE Type description: B13 Body: Saloon From date: 01-02-1992 To date: 01-12-1994 Fuel: Petrol Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: GTi 16V Size of motor: 2.0 Brand of engine: SR20DE Type description: N14 Body: Hatchback From date: 01-10-1990 To date: 01-05-1995 Fuel: Gasoline Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: i 16V Size of motor: 2.0 Brand of engine: SR20DE Type description: N14 Body: Hatchback From date: 01-10-1990 To date: 01-05-1995 Fuel: Gasoline Approved: Yes
      1 / 5
