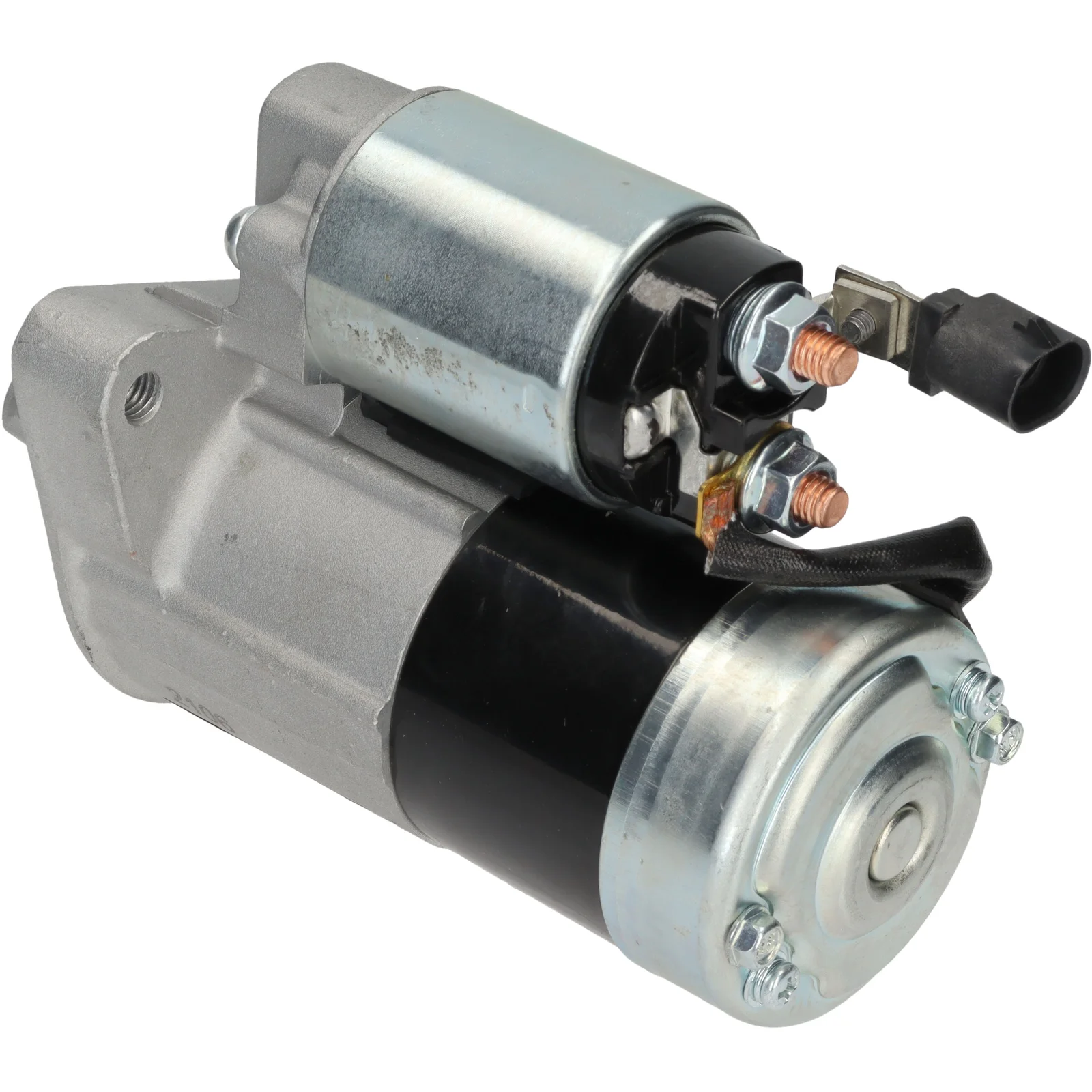

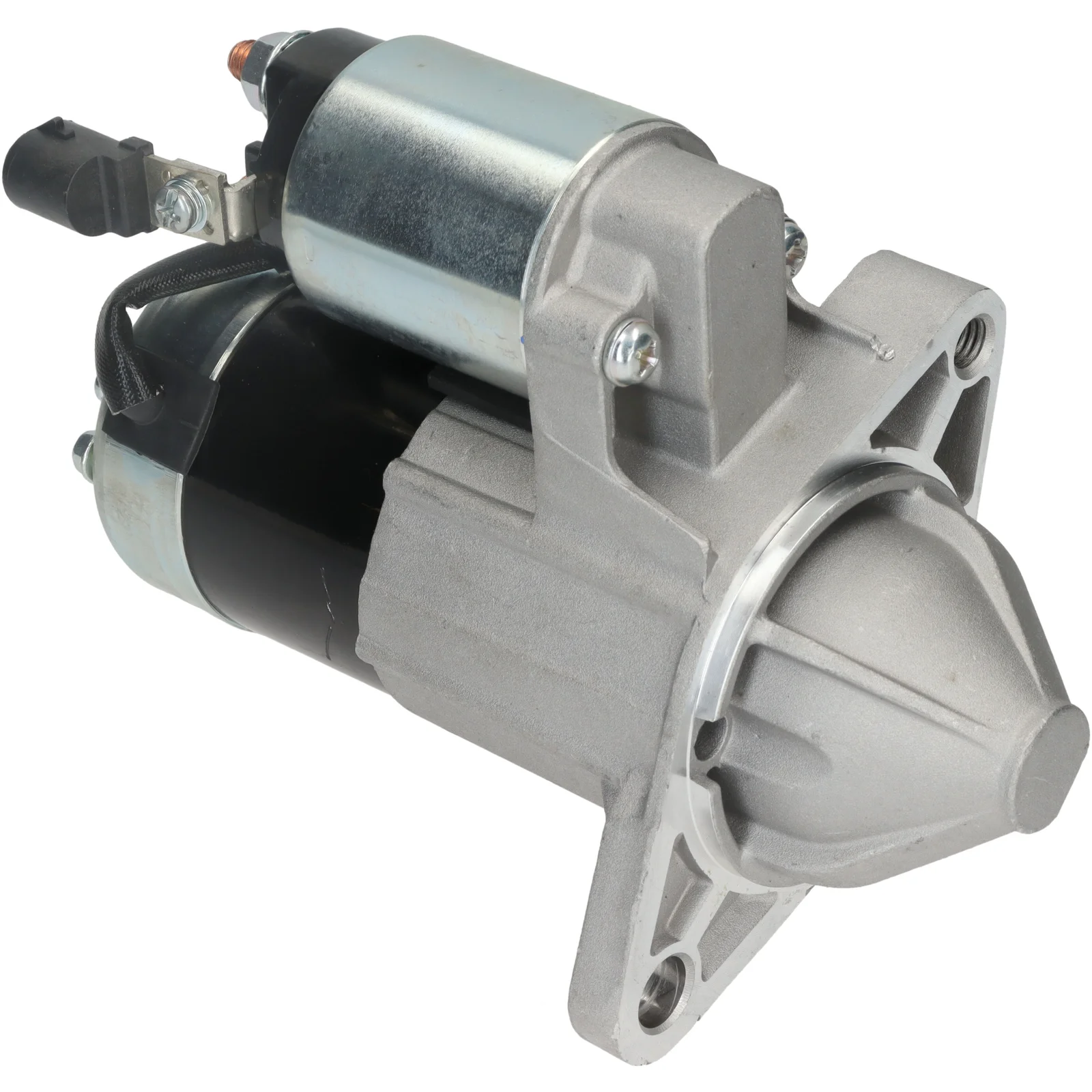

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116644

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.2
Mount. flange: 74.00
Drive dist.: 9.00
Mount. hole 2 mm: 2.80
Dist./back: 147.50
Dist./front: 45.50
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: Plug
Gear type: GR
Dist. mm: 120.00
Rotation: CW
Total length mm: 194.00
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 15
Position/B+ 60
Rotation CW
Dist./back 147.50
Dist./front 45.50
Drive dist. 9.00
Gear type GR
kW 1.2
Terminal 50 Plug
Voltage 12
Total length 194.00 mm
Dist. 120.00 mm
Mount. hole 2 2.80 mm

  • OEM
    F032116644, js1316, M000T84881, M000T84881ZC, M000T84882, M000T84882ZC, m0t84881, M0T84881ZC, M0T84882, M0T84882ZC, RGO 116644, 1986S01219, 05033067AA, 05033067AB, 5033067aa, 5033067ab

  • Konkurrentreferens
    CST35167, CST35167AS, DRS0083, lrs01739, S5339S, 8EA011611-291, 25-3298, 634.032.092, 830.559.082, 830.559.092, 830.559.092.130, 106196, 201315, 201316, 458769, 8080276, 8212201, 11040788, 0986023890

  • Normaliserat artikelnummer
    cst35167, cst35167as, drs0083, f032116644, js1316, lrs01739, m000t84881, m000t84881zc, m000t84882, m000t84882zc, m0t84881, m0t84881zc, m0t84882, m0t84882zc, rgo116644, s5339s, 8ea011611291, 1986s01219, 106196, 201315, 201316, 253298, 458769, 05033067aa, 05033067ab, 5033067aa, 5033067ab, 8080276, 8212201, 11040788, 634032092, 830559082, 830559092, 0986023890, 830559092130

  • Passar modeller
    Chrysler Model: Neon Model series: Neon Type of engine: 16V Size of motor: 2.0 Brand of engine: ECB Type description: PL From date: 01-10-2002 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Convertible Size of motor: 2.4 Brand of engine: EDZ Body: Convertible From date: 01-06-2000 To date: 01-12-2010 Fuel: Petrol Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Size of motor: 2.0 Brand of engine: ECC Type description: PT_ From date: 01-10-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Size of motor: 2.4 Brand of engine: EDZ Body: Convertible From date: 01-03-2004 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
    Chrysler Model: Pt Cruiser Model series: Pt Cruiser Size of motor: 2.4 Brand of engine: EDZ Type description: PT_ Body: Estate Fuel: Petrol Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Size of motor: 2.4 Brand of engine: EDZ Type description: PT_ From date: 01-08-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: 16V Size of motor: 1.6 Brand of engine: EJD Type description: PT_ From date: 01-11-2001 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: 16V Size of motor: 2.0 Brand of engine: ECC Type description: PT_ From date: 01-06-2000 To date: 01-09-2004 Fuel: Gasoline Approved: Yes
    Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: 16V Size of motor: 2.4 Brand of engine: EDZ Type description: PT_ From date: 01-06-2000 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Chrysler Model: Sebring Model series: Sebring Size of motor: 2.0 Brand of engine: ECC Type description: JR Body: Convertible From date: 01-04-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Chrysler Model: Sebring Model series: Sebring Size of motor: 2.0 Brand of engine: ECC Type description: JR From date: 01-04-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Chrysler Model: Sebring Model series: Sebring Type of engine: V6 24V Size of motor: 2.7 Brand of engine: EER Type description: JR From date: 01-04-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Chrysler Model: Sebring Model series: Sebring Type of engine: V6 24V Size of motor: 2.7 Brand of engine: EES Type description: JR Body: Convertible From date: 01-04-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Chrysler Model: Sebring Model series: Sebring Type of engine: V6 24V Size of motor: 2.7 Brand of engine: EES Type description: JR From date: 01-04-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Dodge Model: Neon Model series: Neon Type of engine: 16V Size of motor: 2.0 Brand of engine: ECB From date: 01-08-1999 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 1.2
    Mount. flange: 74.00
    Drive dist.: 9.00
    Mount. hole 2 mm: 2.80
    Dist./back: 147.50
    Dist./front: 45.50
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 120.00
    Rotation: CW
    Total length mm: 194.00
    No./mount. holes: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 15
    Position/B+ 60
    Rotation CW
    Dist./back 147.50
    Dist./front 45.50
    Drive dist. 9.00
    Gear type GR
    kW 1.2
    Terminal 50 Plug
    Voltage 12
    Total length 194.00 mm
    Dist. 120.00 mm
    Mount. hole 2 2.80 mm
  • Fordonsmatchning

    • OEM
      F032116644, js1316, M000T84881, M000T84881ZC, M000T84882, M000T84882ZC, m0t84881, M0T84881ZC, M0T84882, M0T84882ZC, RGO 116644, 1986S01219, 05033067AA, 05033067AB, 5033067aa, 5033067ab

    • Konkurrentreferens
      CST35167, CST35167AS, DRS0083, lrs01739, S5339S, 8EA011611-291, 25-3298, 634.032.092, 830.559.082, 830.559.092, 830.559.092.130, 106196, 201315, 201316, 458769, 8080276, 8212201, 11040788, 0986023890

    • Normaliserat artikelnummer
      cst35167, cst35167as, drs0083, f032116644, js1316, lrs01739, m000t84881, m000t84881zc, m000t84882, m000t84882zc, m0t84881, m0t84881zc, m0t84882, m0t84882zc, rgo116644, s5339s, 8ea011611291, 1986s01219, 106196, 201315, 201316, 253298, 458769, 05033067aa, 05033067ab, 5033067aa, 5033067ab, 8080276, 8212201, 11040788, 634032092, 830559082, 830559092, 0986023890, 830559092130

    • Passar modeller
      Chrysler Model: Neon Model series: Neon Type of engine: 16V Size of motor: 2.0 Brand of engine: ECB Type description: PL From date: 01-10-2002 To date: 01-12-2006 Fuel: Gasoline Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Convertible Size of motor: 2.4 Brand of engine: EDZ Body: Convertible From date: 01-06-2000 To date: 01-12-2010 Fuel: Petrol Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Size of motor: 2.0 Brand of engine: ECC Type description: PT_ From date: 01-10-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Size of motor: 2.4 Brand of engine: EDZ Body: Convertible From date: 01-03-2004 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
      Chrysler Model: Pt Cruiser Model series: Pt Cruiser Size of motor: 2.4 Brand of engine: EDZ Type description: PT_ Body: Estate Fuel: Petrol Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Size of motor: 2.4 Brand of engine: EDZ Type description: PT_ From date: 01-08-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: 16V Size of motor: 1.6 Brand of engine: EJD Type description: PT_ From date: 01-11-2001 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: 16V Size of motor: 2.0 Brand of engine: ECC Type description: PT_ From date: 01-06-2000 To date: 01-09-2004 Fuel: Gasoline Approved: Yes
      Chrysler Model: PT Cruiser Model series: PT Cruiser Type of engine: 16V Size of motor: 2.4 Brand of engine: EDZ Type description: PT_ From date: 01-06-2000 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Chrysler Model: Sebring Model series: Sebring Size of motor: 2.0 Brand of engine: ECC Type description: JR Body: Convertible From date: 01-04-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Chrysler Model: Sebring Model series: Sebring Size of motor: 2.0 Brand of engine: ECC Type description: JR From date: 01-04-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Chrysler Model: Sebring Model series: Sebring Type of engine: V6 24V Size of motor: 2.7 Brand of engine: EER Type description: JR From date: 01-04-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Chrysler Model: Sebring Model series: Sebring Type of engine: V6 24V Size of motor: 2.7 Brand of engine: EES Type description: JR Body: Convertible From date: 01-04-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Chrysler Model: Sebring Model series: Sebring Type of engine: V6 24V Size of motor: 2.7 Brand of engine: EES Type description: JR From date: 01-04-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Dodge Model: Neon Model series: Neon Type of engine: 16V Size of motor: 2.0 Brand of engine: ECB From date: 01-08-1999 Fuel: Gasoline Approved: Yes
