Artikelnr: F032113389

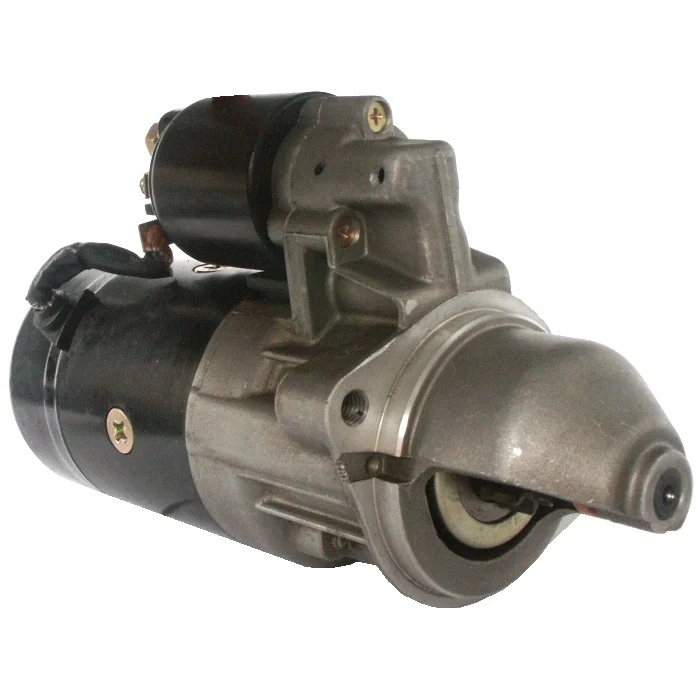

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.2
Mount. flange: 82.50
Drive dist.: 26.00
Dist./back: 209.00
Dist./front: 63.00
No./teeth: 10
B+: M8
Position/50: 15
Terminal 50: M4
Gear type: GR
Dist. mm: 104.50
Rotation: CW
Total length mm: 272.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (2)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 209.00
Dist./front 63.00
Drive dist. 26.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 M4
Voltage 12
Total length 272.50 mm
Waterproof No
Dist. 104.50 mm

  • OEM
    A0041512001, A004151200180, A0041513601, A004151360180, a0061512701, AZE4140, cs576, F032113389, RGO 113389, 11.139.441, 860100, 0001218016, 0001218110, 0001218710, 1516778R, 0041512001, 0041513601, 0061512701, 004151200180, 004151360180

  • Konkurrentreferens
    ALT20050, CST10161, drs3910, F042002140, F042S02140, IS9434, lrs00744, MS127, S0144, STR-B001, STR50190, STRB001, vs310, 8ea726200-001, 25-1264, 25-13.910, 25-2138, 325.013.102, 1633, 3803, 10576, 30775N, 33825, 103503, 106248, 203025, 220101, 220101A, 455624, 8013910, 11013910, 42013910, 943251302, 0986013910, 0986013913, 943251302010, 944280139100

  • Normaliserat artikelnummer
    a0041512001, a004151200180, a0041513601, a004151360180, a0061512701, alt20050, aze4140, cs576, cst10161, drs3910, f032113389, f042002140, f042s02140, is9434, lrs00744, ms127, rgo113389, s0144, str50190, strb001, vs310, 8ea726200001, 1633, 3803, 10576, 30775n, 33825, 103503, 106248, 203025, 220101, 220101a, 251264, 252138, 455624, 860100, 0001218016, 0001218110, 0001218710, 1516778r, 2513910, 8013910, 11013910, 11139441, 0041512001, 0041513601, 42013910, 0061512701, 325013102, 943251302, 0986013910, 0986013913, 004151200180, 004151360180, 943251302010, 944280139100

  • Passar modeller
    Mercedes-Benz Model: 208 Model series: 208 Type of engine: Diesel Size of motor: 2.3 Brand of engine: OM601.940 Type description: 601 Body: Bus From date: 01-10-1988 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 208 Model series: 208 Type of engine: Diesel Size of motor: 2.3 Brand of engine: OM601.940 Type description: 601 Body: Platform / Chassis From date: 01-06-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 208 Model series: 208 Type of engine: Diesel Size of motor: 2.3 Brand of engine: OM601.940 Type description: 601 Body: Platform / Chassis From date: 01-11-1988 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 208 Model series: 208 Type of engine: Diesel Size of motor: 2.3 Brand of engine: OM601.940 Type description: 601 Body: Van From date: 01-10-1988 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 208 Model series: 208 Type of engine: Diesel Size of motor: 2.3 Brand of engine: OM601.940 Type description: 601 Body: Van From date: 01-11-1988 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 210 Model series: 210 Type of engine: Diesel Size of motor: 2.9 Brand of engine: OM602.940 Type description: 601 Body: Bus From date: 01-11-1988 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 210 Model series: 210 Type of engine: Diesel Size of motor: 2.9 Brand of engine: OM602.940 Type description: 601 Body: Platform / Chassis From date: 01-11-1988 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 210 Model series: 210 Type of engine: Diesel Size of motor: 2.9 Brand of engine: OM602.940 Type description: 601 Body: Van From date: 01-10-1988 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 308 Model series: 308 Type of engine: Diesel Size of motor: 2.3 Brand of engine: OM601.940 Type description: 601 Body: Bus From date: 01-06-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 308 Model series: 308 Type of engine: Diesel Size of motor: 2.3 Brand of engine: OM601.940 Type description: 601 Body: Platform / Chassis From date: 01-06-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 308 Model series: 308 Type of engine: Diesel Size of motor: 2.3 Brand of engine: OM601.940 Type description: 601 Body: Van From date: 01-11-1988 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 308 Model series: 308 Type of engine: Diesel Size of motor: 2.3 Brand of engine: OM601.940 Type description: 602 Body: Bus From date: 01-05-1990 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 308 Model series: 308 Type of engine: Diesel Size of motor: 2.3 Brand of engine: OM601.940 Type description: 602 Body: Platform / Chassis From date: 01-06-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 308 Model series: 308 Type of engine: Diesel Size of motor: 2.3 Brand of engine: OM601.940 Type description: 602 Body: Van From date: 01-06-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 310 Model series: 310 Type of engine: Diesel Size of motor: 2.9 Brand of engine: OM602.940 Type description: 601 Body: Bus From date: 01-06-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 310 Model series: 310 Type of engine: Diesel Size of motor: 2.9 Brand of engine: OM602.940 Type description: 601 Body: Bus From date: 01-06-1990 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 310 Model series: 310 Type of engine: Diesel Size of motor: 2.9 Brand of engine: OM602.940 Type description: 601 Body: Van From date: 01-06-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 310 Model series: 310 Type of engine: Diesel Size of motor: 2.9 Brand of engine: OM602.940 Type description: 602 Body: Platform / Chassis From date: 01-06-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 310 Model series: 310 Type of engine: Diesel Size of motor: 2.9 Brand of engine: OM602.940 Type description: 602 Body: Van From date: 01-06-1989 To date: 01-02-1996 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 4t Model series: 408 Type of engine: Diesel Size of motor: 2.3 Brand of engine: OM601.940 Type description: T1/TN Body: Platform / Chassis From date: 01-11-1988 To date: 01-06-1995 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 4t Model series: 408 Type of engine: Diesel Size of motor: 2.3 Brand of engine: OM601.940 Type description: T1/TN Body: Twin Cab From date: 01-11-1988 To date: 01-06-1995 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 4t Model series: 410 Type of engine: Diesel Size of motor: 2.9 Brand of engine: OM602.940 Type description: T1/TN Body: Platform / Chassis From date: 01-11-1988 To date: 01-06-1995 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 4t Model series: 410 Type of engine: Diesel Size of motor: 2.9 Brand of engine: OM602.940 Type description: T1/TN Body: Twin Cab From date: 01-11-1988 To date: 01-06-1995 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: O 100 Model series: O 100 Size of motor: 2.9 Brand of engine: OM602.940 Body: Bus From date: 01-01-1994 Fuel: Diesel Approved: Yes
